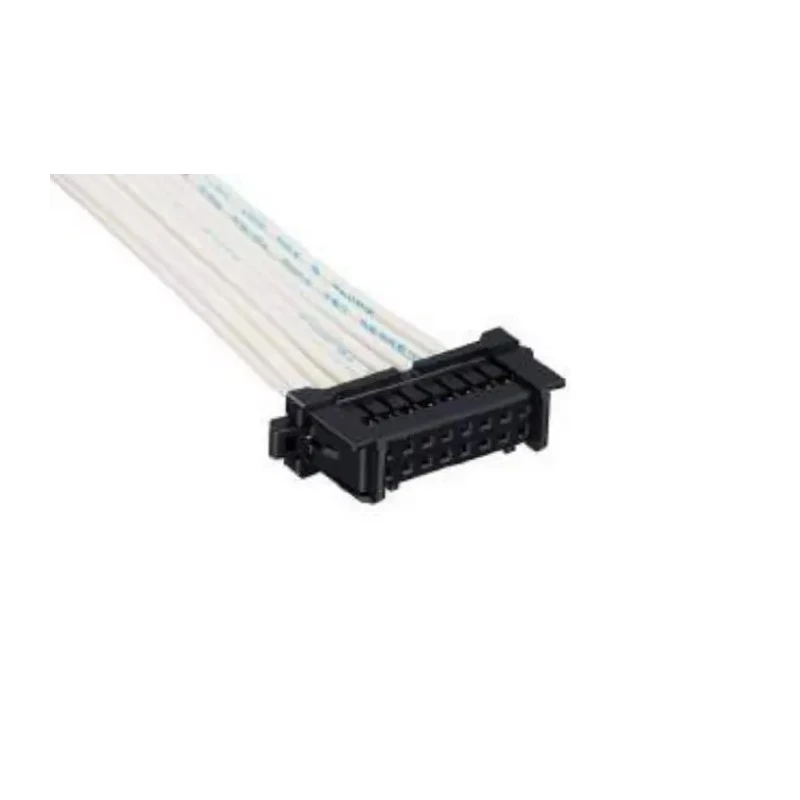

Hirose DF51 Female Crimp Connector Housing 2 mm Pitch 20 Way 2 Row Straight
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | Hirose |
| Orientation | Straight |
| Length | 31mm |
| Model | DF51 |
| Width | 10.7mm |
| Mount Type | Cable |
| Housing Material | Polyamide |
| Series | DF51 |
| Number of Rows | 2 |
| Pitch | 2mm |
| For Use With | DF51 Series Connectors |
| Number of Contacts | 20 |
| Connector Gender | Female |
Key Features
- Designed for reliable wire-to-board connections in industrial and automation applications.
- Accommodates 20 contacts with dual row layout for compact design requirements.
- Features a positive side-locking mechanism for secure mating and tactile feedback.
- Supports cable mounting and straight orientation for flexible installation.
- Housing constructed from polyamide for durability.
- 2 mm pitch allows compatibility with standard wire ranges and supports high-density circuitry.
- Electrically polarized to prevent incorrect mating and ensure reliable operation.
- Suitable for use with DF51 Series connectors and compatible crimp terminals.
Product Description
The Hirose DF51-20DS-2C is a female crimp connector housing engineered for precise wire-to-board connections, making it ideal for integration in office automation, industrial machinery, robotics, amusement, and medical equipment. Its dual-row, 20-way configuration allows signal distribution in a compact footprint, facilitating high-density designs in printed circuit board assemblies.
With a 2 mm pitch and straight orientation, the DF51-20DS-2C supports flexible cable mounting and ensures compatibility with a wide range of wire gauges (22 to 30 AWG). The positive locking mechanism delivers clear tactile feedback while physically securing the connector, minimizing risks of incomplete mating and accidental disconnects in vibration-prone environments.
The connector housing is made from polyamide, offering robust mechanical strength while maintaining a light weight. The side-locking design further enhances reliability, while visual and mechanical polarization prevents reverse or incorrect mating with other connectors, safeguarding system integrity.
This model is compatible with DF51 series connectors and common crimping tools, enabling simple and efficient assembly. It is suitable for potting up to 3 mm, supporting additional environmental protection or insulation as needed. Gold and tin plating options (not included in this housing) can be applied to contacts for extended durability and improved conductivity, depending on the terminal selection.
Typical industrial use cases for the DF51-20DS-2C include automation equipment wiring, PCB interconnections in manufacturing controls, industrial robots, and devices requiring reliable wire harness solutions. The compact dimensions of 31 mm length by 10.7 mm width support low-profile designs and dense component placement, especially where space constraints exist.
The connector is not supplied with contacts; these must be specified separately based on application requirements. Explore Hirose's range of connector housings for advanced electronic integration in the Electronics & Electricals category on EnvMart.
Explore more products in our PCB Connector Housing category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Hirose DF51-20DS-2C features a 2 mm pitch and accommodates 20 contacts in a dual-row layout.
This model has a straight orientation, which supports flexible cable mounting.
The housing is constructed from polyamide, providing mechanical strength while keeping the weight light.
The dimensions are 31 mm in length and 10.7 mm in width, suitable for low-profile designs.
It supports a wide range of wire gauges from 22 to 30 AWG, making it versatile for various applications.
It features a positive side-locking mechanism that provides tactile feedback and secures the connection.
Yes, it is designed for reliable wire-to-board connections in industrial and automation applications.
This housing is compatible with DF51 series connectors and common crimping tools for easy assembly.
No, the contacts must be specified and purchased separately based on application requirements.
The Hirose DF51-20DS-2C is manufactured in Japan.
Typical applications include office automation, industrial machinery, robotics, and medical equipment wiring.
This model supports potting up to 3 mm, allowing for additional environmental protection or insulation.
