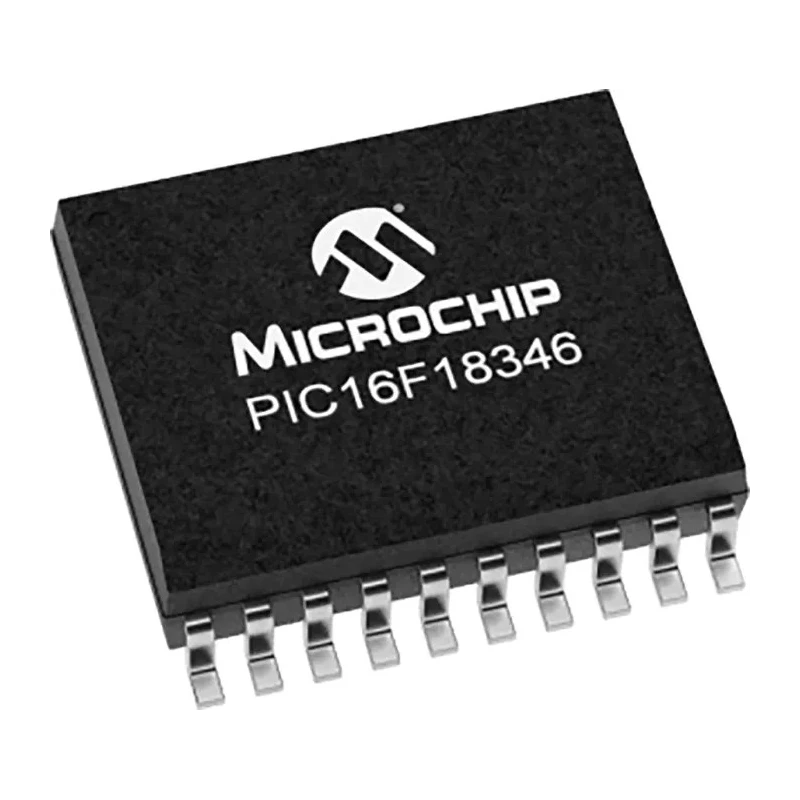

Microchip PIC16F18346 8-bit Microcontroller, 32 MHz, 28kB FLASH, 20-Pin SOIC PIC16F18346-I/SO
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Height | 2.35mm |
| Length | 12.8mm |
| Model | PIC16F18346-I/SO |
| Width | 7.5mm |
| Mount Type | Surface |
| Series | PIC16F18346 |
| Maximum Operating Temperature | 85°C |
| Package Type | SOIC |
| Minimum Operating Temperature | -40°C |
| Ram size | 2kB |
| Pin Count | 20 |
| Automotive Standard | AEC-Q100 |
| Maximum Supply Voltage | 5.5V |
| Maximum Power Dissipation Pd | 800mW |
| Minimum Supply Voltage | 2.3V |
| Device Core | PIC |
| Program Memory Size | 28kB |
| Maximum Clock Frequency | 32MHz |
| Number of Programmable I/Os | 18 |
| Analogue Comparators | 2 |
| Number of Timers | 2 |
| Instruction Set Architecture | RISC |
| ADCs | 17 x 10 Bit |
| Program Memory Type | FLASH |
| DACs | 1 x 5 Bit |
Key Features
- Features enhanced mid-range core with 49 instructions and 16 stack levels.
- Provides 28kB FLASH program memory and 2kB RAM for robust storage and processing.
- Operates at up to 32 MHz clock frequency for fast execution.
- Includes advanced analog and digital peripherals, with 17-channel 10-bit ADC and 1 x 5-bit DAC.
- Supports extreme low power modes for energy-efficient operation.
- Offers 18 programmable I/O pins and multiple timers (2 x 10-bit PWM, 4 x CCP, 3 x 16-bit timer).
- Surface mount SOIC package for reliable PCB integration.
- Wide supply voltage range from 2.3V to 5.5V and automotive standard (AEC-Q100) compliance.
Product Description
Microchip PIC16F18346-I/SO is a high-performance 8-bit microcontroller designed for industrial, embedded, and commercial applications requiring compact form factor and reliable processing capabilities. This device features a powerful mid-range core operating at up to 32 MHz, capable of executing a diverse set of instructions with 49 available operations and 16 stack levels, ensuring flexible control logic and efficient processing.
Equipped with 28kB of self-read/write FLASH program memory and 2kB of RAM, the PIC16F18346-I/SO supports robust program storage and data processing. Extreme Low Power (XLP) modes are integrated, allowing the microcontroller to operate efficiently in battery-powered and energy-sensitive environments.
The microcontroller includes advanced analog and digital peripherals. Its 17-channel, 10-bit analog-to-digital converter (ADC), dual analog comparators, and 1 x 5-bit digital-to-analog converter (DAC) provide precise measurement and control for sensors and instrumentation. Peripheral Module Disable (PMD) and Peripheral Pin Select (PPS) functions offer customizable hardware configuration.
Programmable I/O is extensive: 18 pins support flexible system integration. Multiple timers are available, including four 8-bit timers, three 16-bit timers, two 10-bit PWM modules, and four Capture, Compare, PWM (CCP) modules. A numerically controlled oscillator (NCO) and four Configurable Logic Controllers (CLC) extend versatility for timing and logic functions.
Communication interfaces include SPI/I2C and Enhanced Universal Synchronous Asynchronous Receiver Transmitter (EUSART), enabling connection to sensors, actuators, or other microcontrollers. Low/high voltage operation is supported - the supply voltage ranges from 2.3V to 5.5V, and power dissipation is rated up to 800mW.
The device meets the automotive AEC-Q100 standard and is assembled in a surface-mount SOIC package with 20 pins (12.8 x 7.5 x 2.35 mm). Applications span industrial automation, laboratory instrumentation, control systems, IoT devices, and commercial embedded solutions.
Engineers and designers benefit from the enhanced watchdog timer, programmable brown-out reset, and advanced power-on/off reset for improved reliability and safety. With analog, core-independent, and communication peripherals, the PIC16F18346-I/SO is an excellent selection for innovative electronic designs.
Explore more Microchip Microcontrollers and embedded solutions within EnvMart’s Electronics & Electricals category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum clock frequency of this microcontroller is 32 MHz, allowing for fast execution of instructions.
It features 28kB of FLASH program memory for robust program storage and execution.
The supply voltage range for the PIC16F18346 is from 2.3V to 5.5V, accommodating various power supply configurations.
This model has 18 programmable I/O pins, providing flexibility for system integration.
It includes a 17-channel 10-bit ADC, 2 analog comparators, and a 5-bit DAC for advanced measurement and control capabilities.
The dimensions of this unit are 12.8 mm in length, 7.5 mm in width, and 2.35 mm in height.
The operating temperature range is from -40°C to 85°C, making it suitable for various environmental conditions.
This microcontroller complies with the automotive AEC-Q100 standard, ensuring reliability in automotive applications.
It supports SPI, I2C, and Enhanced Universal Synchronous Asynchronous Receiver Transmitter (EUSART) for versatile connectivity.
This model is equipped with 2kB of RAM for data processing and storage needs.
It features multiple timers, including two 10-bit PWM modules, four Capture, Compare, PWM (CCP) modules, and three 16-bit timers.
The maximum power dissipation for this microcontroller is rated at 800mW, suitable for various applications.
