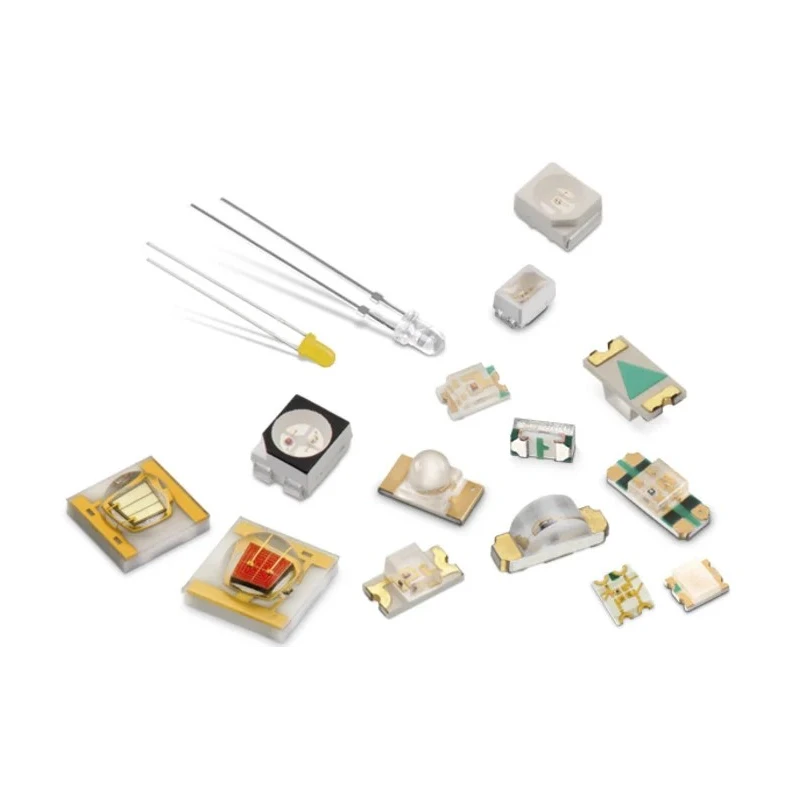

Wurth Elektronik RGB LED Surface Mount 2.4 V 1205 WL-SFRW 156125M173000
Specifications
| Country of Origin | Taiwan |
|---|---|
| Brand | Wurth Elektronik |
| Model | 156125M173000 |
| Packaging | Tape & Reel |
| Mount Type | Surface |
| Series | WL-SFRW |
| Number Of Leds | 3 |
| Maximum forward current | 20mA |
| Viewing angle | 120 ° |
| Package Type | 1205 |
| Standards/Approvals | RoHS |
| LED Colour | RGB |
| Dominant Wavelength | 470, 525, 624nm |
| Forward Voltage | 2.4V |
| Number of Pins | 4 |
| Maximum Power Dissipation | 48mW |
| Lens Shape | Rectangular |
| Lens Finish | Rectangular |
Key Features
- RGB LED configuration offers multi-colour capability in a single package.
- Surface mount design in 1205 package allows easy integration on standard PCBs.
- Forward voltage of 2.4 V and maximum forward current of 20 mA for reliable operation.
- Wide viewing angle of 120 degrees ensures strong visual performance in panels and indicators.
- Rectangular clear lens and RoHS compliance enhance application versatility.
- Tape & reel packaging is compatible with automated placement machines.
- Small footprint enables use in LCD backlighting, keypad and symbol illumination.
- Includes three LEDs and four pins for flexible electronic design.
Product Description
The Wurth Elektronik 156125M173000 is a high-quality RGB LED in a surface mount 1205 package, suitable for demanding displays and optoelectronics projects. Designed with a compact rectangular clear lens, this LED provides a dominant wavelength of 470, 525, and 624 nm for vibrant red, green and blue output, enabling full-colour mixing in applications such as front panel indicators, LCD backlighting, keypads and switch buttons.
With a forward voltage of 2.4 V and a maximum forward current of 20 mA, it ensures energy-efficient performance while maintaining exceptional brightness. The wide 120-degree viewing angle and surface mount form factor facilitate uniform illumination for both industrial and commercial use cases. Construction adheres to RoHS standards and utilizes a rectangular lens finish for consistent light distribution.
Its 4-pin configuration and small package make the 156125M173000 model ideal for narrow space circuit board layouts and are particularly beneficial where automated assembly is required. The product is supplied in tape and reel packaging, supporting bulk quantities and compatibility with standard pick-and-place machines.
The WL-SFRW series LED is frequently used in electronics manufacturing, control panels, instrumentation displays, keypads, automotive dashboard indicators, and consumer interfaces. It combines low power consumption with high reliability, suitable for OEMs, labs, and commercial device production.
Industrial and laboratory applications are supported, including electronic prototypes, automation, process control, and manufacturing instrumentation. RGB capability for full-colour output in electronic displays. Surface mount 1205 package fits modern PCB layouts.
Forward voltage and current optimized for low-power design. Rectangular lens and clear finish for enhanced light quality. RoHS-compliant and compatible with automated placement systems. Widely used in indicators, backlighting, and keypad illumination.
Packed in tape and reel for manufacturing efficiency. Explore more LEDs and optoelectronic solutions from Wurth Elektronik and discover the full WL-SFRW series range in the specialized Electronics Components category on EnvMart.
Explore more products in our LEDs - Light Emitting Diodes category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The forward voltage of this RGB LED is 2.4 V.
This model has a maximum forward current of 20 mA.
It features a wide viewing angle of 120 degrees, ensuring strong visual performance.
This product includes three LEDs in its configuration.
The LED is supplied in tape and reel packaging, which is compatible with automated placement machines.
It has a rectangular lens shape, which contributes to its light distribution.
The dominant wavelengths are 470 nm for blue, 525 nm for green, and 624 nm for red.
This model supports surface mounting, making it suitable for standard PCBs.
It has a 4-pin configuration, allowing for flexible electronic design.
It adheres to RoHS standards, ensuring compliance with environmental regulations.
This LED is suitable for applications such as front panel indicators, LCD backlighting, keypads, and automotive dashboard indicators.
The maximum power dissipation for this model is 48 mW.
