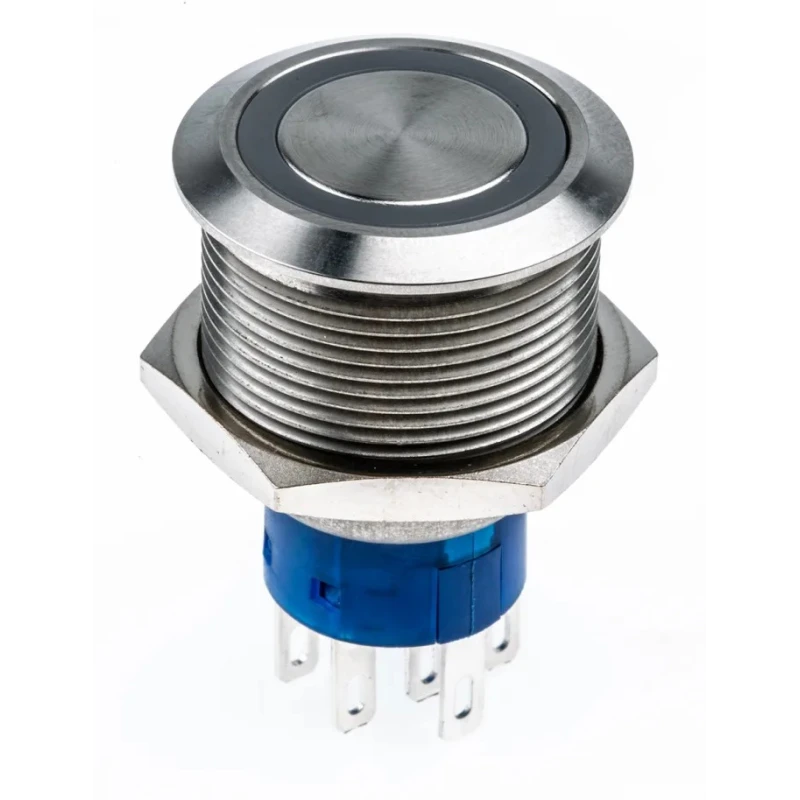

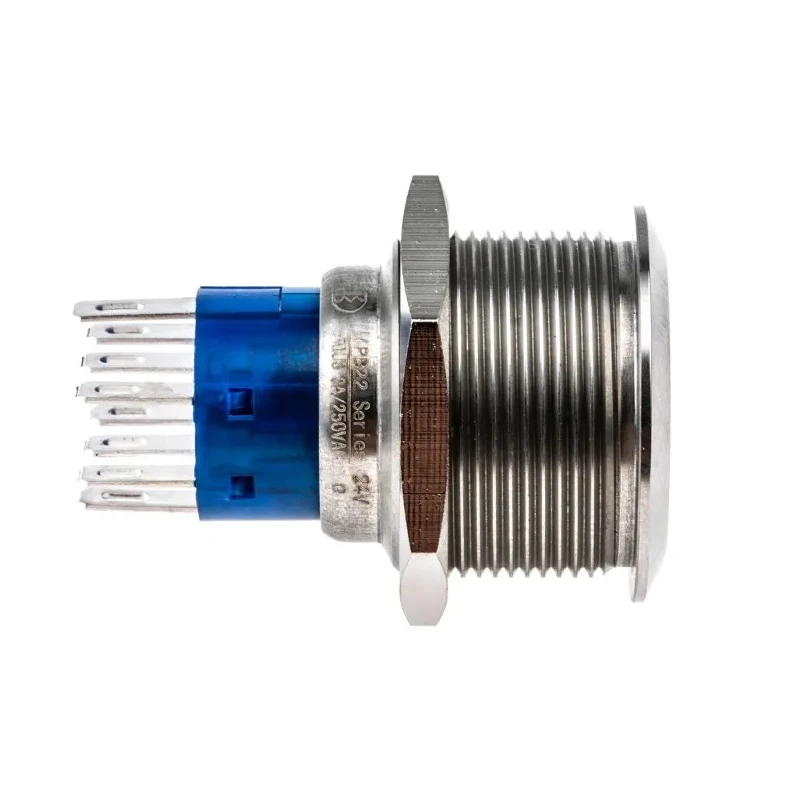

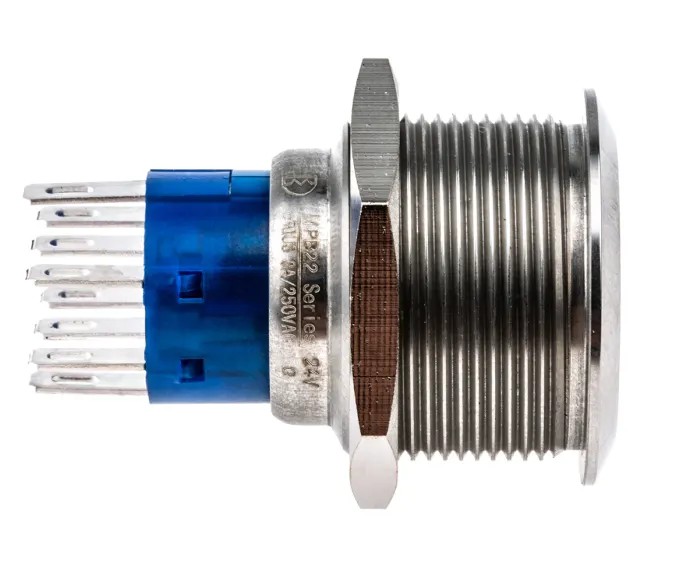

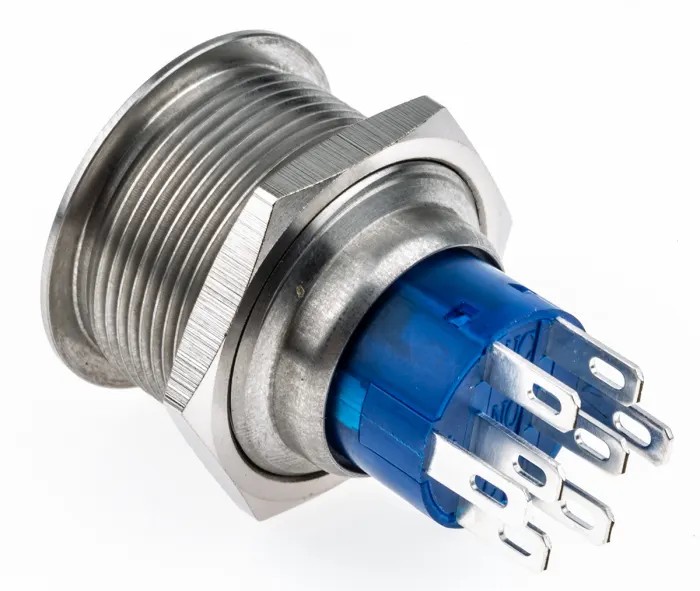

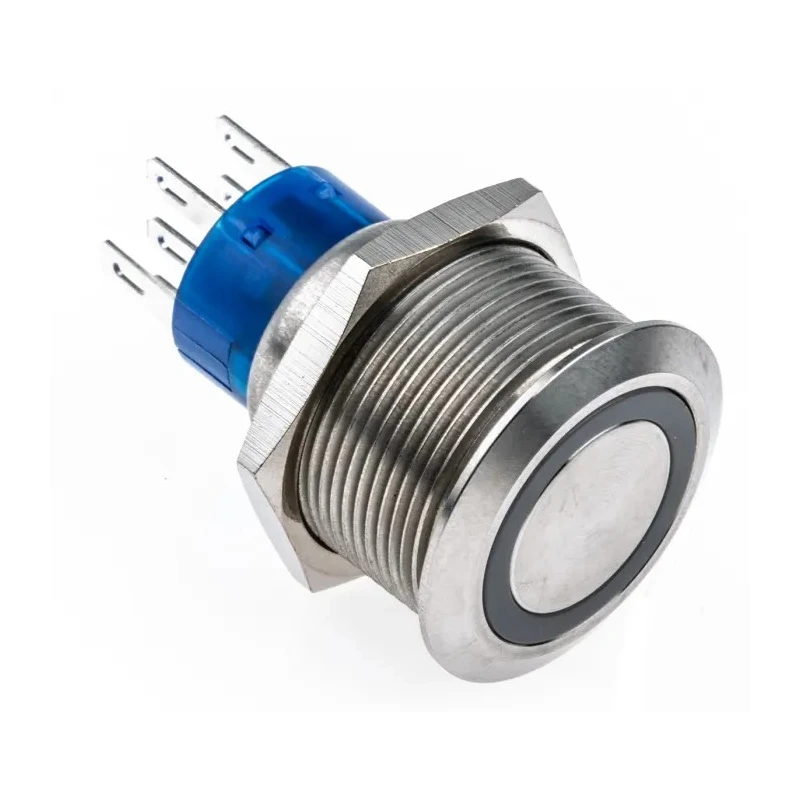

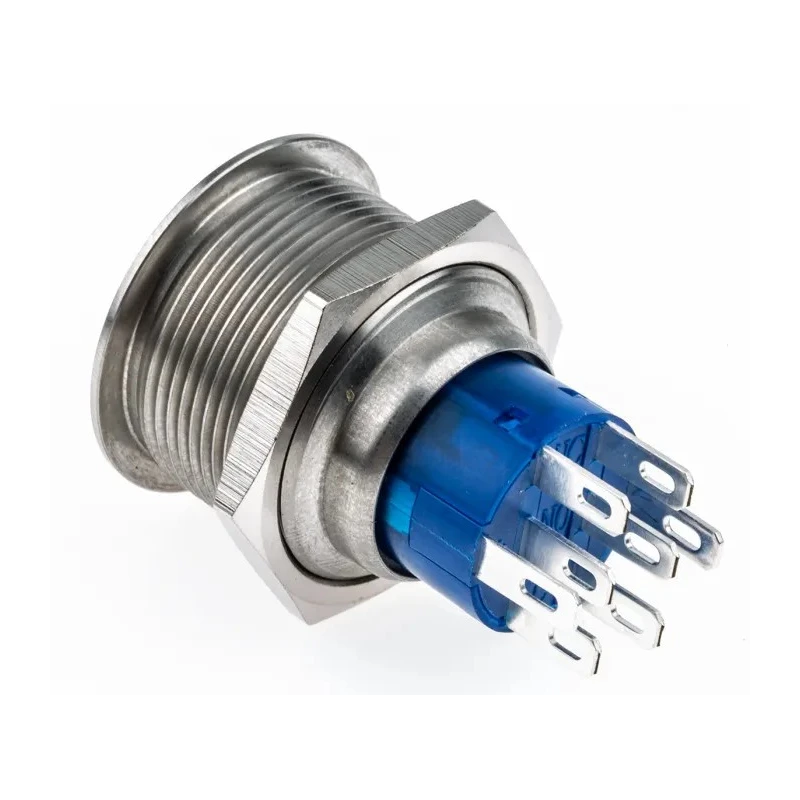

RS PRO Illuminated Push Button Switch, MPB22, Momentary, Panel Mount, 22.2 mm Cutout, DPDT, Green LED, IP67, 12 V DC/250 V AC

The RS PRO MPB22 Series Illuminated Push Button Switch is a high-performance, anti-vandal device engineered for panel installation in automated and industrial control systems. Designed with a momentary switching function, it features a 22.2 mm cutout size for compatibility with standard panel assemblies, offering a reliable interface for operators.

This push button switch employs a Double Pole Double Throw (DPDT) contact configuration, delivering flexible switching options for both low-voltage DC and high-voltage AC circuits (rated up to 12 V DC and 250 V AC). The Green LED ensures immediate visual feedback, supporting quick status identification, especially in industrial and public-use environments. Its flat actuator enhances usability while maintaining a contemporary and low-profile panel appearance.

With an IP67 protection rating, the MPB22 switch withstands challenging conditions - preventing ingress of dust and offering resistance to temporary immersion in water. The corrosion-resistant metal construction, typical of RS PRO switches, lends durability, lightweight strength, and efficient heat dissipation. Solder terminals facilitate secure installations for multi-application electrical control requirements.

The device is designed for broad adaptability, withstanding ambient temperatures ranging from -20°C to 70°C. It is commonly deployed in industrial control panels, security monitoring apparatus, energy storage systems, medical equipment, and vehicle peripheral control panels, making it highly suitable for environments needing vandal resistance and rapid operator feedback.

Applications include industrial automation and instrumentation, energy management, security monitoring, vehicle and transport peripherals, medical device interfaces, and audio-visual system controls. The switch's momentary function is crucial for initiating or interrupting circuits briefly, ensuring operational safety and precise input for system operation.

Explore RS PRO's comprehensive range of illuminated Push Button Switches for industrial control, and discover EnvMart's selection of advanced switching devices and panel control solutions for your project needs.
