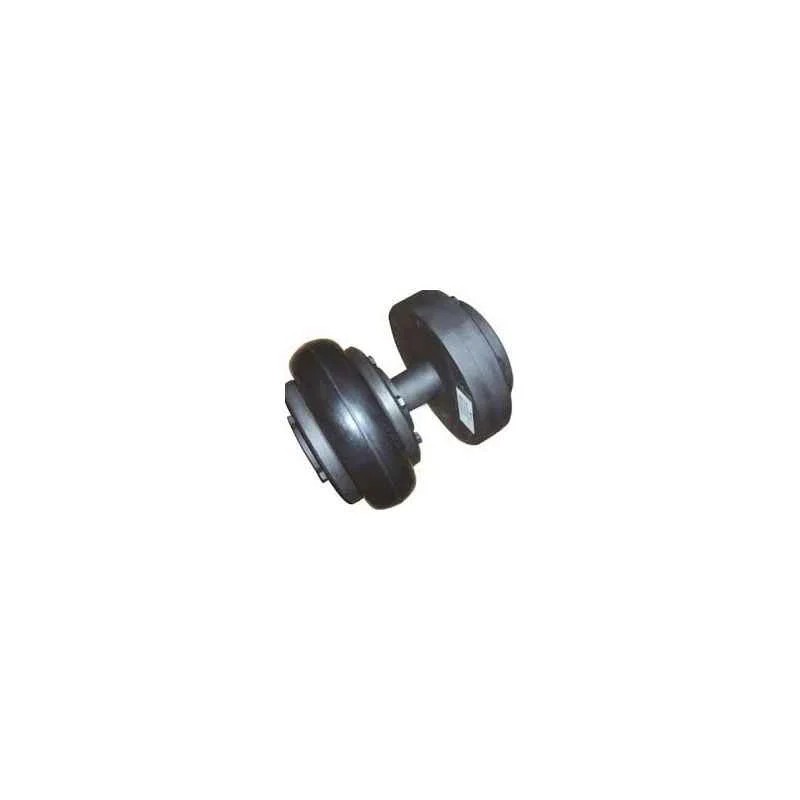

Fenner Fenaflex Tyre Coupling with F Flange Taper Lock, Max Bore 60 mm, 6 Pins, ATEX Approved, F100

Fenner Fenaflex Tyre Coupling, (F100), is an advanced coupling solution for industrial machinery and power transmission systems. The coupling incorporates an F Flange and Taper Lock configuration, allowing for secure mounting and simplified installation procedures. With an impressive maximum bore size of 60 mm and a robust 6-pin design, it supports reliable torque transfer while accommodating machinery misalignments.

Installation is straightforward: the tyre can be swapped without disturbing the motor or connected machine, saving valuable downtime. The coupling's misalignment tolerance is significant - handling 4 degrees angular, up to 6 mm parallel, and 8 mm axial movement. This helps protect both drive and driven components from undue stress and vibration.

A unique feature is its internal load-carrying cords, wound in both directions. This dual winding ensures continuous operational integrity, even during reversing drives, and delivers lasting durability. Tyres are offered in standard and FRAS (Fire Resistant Anti Static) materials, catering to environments where fire safety and anti-static properties are required.

Safety and operational compliance are integral, with this coupling being ATEX approved for use in explosive atmospheres. Maintenance is simplified through easy visual inspection, and the coupling is lubrication-free, further reducing the need for ongoing servicing.

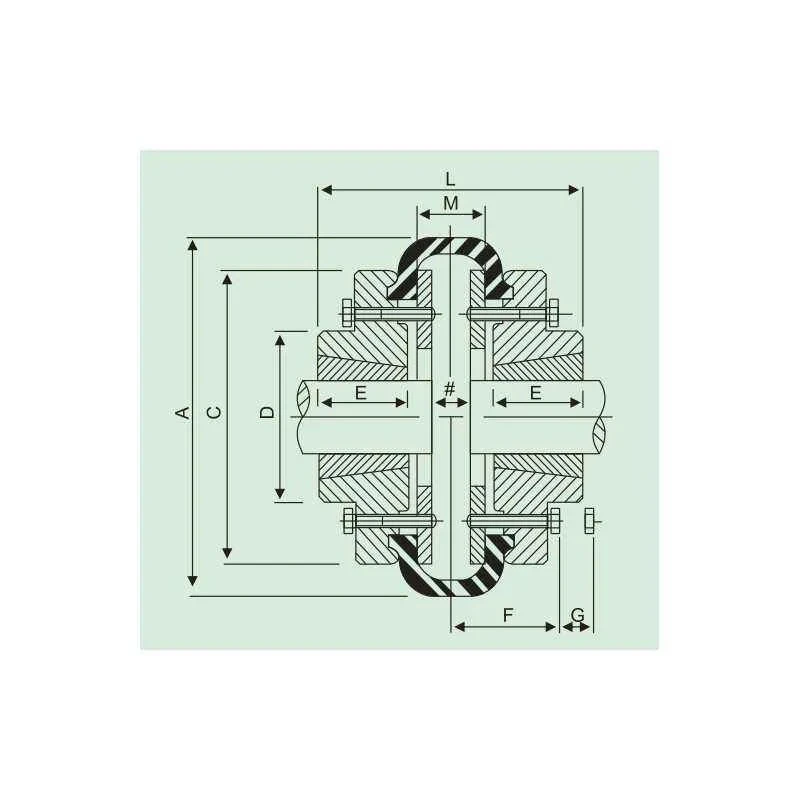

Technical specifications include a suite of dimensional parameters: A (254 mm), C (216 mm), D (124 mm), E (45 mm), F (615 mm), G (13 mm), L (148 mm), and M (58 mm). The supplied set includes one coupling piece, complete with Taper Lock Bush size 2517 and all required pins and flanges.

Engineered for use with various industrial machinery, including conveyors, pumps, compressors, and heavy-duty transmission assemblies. Suitable for factory, construction, and hazardous chemical environments due to its ATEX and FRAS compatibility.

Minimizes maintenance costs and downtime thanks to lubrication-free construction and fast tyre replacement procedure. 6-pin configuration ensures secure fit and robust performance under dynamic loads. Designed to meet industrial standards for safety, reliability, and efficiency.
