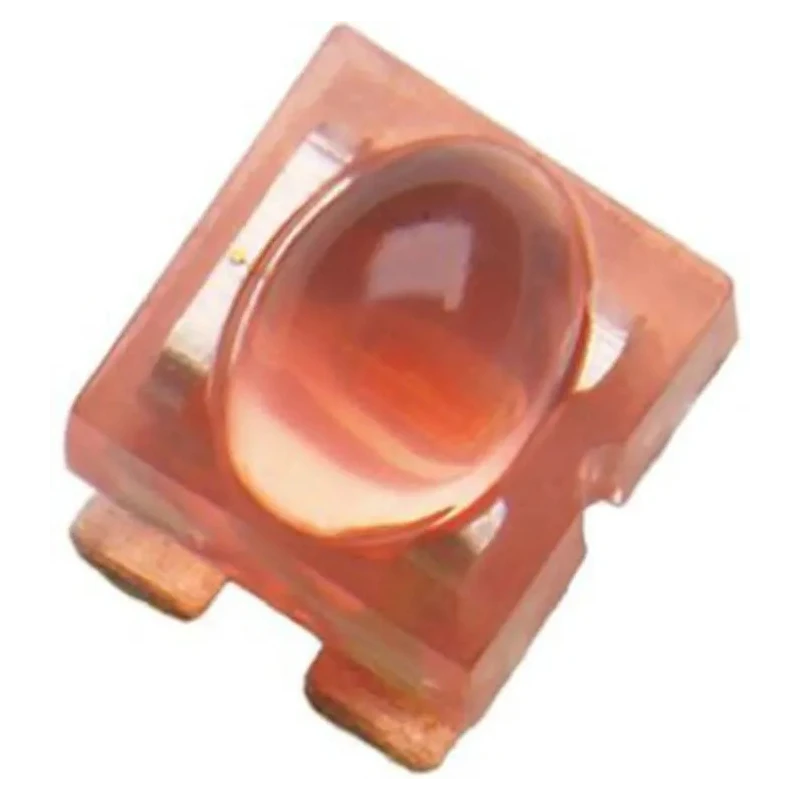

Broadcom Red LED Surface Mount Oval SMD, 2.4V, 50mA, 120mW, 4 Pins, Tape & Reel ALMD-LG37-XZ002
Specifications
| Country of Origin | China |
|---|---|
| Brand | Broadcom |
| Model | ALMD-LG37-XZ002 |
| Packaging | Tape & Reel |
| Mount Type | Surface |
| Series | ALMD |
| Maximum forward current | 50mA |
| Viewing angle | 40 x 100 ° |
| Package Type | Surface Mount |
| Lens Colour | Red |
| Standards/Approvals | RoHS |
| LED Colour | Red |
| Dominant Wavelength | 626nm |
| Forward Voltage | 2.4V |
| Number of Pins | 4 |
| LED Luminosity | 2900 mcd |
| Maximum Power Dissipation | 120mW |
| Lens Dimensions | 4.2 x 4.2 mm |
| Lens Shape | Oval |
| Lens Finish | Diffused, Tinted |
Key Features
- High brightness SMD LED with oval lens for maximum visibility.
- Operates at a forward voltage of 2.4 V and forward current of 50 mA.
- Compact surface mount package ideal for space-constrained designs.
- Offers a wide viewing angle of 40 x 100 degrees for enhanced coverage.
- Diffused, tinted lens finish delivers consistent red illumination at 626 nm wavelength.
- Maximum power dissipation of 120 mW ensures durability under continuous operation.
- Supplied in tape & reel packaging for automated production lines and large quantity insertion.
- 4-pin design supports easy integration into PCBs and electronic signage.
Product Description
The Broadcom ALMD-LG37-XZ002 is a high-brightness red SMD LED designed for demanding electronic and signage applications. Featuring an oval lens, this surface-mount component stands out for its wide viewing angle and consistent red illumination. It is engineered for applications requiring enhanced visibility, reliability, and efficient power consumption.
This LED operates at a forward voltage of 2.4 V with a forward current rating of 50 mA and a maximum power dissipation of 120 mW. Its compact SMD package and four-pin configuration make it suitable for automated production environments, supporting insertion efficiency in both indoor and outdoor projects.
The lens, measuring 4.2 x 4.2 mm, utilizes a diffused, tinted finish to deliver uniform red light with a dominant wavelength of 626 nm. With a luminous intensity of 2900 mcd, the ALMD-LG37-XZ002 enhances display clarity in signage, indicators, and panel lighting applications. The oval lens shape combined with a wide angle of 40 x 100 degrees provides large coverage, making it ideal for full-colour displays or single-colour indicators.
Broadcom's ALMD series is recognized for its robust construction and compliance with RoHS environmental standards, ensuring safe use in commercial, industrial, and public environments. This model is supplied in tape & reel packaging, optimized for bulk automated assembly.
Common use cases include electronic signage, billboard displays, panel indicators, industrial status lights, and custom PCB designs. The high reliability and low power operation fit well in manufacturing, electrical, and commercial installations.
For more technical LED and optoelectronic solutions, explore the Broadcom ALMD product range and browse additional LEDs & Lights in the EnvMart catalogue.
Explore more products in our LED Bulb category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates at a forward voltage of 2.4 V.
The maximum forward current for the ALMD-LG37-XZ002 is 50 mA.
It has a luminous intensity of 2900 mcd, enhancing display clarity.
This model features a wide viewing angle of 40 x 100 degrees.
The lens dimensions are 4.2 x 4.2 mm.
The maximum power dissipation is 120 mW, ensuring durability under continuous operation.
It is supplied in tape & reel packaging, optimized for automated production lines.
The dominant wavelength is 626 nm, providing consistent red illumination.
This model features a 4-pin design for easy integration into PCBs.
It complies with RoHS environmental standards, ensuring safe use in various applications.
The lens has a diffused, tinted finish that delivers uniform red light.
This LED is suitable for electronic signage, billboard displays, and panel indicators.
