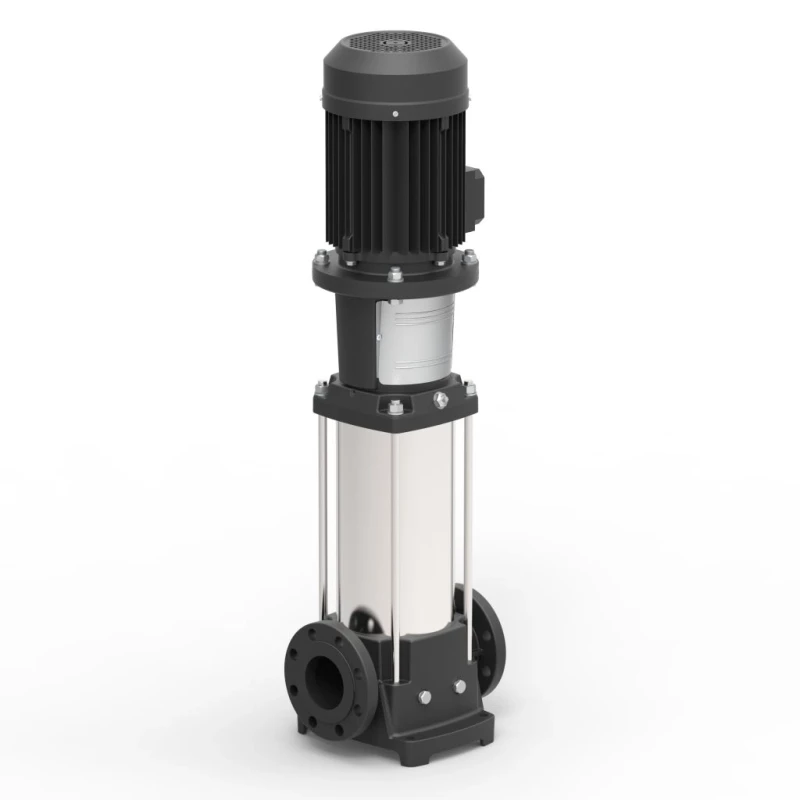

Lubi 1.5 HP Three Phase Vertical Multi-stage Centrifugal Pump, MVRT 2-11

Lubi MVRT 2-11 1.5 HP Three Phase Vertical Multi-stage Centrifugal Pump is a high-performance pumping solution crafted for heavy-duty industrial, commercial, and water supply applications. Engineered for extended longevity and reliability, it features robust stainless steel construction to withstand demanding environments. The MVRT 2-11 model is capable of delivering a head range from 98 to 45 metres and a discharge capacity ranging from 16.7 to 58.3 litres per minute, making it ideal for high head, clean water, and aggressive liquid pumping tasks.

Key features include close-coupled motor and pump for compact installation, state-of-the-art hydraulics, and maintenance-free mechanical shaft seal. Stainless steel AISI 304 impellers, vanes, casings, and pump jackets, as well as an AISI 316 shaft, provide corrosion resistance and robust operation. The pump is designed for non-explosive, clean, and thin liquids without solid particles and is also suitable for slightly aggressive fluids, provided the construction materials are compatible.

• 1.5 HP, three phase, vertical multi-stage centrifugal design for efficient water handling.
• Delivers a head range of 98-45 metres, suitable for high-rise and industrial setups.
• Discharge capacity from 16.7 to 58.3 litres per minute.
• Sturdy construction with AISI 304 stainless steel impellers, vanes, casings, and pump jackets.
• Stainless steel AISI 316 shaft ensures durability for aggressive and clean liquid service.
• Fitted with a maintenance-free mechanical shaft seal for reliable operation.

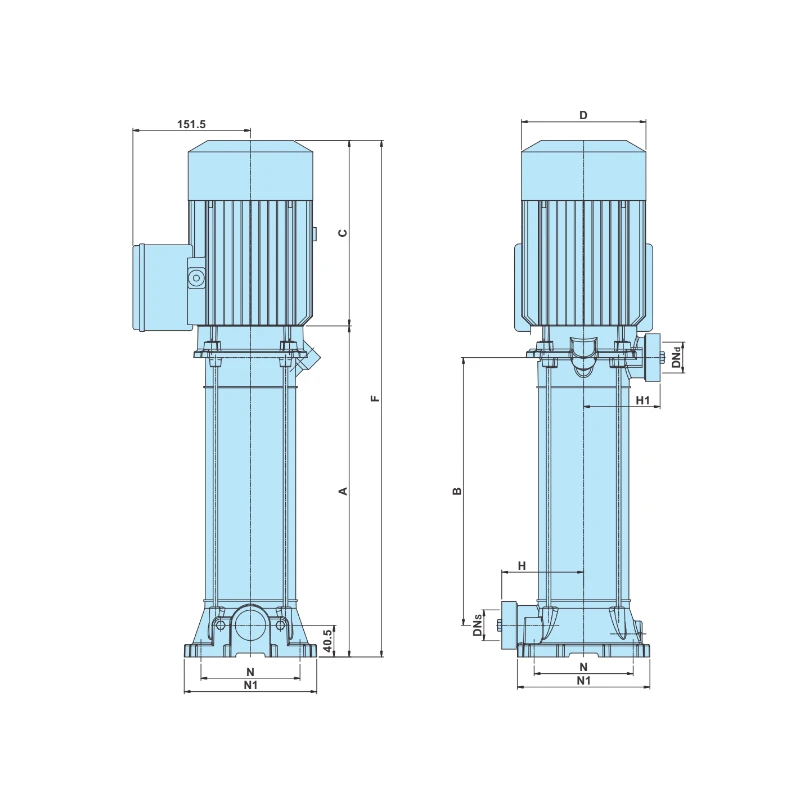

• Frame size 80, suction and delivery sizes at 32 mm each for straightforward plumbing integration.
• Compact, close-coupled design allows for installation in tight spaces.
• Operational temperature range from 0°C to +90°C, ambient up to +50°C.
• Widely used in reverse osmosis, pressure boosting, cleaning, and irrigation systems.

Typical applications include ultrafiltration systems, reverse osmosis systems, domestic and industrial water supply pressure boosting, washing, hydro-pneumatic systems, sprinklers, and irrigation. The Lubi MVRT 2-11 is an excellent choice for sectors requiring a reliable vertical multistage centrifugal pump solution, including industrial process, commercial building water supply, HVAC, and water treatment applications.

Explore more pumps and Lubi brand solutions in Multistage Pumps on EnvMart.
