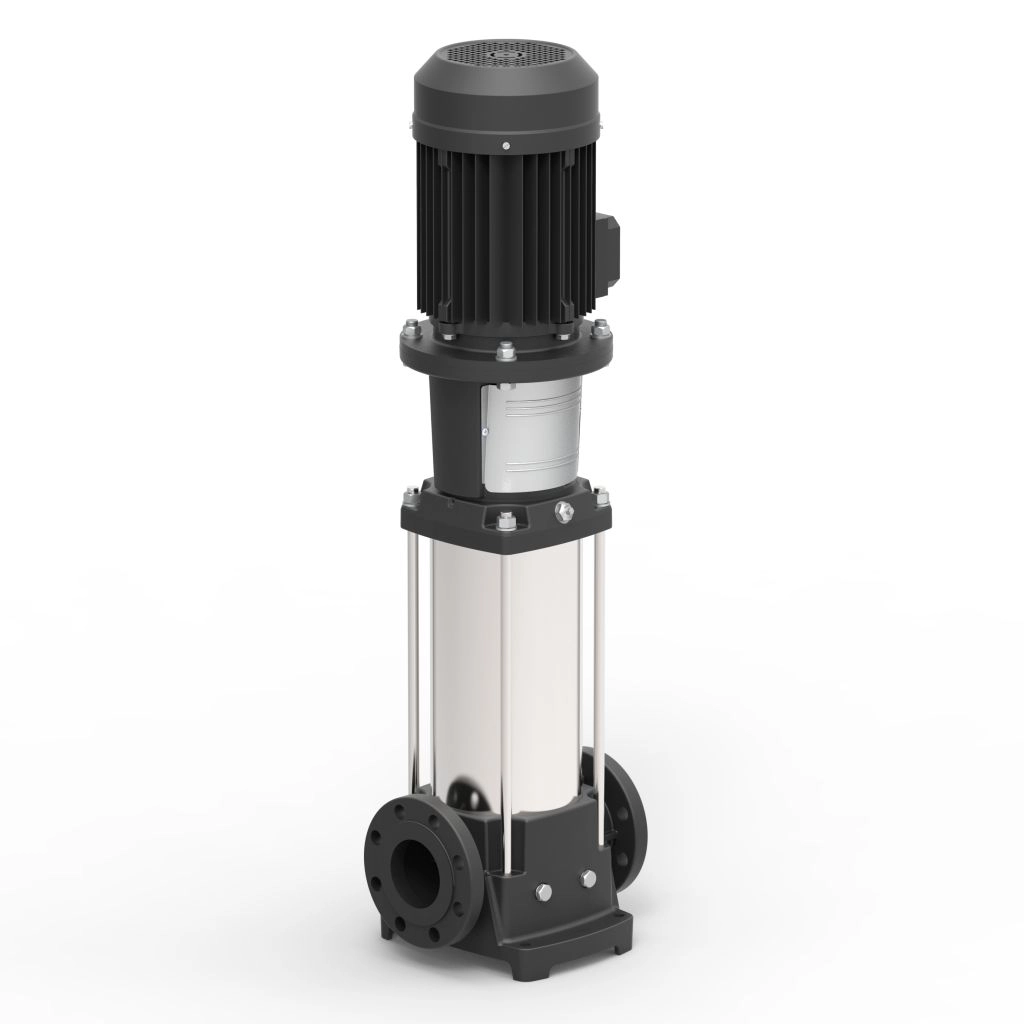

Lubi 1.5 HP Three Phase Vertical Multistage Centrifugal Pump, MVRT 2-9
Specifications
| Country of Origin | India |
|---|---|
| Brand | Lubi |
| Design | Vertical Multi-stage Centrifugal, Non-Self Priming |
| Power | 1.1 Kw 1.5 HP |
| Phase | Three Phase |
| Model | MVRT 2-9 |
| Weight | 28 Kg |
| Liquid temperature range | 0°C to +90°C |
| Discharge Range | 16.7–58.3 LPM |
| Frame Size | 80 |
| Delivery Size | 32 mm |
| Suction Size | 32 mm |
| Head Range | 81–39 m |
| Product Condition | New |
| MPN | MVRT 2-9 |
| Mechanical Seal | Maintenance-free |
| Pump Shaft Material | Stainless Steel AISI 316 |
| Material - Impellers/Guide Vanes/Bowl Casing | Stainless Steel AISI 304 |
| Ambient Temperature, Max. | +50 °C |
Key Features
Lubi MVRT 2-9 1.5 HP Three Phase Vertical Multistage Centrifugal Pump is designed for high head duty conditions in various water supply systems.
- Delivers a power output of 1.1 kW (1.5 HP) with a three-phase motor.
- Capable of handling a head range of 81–39 meters and discharge between 16.7–58.3 LPM.
- Features stainless steel construction for impellers, guide vanes, bowl casing, and pump jackets, and an AISI 316 stainless steel shaft for enhanced corrosion resistance.
- Comes equipped with a non-self-priming, vertical, multistage, centrifugal design for stable and reliable operation.
- Maintenance-free mechanical shaft seal ensures hassle-free service and reliability.
- Suited for ultra-filtration, reverse osmosis, pressure boosting, washing, cleaning, and irrigation applications.
- Compact close-coupled construction allows quick installation in limited spaces.

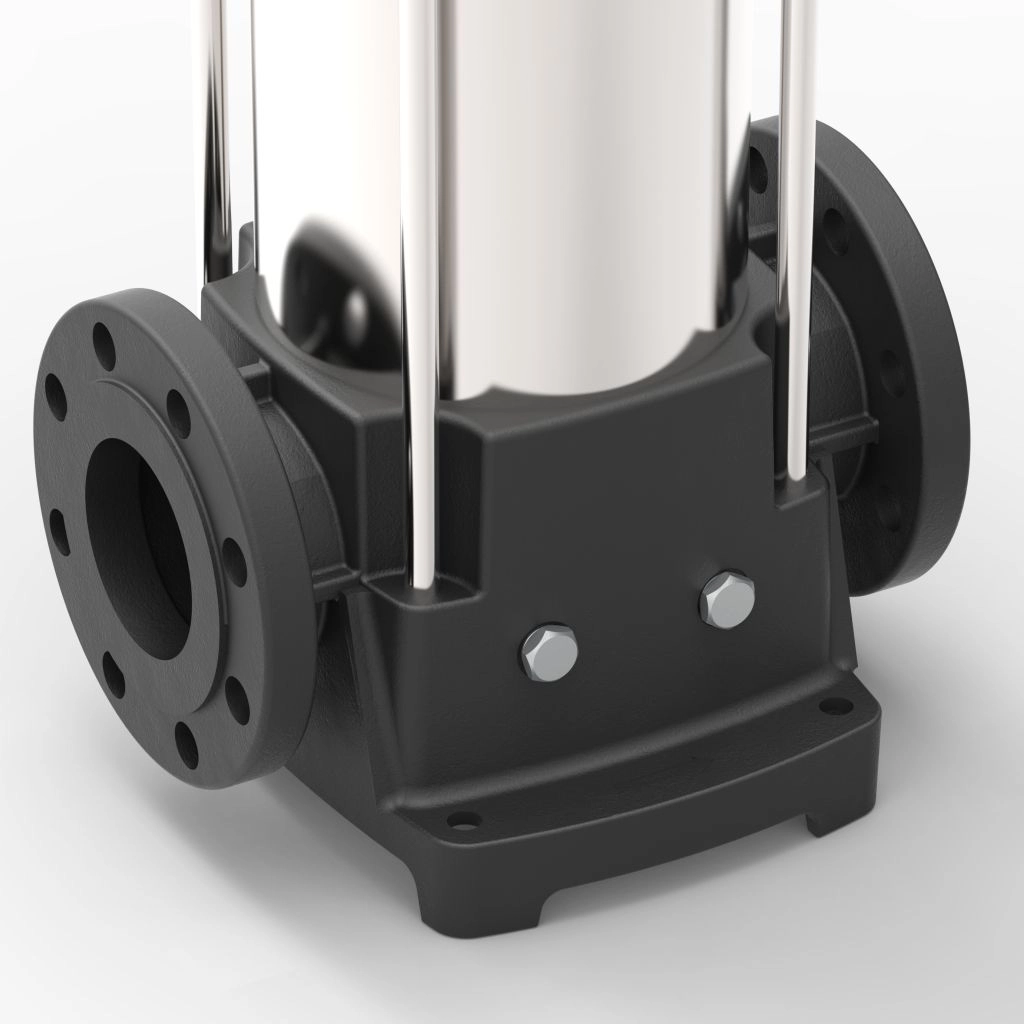

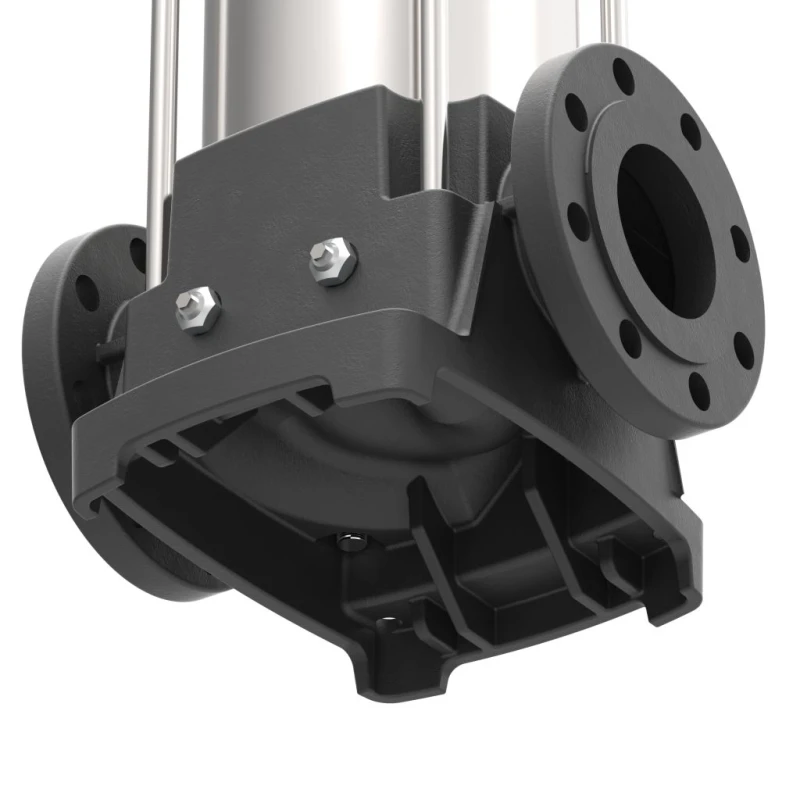

- Supplied with oval flanges for easy connectivity and serviceability.
- Supports a liquid temperature range of 0°C to +90°C and can operate up to +50°C ambient conditions.
Product Description
Lubi MVRT 2-9 1.5 HP Three Phase Vertical Multistage Centrifugal Pump is engineered for advanced industrial and commercial fluid handling. With its robust 1.1 kW (1.5 HP) three-phase motor, the pump delivers a high head range of 81–39 meters and a discharge capacity from 16.7 to 58.3 liters per minute, making it ideal for high-head duty applications in water supply, ultra-filtration, reverse osmosis, hydro-pneumatic, and pressure boosting systems.
The MVRT 2-9 pump features a non-self priming, vertical, multistage centrifugal design. All major wetted components, including impellers, guide vanes, bowl casing, and pump jackets are constructed from high-grade AISI 304 stainless steel, while the shaft is made from AISI 316 stainless steel. This ensures superior corrosion resistance and longevity even with demanding fluids. The maintenance-free mechanical shaft seal ensures reliability and reduced downtime.
- Three-phase, 1.5 HP (1.1 kW) motor ensures strong performance for demanding environments.
- Efficiently handles a head range from 81 down to 39 meters.
- Wide liquid discharge with a range of 16.7–58.3 LPM.
- Compatible with liquids at 0°C to +90°C and operates in ambient temperatures up to +50°C.
- Radial suction port at the bottom and radial discharge at the top allow for easy line integration.
- Compact, close-coupled construction saves space and facilitates fast installation.
- Supplied with oval flanges to simplify connectivity and future servicing.
- Stainless steel impellers, guide vanes, and pump jackets resist aggressive liquid corrosion.
- Maintenance-free mechanical shaft seal enhances lifecycle and service intervals.
- Suitable for use in ultra-filtration units, reverse osmosis, washing, cleaning, hydro-pneumatic, sprinkler, irrigation, and industrial/civil/domestic boosting applications.
Typical uses span water filtration, industrial process water supply, residential and commercial water boosting, laboratory systems, agricultural irrigation, hydro-pneumatic assemblies, and cleaning installations.
Explore more Lubi vertical multistage centrifugal pumps and industrial fluid handling solutions on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Lubi MVRT 2-9 pump has a power output of 1.1 kW, which is equivalent to 1.5 HP.
This pump is capable of handling a head range from 81 meters down to 39 meters.
The Lubi MVRT 2-9 pump can discharge between 16.7 to 58.3 liters per minute (LPM).
Yes, the pump features stainless steel construction for its impellers, guide vanes, and bowl casing, enhancing its corrosion resistance.
The Lubi MVRT 2-9 can operate with liquids ranging from 0°C to +90°C and in ambient temperatures up to +50°C.
The compact, close-coupled construction allows for quick installation, making it suitable for limited spaces.
No, the Lubi MVRT 2-9 is a non-self-priming pump, which means it requires priming before operation.
The pump features a maintenance-free mechanical shaft seal, reducing the need for regular maintenance.
This pump is ideal for ultra-filtration, reverse osmosis, pressure boosting, washing, cleaning, and irrigation applications.
The Lubi MVRT 2-9 pump is manufactured in India.
