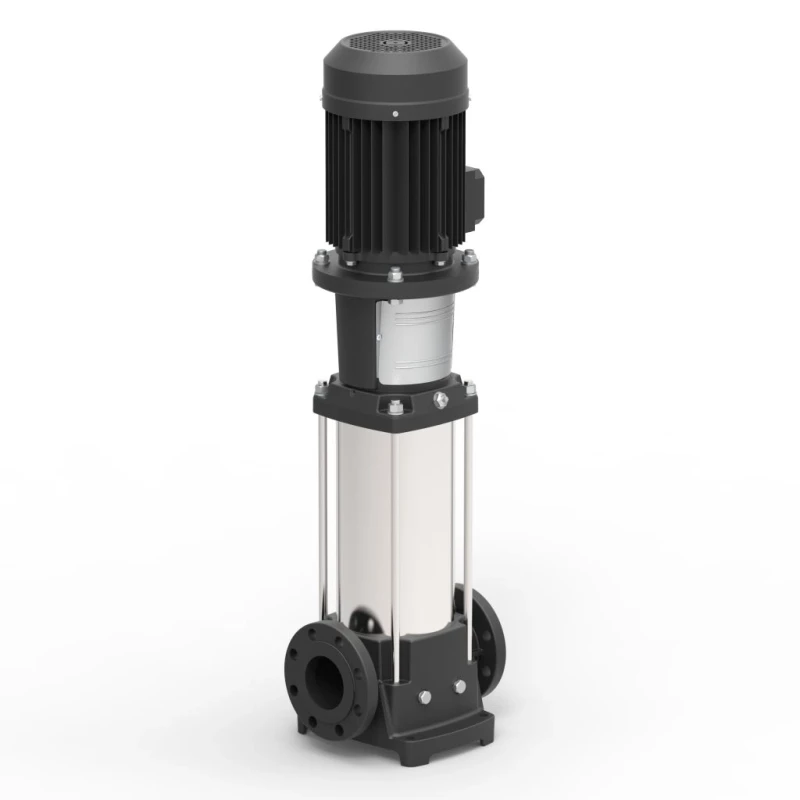

Lubi 1 HP Three Phase Vertical Multi-stage Centrifugal Pump, MVRT 2-6
Specifications
| Country of Origin | India |
|---|---|
| Motor Power | 0.75 kW 1 Hp |
| Brand | Lubi |
| Applications | Ultra-filtration, RO, boosting, cleaning, irrigation |
| Phase | Three Phase |
| Model | MVRT 2-6 |
| INSTALLATION | Close coupled, compact design |
| Weight | 26 kg |
| Liquid temperature range | 0 to +90 °C |
| Discharge Range | 16.7-58.3 LPM |
| maintenance | Maintenance-free mechanical shaft seal |
| Flow range | 0.5-4 m³/h |
| Frame Size | 80 |
| Impeller Material | AISI 304 Stainless Steel |
| Delivery Size | 32 mm |
| Suction Size | 32 mm |
| Head Range | 25-55 m |
| Ambient Temperature | Max. +50 °C |
| Product Condition | New |
| MPN | MVRT 2-6 |
| Pump Design | Vertical Multi-stage Centrifugal |
| Pump Shaft | AISI 316 Stainless Steel |
| Maximum Head Capability | Up to 139 m |
Key Features
Lubi MVRT 2-6 1 HP Three Phase Vertical Multi-stage Centrifugal Pump is engineered for high head and reliable operation in demanding water supply and pressure boosting applications.
- Features a powerful 1 HP motor with three phase operation for consistent performance.
- Constructed with high-grade AISI 304 stainless steel impellers, guide vanes, bowl casing, and pump jacket for corrosion resistance.
- Designed with close-coupled compact structure for quick installation in limited spaces.
- Delivers a head range from 25 to 55 meters and a discharge flow rate ranging from 16.7 to 58.3 LPM.
- Equipped with a maintenance-free mechanical shaft seal for long-term dependable use.

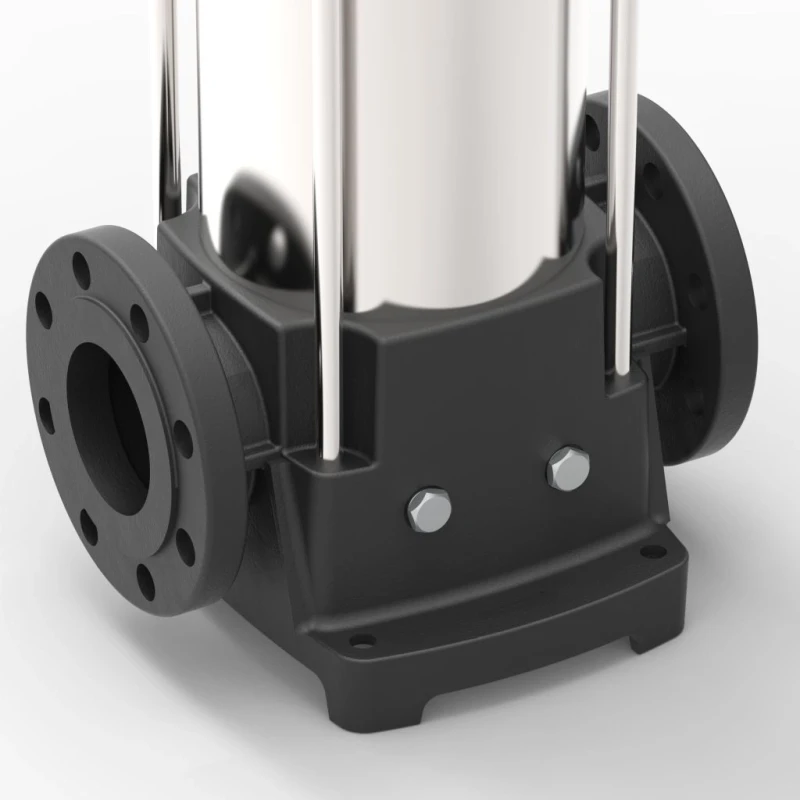

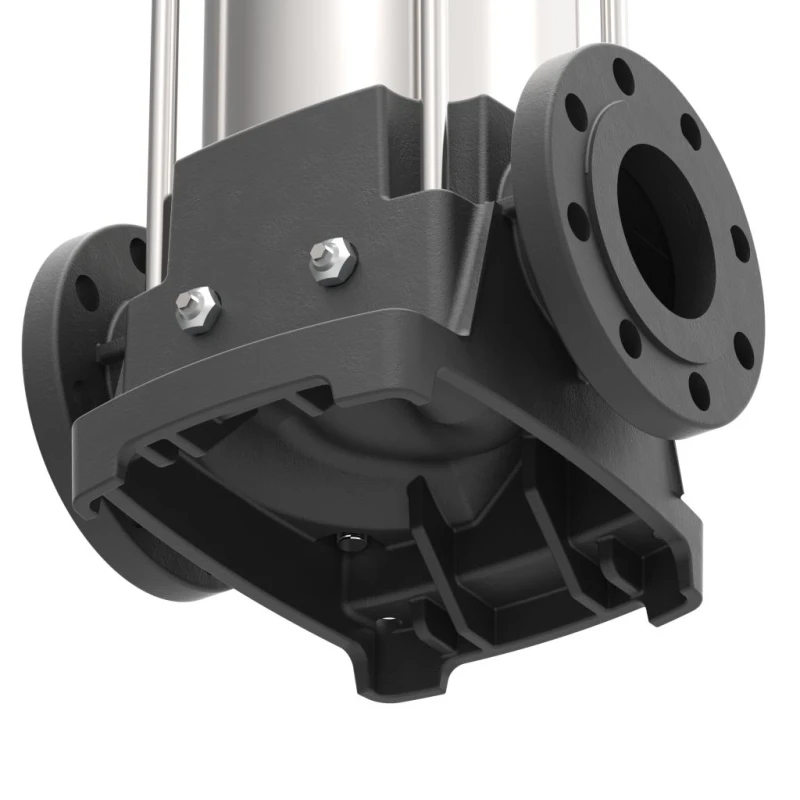

- Comes with oval flanges for easy piping connections and convenient serviceability.
- Suitable for ultra-filtration, reverse osmosis, domestic pressure boosting, wash and clean cycles, irrigation, and sprinkler systems.
- Handles liquid temperatures from 0°C up to 90°C, with ambient tolerance up to 50°C.
- Stainless steel AISI 304 for wetted parts, AISI 316 pump shaft for enhanced durability.
- Operates quietly with robust construction and high-performance hydraulics.
Product Description
Lubi MVRT 2-6 1 HP Three Phase Vertical Multi-stage Centrifugal Pump is designed for delivering high head, efficient water supply and pressure boosting across domestic, civil, and industrial systems. This pump features a robust 1 HP, 0.75 kW three phase motor and is engineered as a non-self-priming, vertical, multistage, high head centrifugal pump.
Constructed using premium AISI 304 stainless steel for impellers, guide vanes, bowl casing, and pump jacket, and AISI 316 for the shaft, the MVRT 2-6 pump offers excellent resistance to corrosion and extended service life. Its compact and close-coupled design simplifies installation and maintenance, ensuring reliable performance with minimal downtime. Supplied with oval flanges, this model is easy to integrate into various piping layouts.
- Head range: 25–55 m, Discharge range: 16.7–58.3 LPM (0.5–4 m³/h flow).
- Frame size 80, delivery and suction sizes: 32 mm each, weighing 26 kg.
- Fitted with a mechanical, maintenance-free shaft seal, and capable of handling clean, non-explosive liquids.
- Operational in ambient temperatures up to +50°C, liquid temperatures from 0°C to +90°C.
- State-of-the-art compact build, quiet running, and high hydraulic performance.
This centrifugal pump is ideally suited for applications such as ultra-filtration systems, reverse osmosis plants, domestic and industrial pressure boosting, hydro-pneumatic systems, washing/cleaning, sprinkler systems, and general irrigation. MVR series pumps support high head operations and deliver reliable, continuous duty.
Industrial applications include municipal and commercial water supply, manufacturing sites, water treatment, agriculture, and more.
To explore more Lubi vertical multistage pumps and our full range of industrial pumping solutions, browse the respective EnvMart product categories.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Lubi MVRT 2-6 pump is ideal for ultra-filtration, reverse osmosis, domestic pressure boosting, cleaning, irrigation, and sprinkler systems.
The pump is equipped with a powerful 1 HP (0.75 kW) motor, ensuring consistent performance in various applications.
The Lubi MVRT 2-6 features high-grade AISI 304 stainless steel for wetted parts and AISI 316 stainless steel for the pump shaft, providing excellent corrosion resistance.
The pump delivers a head range from 25 to 55 meters and a discharge flow rate ranging from 16.7 to 58.3 LPM (0.5 to 4 m³/h).
Yes, it features a close-coupled compact design that simplifies installation, making it suitable for limited spaces.
The Lubi MVRT 2-6 can handle liquid temperatures from 0°C to 90°C and ambient temperatures up to 50°C.
The pump is equipped with a maintenance-free mechanical shaft seal, reducing the need for regular maintenance and ensuring long-term dependable use.
The pump weighs approximately 26 kg, making it manageable for installation and service.
Yes, the Lubi MVRT 2-6 is suitable for various industrial applications, including municipal water supply, manufacturing, and water treatment.
The Lubi MVRT 2-6 pump is manufactured in India.
