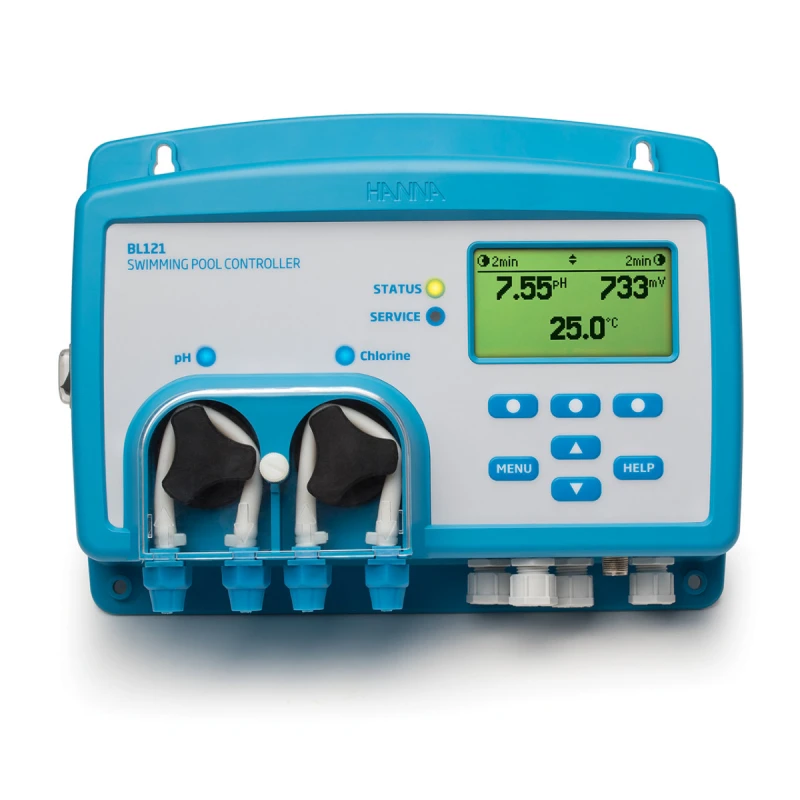

Hanna Swimming Pool Controller with Built-in Dosing Pumps with Panel Mounted Flow Cell Kit
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 100–240 VAC |
| Temperature Accuracy | ±1 °C |
| Power Consumption | 10 VA |
| Relative Humidity | Max 95% (non-condensing) |
| Dimensions | 245 x 188 x 55 mm (73 mm with pumps) |
| Temperature Resolution | 0.1 °C |
| Product Type | Swimming Pool Controller with Built-In Dosing Pumps |
| Temperature range | -5.0 to 105.0 °C |
| pH Range | 0.00 to 14.00 pH |
| pH Accuracy | ±0.05 pH |
| pH Calibration | Automatic two-point (4.01, 7.01, 10.01), process single point adjustable |
| pH Temperature Compensation | Automatic; -5.0 to 105.0°C |
| ORP Range | ±2000 mV |
| ORP Accuracy | ±5 mV |
| Connectivity | USB |
| Logging Memory | 60 days at 10 s period (or 100 logs) |
| Logging Type | Automatic log of pH, ORP, Temp, events, alarms, power failed |
| GLP | pH/ORP |
| Alarm Relay Set Point | Programmable high and low, enable/disable, 5 consecutive readings over/under threshold |

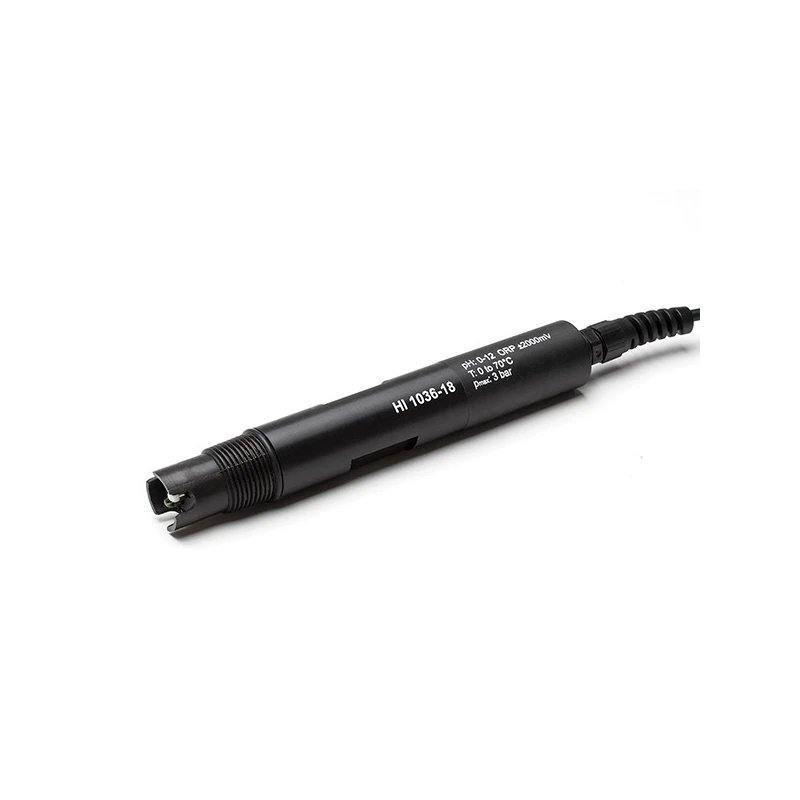

| Multi-parameter Probe | HI1036-18XX—pH/ORP/Temperature, 2–20 m cable, digital with matching pin |
| Weight | 1.7 kg |
| Product Condition | New |
| Over Dosing Control | Over feed safety timer |
| Dosing Control | Proportional feed, adjustable set point and band, delayed start, overdosing protection |
| Digital Inputs | Galvanic isolated, powered contact, low level/hold input (contact open) |
| Panel Mounting | Yes; with bypass flow cell kit |
| Parameters Monitored | pH, ORP (Redox), Temperature |
| Analog Output Signal (BL122) | 4 to 20 mA, less than 0.5% FS, output impedance ≤500 Ohm, galvanically isolated up to 50 V |
| Environment Operating Temp. | 0–50 °C |
Key Features
Swimming Pool Controller with built-in dosing pumps, flow cell kit, and advanced water quality monitoring features for pools, spas, and hot tubs.
- Controls and maintains pH and ORP disinfection for swimming pools and spas.

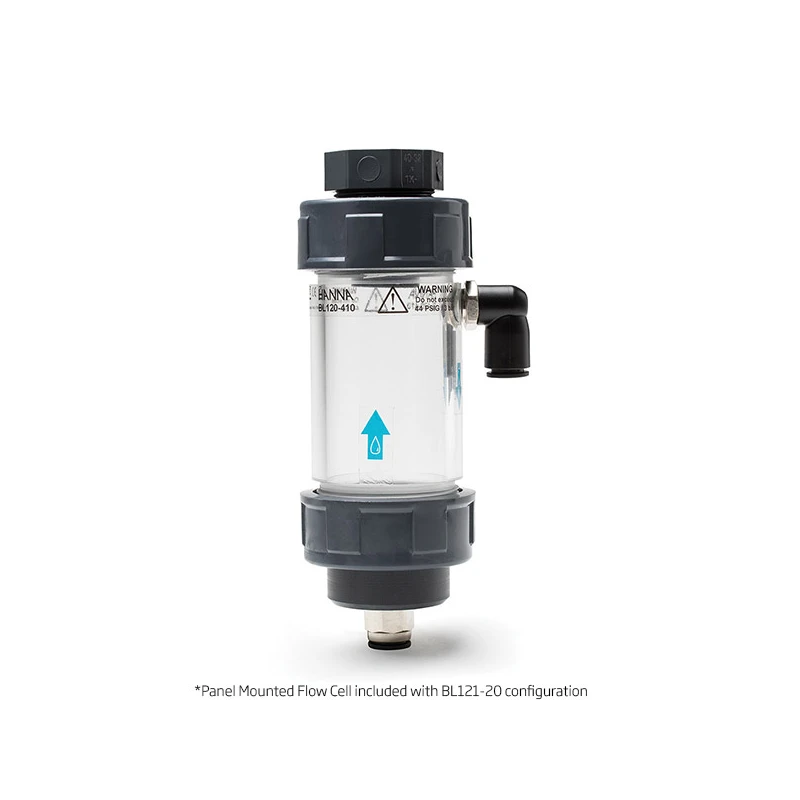

- Panel mounted version with bypass flow cell allows easy probe calibration and maintenance.
- Equipped with LED indicators, real-time graph display, programmable alarms, and password protection.
- Integrated multi-parameter digital probe for monitoring pH, ORP, and temperature.
- Automatic logging and memory functions for up to 60 days of measurements and key events.
- Suitable for environment temperatures 0–50 ºC, 95% max RH non-condensing.
- Dimension: 245 x 188 x 55 mm (73 mm with pumps); weight: 1.7 kg for robust installation.
- Operates on 100 – 240 VAC, suitable for diverse installations.
- Multiple safety and dosing control features including overdosing protection and adjustable proportional feed.

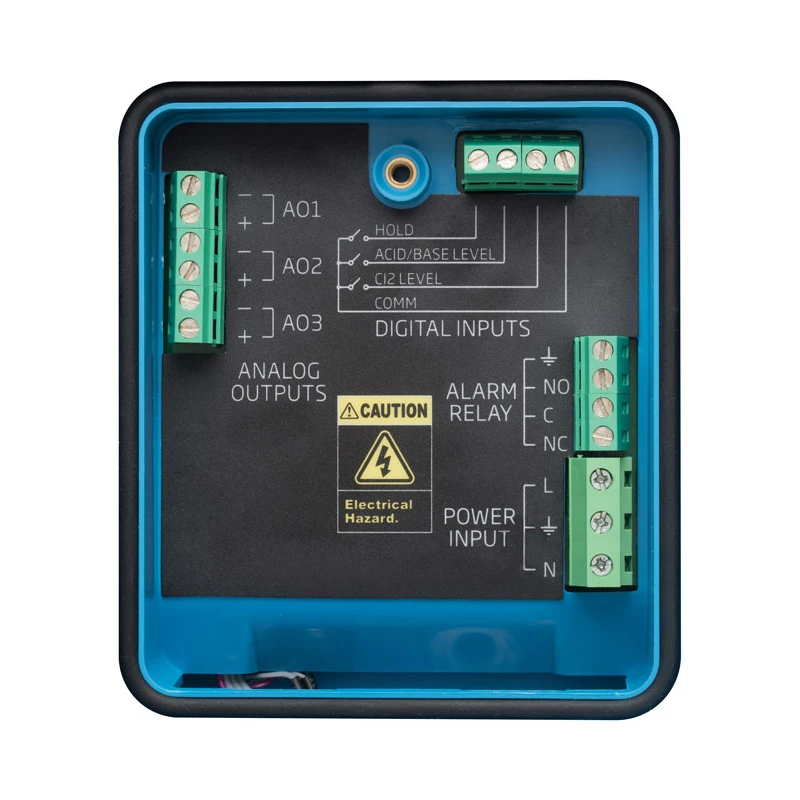

- Galvanically isolated analog and digital I/O for integration and safety.
Product Description
This advanced Swimming Pool Controller with built-in dosing pumps and a panel mounted flow cell kit is engineered for precise, continuous water quality management in swimming pools, spas, and hot tubs. Suitable for commercial and high-end residential installations, it offers automated pH and ORP disinfection control to maintain optimal water conditions and safety for users.
The controller supports multiparameter monitoring via a combined digital probe for pH, ORP, and temperature and offers automatic logging of all critical readings and alarm events over 60 days. The panel-mounted bypass flow cell allows for calibration and probe servicing without system shutdown, maximizing uptime. Its compact design (245 x 188 x 55 mm; weight: 1.7 kg) enables easy wall or panel installation.
- Controls pH, ORP, and temperature in pools, spas, and hot tubs using a single combined digital probe.
- Panel mounted with flow cell allows for easy calibration and maintenance without downtime.

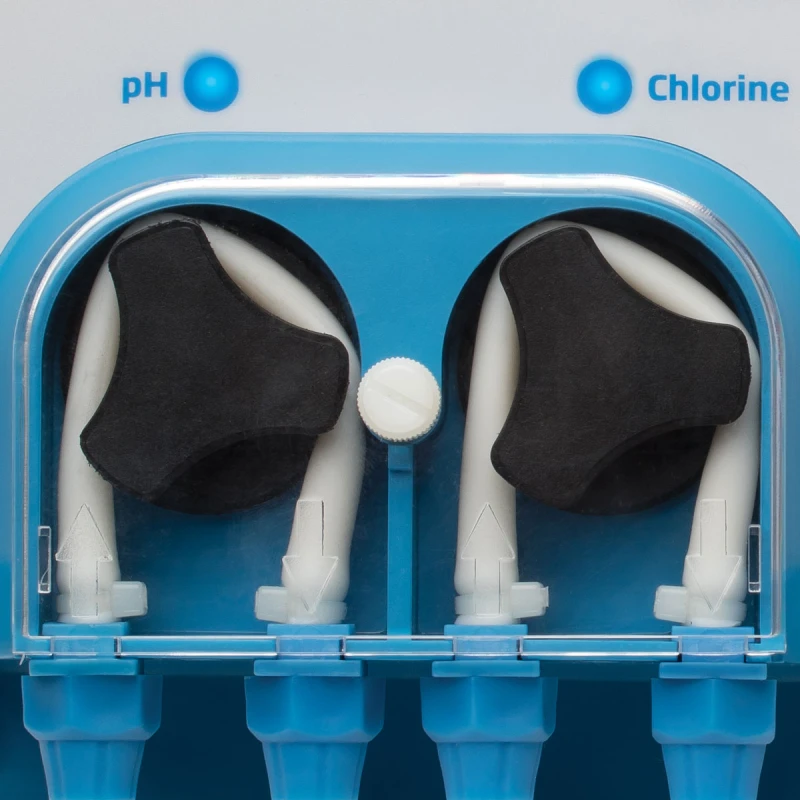

- Integrated dosing pumps with overdosing protection and proportional feed options.
- Programmable high/low alarm relays and advanced digital & analog I/O options for remote monitoring.

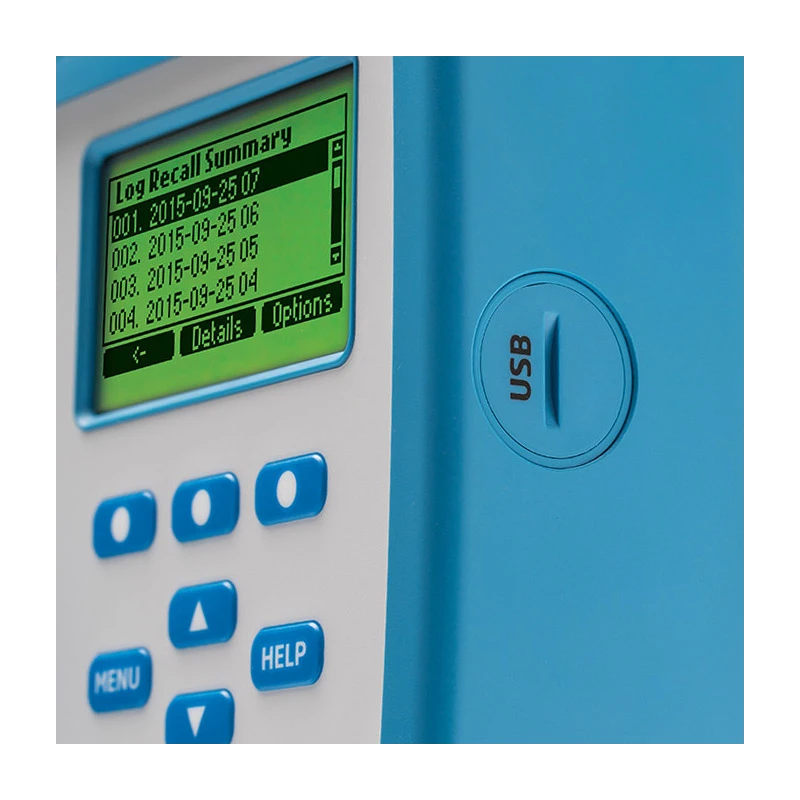

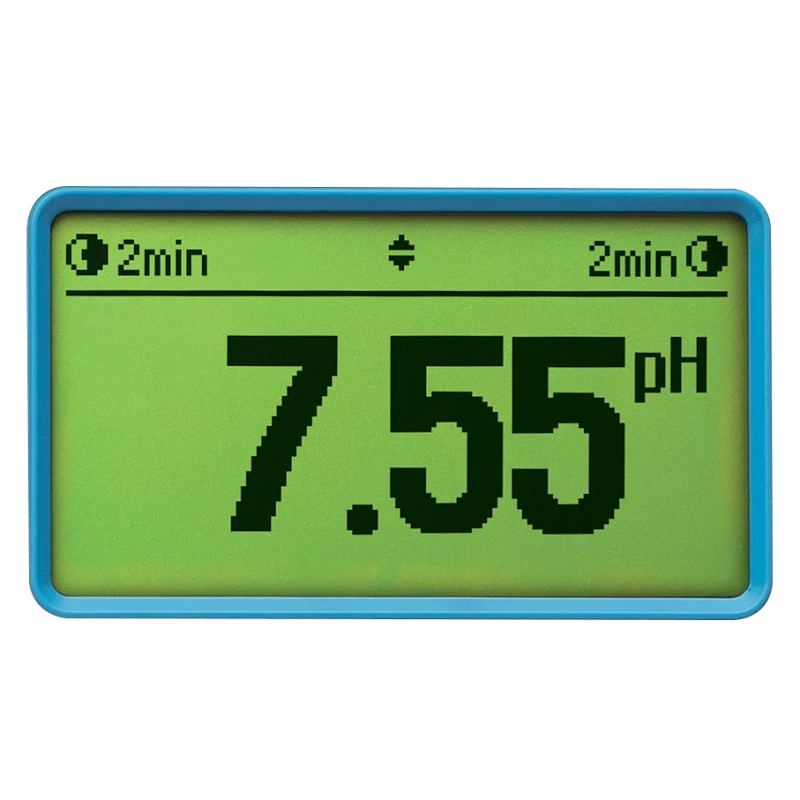

- Real-time graph display, LED status indicators, logging, and password protection enhance user operation and audit trail.
- Automatic two-point and single-point buffer calibration ensure accuracy in changing conditions.
Industrially suited for hotels, resorts, sports facilities, water parks, municipal swimming pools, laboratories, and water treatment plants. This controller meets the modern requirements for reliability, automation, and compliance in aquatic facility management.
Browse more Swimming Pool and Spa Controllers and advanced water quality control products on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The controller monitors pH, ORP, and temperature using a single integrated digital probe.
The built-in dosing pumps automatically adjust chemical dosing based on real-time readings, with features like overdosing protection and adjustable proportional feed.
The controller measures 245 x 188 x 55 mm (73 mm with pumps) and weighs 1.7 kg, making it suitable for wall or panel mounting.
Yes, it operates effectively in environments with temperatures ranging from 0 to 50 ºC and up to 95% relative humidity (non-condensing).
The panel-mounted bypass flow cell allows for easy calibration and servicing of the probe without shutting down the system, ensuring minimal downtime.
It includes overdosing protection, programmable high/low alarm relays, and galvanically isolated analog and digital I/O for enhanced safety and integration.
The controller can log measurements and key events for up to 60 days, providing a comprehensive audit trail for water quality management.
It is suitable for commercial and high-end residential installations, including hotels, resorts, sports facilities, and municipal swimming pools.
Yes, the controller features password protection to enhance security and restrict unauthorized access to settings.
The controller operates on a power supply of 100–240 VAC, making it versatile for various installation environments.
