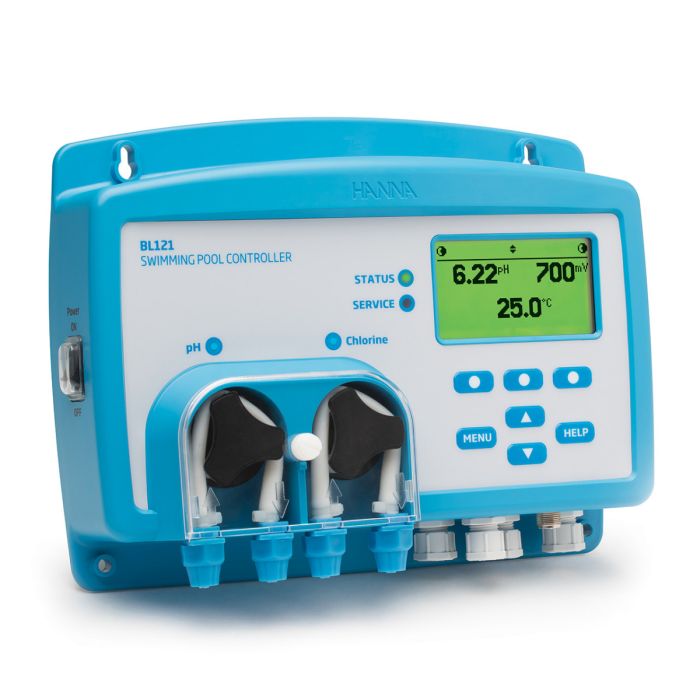

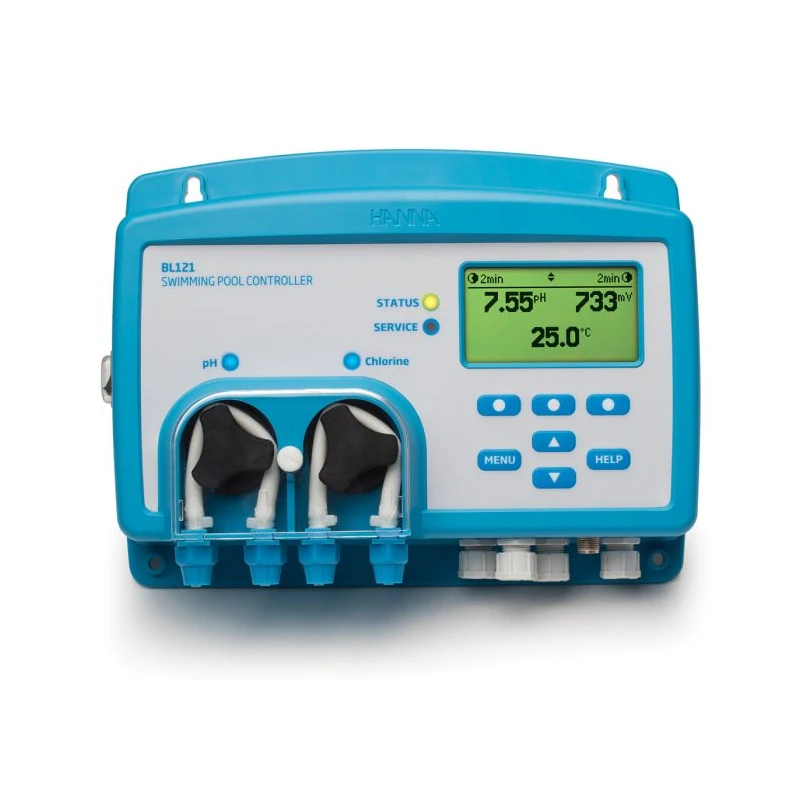

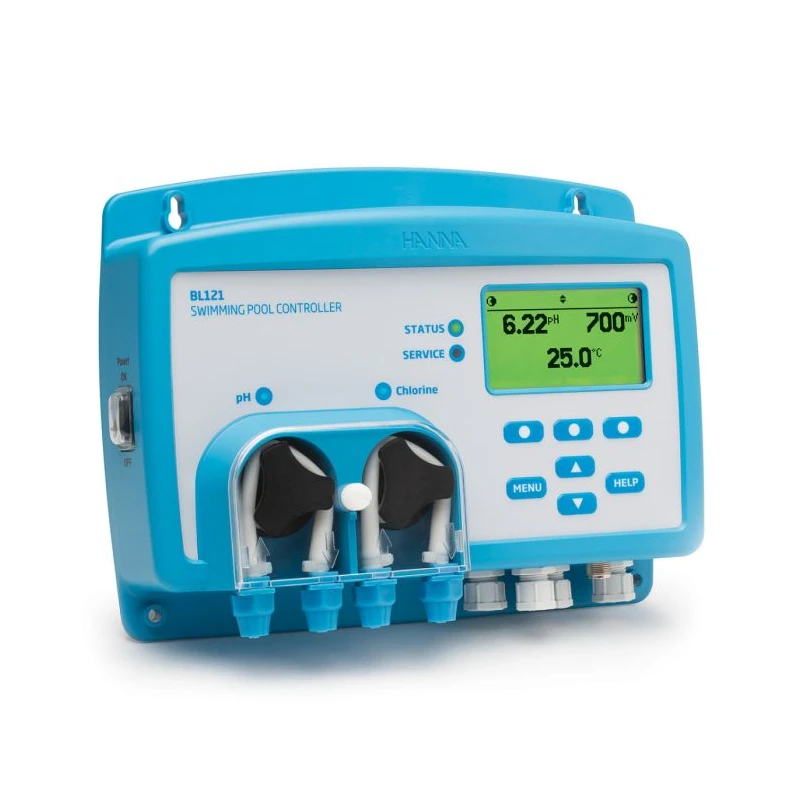

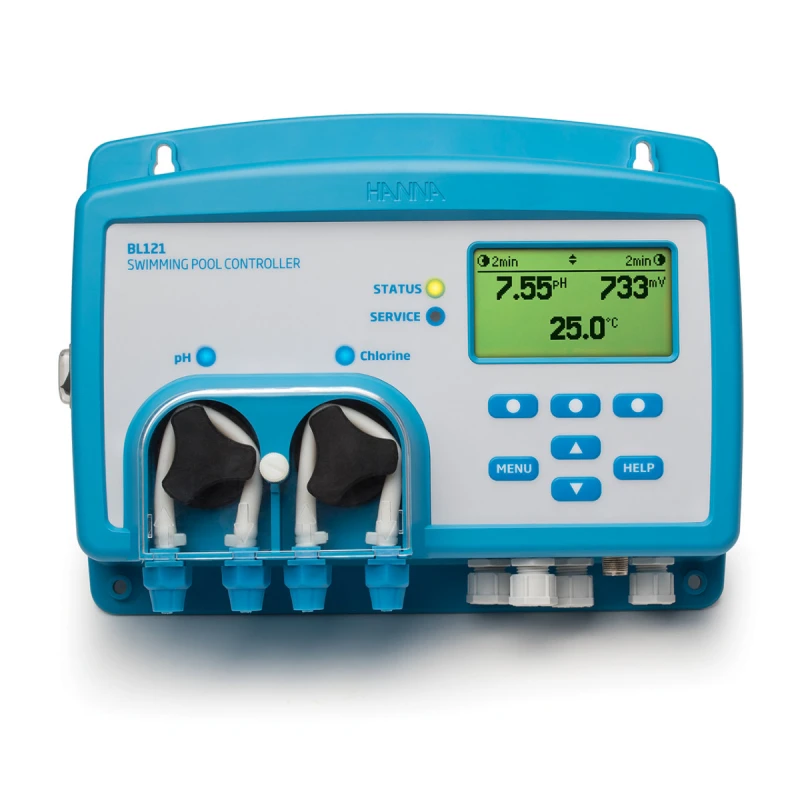

Hanna Swimming Pool Controller with Built-in Dosing Pumps, Analog Outputs and In-line Mounting Kit

The Swimming Pool Controller with built-in dosing pumps, analog outputs, an in-line mounting kit, and a multi-parameter probe offers a comprehensive solution for automated pool water quality management. Designed for swimming pools, hot tubs, and spas, it maintains optimal disinfection by controlling pH, ORP, and temperature parameters. Operating with a universal 100–240 VAC power supply, this system is available in both direct in-line and panel-mounted configurations, fitting a wide range of installation scenarios.

• Accurately measures and controls pH (0.00–14.00, ±0.05), ORP (±2000 mV, ±5 mV), and temperature (–5.0 to 105.0 °C, ±1 °C).
• Integrates multi-parameter digital probes (HI1036-18XX series) with matching pin and cable lengths from 2–20 m.
• Automated dosing via proportional feed with adjustable set point and band; overdosing protection via safety timer and delayed startup.

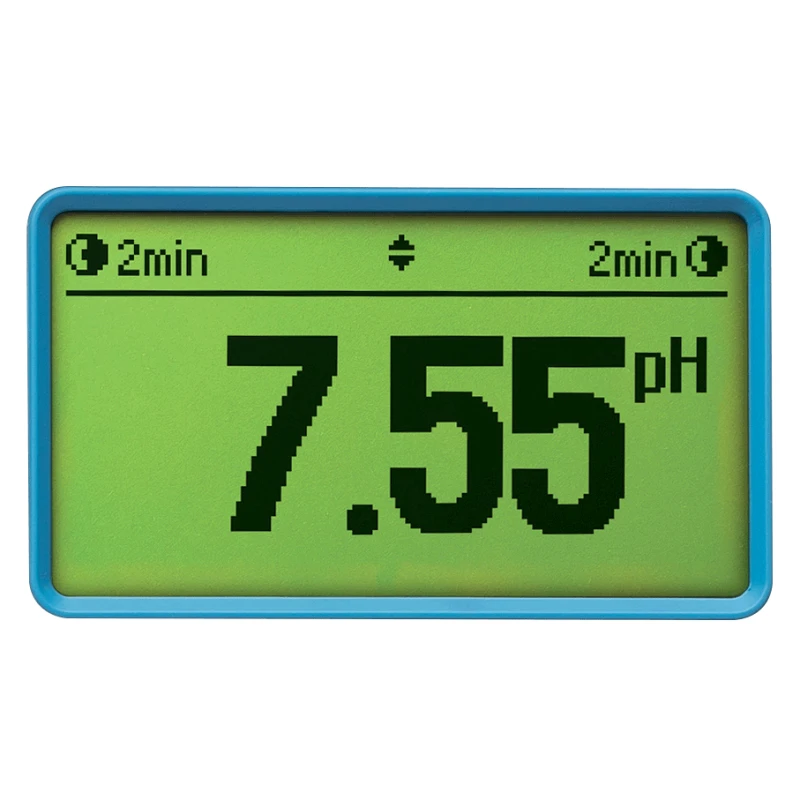

• Features LED dosing status, service indicators, password protection, and real-time graph display for enhanced usability.
• Alarms for high/low threshold breaches with configurable enable/disable; triggered if 5 consecutive readings are outside range.
• Provides analog output signals (BL122 model, 3 channels, 4–20 mA, sourcing, <500 Ohm, isolated up to 50 V from earth).
• Digital, galvanically isolated input contacts for acid/base/chlorine tank level monitoring and hold input.

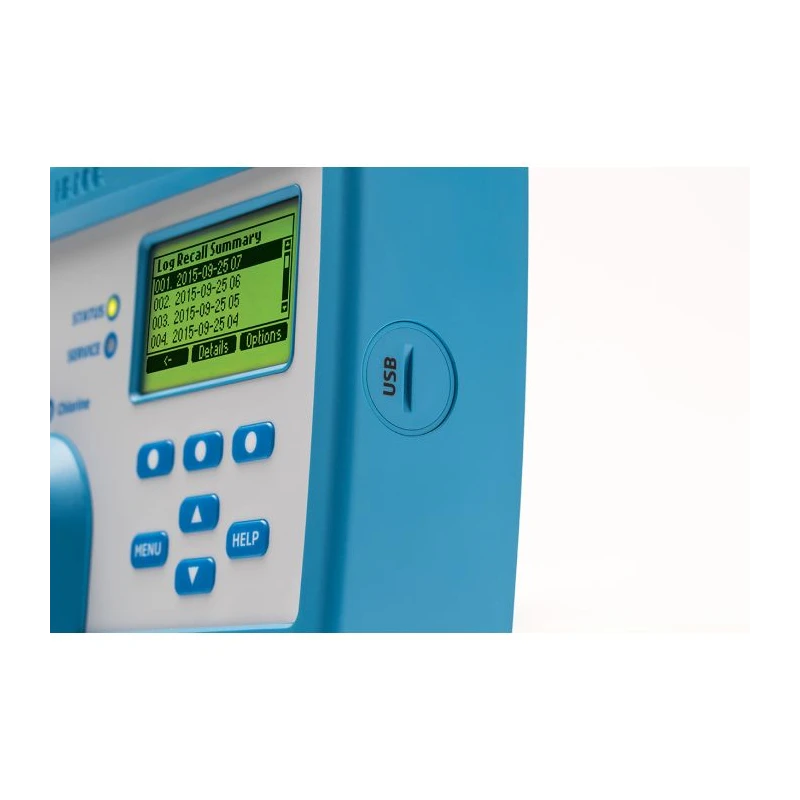

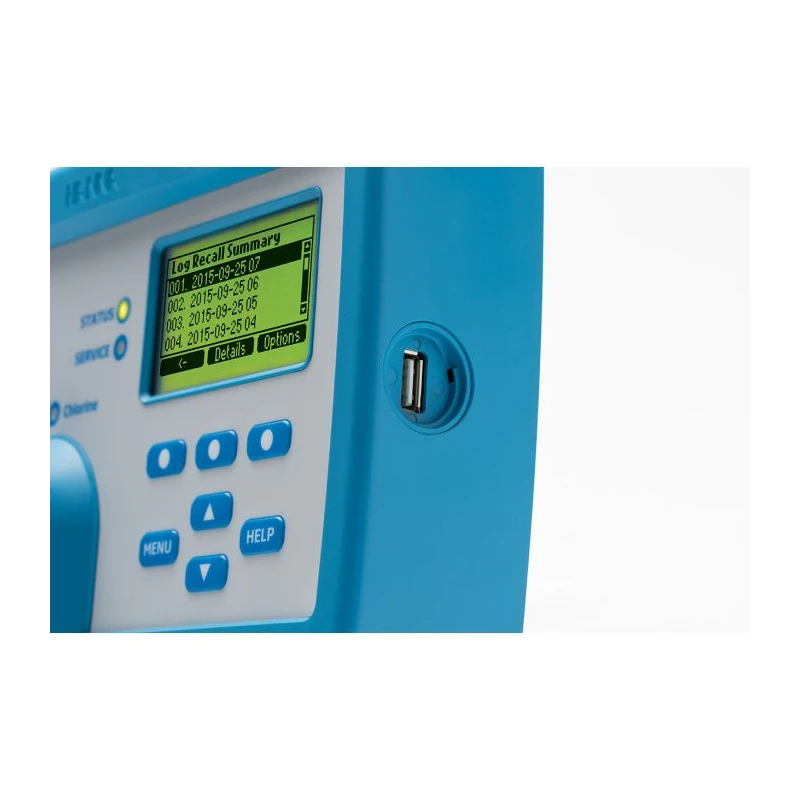

• USB connectivity for updates and traceable data logging with up to 60 days memory and 10 s logging periods.
• Automatic two-point and single-point calibration for pH using buffer standards, with process calibration.

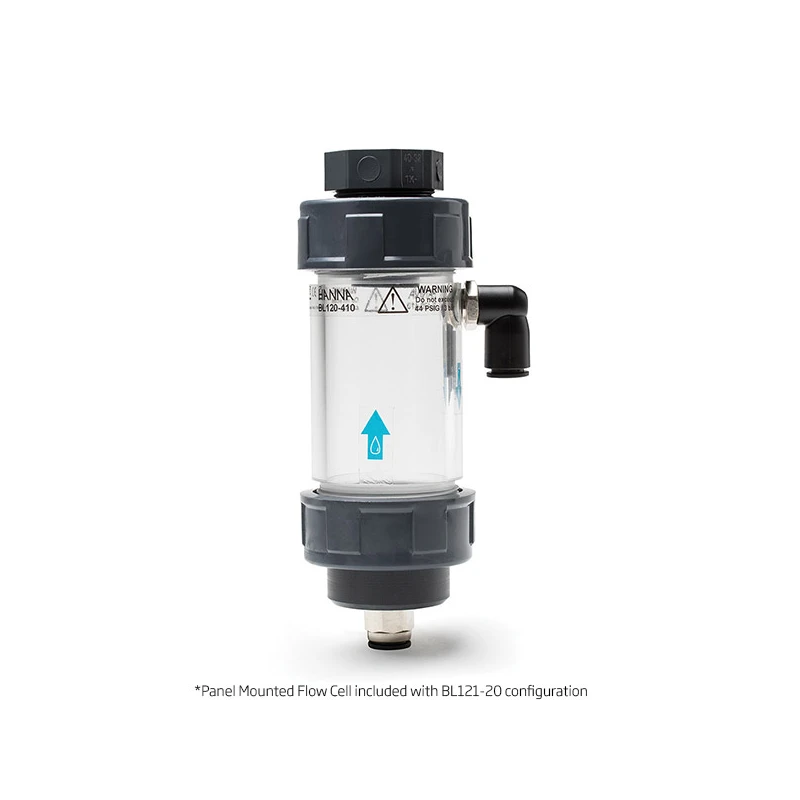

• Panel-mount version features bypass flow cell for calibration/maintenance without recirculation pump shutdown.

Widely used in commercial, hotel, public, and industrial pool settings, laboratories, and water treatment applications for robust water quality management and compliance. Ensure a safe, clean, and enjoyable swimming experience with automated dosing control and traceable logging capabilities.
