Hanna Cloud Enabled Swimming Pool Controller with Built-in Dosing Pumps, Analog Outputs and In-line Mounting Kit
Specifications
| Country of Origin | India |
|---|---|
| Package Contents | Controller, dosing pumps, analog/digital I/O, multi-parameter probe, in-line mounting kit |
| Temperature Accuracy | ±1 °C |
| Power Consumption | 10 VA |
| Power Supply | 100–240 VAC |
| Dimensions | 245 x 188 x 55 mm (73 mm with pumps) |
| Temperature Resolution | 0.1 °C |
| Product Type | Swimming Pool Controller |
| Temperature range | -5.0 to 105.0 °C |
| pH Range | 0.00 to 14.00 pH |
| pH Resolution | 0.01 pH |
| pH Accuracy | ±0.05 pH |
| Environment | 0–50 ºC, Max 95% RH non-condensing |
| ORP Range | ±2000 mV |
| ORP Resolution | 1 mV |
| ORP Accuracy | ±5 mV |
| Logging Memory | 60 days / 10 s interval (or 100 logs) |
| Weight | 1.7 kg |
| Probe type | HI1036-18XX pH/ORP/Temperature digital combined probe |
| Product Condition | New |
| Analog Output Signal | 4–20 mA, ≤500 Ohm, galvanically isolated up to 50 V |
| Digital Input Signal | Galvanic Isolated, Powered Contact Type |
| Dosing Pumps | Built-in |
Key Features
Swimming Pool Controller with built-in dosing pumps, cloud connectivity, inline mounting, and multi-parameter probe, suitable for professional water quality management in pools, spas, and hot tubs.
- Features built-in dosing pumps for automated, precise chemical delivery.

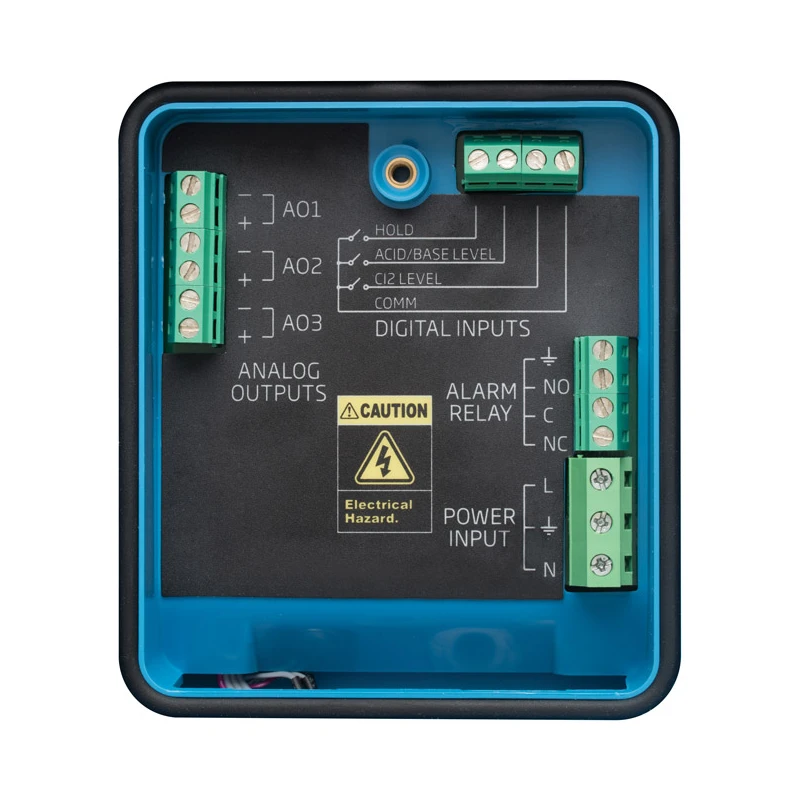

- Analog outputs and digital inputs support integration with multiple pool control systems.
- In-line mounting kit allows direct installation into existing pipework for streamlined setup.
- Multi-parameter digital probe measures pH, ORP, and temperature.
- Equipped with cloud connectivity for remote monitoring and data logging.
- Alarm relay set point functions provide real-time alerts for water quality deviations.
- LED indicators display dosing and service status for quick visual diagnostics.
- Programmable alarms and password protection enhance operational security.
- Environmentally robust: 0–50 ºC operation, 95% RH max (non-condensing).
- Supplies proportional dosing control with overfeed safety timer and delayed start option.
Product Description

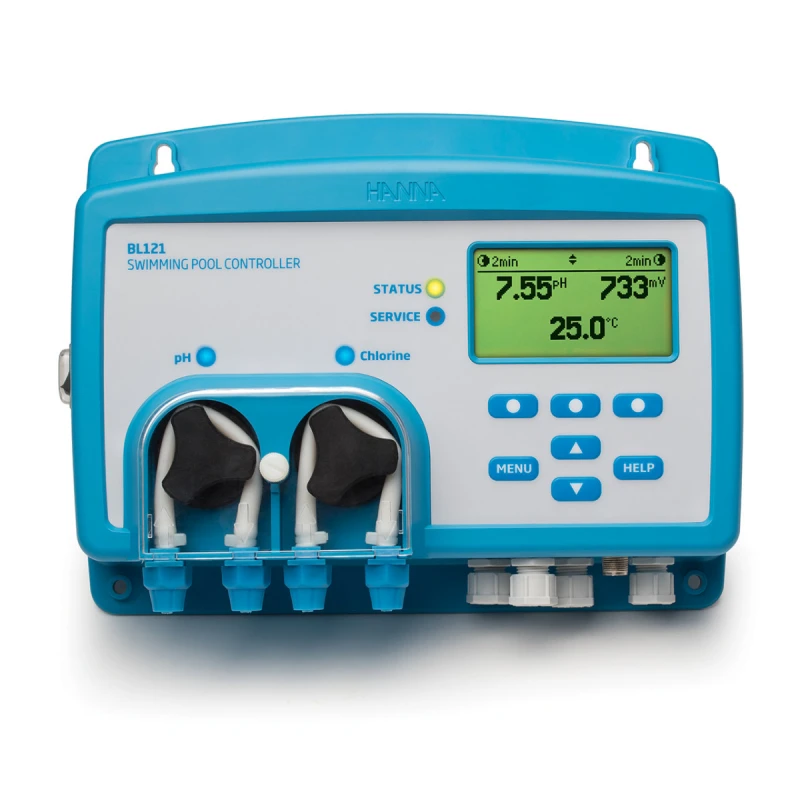

Swimming Pool Controller with Built-in Dosing Pumps, Analog Outputs, Inline Mounting Kit, and Cloud Enabled Communication is a complete solution for advanced disinfection and water quality management in commercial swimming pools, spas, and hot tubs. Engineered for ease of use and integration, the system includes a multi-parameter probe that measures pH, ORP, and temperature, supporting high-precision water treatment applications.
This controller supports analog and digital outputs, real-time graph display, programmable alarms, and a memory that logs water quality data for up to 60 days. Installation is versatile with both in-line and panel/bypass flow cell configurations. Automated calibration and configurable set points ensure accurate dosing and operational reliability.

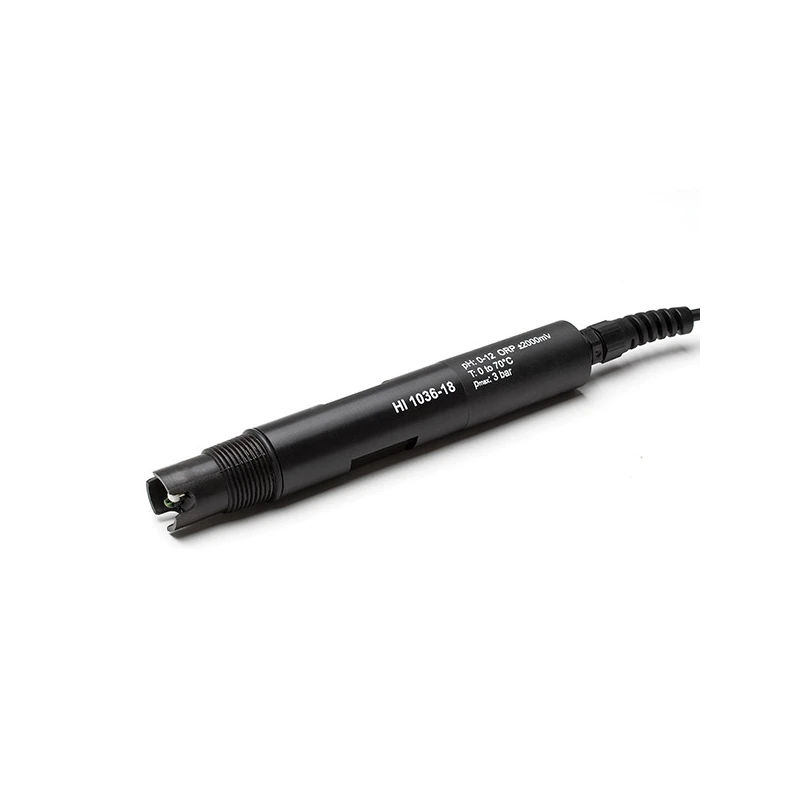

- Multi-parameter combined probe: HI1036-18XX series with options for cable length (2, 5, 10, 15, 20 meters).

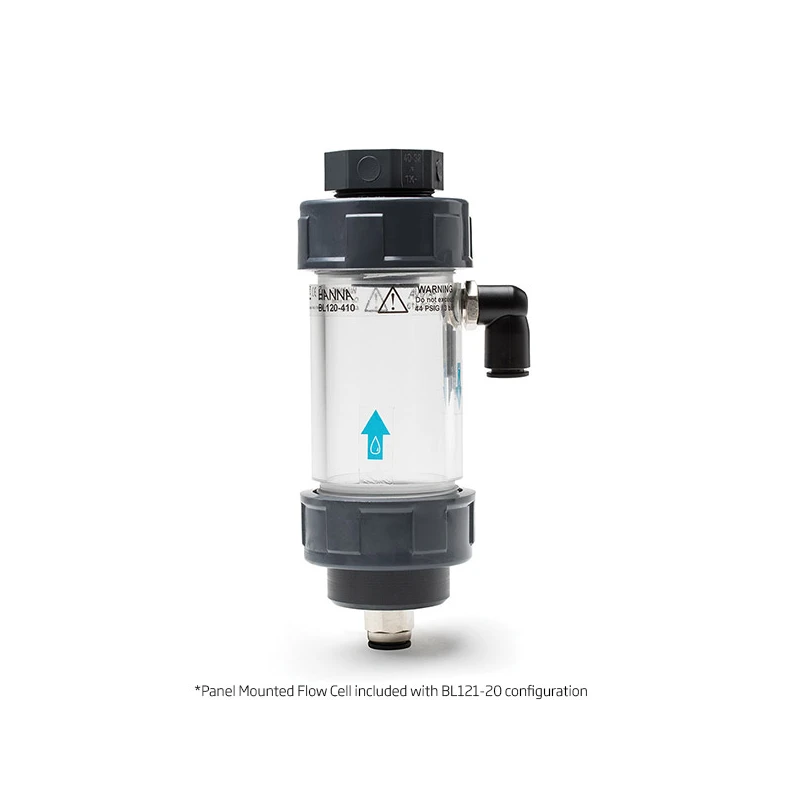

- Designed for direct in-line installation or optional panel mounting with bypass flow cell.
- LED status indicators, alarms, and service notifications are integrated onboard.
- Galvanically isolated analog output (≤ 500 Ohm, 4–20 mA) with less than 0.5% FS accuracy.

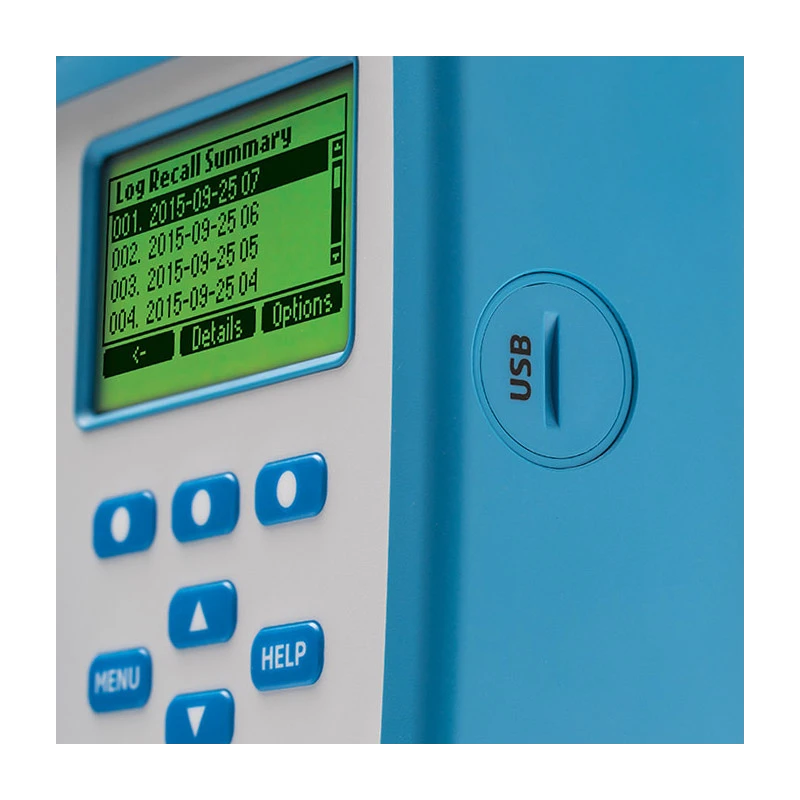

- USB connectivity delivers seamless integration with cloud services for remote management.
- Password protection for control parameters, with service-mode and calibration features for operational security.
- Proportional dosing and over-feeding safety systems to prevent chemical wastage or water quality excursions.
- Environmental operating range is 0-50 ºC, suitable for humid pool environments.
- Compact enclosure dimensions: 245 x 188 x 55 mm (expandable to 73 mm with pumps installed).
Applications include monitoring and dosing disinfection chemicals, maintaining pH/ORP balance, and providing secure centralized pool management for industrial, municipal, community, hotel, and sports facility pools. Supports laboratory and commercial water treatment scenarios.
Shop more swimming pool control and water quality automation solutions from EnvMart's Laboratory Instruments & Supplies category.
