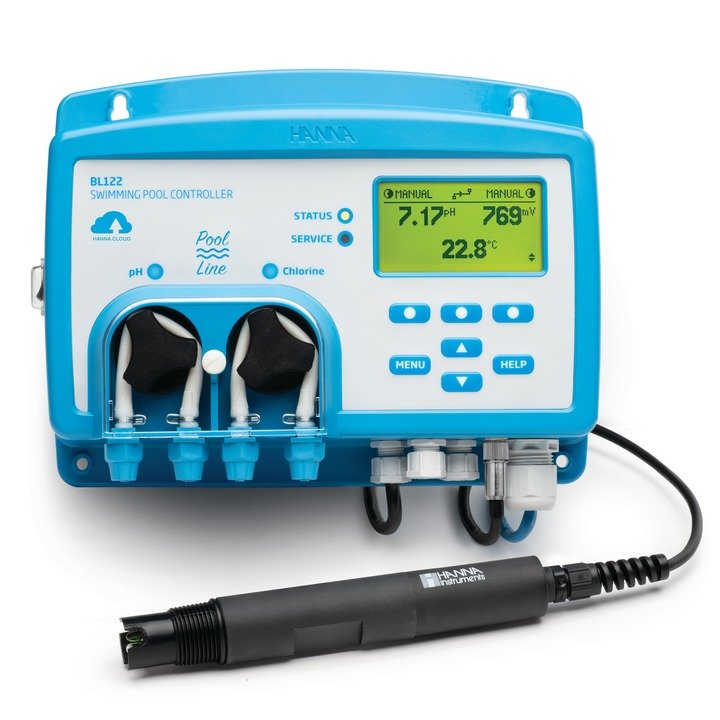

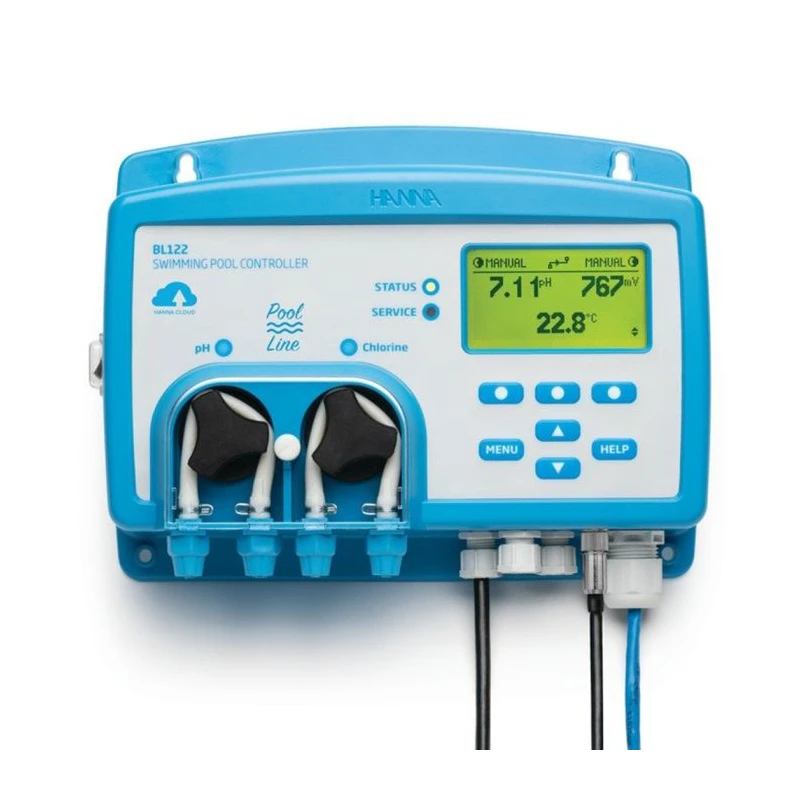

Hanna Cloud Enabled Swimming Pool Controller with Built-in Dosing Pumps - BL122
Specifications
| Country of Origin | India |
|---|---|
| Temperature Accuracy | ±1 °C |
| Power Consumption | 10 VA |
| Power Supply | 100–240 VAC |
| Dimensions | 245 x 188 x 55 mm (73 mm with pumps) |
| Temperature Resolution | 0.1 °C |
| Product Type | Cloud Enabled Swimming Pool pH/ORP Controller with Built-in Dosing Pumps |
| Temperature range | -5.0 to 105.0 °C |
| pH Range | 0.00 to 14.00 pH |
| pH Resolution | 0.01 pH |
| pH Accuracy | ±0.05 pH |
| Environment | 0–50 °C, Max 95% RH non-condensing |
| ORP Range | ±2000 mV |
| ORP Resolution | 1 mV |
| ORP Accuracy | ±5 mV |
| Connectivity | USB, Hanna Cloud |
| Logging Memory | 60 days, 10 s period (or 100 logs) |
| Model | BL122 |
| Alarm Relay Set Point | High and Low (enable/disable per parameter) |
| Weight | 1.7 kg |
| Product Condition | New |
| MPN | BL122 |
| Analog Output Signal | 4–20 mA (BL123 only) |
| Dosing Control | Proportional feed with adjustable set point and band |
Key Features
BL122 Cloud Enabled Swimming Pool pH/ORP Controller with built-in dosing pumps is designed to maintain optimal pH and ORP levels in pools, hot tubs, and spas, offering advanced connectivity and automation features.
- Enables cloud connectivity for remote monitoring and management of swimming pool water quality.
- Maintains constant pH and ORP (disinfectant) levels for improved safety and water balance.

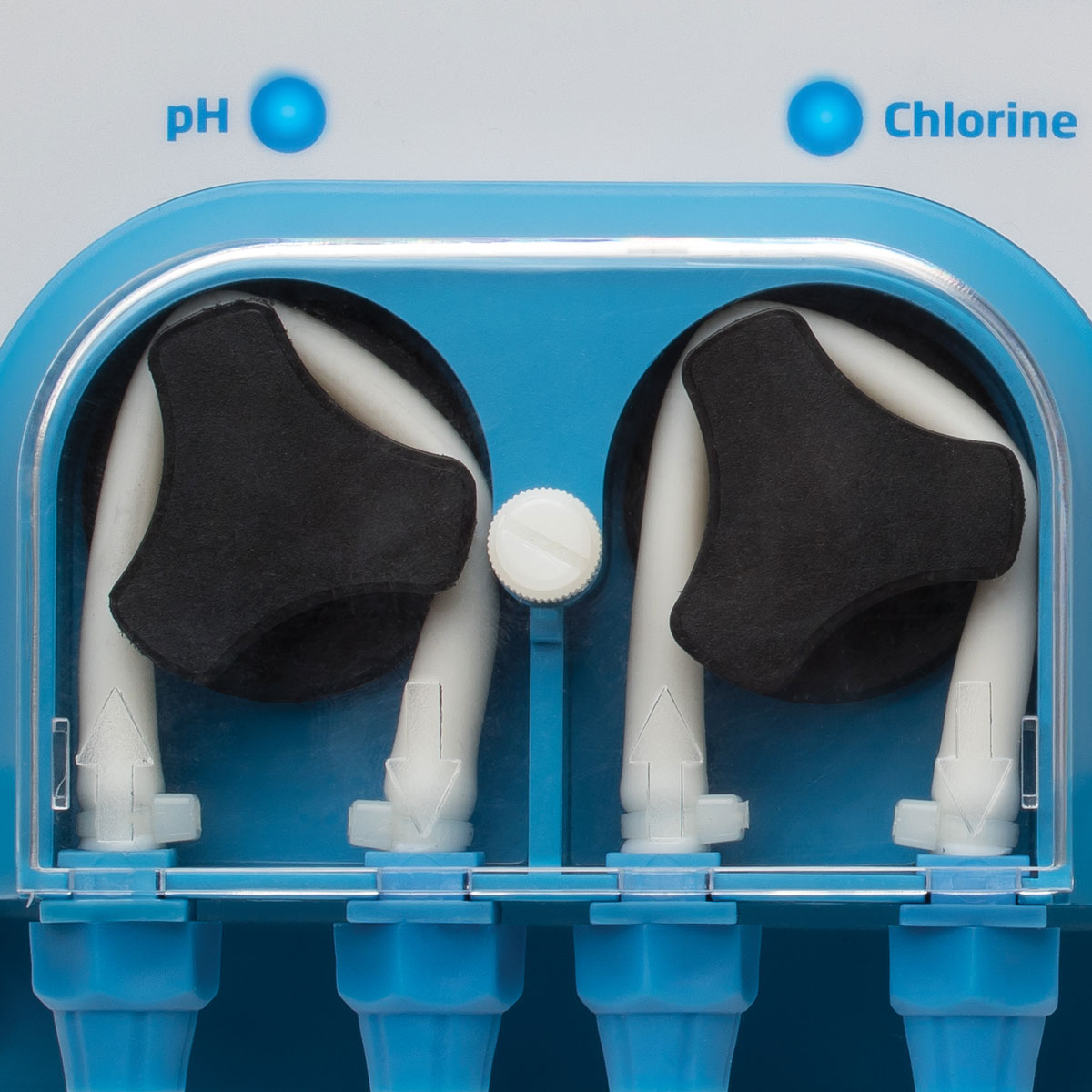

- Includes built-in dosing pumps for precise chemical dosing directly via system control.
- Measures chlorine level through the ORP/REDOX principle, monitoring free chlorine using mV readings.
- Equipped with alarm relay and over-dosing protection for enhanced operational safety.
- Offers 60-day data logging with automatic event tracking and 10-second measurement intervals.
- Multi-parameter cable probe monitors pH/ORP/temperature with high precision.
- Operates on a wide power supply range of 100–240 VAC for versatile usage.
- Features automatic, two-point pH buffer calibration and process calibration capability.
- Compact form factor: 245 x 188 x 55 mm (9.6 x 7.4 x 2.2 inch).
- Comprehensive safety, interlocking, and alarm features for reliable unattended operation.
Product Description

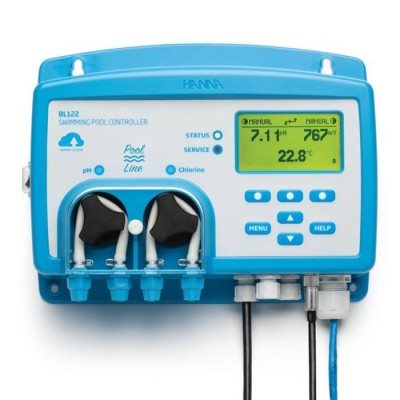

The BL122 Cloud Enabled Swimming Pool pH/ORP Controller with built-in dosing pumps enables intelligent pool water management by automating the control of pH and ORP (disinfectant) levels. Designed for swimming pools, hot tubs, and spas, this controller supports Hanna Cloud connectivity for remote operation and continuous monitoring through a web application.

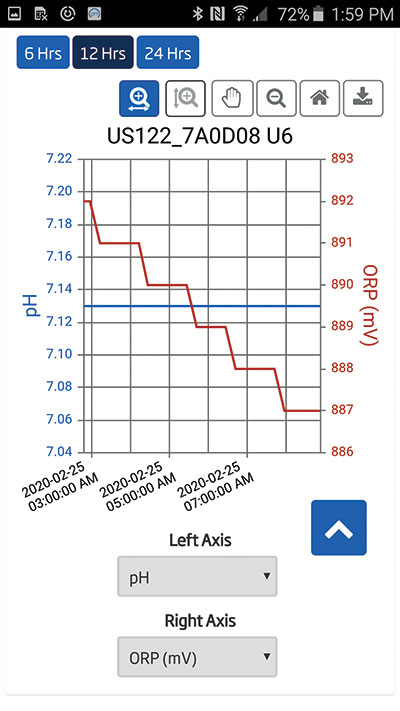

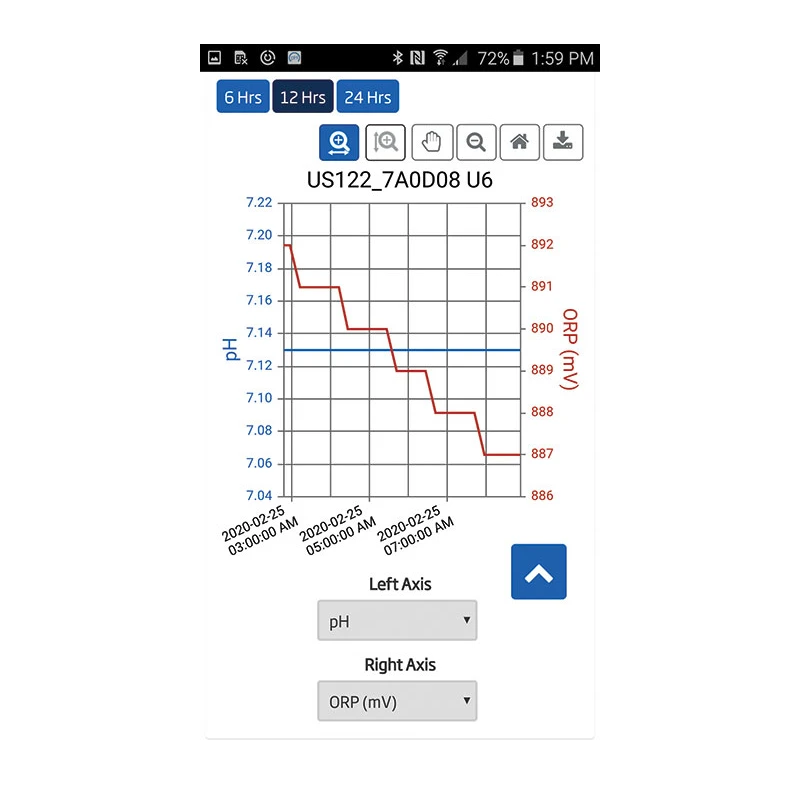

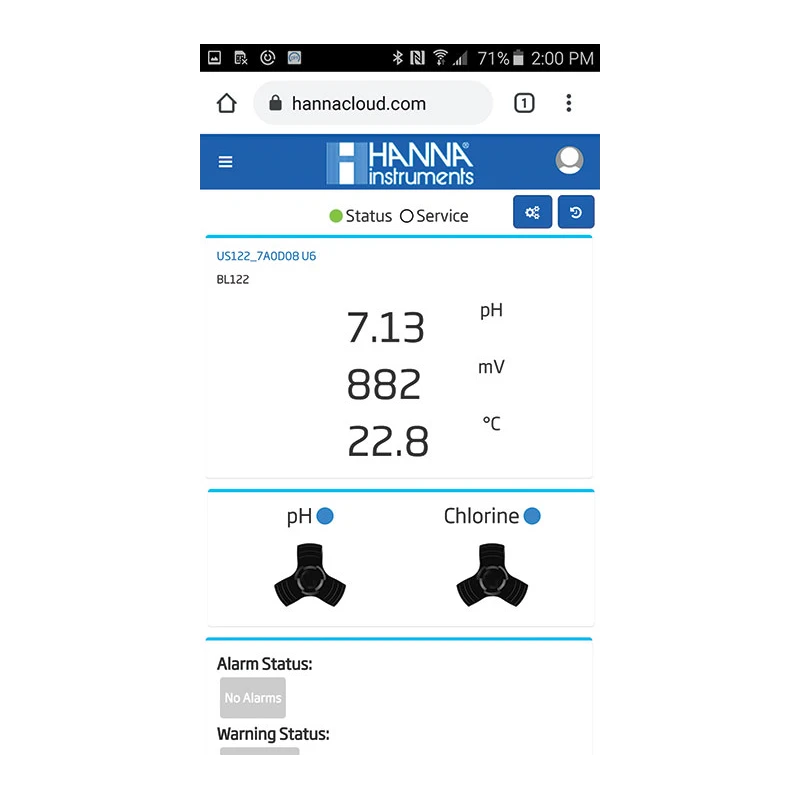

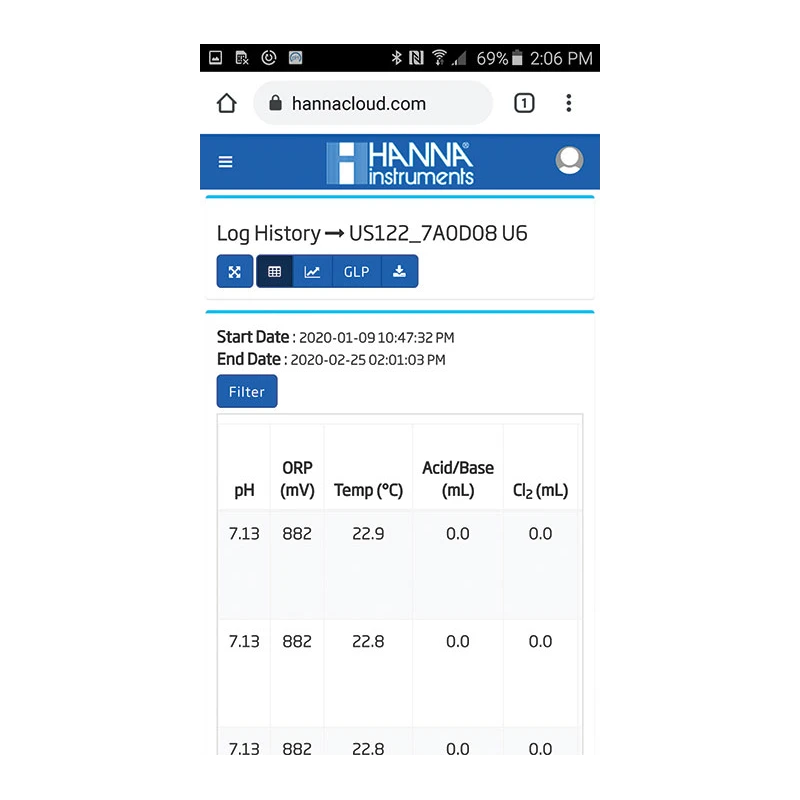

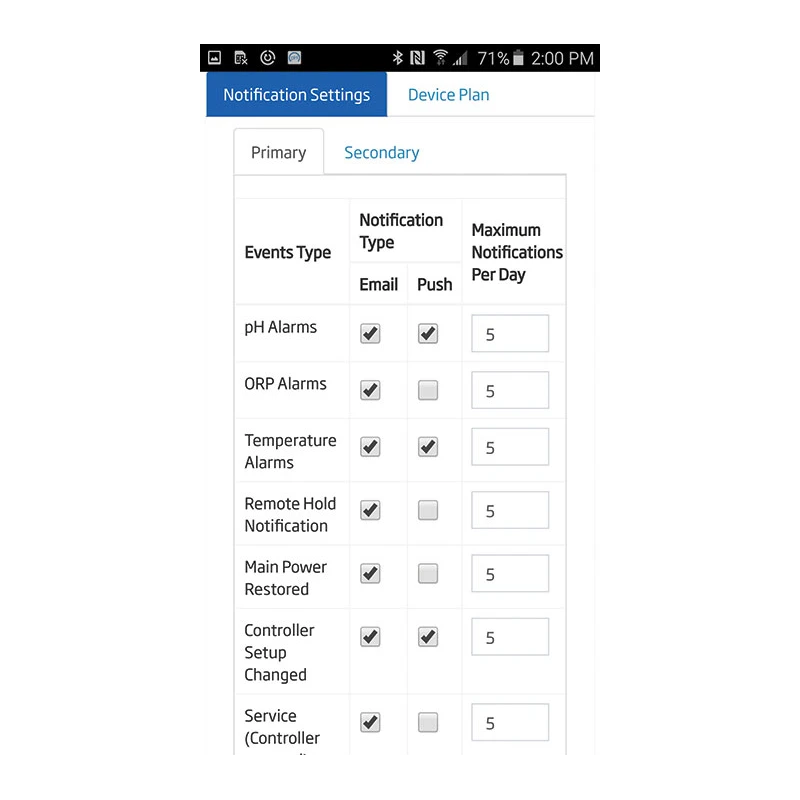

- Enables remote connection, diagnostics, and logging via Hanna Cloud web app for convenient pool monitoring and compliance.

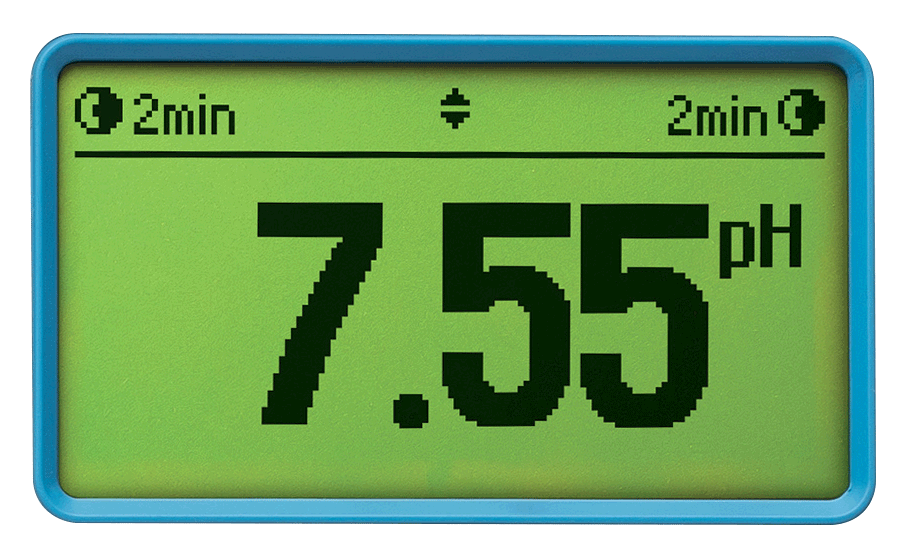

- Maintains optimal pH (0.00 to 14.00; ±0.05 pH) and precise ORP (±2000 mV; ±5 mV) using robust digital sensors.

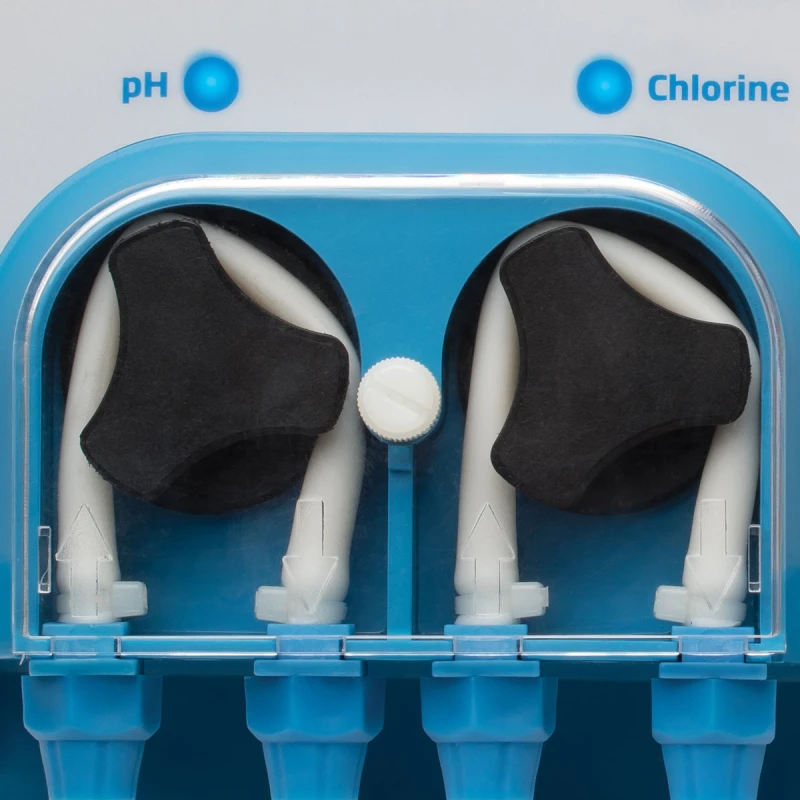

- Built-in dosing pumps deliver proportional chemical feed controlled by set points, interlocks, and over-dosing timers.
- Features relay alarms for high/low readings, adjustable set points, and automatic event logging for critical process safety.

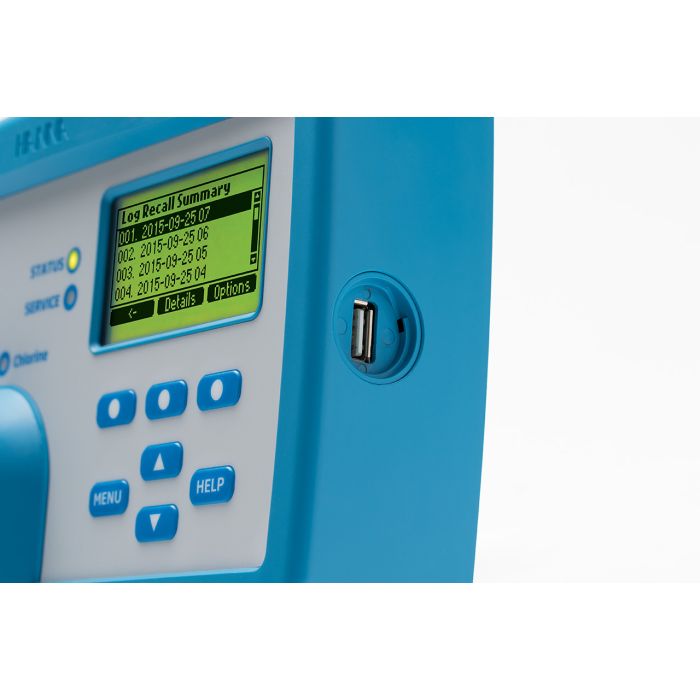

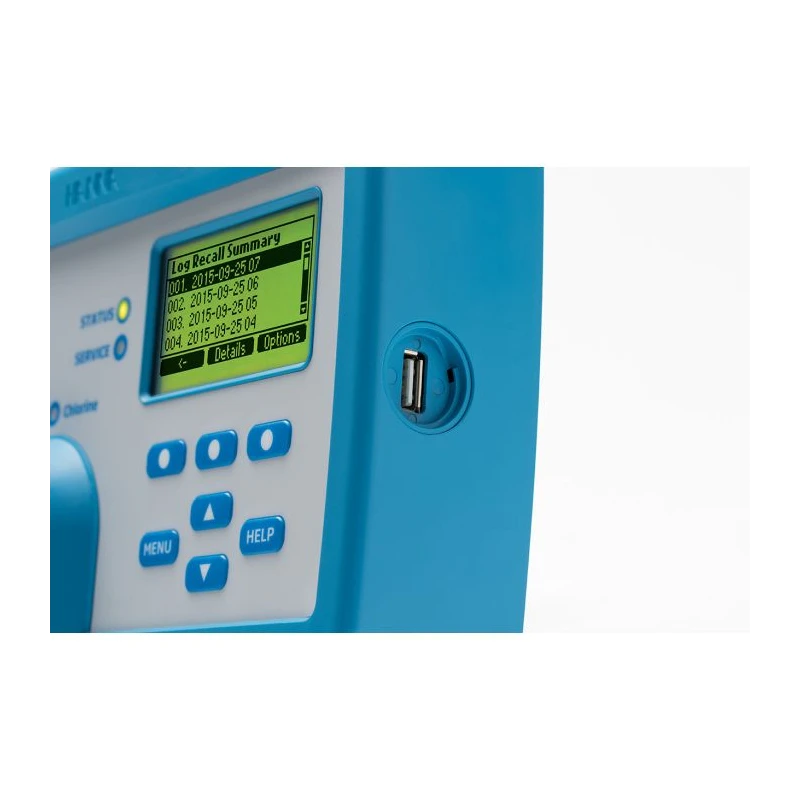

- Comprehensive measurement and data storage: 60 days of logging memory, automatic recording of pH, ORP, temperature, and operational events (alarms, power-failures, errors).

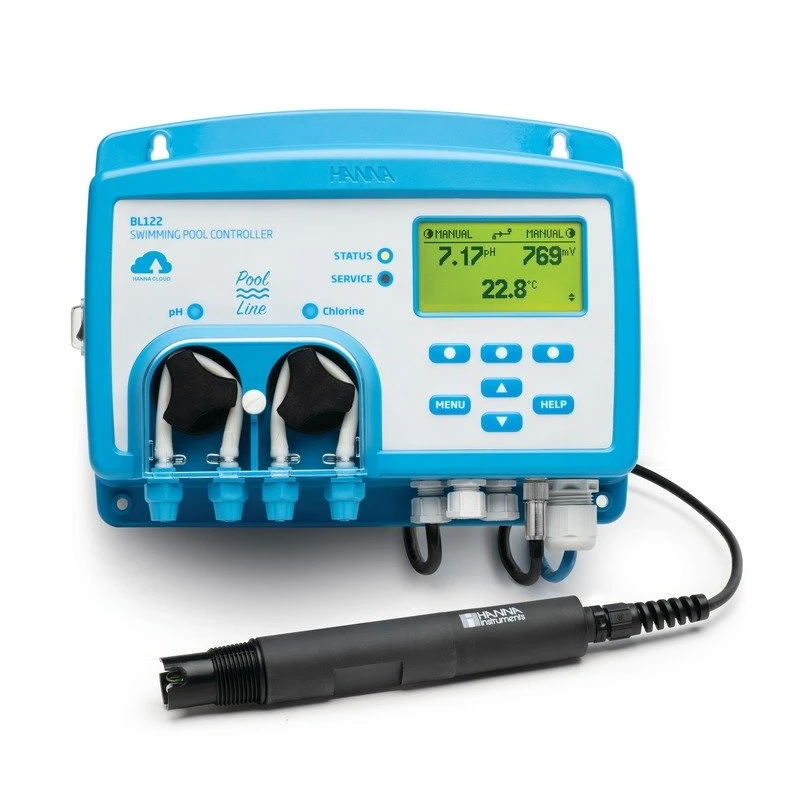

- Advanced probe (HI1036-18XX) integrates pH/ORP/temperature with matching pin digital interface: available in 2–20 m cable options.

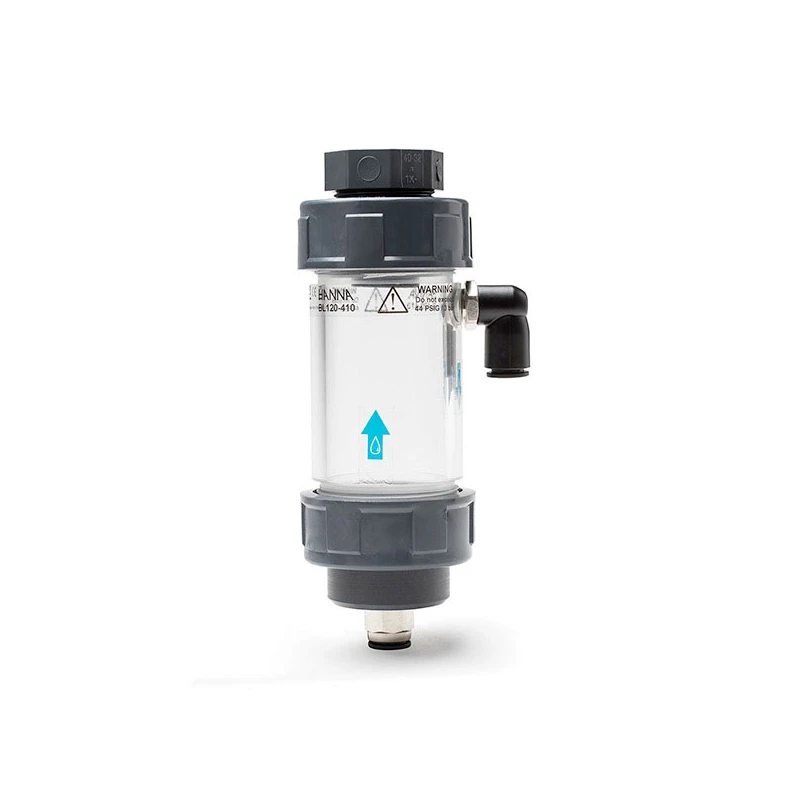

- Full compatibility in both direct-pipe and panel/bypass-mounted installations, supporting calibration and maintenance without shutting down pool recirculation.

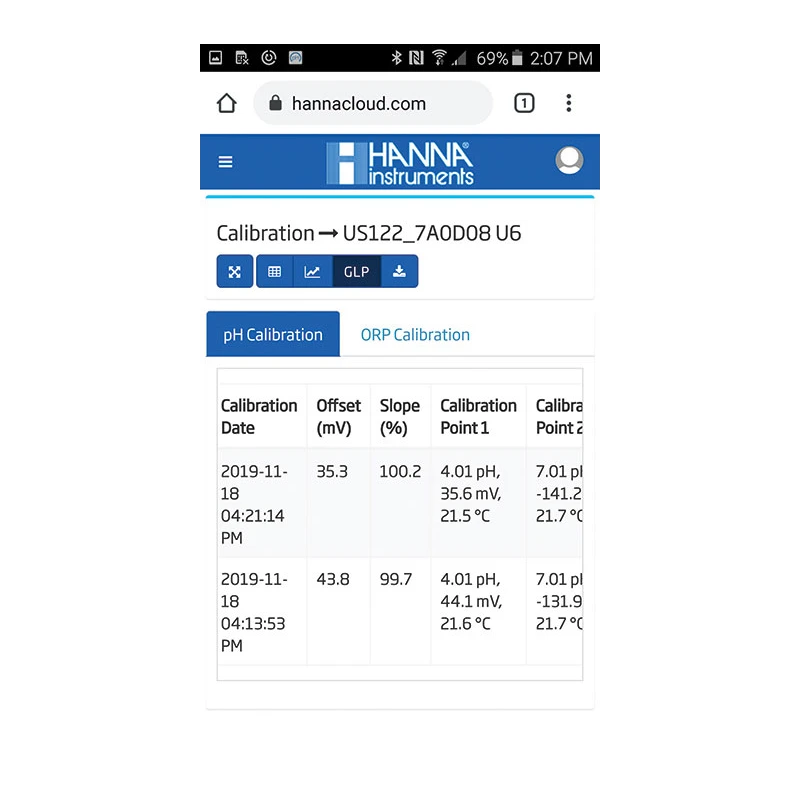

- Automatic pH buffer calibration (4.01, 7.01, 10.01), single-point process calibration, and integrated temperature compensation for measurement reliability.
- Environmentally robust operation: 0–50°C temperature range, up to 95% RH (non-condensing).

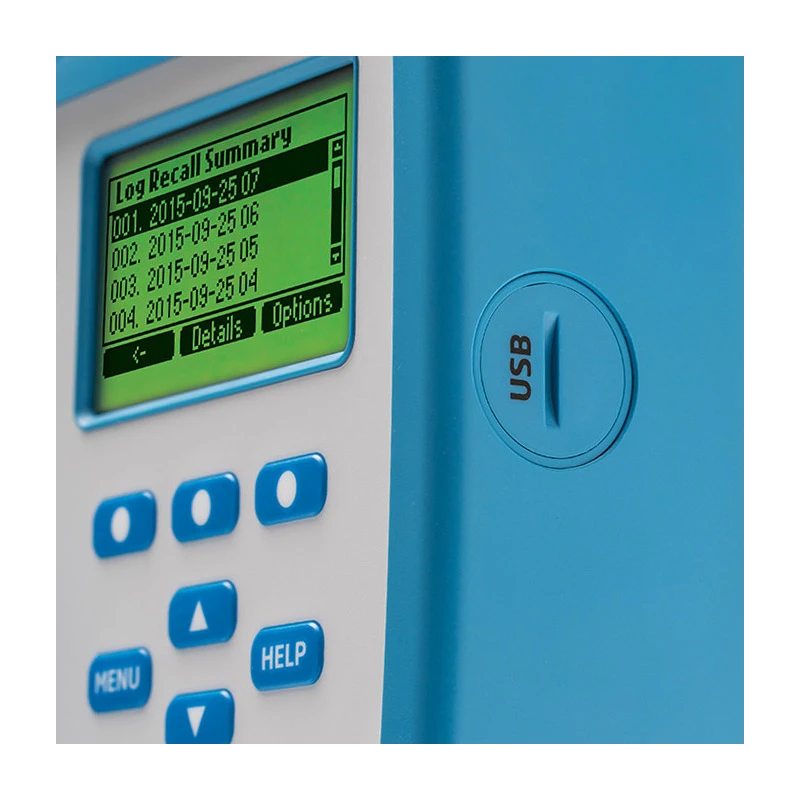

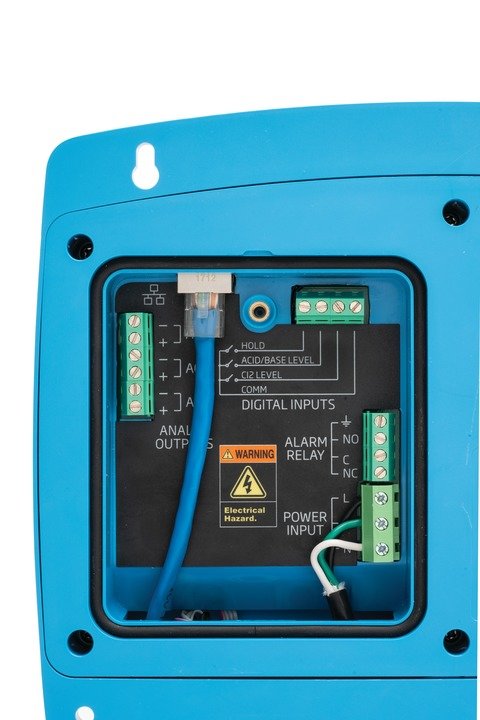

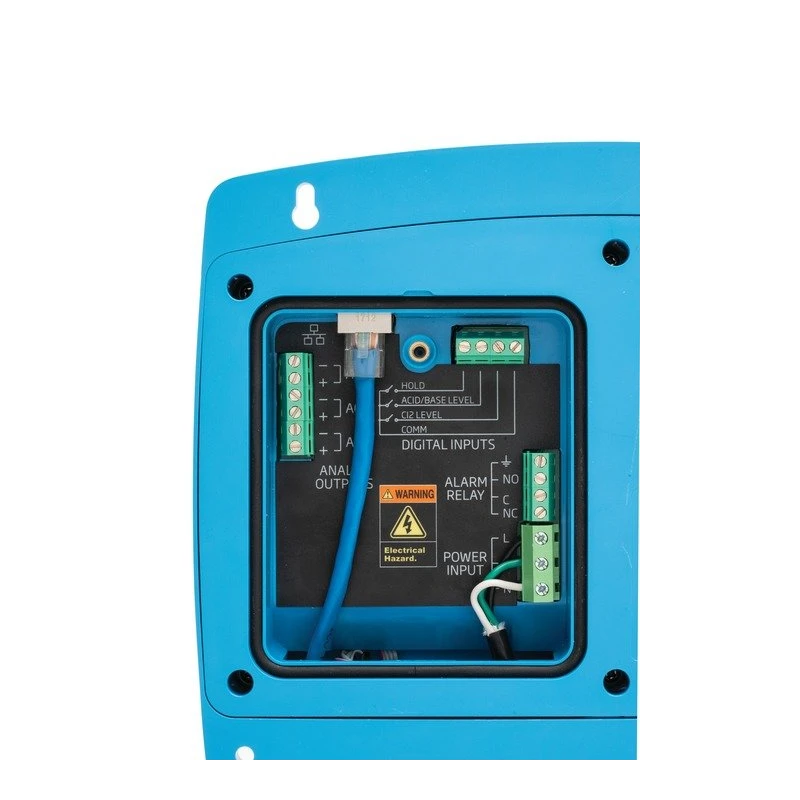

- 4–20 mA analog output signals (optional on BL123), USB connectivity, galvanic isolation, and digital/consent relay input for system integration.
- Compact design: 245 x 188 x 55 mm (73 mm with pumps), weight 1.7 kg (60 oz).
This pool controller is suited for resorts, commercial, hotel, and residential swimming pools requiring advanced automation and water safety compliance. Browse more advanced swimming pool and spa controllers on EnvMart for complete water management solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The controller is designed to maintain optimal pH and ORP levels in swimming pools, hot tubs, and spas, ensuring safe and balanced water quality.

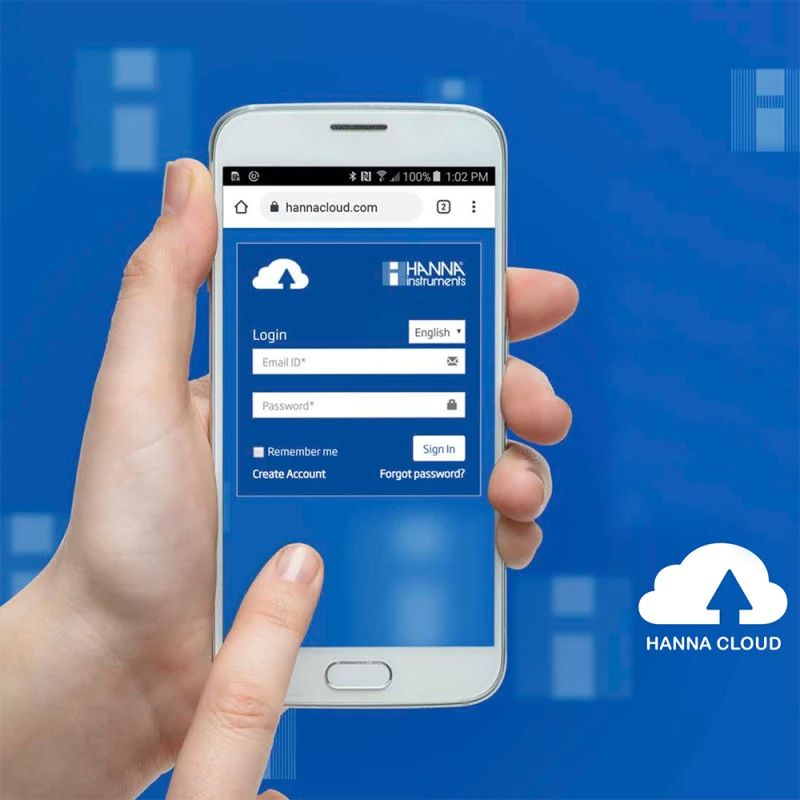

The Hanna Cloud connectivity allows for remote monitoring and management of water quality through a web application, enabling diagnostics and logging from anywhere.
The controller measures 245 x 188 x 55 mm and weighs 1.7 kg (60 oz), making it compact for various installations.
It includes alarm relays for high/low readings, over-dosing protection, and comprehensive safety interlocks to ensure reliable operation.
The built-in dosing pumps deliver proportional chemical feed based on set points and can be controlled through interlocks and over-dosing timers.
It logs pH, ORP, temperature, and operational events for up to 60 days, including alarms and power failures, for comprehensive monitoring.
Yes, it is compatible with both direct-pipe and panel/bypass-mounted installations, allowing for easy calibration and maintenance without shutting down pool recirculation.
The controller operates on a wide power supply range of 100–240 VAC, making it versatile for various environments.
It offers automatic two-point pH buffer calibration and single-point process calibration, ensuring measurement reliability and accuracy.
Yes, it features optional 4–20 mA analog output signals, USB connectivity, and digital relay inputs for seamless system integration.
