Pool Line BL100-Meter pH Controller and Dosing Pump, Probe, Panel Kit, Swimming Pool | EnvMart

Free Delivery in India | Lowest Global Shipping Charges

Pool Line pH Controller and Dosing Pump - BL100-Meter, probe and panel mounted flow cell kit

Name: Pool Line pH Controller and Dosing Pump - BL100-Meter, probe and panel mounted flow cell kit
Brand: Hanna
SKU: 72882
Price: 772.84 USD
Availability: InStock



Category pH Controllers Brand Hanna

Specifications

Country of Origin	India
Temperature Accuracy	±0.5 °C
Power Consumption	15 VA
Power Supply	100–240 Vac, 50/60 Hz
Type	Pool Line pH Controller and Dosing Pump
Dimensions	90 x 142 x 80 mm
Temperature Resolution	0.1 °C
Temperature range	-5.0 to 105.0 °C
pH Resolution	0.01 pH
pH Accuracy	±0.10 pH
Environment	0–50 °C, max. 95% RH (non-condensing)
pH Calibration	Automatic, one/two-point (4.01, 7.01, 10.01) and manual (±0.50 pH)
pH Electrode	HI10053 pH/temperature probe with DIN connector (supplied)
Model	BL100-Meter
IP Rating	IP65
Alarm Relay Set Point	Triggered after 5 seconds if high/low threshold.
Enclosure	Wall mounted with built-in pump
Weight	0.91 Kg
pH Measurement range	0.00–14.00 pH
Product Condition	New
MPN	BL100-Meter
Over Dosing Control	Overtime protection (1–180 min or Off)
Dosing Control	Proportional and on/off control
Digital Input Signal	External switches for level/flow control
pH Dosing Set Point	6.00–8.00 pH

Key Features

BL100-Meter Pool Line pH Controller and Dosing Pump with probe and panel mounted flow cell kit designed for continuous pH control in swimming pools and hot tubs.

Enables automatic pH regulation in pools, hot tubs, and spas.
Complete all-in-one system with pH process controller and chemical dosing pump.
Features an industrial pH probe with 1/2" NPT threads for recirculation line insertion.
Adjustable pH dosing set point range from 6.00 to 8.00 pH for optimized control.

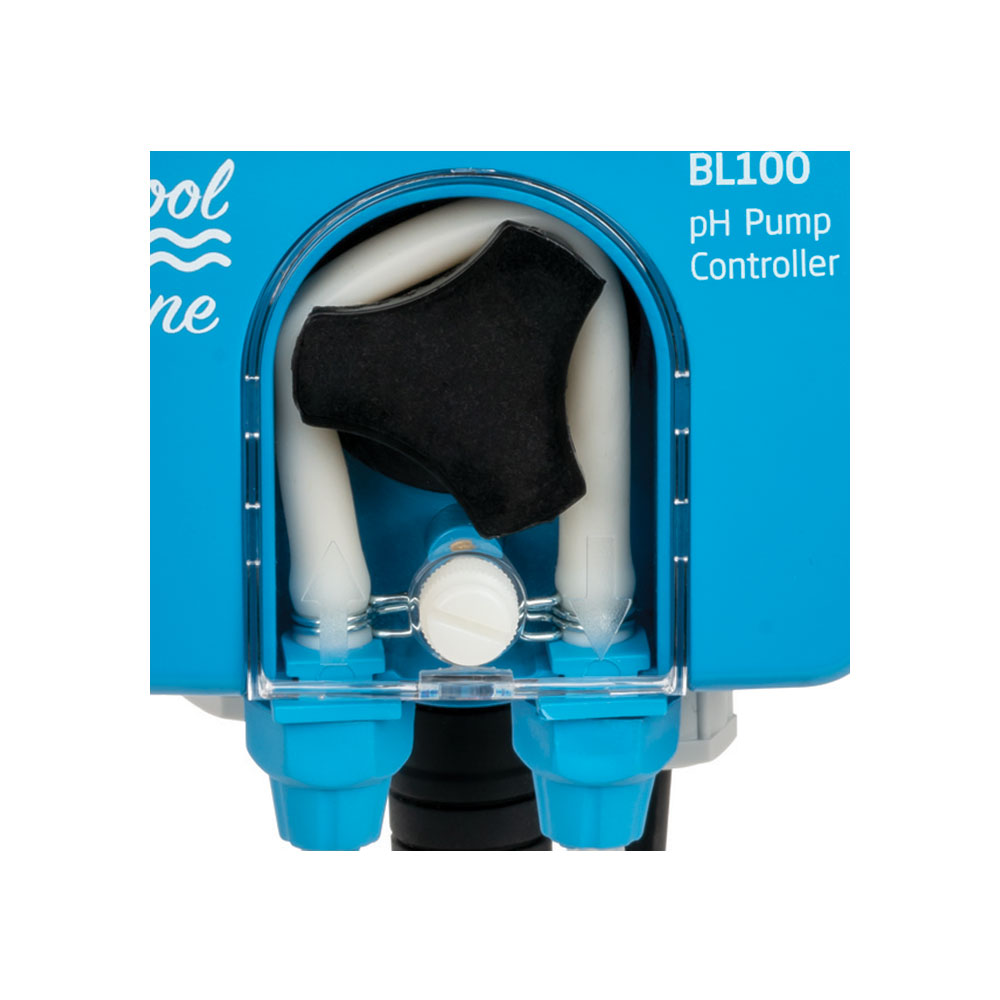

Wall-mounted enclosure with built-in pump and IP65 housing for robust durability.
Automatic temperature compensation, wide 0.00–14.00 pH measurement range.
Overdosing protection and alarm relay with external digital input for safety.
User calibration (automatic and manual), proportional and on/off dosing control.
LED alarm relay, overtime protection, and support for level/flow switches.
Supplied with HI10053 pH/temperature probe with DIN connector and quick connect.

Product Description

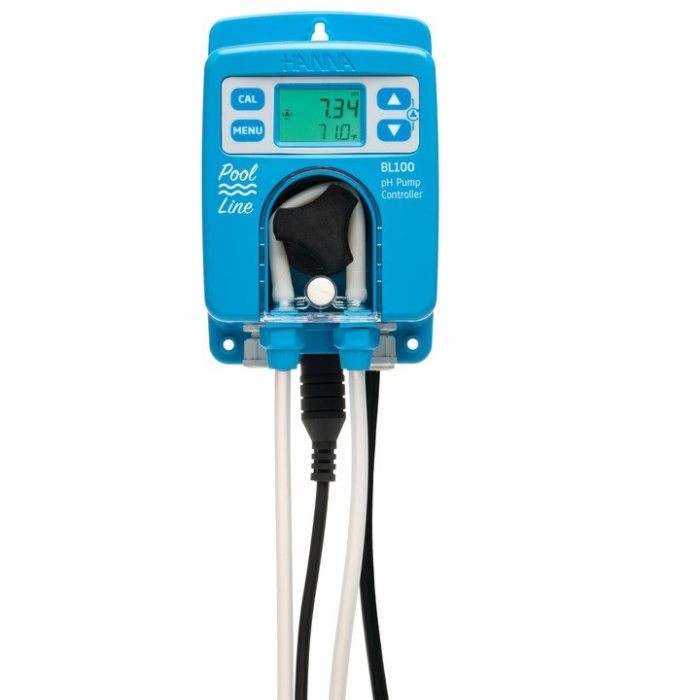

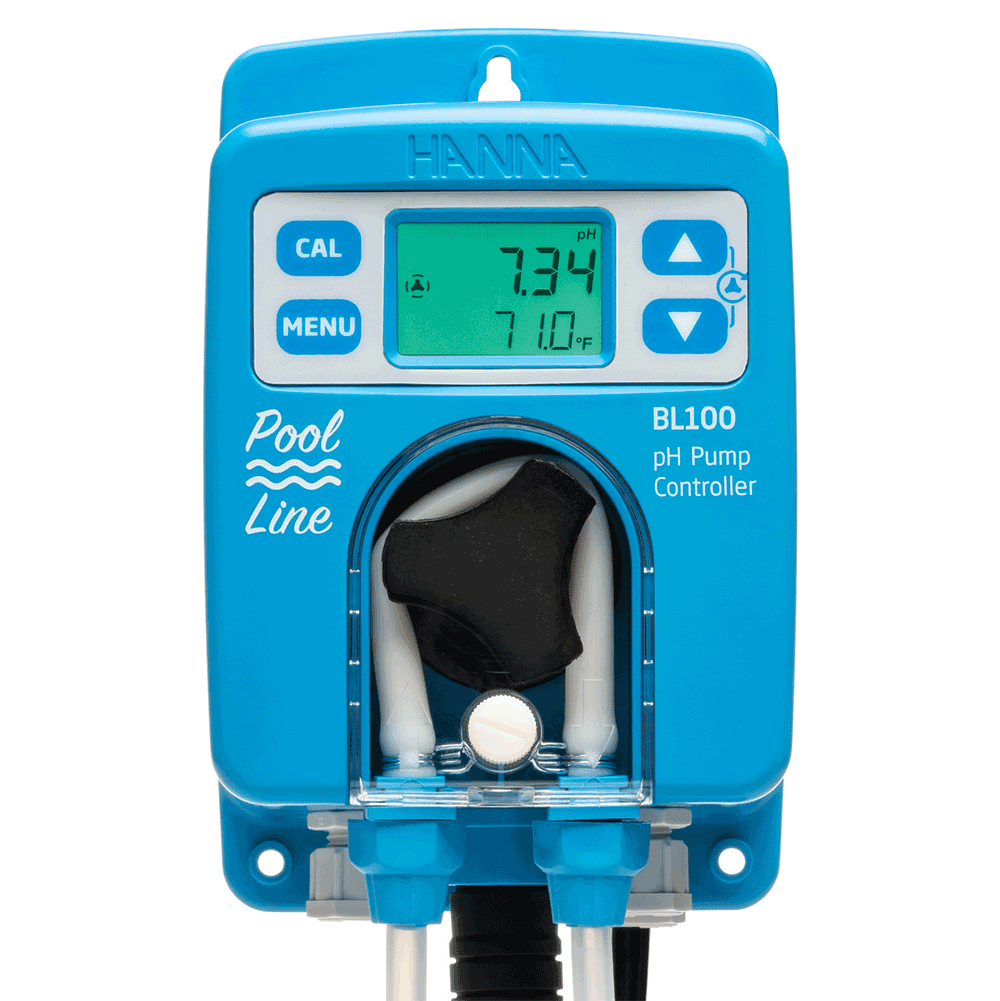

The BL100-Meter Pool Line pH Controller and Dosing Pump with probe and panel mounted flow cell kit is engineered for continuous, precise pH regulation in swimming pools, hot tubs, and spas. This complete solution combines a process pH controller and a chemical dosing pump in a single wall-mounted enclosure with IP65 protection, making it ideal for both residential and commercial water treatment maintenance.

Designed for 100–240V operation (50/60 Hz), the BL100-Meter features an industrial-grade pH probe with 1/2" NPT threads for easy in-line installation with your recirculation pump. The system includes dosing control capabilities (proportional and on/off), adjustable set points (6.00–8.00 pH), user calibration (automatic 1- or 2-point and manual), and safety features such as overdosing protection and alarm relays for level or flow events. Automatic temperature compensation extends accuracy from -5.0 to 105.0°C, and the pH measurement range covers 0.00 to 14.00 pH with 0.01 pH resolution.

Automatic, real-time pH monitoring and acid dosing, optimized for pools and spas.

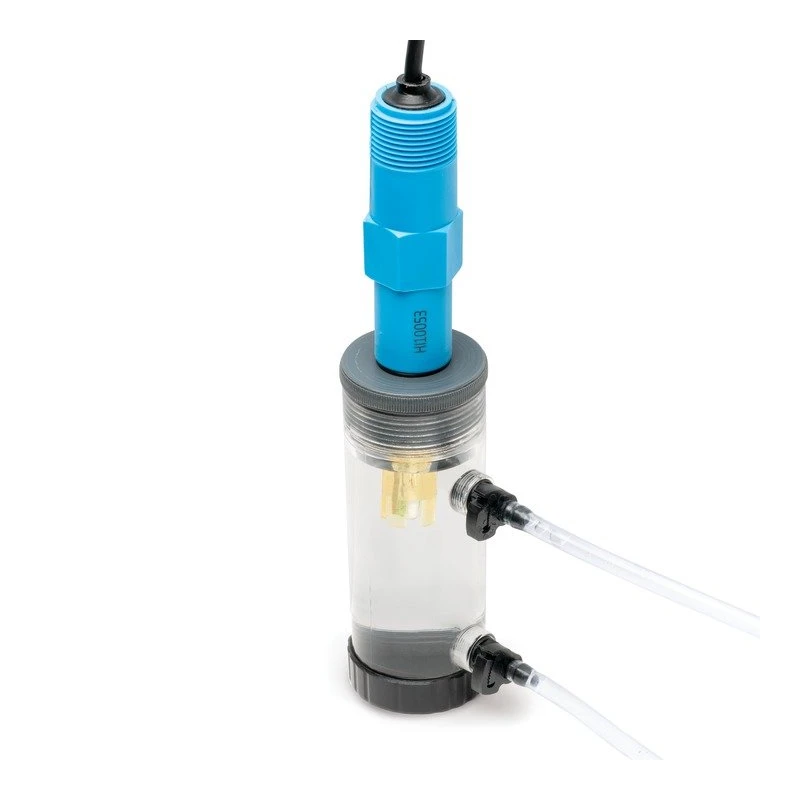

Process-grade HI10053 pH/temperature probe with robust DIN connector.
Wall-mounted (90 x 142 x 80 mm), compact enclosure with IP65 rating.
Supports level sensor or flow switch for external event control.
Power consumption 15 VA; weight 910 g for easy handling and installation.
Temperature control: -5.0 to 105.0°C range, ±0.5°C accuracy, 0.1°C resolution.
Comprehensive alarm relay (5 sec after threshold), digital input for safety.

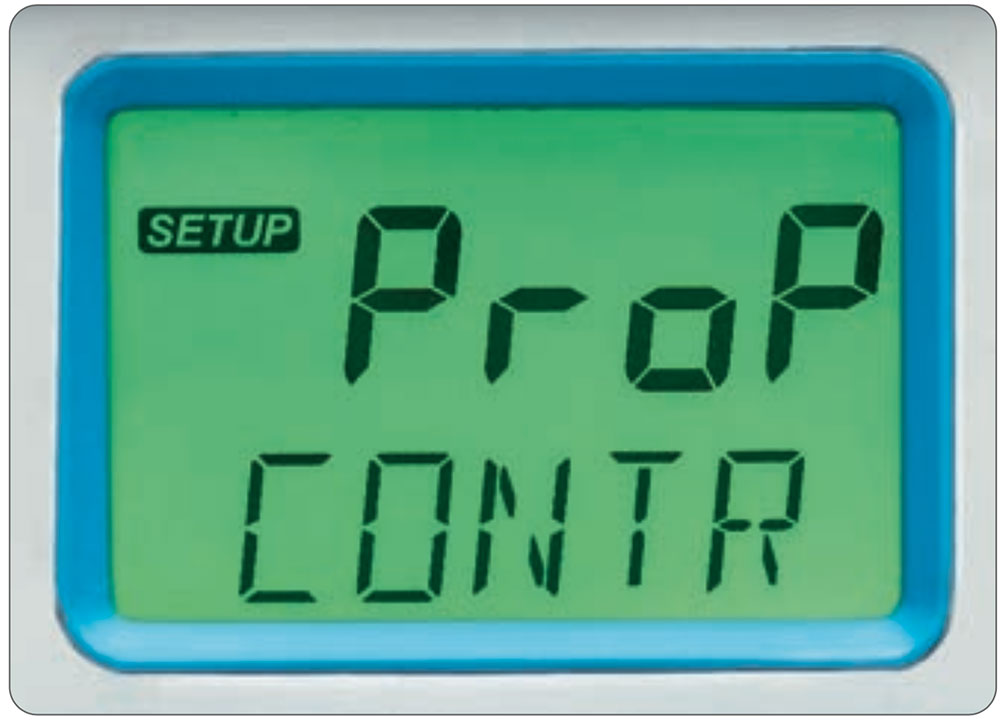

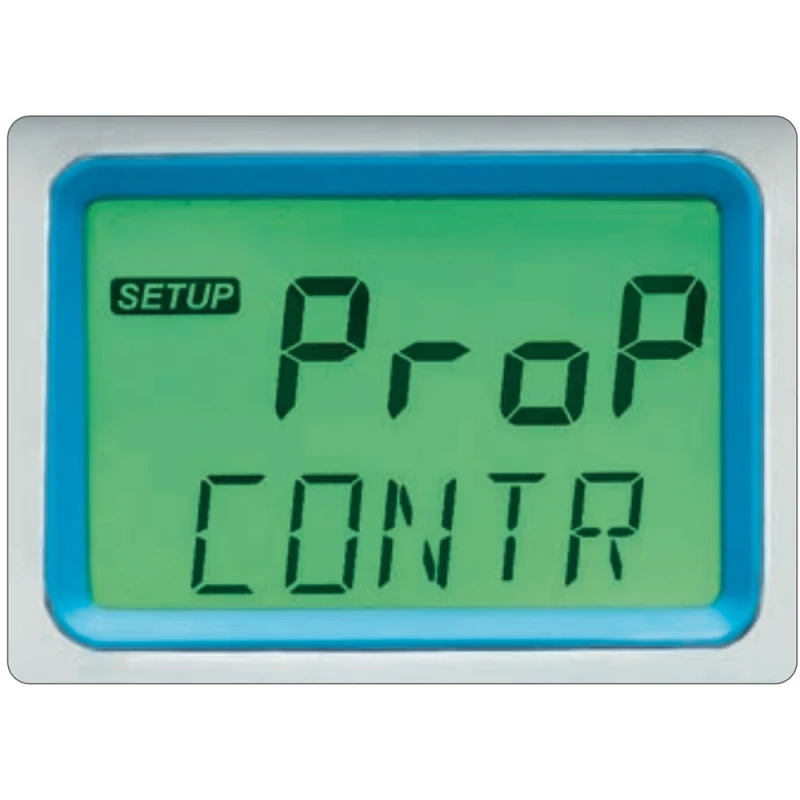

User-friendly interface: one/two-point auto calibration, adjustable proportional band and hysteresis.
Overdosing control with overtime protection (1–180 min).

This unit is suitable for residential, public, and commercial pool applications, as well as laboratory and industrial water treatment monitoring. Ensure optimal water chemistry and bather safety with automated, reliable pH adjustment. Explore more laboratory water controllers and pool water management solutions in our Swimming Pool and Spa Controllers section on EnvMart.

Pool Line pH Controller and Dosing Pump - BL100-Meter, probe and panel mounted flow cell kit

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

Frequently Asked Questions

The BL100-Meter can measure pH levels from 0.00 to 14.00 with a resolution of 0.01 pH.

Yes, the BL100-Meter is designed for both residential and commercial applications, including swimming pools, hot tubs, and spas.

The overdosing protection feature includes an alarm relay that activates if dosing exceeds set parameters, ensuring safety and preventing chemical overuse.

The BL100-Meter comes with a HI10053 pH/temperature probe featuring a robust DIN connector for reliable performance.

Yes, the dosing set point can be adjusted within the range of 6.00 to 8.00 pH for optimized control.

The BL100-Meter operates on 100–240V with a power consumption of 15 VA, making it suitable for various electrical setups.

Yes, the BL100-Meter features an IP65 rated enclosure, providing protection against dust and water, making it suitable for outdoor use.

The BL100-Meter includes overdosing protection, alarm relays for level or flow events, and support for external digital inputs for enhanced safety.
