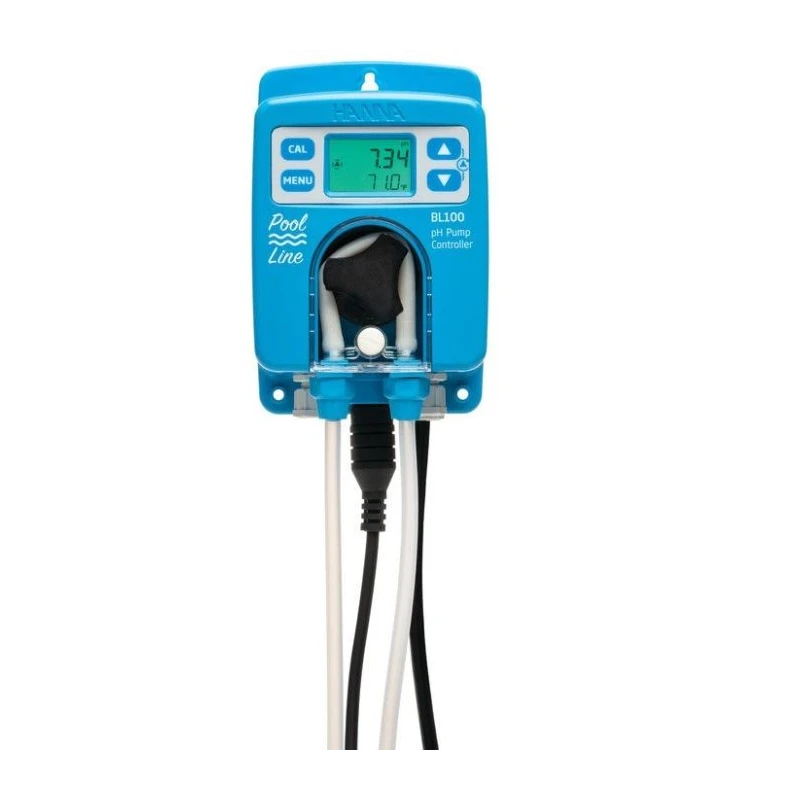

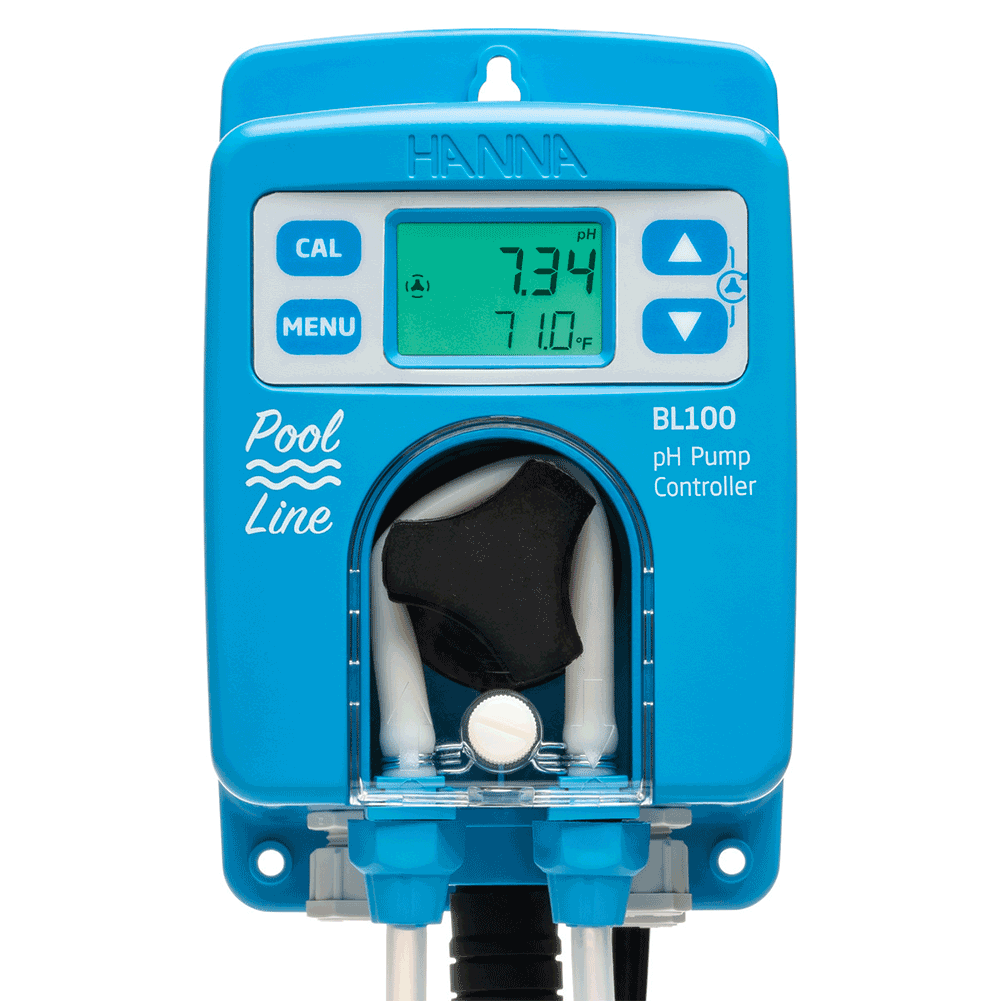

Pool Line pH Controller and Dosing Pump - BL100-Meter, probe and in-line mounting kit

Name: Pool Line pH Controller and Dosing Pump - BL100-Meter, probe and in-line mounting kit
Brand: Hanna
SKU: 72881
Price: 619 USD
Availability: InStock



Category pH Controllers Brand Hanna

Specifications

Country of Origin	India
Temperature Accuracy	±0.5 °C
Power Consumption	15 VA
Frequency	50/60 Hz
Power Supply	100 – 240 VAC
Dimensions	90 x 142 x 80 mm
Temperature Resolution	0.1 °C
Temperature range	-5.0 to 105.0 °C
pH Range	0.00 to 14.00 pH
pH Resolution	0.01 pH
pH Accuracy	±0.10 pH
Environment	0 to 50 °C, max. 95% RH non-condensing
pH Calibration	Automatic/Manual; user one or two-point, process single-point
pH Temperature Compensation	automatic
pH Electrode	HI10053 pH/temperature probe, DIN connector
Model	BL100-Meter
Alarm Relay Set Point	Triggered after 5 sec over/under threshold
Enclosure	Wall mounted with built-in pump
Weight	0.91 Kg
Included Accessories	BL100-Meter controller, HI10053 probe, hardware, manual
Protection	IP65
Product Condition	New
MPN	BL100-Meter
Process Type	pH Controller and Dosing Pump
Digital Input Signal	Supports external switches; hold control signal
pH Set Point	Adjustable 6.00 to 8.00 pH
pH Hysteresis Band	Adjustable 0.10 to 1.00 pH
pH Proportional Band	Adjustable 0.10 to 2.00 pH
Over Dosing Protection	1 to 180 min, or Off
Mounting Kit	In-line mounting for recirculation lines

Key Features

BL100-Meter Pool Line pH Controller and Dosing Pump Kit for Swimming Pools and Hot Tubs.

Integrated pH controller and dosing pump solution designed for pools and spas.
BL100-Meter kit includes industrial probe, mounting hardware, and in-line injection valve.

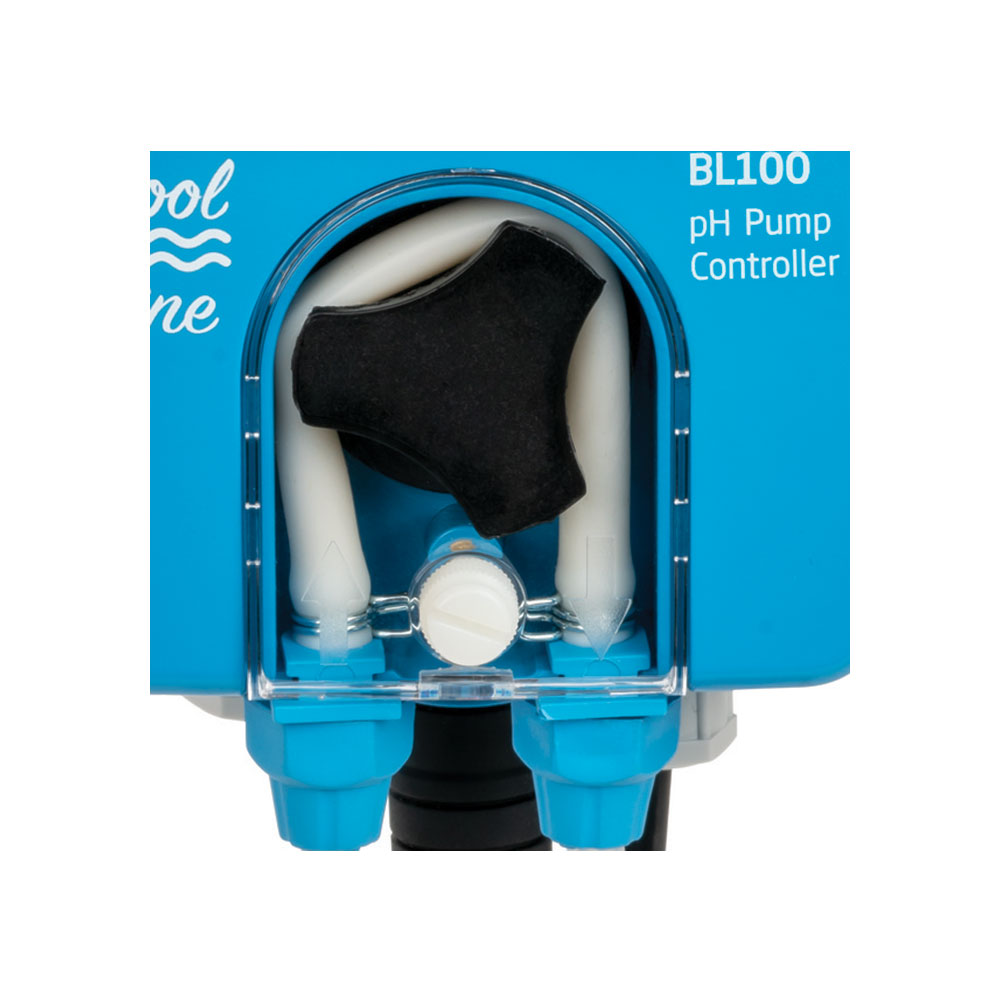

Supports wall mounting with built-in peristaltic pump and IP65 enclosure protection.
User-friendly automatic and manual pH calibration for accurate water chemistry management.
Wide pH measurement range of 0.00 to 14.00 pH with 0.01 pH resolution and ±0.10 pH accuracy.

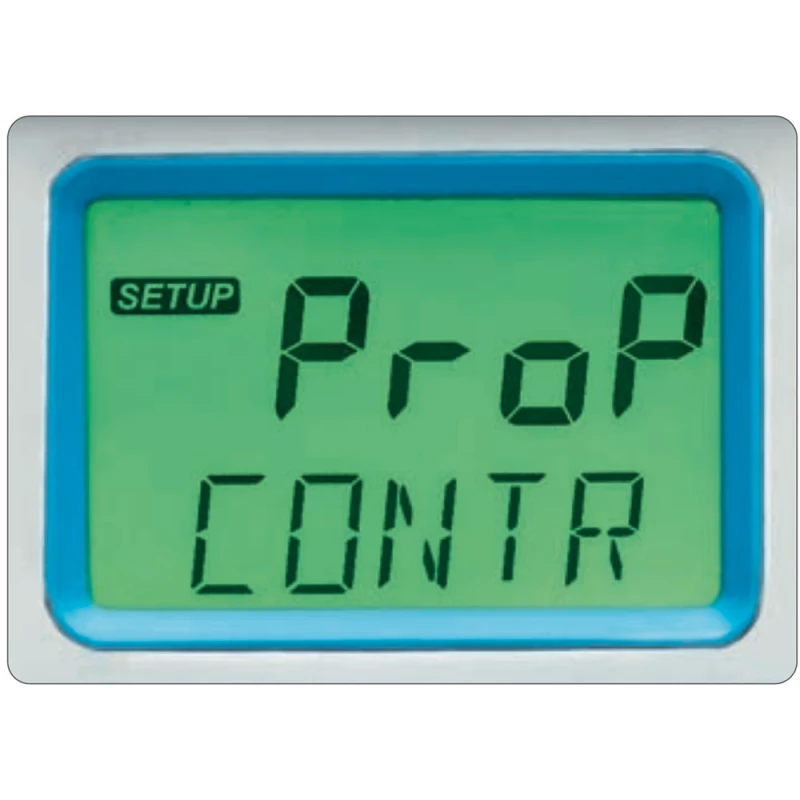

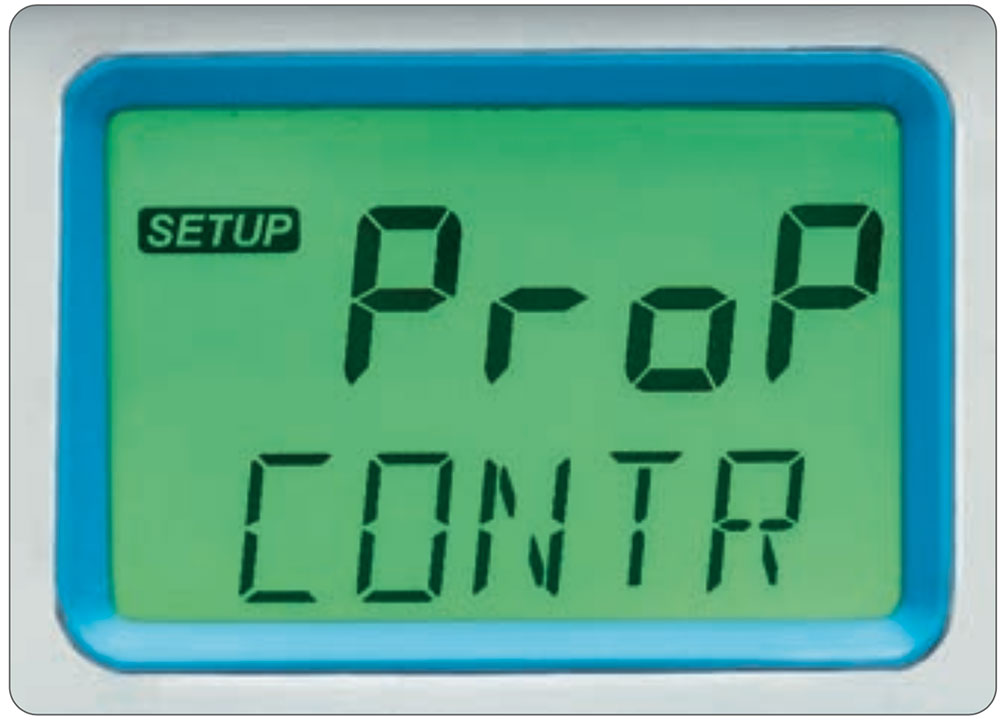

Adjustable set points, proportional/on-off dosing control, and over-dosing protection for safety.

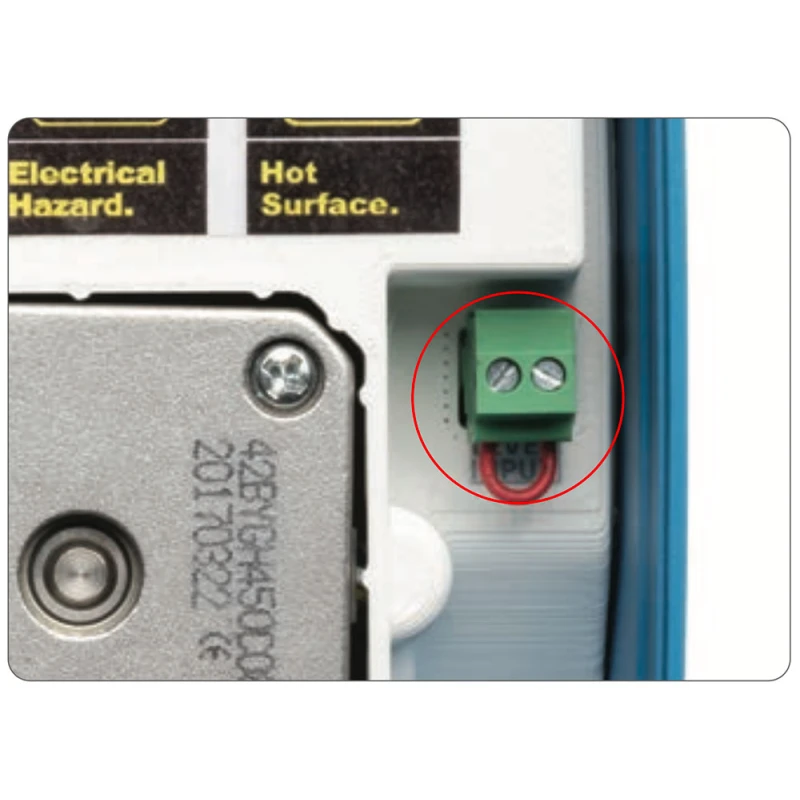

Digital input signal accommodates external flow switch or level controller integration.
Enables automatic pH maintenance in domestic, commercial, and low-maintenance pool facilities.
Temperature compensated with probe; range -5.0 to 105.0 °C, ±0.5 °C accuracy.
Package includes BL100-Meter controller, HI10053 probe, in-line mounting kit, and installation manual.

Product Description

The BL100-Meter Pool Line pH Controller and Dosing Pump is a robust, all-in-one solution engineered for maintaining the ideal pH balance in swimming pools, hot tubs, and spas. This system combines a sophisticated process controller, a built-in chemical dosing pump, and an industrial-grade pH/temperature probe for accurate continuous water quality monitoring.

With the inclusion of a probe, in-line mounting kit, and automatic/manual user calibration options, this unit is ideally suited for use by homeowners, hotels, commercial buildings, and maintenance companies seeking precise pH management with minimal effort. The BL100-Meter supports proportional and on/off dosing, features alarm and over-dosing protection, and integrates digital and analog input signals for level or recirculation monitoring.

Integrated controller and chemical dosing mechanism for precise, automated pH control.
Measurement range of 0.00 to 14.00 pH with high 0.01 pH resolution and ±0.10 pH accuracy for reliable operation.

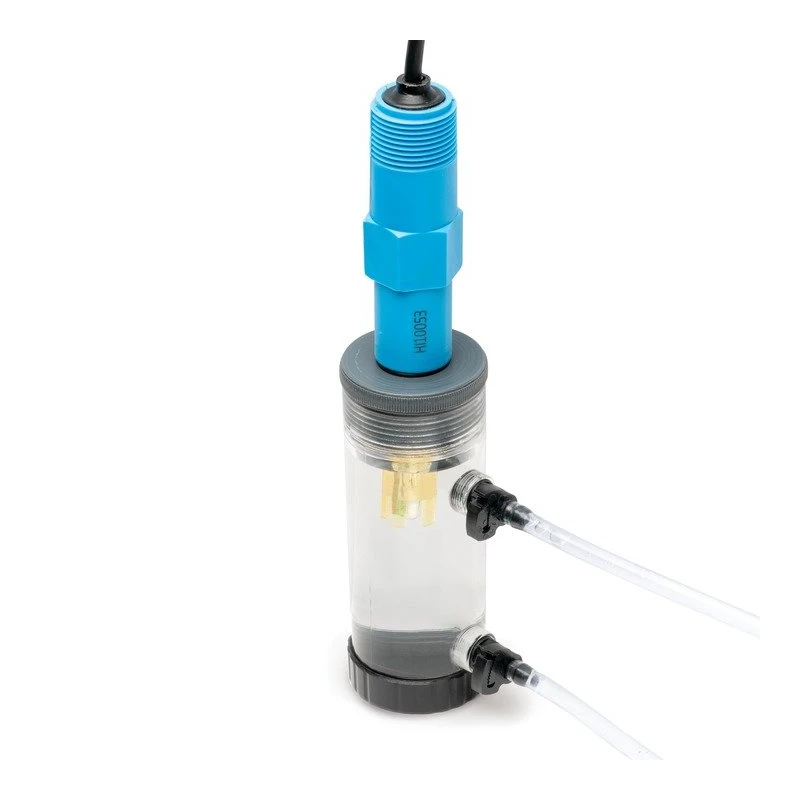

Robust HI10053 pH/temperature probe with quick connect DIN, designed for recirculation lines with 1/2" NPT threads.
Wall-mountable IP65 enclosure with built-in pump and support for digital input signals (external switches/level sensors).
Dosing set point adjustable from 6.00 to 8.00 pH, proportional/hysteresis bands, and overtime protection up to 180 minutes.
Temperature compensation with a range of -5.0 to 105.0°C, and accuracy of ±0.5°C, ensuring pH readings are unaffected by temperature variations.
Power supply: 100–240 Vac, 50/60 Hz, with a power consumption of 15 VA.
Comes as a complete kit: BL100-Meter pH Controller/Dosing Pump, HI10053 probe, in-line mounting hardware, and instructions.

The BL100-Meter is suitable for industrial, commercial, and residential swimming pool and spa applications, and can also be deployed in water treatment, laboratory test setups, and other controlled aquatic systems. This solution simplifies pH regulation, reducing manual dosing labor and risk of water chemistry imbalances.
