BL100 Pool Line pH Controller and Dosing Pump | Digital, Wall Mounted, IP65 | EnvMart

Free Delivery in India | Lowest Global Shipping Charges

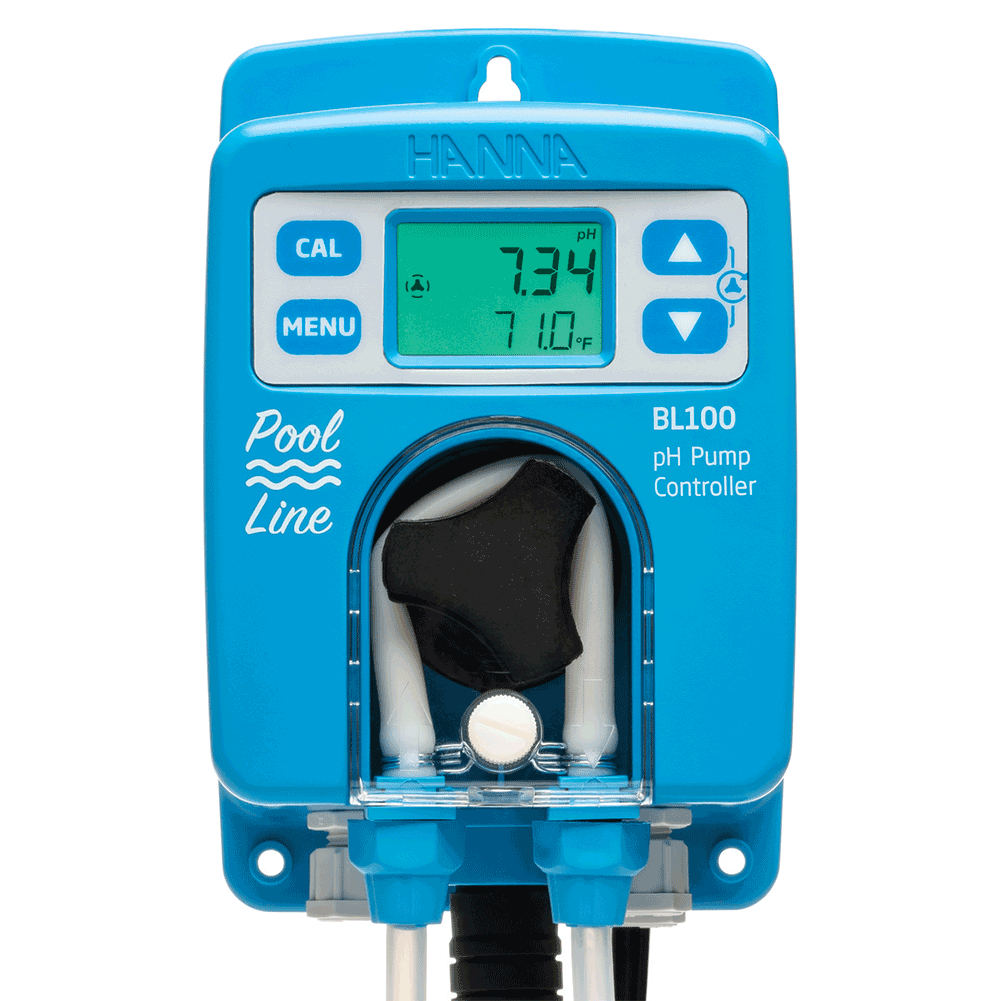

Pool Line pH Controller and Dosing Pump - BL100-Meter and probe

Name: Pool Line pH Controller and Dosing Pump - BL100-Meter and probe
Brand: Hanna
SKU: 72880
Price: 463.93 USD
Availability: InStock



Category pH Controllers Brand Hanna

Specifications

Country of Origin	India
Temperature Accuracy	±0.5 °C
Power Consumption	15 VA
Power Supply	100–240 Vac, 50/60 Hz
Dimensions	90 x 142 x 80 mm
Temperature Resolution	0.1 °C
Product Type	Pool Line pH Controller and Dosing Pump
Temperature range	-5.0 to 105.0 °C
pH Range	0.00 to 14.00 pH
pH Resolution	0.01 pH
pH Accuracy	±0.10 pH
pH Calibration	Automatic, one or two-point with buffer solution (4.01, 7.01, 10.01 pH); Process calibration: single point, ±0.50 pH
pH Temperature Compensation	automatic
pH Electrode	HI10053 pH/temperature probe with quick connect DIN connector (supplied)
Model	BL100
IP Rating	IP65
Alarm Relay Set Point	Triggered after 5 sec. over/under threshold
Enclosure	Wall mounted with built-in pump
Weight	0.91 Kg
Operating environment	0 to 50 °C, max. 95% RH non-condensing
Product Condition	New
MPN	BL100
Over Dosing Control	1 to 180 min. or Off
Dosing Control	Proportional and On/Off
Digital Input Signal	External switches for hold, pump operation, or low reagent
pH Dosing Set Point	Adjustable 6.00 to 8.00 pH
pH Hysteresis Band	Adjustable 0.10 to 1.00 pH
pH Proportional Band	Adjustable 0.10 to 2.00 pH
Process Probe	1/2″ NPT threads for insertion

Key Features

BL100 Pool Line pH Controller and Dosing Pump for swimming pools and hot tubs, model BL100, offers digital pH measurement and precise dosing in one unit.

Combines a process controller and chemical dosing pump for automatic pH adjustment.
Wide pH measurement range from 0.00 to 14.00 pH for versatility in pool and spa management.
Digital input support for external switches, such as low reagent level or flow control.
Wall-mounted enclosure with IP65 rating ensures durability and water resistance.
Provides proportional and on/off dosing control with adjustable set points.
System includes HI10053 industrial pH/temperature probe for reliable performance.
Features over-dosing protection and alarm relay set point for enhanced safety.
Automatic, user-friendly calibration routines, including process calibration.
Operates from 100 – 240 Vac power supply, suitable for global installation.

Product Description

The BL100 Pool Line pH Controller and Dosing Pump is engineered for maintaining optimal pH levels in swimming pools, hot tubs, and spas. Model BL100 integrates a digital pH process controller with a precision chemical dosing pump for automatic and reliable pH management. It is ideal for homeowners, facility managers, and maintenance companies seeking a dependable solution to water quality control.

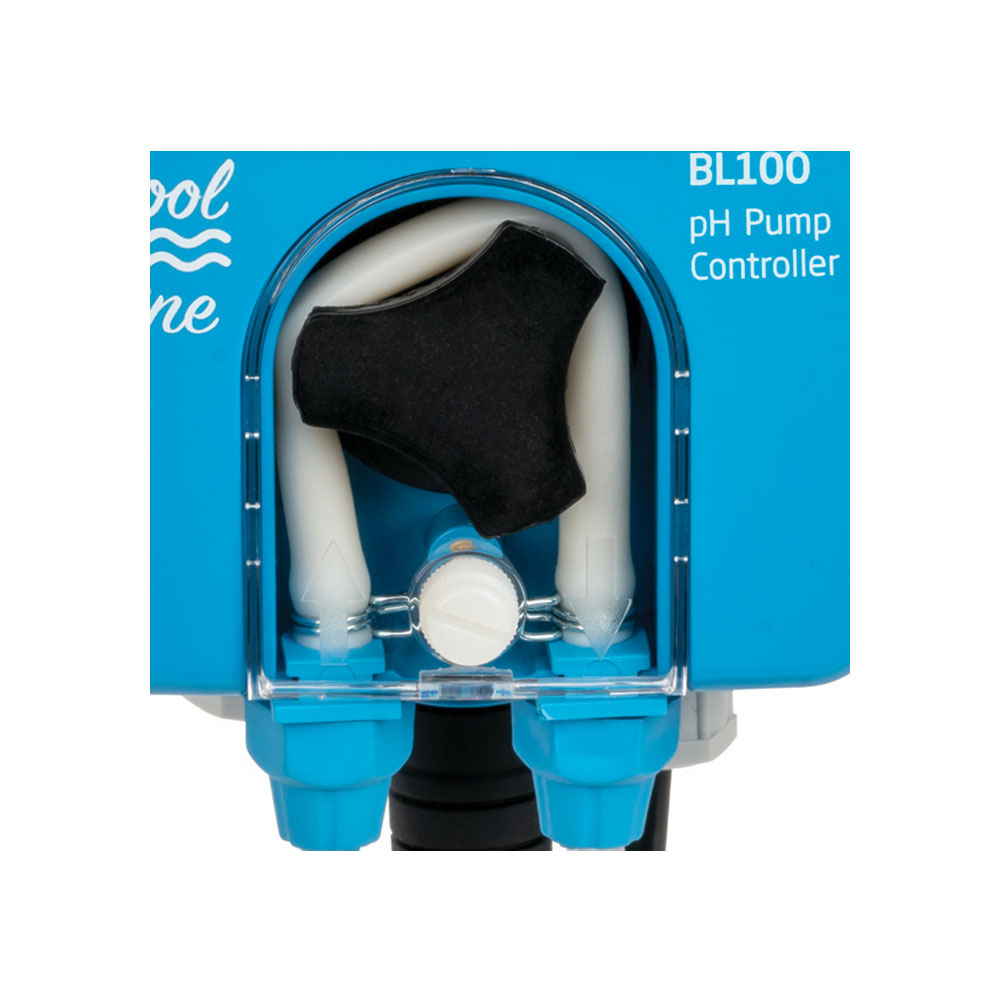

Combines pH monitoring and acid dosing into a single, compact device for seamless installation.
Provides a pH measurement range of 0.00 to 14.00 pH, supporting diverse water chemistry control scenarios.
Enables adjustable dosing set points between 6.00 and 8.00 pH for tailored water maintenance.

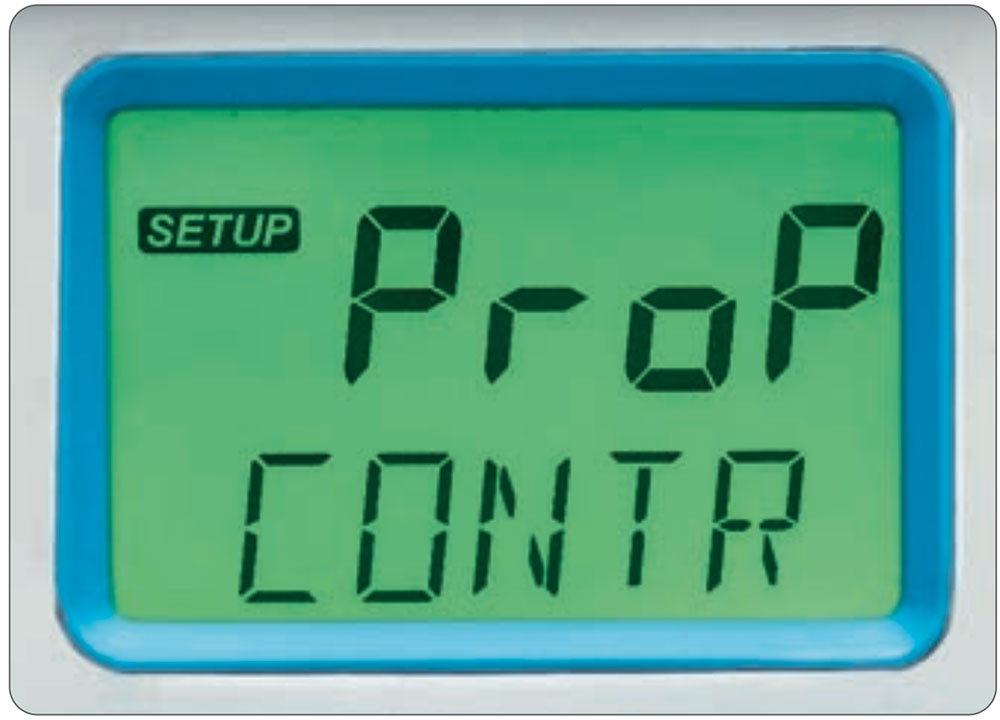

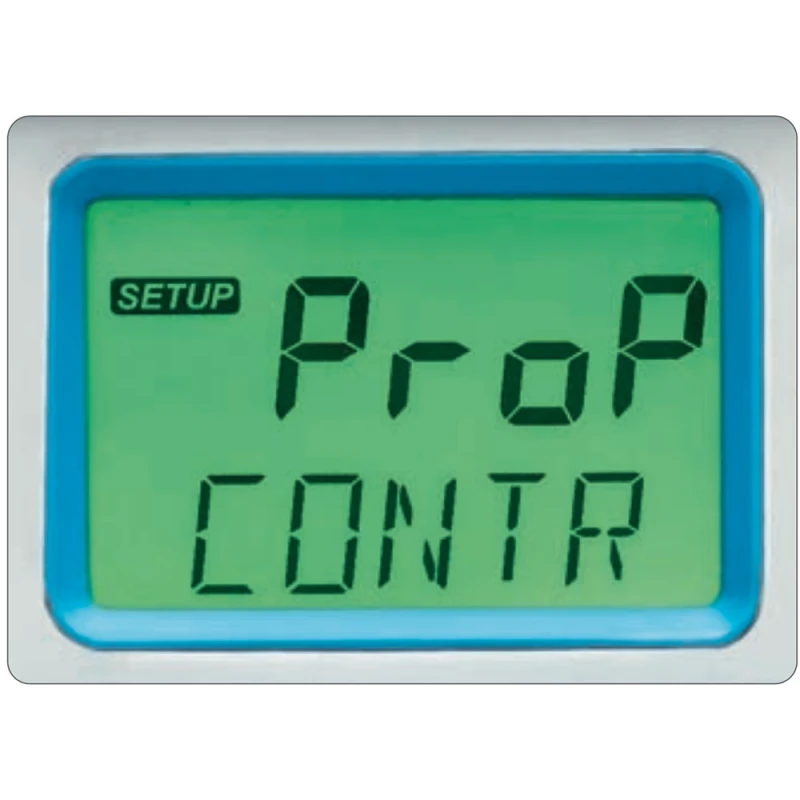

Supports proportional and on/off dosing control with adjustable hysteresis and proportional bands.

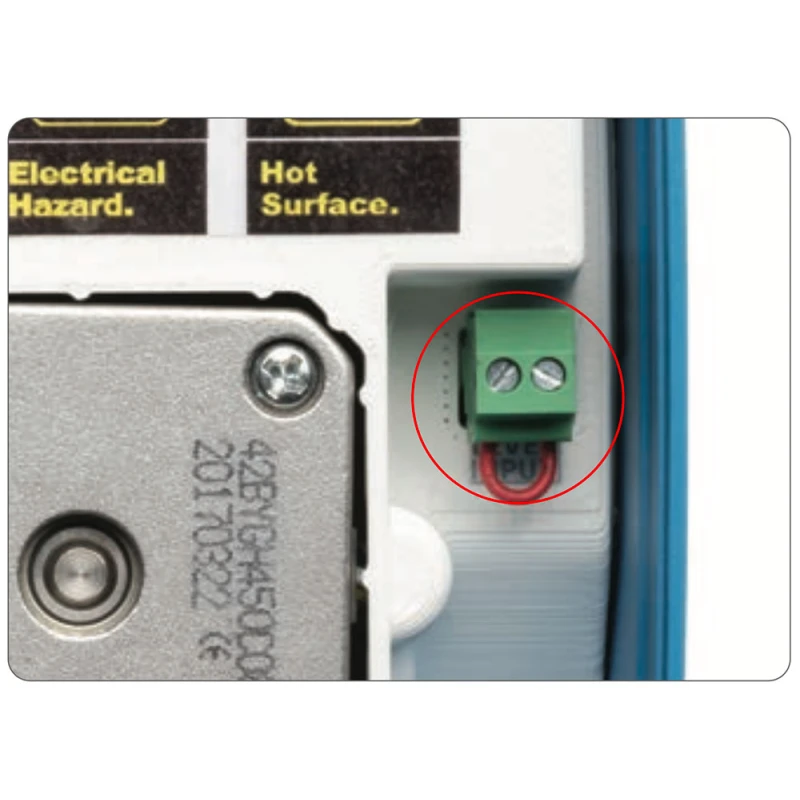

Digital input allows connection to external event switches for pump/interlock control.
Automated user calibration (one/two-point) and process calibration for accuracy and convenience.
Wall-mounted, IP65-rated enclosure with built-in pump ensures robust operation in wet environments.

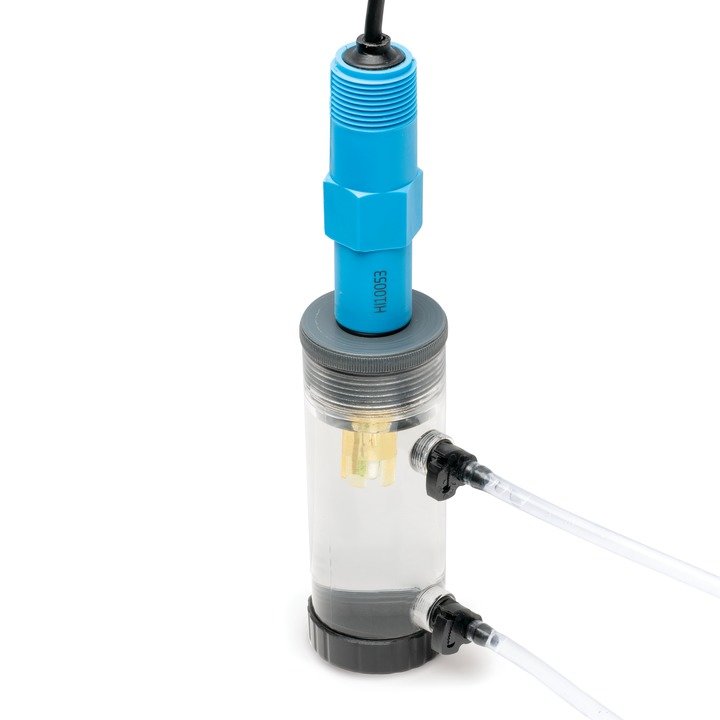

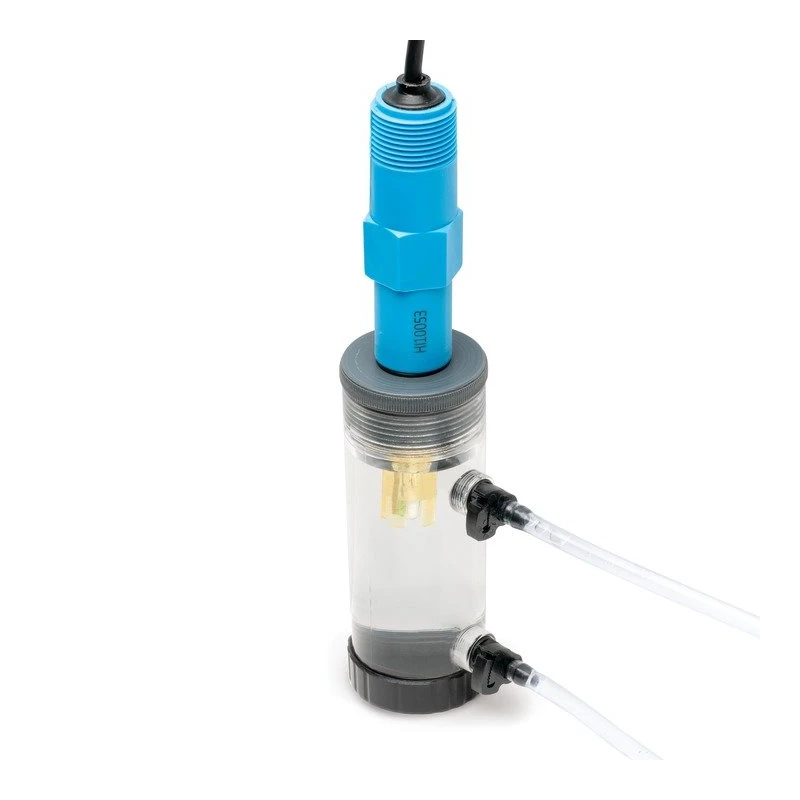

Equipped with HI10053 quick-connect pH/temperature probe; probe features 1/2" NPT threads for in-line installation.
Over-dosing protection via timer (1 to 180 minutes or OFF) and an alarm relay set point for continuous safety monitoring.
Operates on a power supply of 100–240 Vac, 50/60 Hz, and consumes 15 VA.

Industrial applications include water treatment, chemical dosing in pools and spas, real-time water quality monitoring in commercial pools, athletic and hospitality facilities, and laboratory water systems.

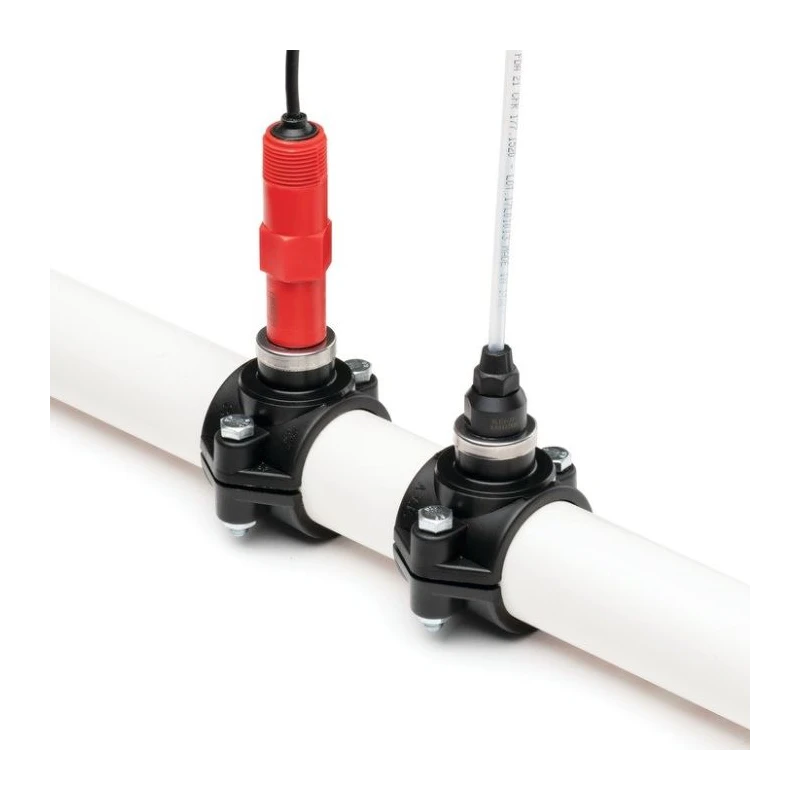

The system comes with process probe, injection valve, and accessories required for in-line installation with recirculation pumps.

Explore more water analysis instruments and dosing systems on EnvMart for comprehensive pool and process water management solutions.

Pool Line pH Controller and Dosing Pump - BL100-Meter and probe

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

Frequently Asked Questions

The BL100 Pool Line pH Controller and Dosing Pump has a pH measurement range of 0.00 to 14.00, making it versatile for various pool and spa management needs.

Yes, the BL100 features a wall-mounted IP65-rated enclosure, which ensures durability and water resistance, making it suitable for outdoor environments.

The BL100 provides proportional and on/off dosing control with adjustable set points, allowing for tailored water maintenance based on your specific needs.

The system comes equipped with the HI10053 industrial pH/temperature probe, which features quick-connect capability and is designed for reliable performance.

Yes, the BL100 is ideal for both residential and commercial applications, including water treatment and real-time water quality monitoring in facilities like hotels and gyms.

The BL100 includes over-dosing protection via a timer and an alarm relay set point, ensuring continuous safety monitoring during operation.

The BL100 features automated user-friendly calibration routines, including one/two-point calibration and process calibration for accuracy and convenience.

The BL100 operates on a power supply of 100–240 Vac, 50/60 Hz, making it suitable for global installation.
