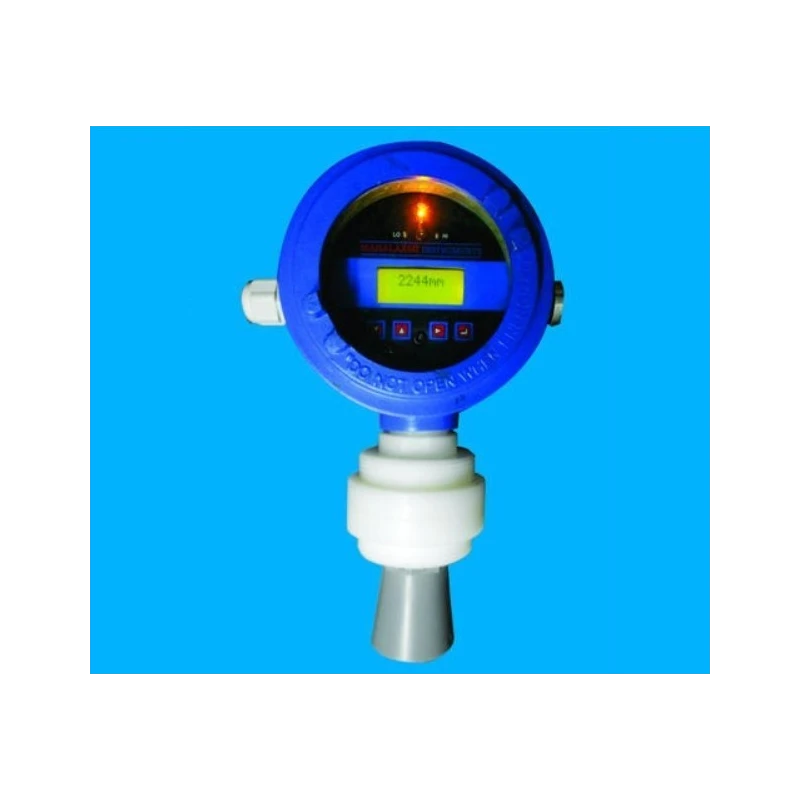

Ultrasonic Level Transmitters
Specifications
| Accuracy | + 0.25% FSD |
|---|---|
| Power Consumption | 1.5 W |
| Output | 4 - 20 mA| 3 Wire & Rs485 |
| Range | 300 - 5000mm| 300 - 10000 mm |
| Brand | Mahalaxmi Instruments |
| Power Supply | 24 Volts DC |
| Mounting | Flanged or Threaded to 2 Inch ASA 150 Lbs Rf or 2 Inch BSP (Male) or as required. |
| Operating Temperature Range | - 4 to + 65 deg C. |
| Dead Zone | 300 MM |
| FSD Update Time | 150 ms |
Key Features
- Sensor Module imported from the USA.
- Over Voltage/Surge Voltage protection.
- Reverse polarity protection.
- Alpha-numeric LCD display.
- LCD Screen- 8 x 2 alphanumeric display green or Blue screen Push-Button Teach-in facility.
- Narrow beam angle of 10 degrees.
Product Description
We make Ultrasonic Level transmitters are widely used to measure and control the level of Solids and Liquids or distance of any objects. The sensor generates ultrasonic sound waves. From the time taken for the sound waves to strike the target and return the Electronics computes the distance of the object and displays it in terms of distance or level-In millimeter, In liters or a current signal of 4 to 20mA proportional to the level. The transmitter output may be connected to a PLC, Controller etc. for Indication or/ and Control of level. Special electronics filter enables detection of the largest target, automatically eliminating false echoes and rejecting noise clutter efficiently.
- Built-in Temperature compensation.
- LED Indication for Over current or under current
- Enclosure: Blue Powder coated cast aluminum Flameproof or weather proof enclosure with front glass window or without glass window/Stainless Steel AISI 304 weather proof.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The measurement range of this model is from 300 mm to 5000 mm, with an extended option available up to 10000 mm.
It has an accuracy of ± 0.25% of Full Scale Deflection (FSD).
The output is a 4-20 mA signal, utilizing a 3-wire configuration.
It requires a power supply of 24 Volts DC.
The operating temperature range is from -4 to +65 degrees Celsius.
It can be mounted flanged or threaded to 2 Inch ASA 150 Lbs RF or 2 Inch BSP (Male) or as required.
The dead zone is 300 mm.
The enclosure is made of blue powder-coated cast aluminum or stainless steel AISI 304, with options for a glass window or without.
The power consumption is 1.5 W.
It features an alphanumeric LCD display, available in green or blue screen options.
The Full Scale Deflection (FSD) update time is 150 ms.
