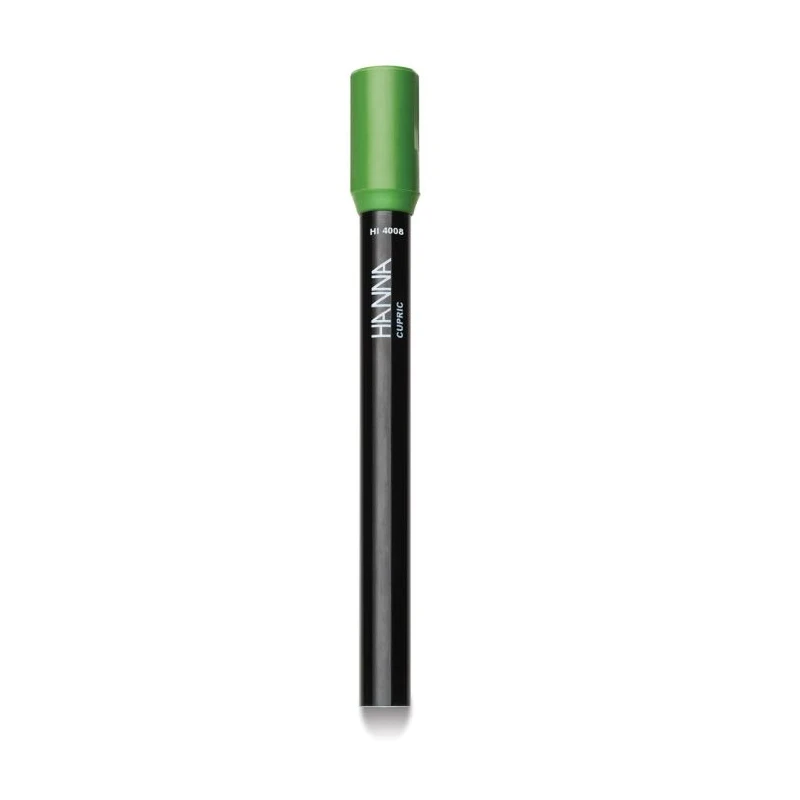

Hanna Copper Half-Cell Ion Selective Electrode (ISE) - HI4008

The HI4008 Solid State Copper Half-Cell Ion Selective Electrode is expertly engineered for the precise determination of cupric ions (Cu²⁺) in a wide range of laboratory, plating, industrial, and wastewater process samples. Featuring a mixed cupric sulfide/silver sulfide sensing pellet, this electrode offers reliable potentiometric measurement through selective cupric ion exchange at the pellet membrane interface.

• Solid state, half-cell configuration for reproducible results in Cu²⁺ ion analysis.
• Wide measurement range: 0.1M to 1×10⁻⁶M Cu²⁺ (~6,355 to 0.065 mg/L).
• Rugged epoxy body design enhances durability in demanding environments.
• Optimum pH operating range: 3 to 7.
• Suitable for use from 0 to 80°C, supporting both ambient and process control applications.
• BNC connector and 1 m (3.3') coaxial cable for compatibility and ease of connection.
• Dimensions: 12 mm outer diameter, 120 mm overall length for standard laboratory setups.
• Approximate response slope: +27 mV per decade of concentration change.
• Designed for use with the HI5315 reference half-cell (required for operation).

Key industrial and laboratory applications include ion-selective determinations in plating tanks, monitoring copper in wastewater effluent, and quality control in process chemistry.

Supplied as a single half-cell electrode. For a complete system, pair with an appropriate reference electrode such as the HI5315. Trust this solid-state copper ISE for accuracy, chemical resistance, and flexibility in challenging analytical environments.
