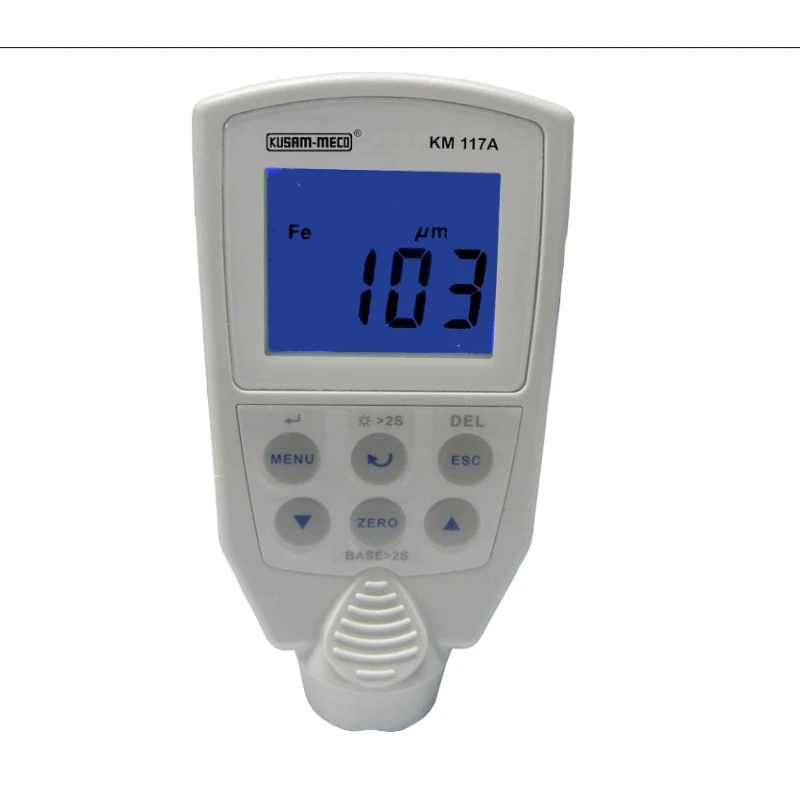

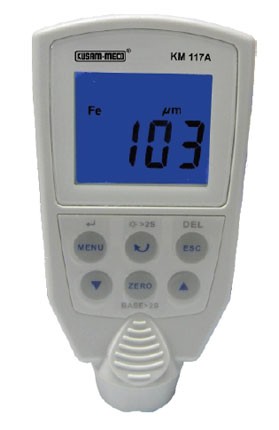

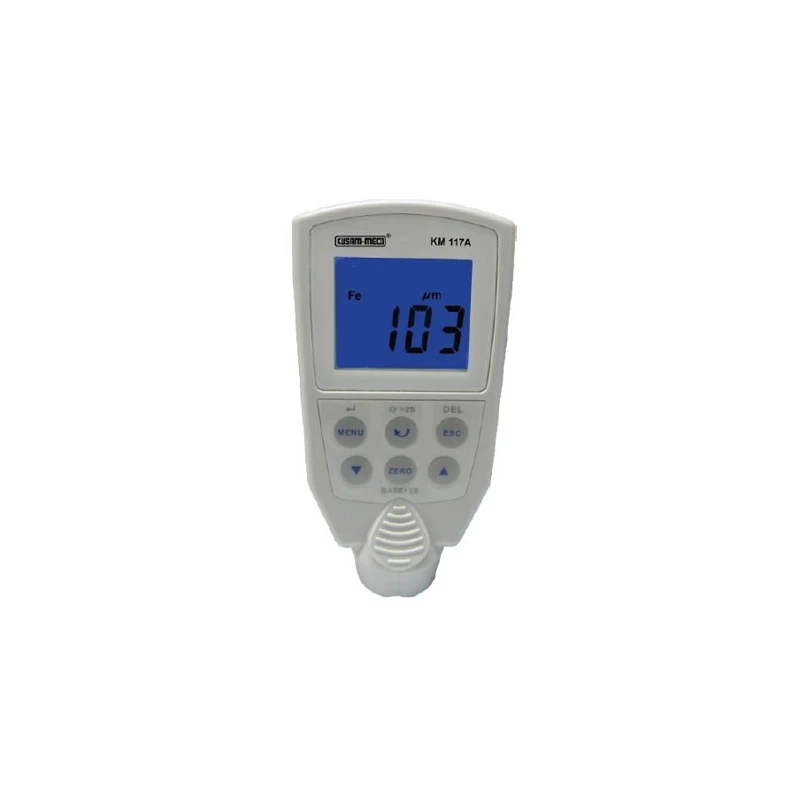

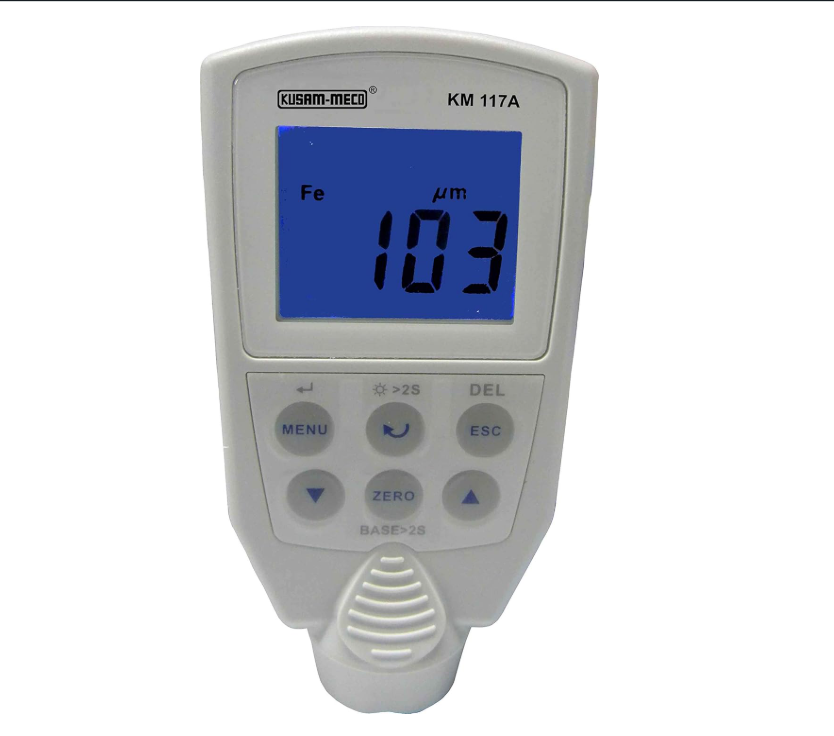

Kusam Meco Coating Thickness Guage KM117A
Specifications
| Country of Origin | India |
|---|---|
| Package Contents | Kusam Meco KM 117A Coating Thickness Guage / Users Manual / Battery / Carrying Case. |
| Accuracy | ±4 Dgts (0–7.8 Mils) ±(3%+4 Dgts) (7.9–39.0 Mils) ±(5%+4 Dgts) (39.1–80 Mils) ±10 Dgts (0–199 Mm) ±(3%+10 Dgts) (200–1000 Mm) ±(5%+4 Dgts) (1001–1999 Mm) |
| Relative Humidity | Max 80% Up To 60°C Decreasing Linearly To 75% At 50°C |
| Brand | Kusam Meco |
| Power Supply | 2×1.5 V AAA Batteries |
| Dimensions | 105×55×27 mm |
| Response time | 1 second |
| Storage Temperature | -20–60°C ( Less Than 80% RH With Battery Removed) |
| Standby Current | Less Than 6 MA |
| Function | Coating Thickness Gauge |
| Model | KM117A |
| Weight | Approx 80 G (Including Battery) |
| Temperature Coefficient | Nominal 0.1× (Specified Accuracy) Per °C ( Less Than 18°C Or Greater Than 28°C) |
| Operating environment | 0–50°C (32–122°F) Less Than 75% RH |
| Thickness Range | 0–80.0 Mils (0–2000 Mm) |
| Detectable Substrate Material | Ferrous Metal (Iron Steel) |
Key Features
- Measures coating thickness on ferrous materials with fast one-hand operation
- MAX/MIN/AVG functions with 1- or 2-point calibration modes
- Backlit LCD and auto-power-off for energy efficiency
- Data-logging capacity up to 255 samples with Hi/Lo limit beeper
- Selectable µm/mils or inch/metric units; includes zero and standard plates
Product Description
The Kusam Meco KM117A Coating Thickness Gauge is a portable, user-friendly device for measuring coating thickness on metal surfaces. It features a backlit LCD display for clear visibility and supports both metric and mil readings. Designed for single-hand operation, it automatically powers off to save battery life when not in use. This digital gauge provides accurate, non-destructive measurement of coatings such as paint, enamel, or plating on ferrous and non-ferrous materials. Ideal for automotive workshops, manufacturing industries, and quality inspection tasks, it ensures consistent precision in surface evaluation, making it a dependable tool for professionals seeking accuracy and durability in every test.
Available on EnvMart, these Digital Coating Gauges offer simple one-hand operation with high accuracy. Kusam Meco Instruments are perfect for quality control and coating inspections.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Kusam Meco KM117A measures coating thickness in the range of 0 to 80.0 mils (0 to 2000 mm).
The KM117A is designed to measure coating thickness on ferrous materials, specifically iron and steel.
The accuracy of the KM117A varies by thickness: ±4 digits for 0–7.8 mils, ±(3%+4 digits) for 7.9–39.0 mils, ±(5%+4 digits) for 39.1–80 mils, and similar specifications for millimeter measurements.
The Kusam Meco KM117A operates on 2×1.5 V AAA batteries.
The dimensions of the KM117A are 105×55×27 mm, and it weighs approximately 80 grams including the battery.
The operating environment for the KM117A is between 0 to 50°C (32 to 122°F) with less than 75% relative humidity.
Yes, the Kusam Meco KM117A has data-logging capacity for up to 255 samples and features a Hi/Lo limit beeper.
The response time of the Kusam Meco KM117A is 1 second.
The KM117A can operate in relative humidity up to 80% at 60°C, decreasing linearly to 75% at 50°C.
The package contents of the KM117A include the coating thickness gauge, a user manual, a battery, and a carrying case.
The Kusam Meco KM117A supports both 1-point and 2-point calibration modes for accurate measurements.
The storage temperature range for the KM117A is -20 to 60°C, with less than 80% relative humidity and the battery removed.
