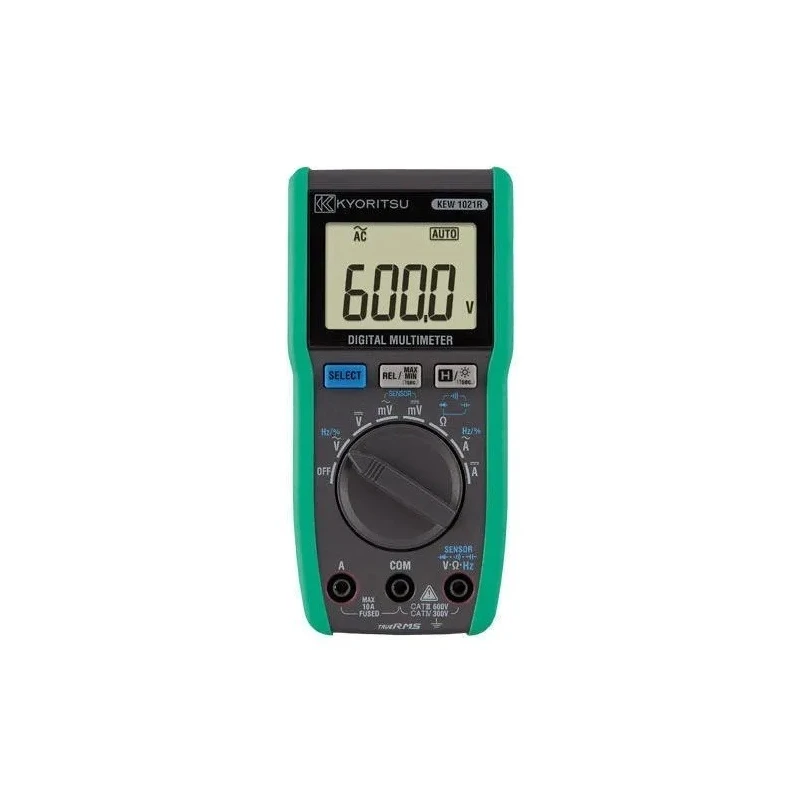

Kyoritsu Digital Multimeter, 1021R
Specifications
| Country of Origin | Japan |
|---|---|
| Package Contents | KYORITSU 1021R DIGITAL MULTIMETER / Wing-type holder/Flat-type holder/7066A(Test leads) 8919(Ceramic fuse[10A/600V] ) × 1(included) / 9097(Carrying case)/R03x2 / . / Instruction manual |
| Frequency | ACV 99.99/999.9Hz/9.999/99.99kHz ±0.1%rdg ±3dgt ACA 99.99/999.9Hz/9.999kHz ±0.1%rdg ±3dgt |
| Power Source | R03 (1.5V) × 2 |
| DC V | 6.000/60.00/600.0V (Auto-ranging) ±0.5%rdg ±3dgt |
| AC V | 6.000/60.00/600.0V (Auto-ranging) ±1.0%rdg ±3dgt [40 - 500Hz] |
| Diode Test | Open circuit voltage |
| Brand | Kyoritsu |
| Dimension | 155(L) × 75(W) × 40(D)mm |
| Model | 1021R |
| Weight | Approx. 250g (including batteries) |
| Capacitance | 60.00/600.0nF/6.000/60.00/600.0/1000µF ±2.0%rdg ±5dgt (60/600nF) ±5.0%rdg ±5dgt (6/60/600/1000µF) |
| Duty | 10.0 - 90.0% ±1.0%rdg ±3dgt [50/60Hz] |
| Continuity Buzzer | 600Ω (Buzzer sounds below 90Ω) |
| Applicable Standards | IEC 61010-1 CAT IV 300V / CAT III 600V / CAT II 1000V IEC 61010-2-033 / IEC 61010-031 / IEC 61326-2-2 (EMC) / EN 50581 (RoHS) |
| Ω | 600.0Ω/6.000/60.00/600.0kΩ/6.000/40.00MΩ (Auto-ranging) ±0.5%rdg ±4dgt (600Ω) ±0.5%rdg ±2dgt (6/60/600kΩ/6MΩ) ±1.5%rdg ±3dgt (40MΩ) |
| DC A | 6.000/10.00A (Auto-ranging) ±1.5%rdg ±3dgt |
| AC A | 6.000/10.00A (Auto-ranging) ±1.5%rdg ±3dgt[45 - 500Hz] |
| DC mV | 600.0mV ±1.5%rdg ±3dgt |
| DC Clamp Sensor | 60.00/200.0A (Auto-ranging) ±1.5%rdg ±3dgt + Sensor accuracy |
| AC mV | 600.0mV ±2.0%rdg ±3dgt [40 - 500Hz] |
| AC Clamp Sensor | 60.00/200.0A (Auto-ranging) ±2.0%rdg ±3dgt + Sensor accuracy [40 - 500Hz] |
Key Features
- Accurate reading with True RMS
- Large display with 6000 counts and Backlight
- MIN/MAX function
- Rugged and reliable
- Enhanced current measuring function using an external clamp sensor
- Sensor mode (with clamp sensor)
- Ergonomic design
- Safety Standard IEC 61010-1 CAT Ⅳ 300V / CAT Ⅲ 600V
Product Description
The Kyoritsu 1021R Digital Multimeter is an advanced measurement device designed for professionals who demand precision and functionality. It offers True RMS measurements, making it ideal for accurately assessing non-linear loads. The device supports a wide array of measurements including AC/DC voltage and current, resistance, frequency, temperature, diode check, and continuity test. Its large backlit LCD provides easy visibility, while features like auto power-off, data hold, and max/min functions enhance user efficiency. The compact ergonomic design with rubber housing offers durability and protection against accidental drops. A CAT III 600V safety rating ensures safe use in both residential and industrial applications.
Available on EnvMart, these Multimeters are ideal for accurate measurement of voltage, current, resistance, and more. Kyoritsu Multimeters offer precision, reliability, and rugged design perfect for both professional electricians and DIY users.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Kyoritsu 1021R can measure AC voltage in the range of 6.000V to 600.0V with an accuracy of ±1.0%rdg ±3dgt, specifically for frequencies between 40 - 500Hz.
This model measures DC current in the range of 6.000A to 10.00A with an accuracy of ±1.5%rdg ±3dgt.
The dimensions of this multimeter are 155mm in length, 75mm in width, and 40mm in depth, with an approximate weight of 250g including batteries.
Yes, the Kyoritsu 1021R provides True RMS measurements, which is essential for accurately assessing non-linear loads.
It complies with IEC 61010-1 CAT IV 300V, CAT III 600V, and CAT II 1000V safety standards, ensuring safe use in various environments.
The Kyoritsu 1021R can measure AC/DC voltage, AC/DC current, resistance, frequency, temperature, diode check, and continuity test.
This multimeter is powered by two R03 (1.5V) batteries.
The package includes the Kyoritsu 1021R Digital Multimeter, wing-type holder, flat-type holder, test leads, a ceramic fuse, a carrying case, and an instruction manual.
It measures capacitance in the range of 60.00nF to 1000µF with varying accuracy depending on the range used.
Yes, the Kyoritsu 1021R features a continuity buzzer that sounds when resistance is below 90Ω.
This model can measure frequency for both AC voltage and current in the range of 99.99Hz to 99.99kHz with an accuracy of ±0.1%rdg ±3dgt.
The specifications do not provide specific details on the temperature measurement range or accuracy, but it is included as one of the measurement functions.
