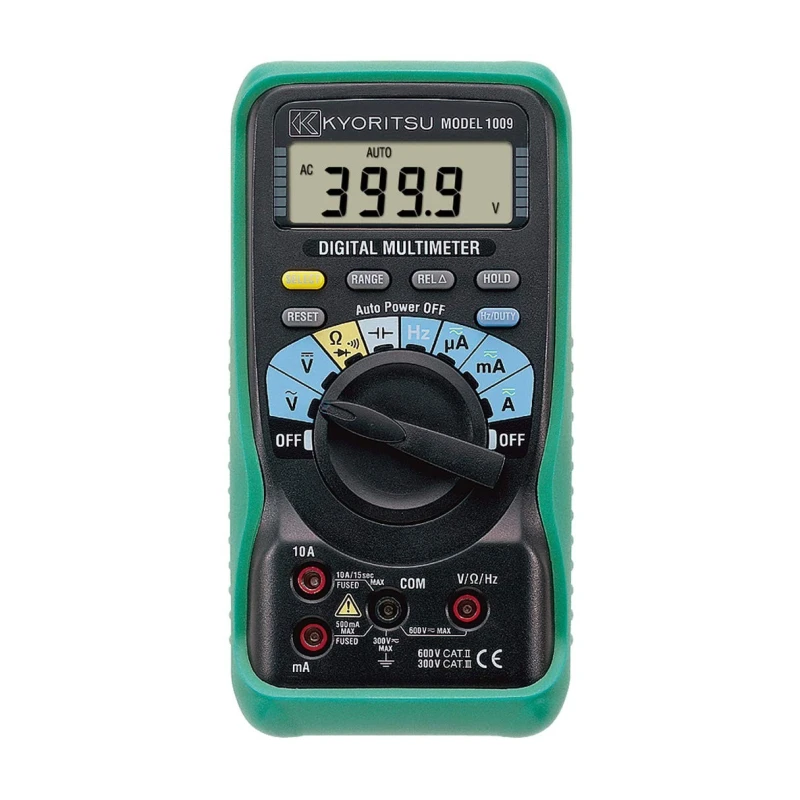

Kyoritsu Digital Multimeter, 1009
Specifications
| Country of Origin | Japan |
|---|---|
| Package Contents | KYORITSU 1009 DIGITAL MULTIMETER / Test leads / 0.5A/250V Fuse x 1 / 10A/250V Fuse x 1 R6PX2 / Instruction manual |
| Frequency | 5.12/51.2/512Hz/5.12/51.2/512kHz/5.12/10MHz |
| Power Source | R6 (1.5V) × 2 |
| DC V | 400mV/4/40/400/600V (Input Impedance 10MΩ) ±0.6%rdg±4dgt (400mV/4/40/400V) ±1.0%rdg±4dgt (600V) |
| AC V | 400mV/4/40/400/600V (Input Impedance 10MΩ) ±1.6%rdg±4dgt (20 - 400mV) ±1.3%rdg±4dgt (4/40V) ±1.6%rdg±4dgt (400/600V) |
| Diode Test | 1.5V open circuit voltage |
| Brand | Kyoritsu |
| Dimension | 161(L) × 82(W) × 50(D)mm |
| Model | 1009 |
| Weight | Approx. 280g |
| Capacitance | 0/400nF/4/40/100µF |
| Duty | 0.1 - 99.9% (Pulse width/Pulse period) ±2.5%±5dgt |
| Continuity Buzzer | 0 - 400Ω (Buzzer sounds below 100Ω) |
| Applicable Standards | IEC 61010-1 CAT III 300V / IEC 61010-2-031 / IEC 61326 |
| Ω | 400Ω/4/40/400kΩ/4/40MΩ ±1.0%rdg±4dgt (400Ω/4/40/400kΩ/4MΩ) ±2.0%rdg±4dgt (40MΩ) |
| DC A | 400/4000µA/40/400mA/4/10A ±2.0%rdg±4dgt (400/4000µA) ±1.0%rdg±4dgt (40/400mA) ±1.6%rdg±4dgt (4/10A) |
| AC A | 400/4000µA/40/400mA/4/10A ±2.6%rdg±4dgt (400/4000µA) ±2.0%rdg±4dgt (40/400mA/4/10A) |
Key Features
- Display : 3999 counts
- Auto-ranging and manual ranging selector provided (with range hold feature)
- Resistance range provides audible continuity test
- Automatically turns power off in about 30 minutes to conserve battery life
- Direct current measurement up to 10A AC and DC
Product Description
The Kyoritsu 1009 Digital Multimeter offers precise and dependable electrical measurements in a lightweight and user-friendly design. Equipped with essential functions like AC/DC voltage, current, resistance, continuity, and diode test, it's a reliable tool for everyday electrical tasks. It features an easy-to-read digital display, manual ranging for greater control, and a compact build that fits well in hand. The Kyoritsu 1009 is suitable for electricians, maintenance personnel, and hobbyists alike. With a robust casing and intuitive interface, it’s a cost-effective choice for accurate readings in a variety of environments.
Available on EnvMart, these Multimeters are ideal for accurate measurement of voltage, current, resistance, and more. Kyoritsu Multimeters offer precision, reliability, and rugged design perfect for both professional electricians and DIY users.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Kyoritsu 1009 can measure DC voltage in the range of 400mV to 600V, with an input impedance of 10MΩ.
It can measure direct current up to a maximum of 10A.
This multimeter measures 161mm in length, 82mm in width, and 50mm in depth, with an approximate weight of 280g.
The Kyoritsu 1009 can perform tests for AC/DC voltage, current, resistance, continuity, and diode testing.
For AC voltage, the accuracy is ±1.6%rdg±4dgt for 20 - 400mV, ±1.3%rdg±4dgt for 4/40V, and ±1.6%rdg±4dgt for 400/600V.
This model is powered by two R6 (1.5V) batteries.
Yes, it includes a continuity buzzer that sounds below 100Ω, with a measurement range of 0 - 400Ω.
The package includes the Kyoritsu 1009 Digital Multimeter, test leads, a 0.5A/250V fuse, a 10A/250V fuse, and an instruction manual.
It complies with IEC 61010-1 CAT III 300V, IEC 61010-2-031, and IEC 61326 standards.
The capacitance measurement range is from 0 to 100µF, with specific ranges of 0/400nF/4/40/100µF.
It can measure frequencies of 5.12Hz, 51.2Hz, 512Hz, 5.12kHz, 51.2kHz, 512kHz, and 5.12MHz.
The Kyoritsu 1009 automatically turns off after approximately 30 minutes of inactivity to conserve battery life.
