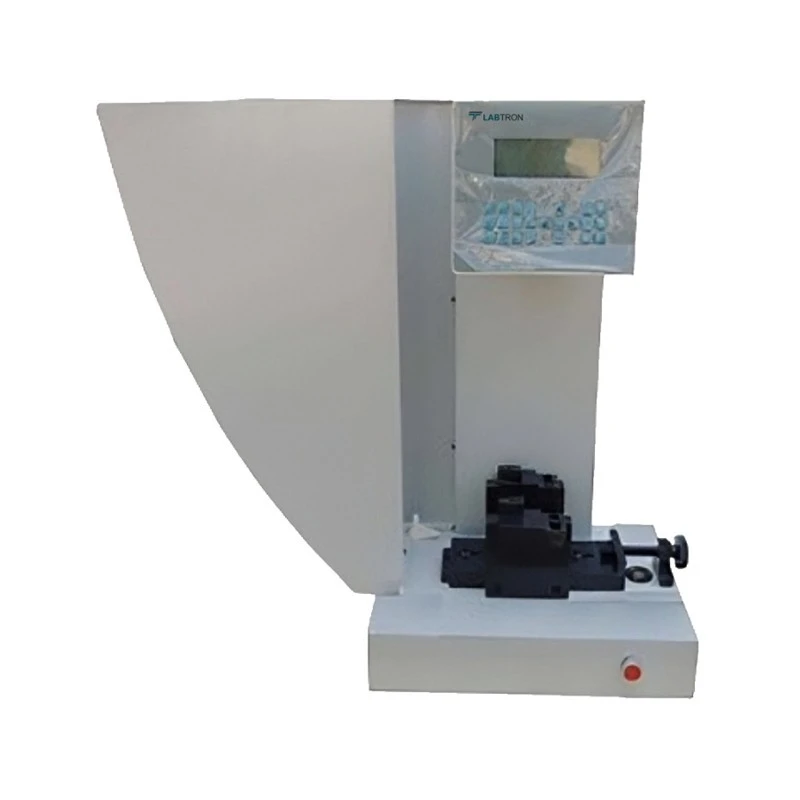

Labtron TCI-A10 Charpy/ Izod Impact Tester
Specifications
| Country of Origin | UK |
|---|---|
| Brand | Labtron |
| Dimension | 460 x 330 x 745 mm |
| Power | 110V/220V / 60Hz/50Hz |
| Model | TCI-A10 |
| Weight | 190 Kg |
| Type of Product | Impact Tester |
| Impact Speed & Energy (Charpy) | 2.9 m/s for 1J / 2J / 4J / 5J & 3.8 m/s for 7.5J / 15J / 25J |
| Impact Energy (Izod) | 3.5 m/s for 1J / 2J / 4J / 5J / 7.5J / 15J / 25J |
| Resolution of Impact Energy | 0.001 J |
| Pendulum Up Angle | 160° |
| Impact Center Distance (Charpy) | 221 mm for 1J / 2J / 4J / 5J & 380 mm for 7.5J / 15J / 25J |
| Impact Center Distance (Izod) | 322 mm |
| Charpy Distance Between the Clamps | 40 mm / 60 mm / 70 mm / 95 mm |
| Radius of Striking Edge (Izod) | 0.8 mm |
| Radius of Striking Edge (Charpy) | 2.0 mm |
| Distance Between Jaw & Impact Edge | 22 mm |
Key Features
- Innovative design impact tester used for both Izod and Charpy test
- Adopted with LCD digital display to view measuring circle angle
- Pendulum up angle 160°
- Precise impact speed and center distance values for Charpy & Izod materials
- Resolution of impact energy 0.001 J
- Can be connected to mini printer to print results
Product Description
The Charpy/Izod Impact Tester TCI-A10 comes with an LCD digital display and a pendulum design that concentrates energy at the impact point with minimal energy loss, which occurs due to vibrations. It offers a broad range of measurement methods such as tests for split strength, impact intensity, fore elevation, ascending angle, statistics function, and automatic correction of energy loss. With high precision and performance, this Charpy/Izod Impact Tester complies with ISO 179 for Charpy, ISO 180, and ASTM D256 for Izod test methods.
Applications:
It is used to test plastic sheets, glass-steel sheets, plastic pipes, and other non-metallic materials sheets or insulators of plastic for anti-impact and anti-charpy intensity.
