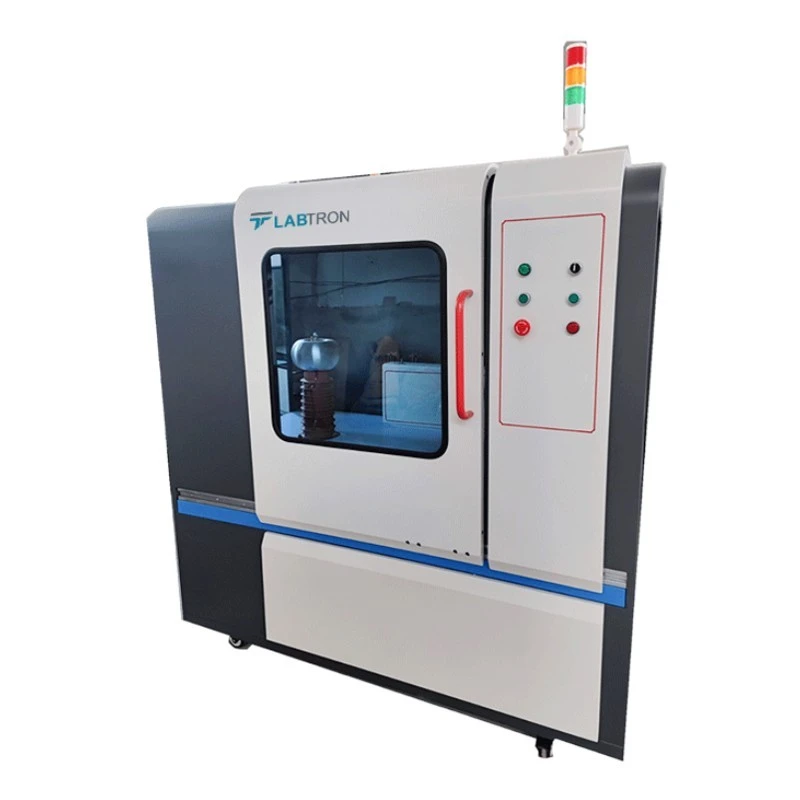

Labtron LVBT-A10 Voltage Breakdown Tester
Specifications
| Country of Origin | UK |
|---|---|
| Brand | Labtron |
| Power Supply | 220V ±10% 50Hz ±1% |
| Dimension | 1650 x 980 x 1750 mm |
| Model | LVBT-A10 |
| Input Voltage (V) | AC 220 V |
| Output Voltage (V) | AC 0 to 100 KV / DC 0 to 100 KV |
| Weight | 280 KG |
| Ambient Temperature (ºC) | 23 ± 2 °C |
| Type of Product | Testing Instrument |
| Control method | Wireless Bluetooth |
| Ambient humidity | 50 ± 5% |
| Test Voltage (V) | 0 to 100 KV |
| Test Method | DC test — 1. Uniform boost / 2. Gradient boost / 3. Voltage withstand test | AC test — 1. Uniform boost / 2. Gradient boost / 3. Voltage withstand test |
| Detection method | Automatic Cruise Detection |
| Voltage Fluctuation | 0.1 |
| Booster Capacity | 3 KVA |
| Communication Method | Wireless Bluetooth technology |
| Test Fixture | ASTM D149 |
| Transformer Capacity | 10 KVA |
| Boost Rate | 0.1 KV/s to 5 KV/s adjustable |
| Test Medium | Air |
| Voltage Test Accuracy | ±1% |
| Withstand Voltage Time | 0 to 7 Hr |
| Breakdown Judgment Method | High Voltage and Leakage Current Judgment |
Key Features
- Capability to collect current down to the mA level in real-time
- Utilize an advanced non-contact technology for voltage boosting
- Capable of withstanding pressure in solid or liquid environments
- Optional inclusion of an easily assembled and disassembled oil bath
- Chassis constructed with overall plastic spraying for durability
- Facilitates high voltage and leakage current assessments
- Withstand voltage for both power frequency AC and DC voltages
- Real-time plotting of test curves, display of test data, accurate judgment
- Capability to save, analyze, print, and modify test data
Product Description
The Voltage Breakdown Tester LVBT-A10 utilizes microcontroller technology and bi-directional voltage and current interference suppression technology for precise voltage control. With a transformer capacity of 10 KVA, it has a continuously adjustable test voltage ranging from 0 to 100 KV. It supports software that enables Bluetooth remote operation across different computers for various operational requirements. This system includes upper and lower computer alarms, along with a zero-voltage alarm to prevent potential hazards resulting from user interaction with malfunctioning instruments.
Software Features:
- Enables concurrent usage with the capability to assign different passwords
- Provides optional activation of high voltage protection
- Adjustable withstand voltage duration
- Configurable gradient steps
- Choice of leakage current and overvoltage settings
- Selection of sensitive leakage voltage
- Freedom to set boost speed within the range of 0-5 kV for nonpolar ringin tests
- Remote operation and human-machine separation settings
- Stores and retrieves test results while facilitating personnel selection
- Operates and organizes test results according to specific customer requirements
- Supports more than five color line comparisons
- Automatically adjusts and integrates test data
Applications:
It is used primarily in electrical and electronics industries to assess the dielectric strength or insulation quality of various materials, components, and electrical systems. It evaluates the breakdown strength of both solid and liquid insulating materials.
