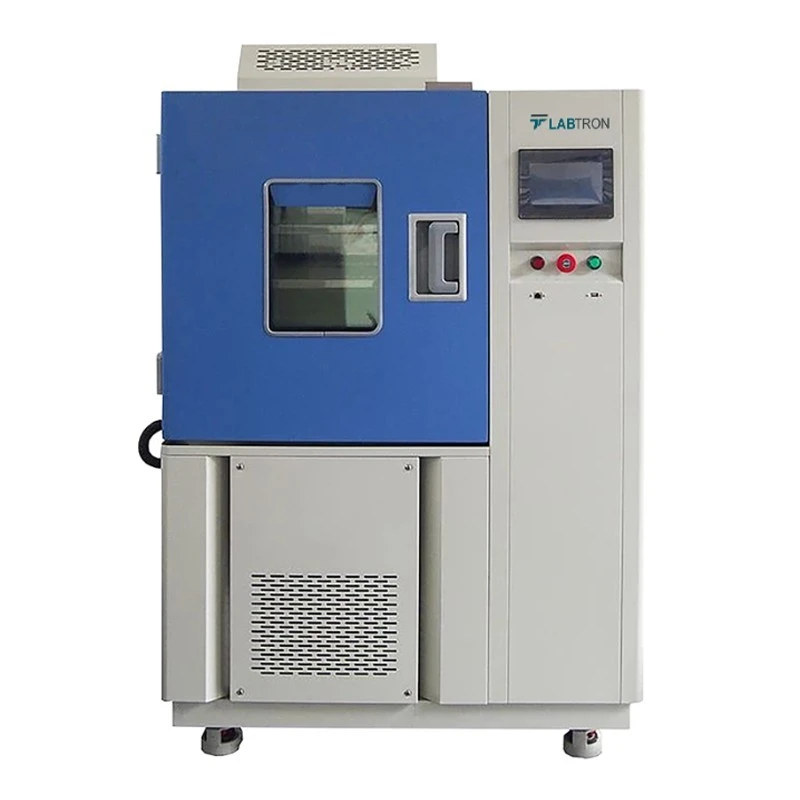

Labtron LTHC-D10 Temperature and Humidity Test Chamber
Specifications
| Country of Origin | UK |
|---|---|
| Temperature Accuracy | ±2°C |
| Humidity accuracy | ±2.5% RH |
| Capacity | 300L |
| Brand | Labtron |
| Power Supply | AC220V / 50Hz / 3 Phase |
| Net Weight | 366 kg |
| Temperature range | -20°C to 180°C |
| Model | LTHC-D10 |
| Temperature Sensor | PTR Platinum Resistance PT1000/MV A-class |
| Gross Weight | 435 kg |
| Shelves | 2 pieces / adjustable and removable |
| Insulation | Polyurethane foam and insulation |
| Type of Product | Environmental Test Chamber |
| Compliance Standards | IEC60668-21 / IEC60668-2-2 / IEC60668-5 |
| Humidity range | 20% to 98% RH |
| Humidity Sensor | Dry and wet bulb sensor |
| Safety Device | Humidifier Dry-Combustion Protection | Over-Temperature Protection | Over-Current Protection | Refrigerant High-Pressure Protection | Water Shortage Protection | Earth Leakage Protection |
| Heating element | Nichrome heater |
| Cooling System | Mechanical compression refrigeration |
| Heating Rate | 3°C/min |
| Air Circulation | Centrifugal wind fan |
| Controller | Programmable color LCD touchscreen |
| Cooling Rate | 1°C/min |
| Communication Port | Ethernet connection / USB port |
| Heat Load | 1000W |
| Observation window | Interior lighting / double-layer thermo stability silicone rubber sealing |
| Working Environment Temperature | 5°C to 35°C |
| Exterior Material | Steel Plate with protective coating |
| Interior Material | SUS304 stainless steel |
| Working Environment Humidity | ≤85% RH |
| Refrigerating Unit | Compressor and R449A Refrigerant |
| Humidifier | External stainless steel surface evaporation |
| Dehumidification | Evaporator |
| View Window Size | 355 x 435 mm |
| Shelf Load | 30kg |
| Cable Hole | Dia100mm port / with a plug |
| Build-In Water Tank Size | 270 x 300 x 450 mm |
| Internal Size (W x D x H) | 600 x 700 x 700 mm |
| External Size (W x D x H) | 1100 x 1240 x 1820 mm |
Key Features
- Body is resistant to high and low-temperature corrosion
- Superior insulation performance, resistant to degradation
- Four castors with brakes for easy mobility
- High-quality centrifugal fan
- Built-in LED light for clear observation of samples
- PID programmable color touchscreen controller
- Customizable access holes are available
- High and low water level alarms
- Water shortage lights and sound alerts
- Features a water re-circulation system
Product Description
Temperature and Humidity Test Chamber LTHC-D10 can accommodate a chamber volume of 300L. Operates on a temperature range of -20℃ to 180℃ and humidity range of 20% to 98% RH. This chamber incorporates a mechanical compression refrigeration system for cooling and a nichrome heater as a heating element. Designed with two adjustable shelves, each with a 30kg capacity. Our test chamber is enhanced with an automatic water supply and water purification system for better operation.
Applications :
Temperature and Humidity Test Chamber is designed to simulate a wide range of environmental conditions, including various temperatures and humidity levels. It is widely used across multiple industries, such as manufacturing, automotive, and aerospace testing.
Standard Accessories :
- Wet Wick × 2 Pieces
- Temperature Sensor × 1 Piece
- Heater For Humidifier × 1 Piece
- Float Ball of Humidifier × 1 Piece
- Solid-State Relay × 1 Piece
