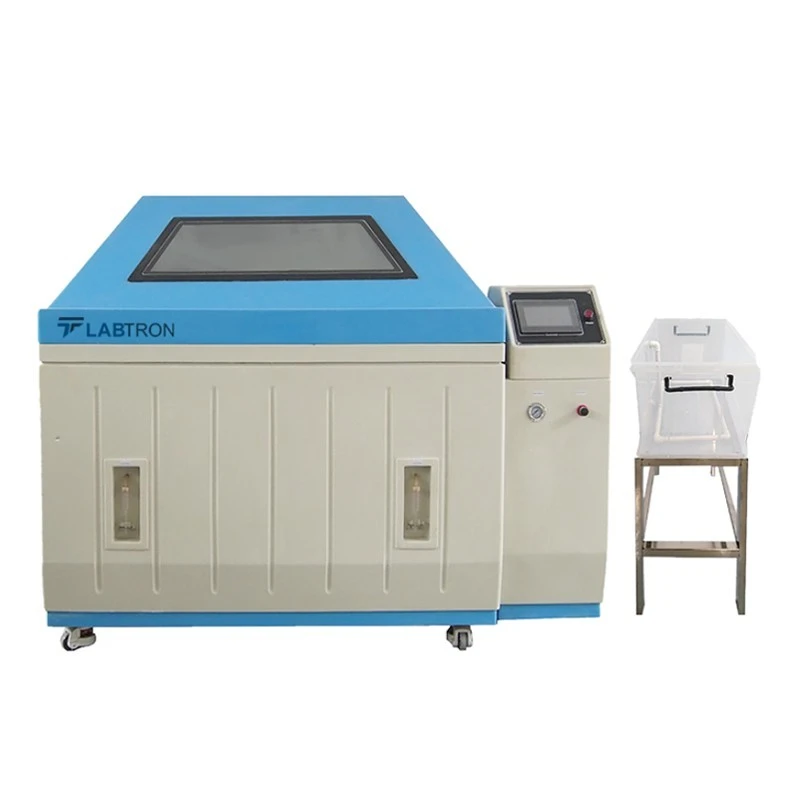

Salt Spray Test Chamber LSSC-A13 is designed as per ASTMB117, ISO9227 configurations, and is comprised of 780 L of capacity and an external 78 L salt solution tank with a brine mixing system. Features continuous/periodic spray with adjustable spray tower and quartz nozzle with high temperature, corrosion, and clogging resistance. Incorporated with PID programmable touch screen controller, PT100 Ω / MV A-class sensor, Nichrome heater, and Saturated air barrel, this salt spray test chamber has an air source diverting device to distribute the compressed air to the opening system. With round bars and V-shaped groove sample holder, it is provided with protection against humidifier dry-combustion, over-temperature, over-current, water shortage, and earth leakage. Designed with glass fiber reinforced plastics, transparent window, pneumatic switch lid, pneumatic seal, and adjustable castors with brakes, this salt spray test chamber ensures long service life with high temperature and corrosion resistance.

Applications :

Salt spray test chamber is used to create and maintain the salt spray (fog) test environment, and test the anti-corrosion quality of all the materials surfaces after the rust-proof of painting, coating, electroplating, anodizing, and rust-proof of greasing.
