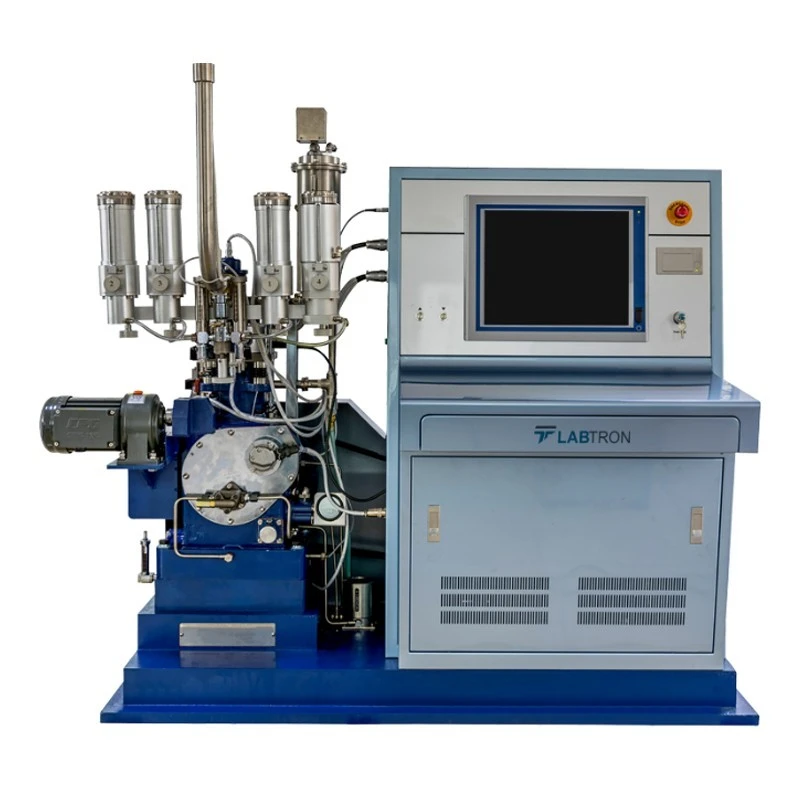

Labtron LOT-D10 Octane Analyzer
Specifications
| Country of Origin | UK |
|---|---|
| Brand | Labtron |
| Power Supply | AC380V ± 10% / 50/60Hz | AC110V ± 10% / 50/60Hz |
| Model | LOT-D10 |
| Weight | 900 Kg |
| Type of Product | Petroleum Testing Equipment |
| Machine Power | 12KW |
| Operating Conditions | 5 to 35°C / 20 to 90% RH / Non-condensing |
| Engine Speed | 900rpm ± 9rpm for Motor Method / 600rpm ± 6rpm for Research Method |
| I/O Port | USB |
| Working Range | 40 to 120 Octane Number |
| Dimensions (W×D×H) | 1650mm × 820mm × 1480mm |
| Test Methods | ASTM D2699 / ASTM D2700 / IP 236 / IP 237 / EN ISO 5163 / EN ISO 5164 / GB/T 5487 / GB/T 503 |
| Data Export | LIMS or Printer |
| Cast Iron Cylinder Bore (Diameter) | 82.55mm (3.250 inch) |
| Piston Stroke | 114.30mm (4.50 inch) |
| Compression Ratio Range | Adjustable 4 — 1 to 18 — 1 / automatically or manually controlled |
| Cylinder Displacement | 0.61L (37.33 in³) |
| Cylinder Jacket Coolant Temperature | 100°C ± 1.5°C (212°F ± 3°F) |
| Lubricating Oil Temperature | 57°C ± 3°C (135°F ± 5°F) |
| Lubricating Oil Pressure | 172 to 207 kPa (25 to 30 psi) |
| Clearance for Both Intake and Exhaust Valves | 0.20mm ± 0.025mm (0.008 in ± 0.001 in) |
| Spark Plug Gap | 0.51mm ± 0.13mm (0.020 in ± 0.005 in) |
| Intake Mixture Temperature (Motor Method) | 149°C ± 1°C (300°F ± 2°F) |
| Intake Air Temperature (Motor Method) | 38°C ± 2.8°C (100°F ± 5°F) |
| Intake Air Temperature (Research Method) | 52°C ± 1°C (125°F ± 2°F) / maintained within ±1°C (±2°F) for other barometric conditions |
| Ignition Timing (Real-time Displayed) | Motor Method — 26° BTDC (EE equal to 5.0) / auto-adjusted. Research Method — Constant 13° BTDC |
Key Features
- Standardized single cylinder engine
- Variable compression ratio feature
- Signal sensors for monitoring
- Automatic time recording capability
- Upper exhaust cooled circulator
Product Description
Octane Analyzer LOT-D10 measures fuel resistance to knocking, with range of 40 to 120 octane number. Feature high accuracy sensor for consistent and dependable evaluation results. Automatic barometric pressure compensation optimizes results for varying environmental conditions. Its four parallel carburetor bowls ensure balanced testing across multiple configurations. Equipped with refrigerated vertical jet system to improve temperature management during testing.
Applications:
Our Octane Analyzer LOT-D10 is versatile for fuel quality testing in refineries, automotive research, and regulatory compliance. They optimize engine performance, develop new fuels, and ensure adherence to industry standards.
