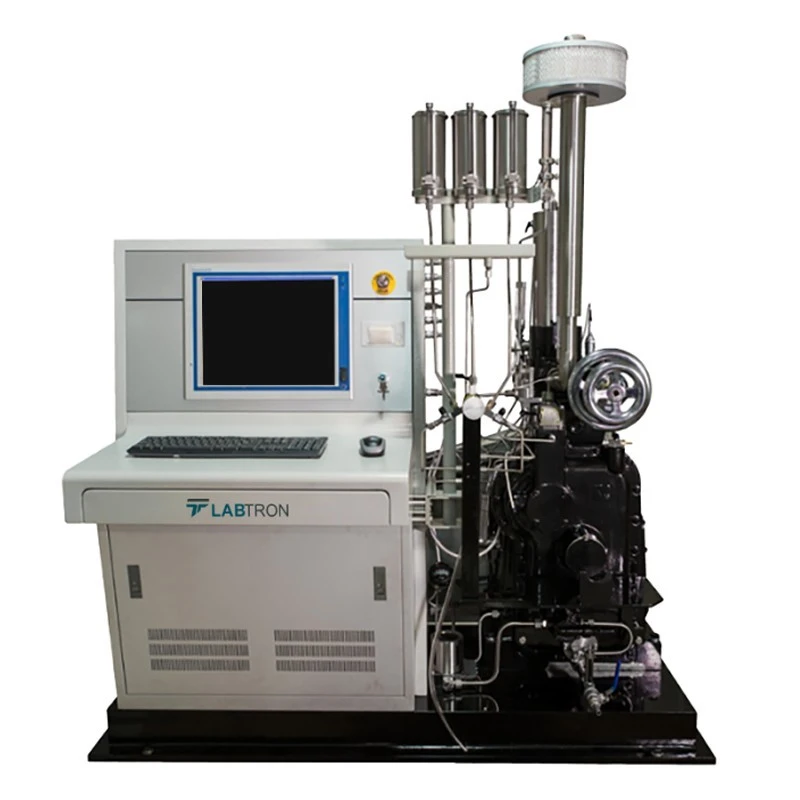

Labtron LCA-A10 Cetane Analyzer
Specifications
| Country of Origin | UK |
|---|---|
| Brand | Labtron |
| Power Supply | AC380V±10% / 50Hz | AC220V±10% / 50Hz |
| Model | LCA-A10 |
| Weight | 1200 kg |
| Type of Product | Petroleum Testing Equipment |
| Machine Power | 15 kW |
| Operating Conditions | 15 to 35°C / 20 to 90% RH / non-condensing |
| Engine Speed | 900 rpm ± 9 rpm |
| I/O Port | USB |
| Dimensions (W×D×H) | 1550 mm × 900 mm × 1720 mm |
| Test Methods | ASTM D613 / IP 41 / EN ISO 5165 / GB/T 386 |
| Injection Pressure | 10.30 MPa ± 0.34 MPa (1500 psi ± 50 psi) |
| Data Export | LIMS or Printer |
| Cetane Number Range | 0 to 100 (Typical testing CN range — 30 to 65) |
| Cast Iron Cylinder Bore (Diameter) | 82.55 mm (3.250 inch) |
| Piston Stroke | 114.30 mm (4.50 inch) |
| Compression Ratio Range | Adjustable 8 — 1 to 36 — 1 |
| Cylinder Displacement | 6117.19 mm³ (3.37 in³) |
| Injection Timing | 13.0° ± 0.2° BTDC |
| Injection Flow Rate | 0.13 mL/min ± 0.2 mL/min |
| Injector Coolant Passage Temperature | 38°C ± 3°C (100°F ± 5°F) |
| Valve Clearance (Running and Hot) | 0.20 mm ± 0.025 mm (0.008 in. ± 0.001 in.) |
| Intake Air Temperature | 66°C ± 0.5°C (150°F ± 1°F) |
| Cylinder Jacket Coolant Temperature | 100°C ± 2°C (212°F ± 3°F) |
| Lubricating Oil Temperature | 57°C ± 8°C (135°F ± 15°F) |
| Lubricating Oil Pressure | 172 kPa to 207 kPa (25 psi to 30 psi) |
| Basic Compression Pressure | 3275 kPa ± 138 kPa (475 psi ± 20 psi) |
| Crankcase Internal Pressure | -0.25 kPa to -1.5 kPa |
| Fuel Pump Inlet Pressure | 635 mm ± 25 mm above injection pump inlet |
Key Features
- Three parallel fuel tanks
- Emergency stop safety feature
- Powerful water circulator
- Comprehensive data acquisition functions
- Automatic time recording features
Product Description
Cetane Analyzer LCA-A10 utilizes five-speed gear transmission for ignition performance and combustion efficiency measurement. It is equipped with a turning check system to ensure accurate sample handling and analysis. Automated fuel injection control enhances evaluation accuracy and streamlines the testing process. The analyzer features real-time ignition delay display, providing instant feedback on fuel quality. It also incorporates a large-capacity air purification system to maintain clean air throughout the operation.
Applications:
Our Cetane Analyzer LCA-A10 is essential in the automotive, aerospace, and energy sectors, ensuring precise measurement of cetane numbers for diesel fuels, enhancing performance, compliance, and fuel efficiency.
