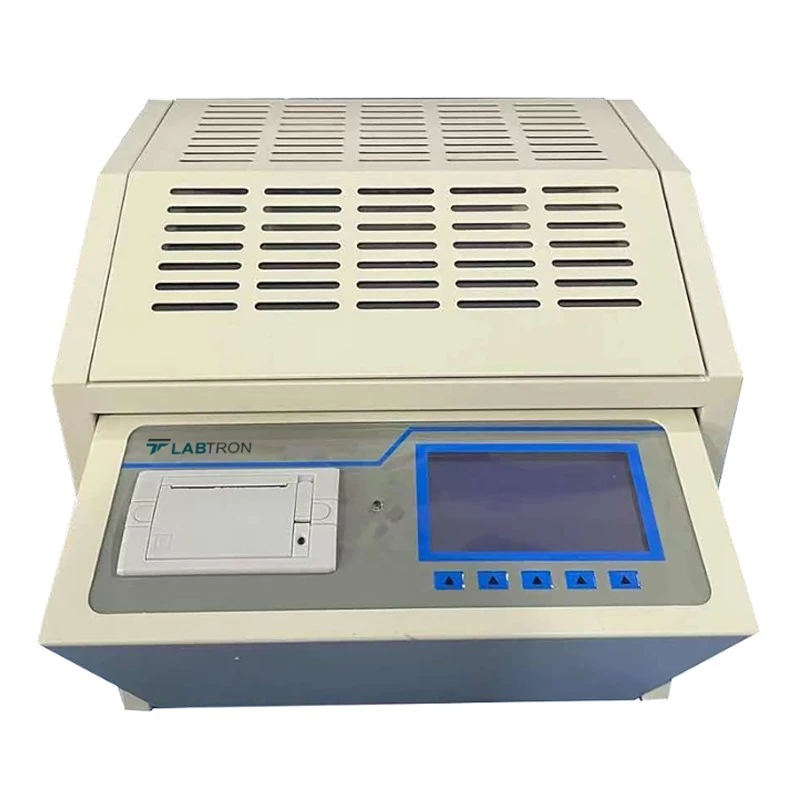

Labtron LOAT-A10 Automatic Oil Tester
Specifications
| Country of Origin | UK |
|---|---|
| Power Consumption | Less than 200 W |
| Relative Humidity | ≤ 85% |
| Brand | Labtron |
| Power Supply | AC 220V ± 20% |
| Interface | RS232 |
| Model | LOAT-A10 |
| Temperature | 0 to 40°C |
| Output Voltage (V) | 0 to 80 kV (optional) |
| Type of Product | Petroleum Testing Equipment |
| Display Mode | Large LCD |
| Voltage Accuracy | (2% reading + 2 words) |
| Booster Capacity | 1.5 kVA |
| Boost Speed | 0.5 kV/s to 5.0 kV/s (10 grades / increasing by 0.5) |
| Electrode Clearance Standard | 2.5 mm |
| Power Distortion Rate | Less than 1% |
| Test Times | 6 times (1 to 10 times optional) |
| Resting Time | 900 sec (0 to 5900 sec optional) |
| Interval Rest Time | 300 sec (0 to 5900 sec optional) |
| Stirring Time | 15 sec (0 to 250 sec optional) |
| Power Supply Frequency | 50 Hz ± 5 Hz |
| Single Cup Dimension | 430 × 350 × 370 mm |
| Three Cups Dimension | 670 × 420 × 410 mm |
| Single Cup Weight | 36 Kg |
| Three Cups Weight | 42 kg |
Key Features
- Portable design
- Strong anti-interference capability
- Multiple operation modes
- Single-moulded special glass oil cup
Product Description
Automatic Oil Tester LOAT-A10 features a booster capacity of 1.5 kVA and adjustable boost speed from 0.5 kV/s to 5.0 kV/s, with ten 0.5 kV/s increments for precise testing. Controlled by a robust microcomputer, it offers reliable performance with a watchdog circuit to prevent system crashes. Its high-voltage sampling design feeds values directly into the A/D converter, minimizing analogue errors and enhancing measurement accuracy.
Applications:
Automatic Oil Tester LOAT-A10 is commonly used in power generation, transmission, and distribution industries to ensure the reliability of electrical equipment.
Standard Accessories:
- 36 mm Oil test vessel with stainless steel spherical electrodes × 1
- 36 mm Oil test vessel with stainless steel mushroom electrodes × 1
- 2.5 mm Electrode spacing gauge × 1
- Protective cover × 1
- Power supply lead × 1
- 300–500 ml Glass test cell × 1
- 36 mm Extra oil vessel with spherical electrodes × 1
- Carrying case and transportation trolley × 1
- 232 Communication port × 1
Optional Accessories:
- Extra oil vessel with 36 mm spherical electrodes and voltage meter
- Transportation trolley
