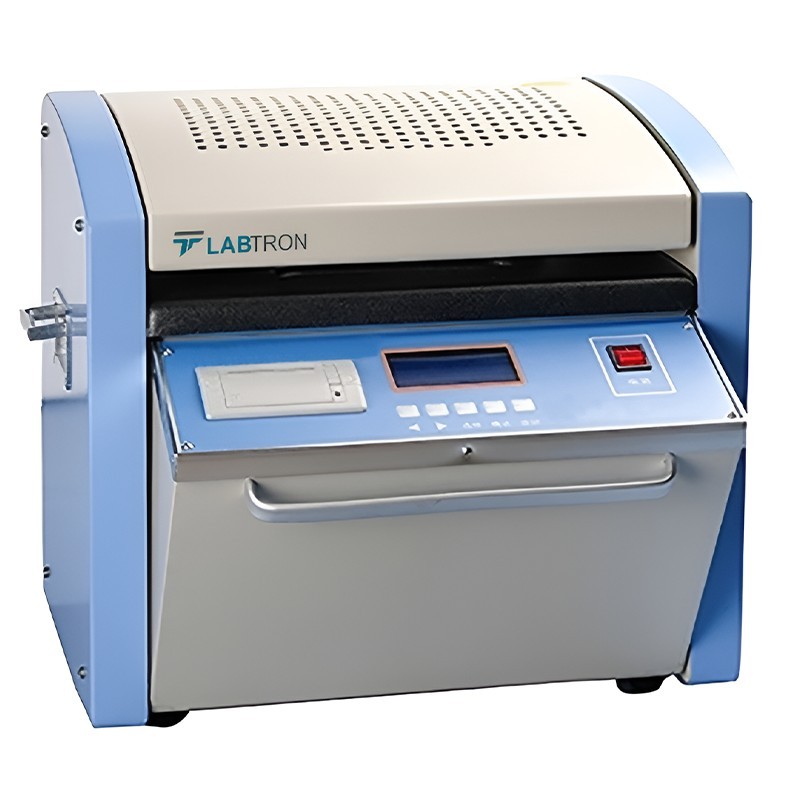

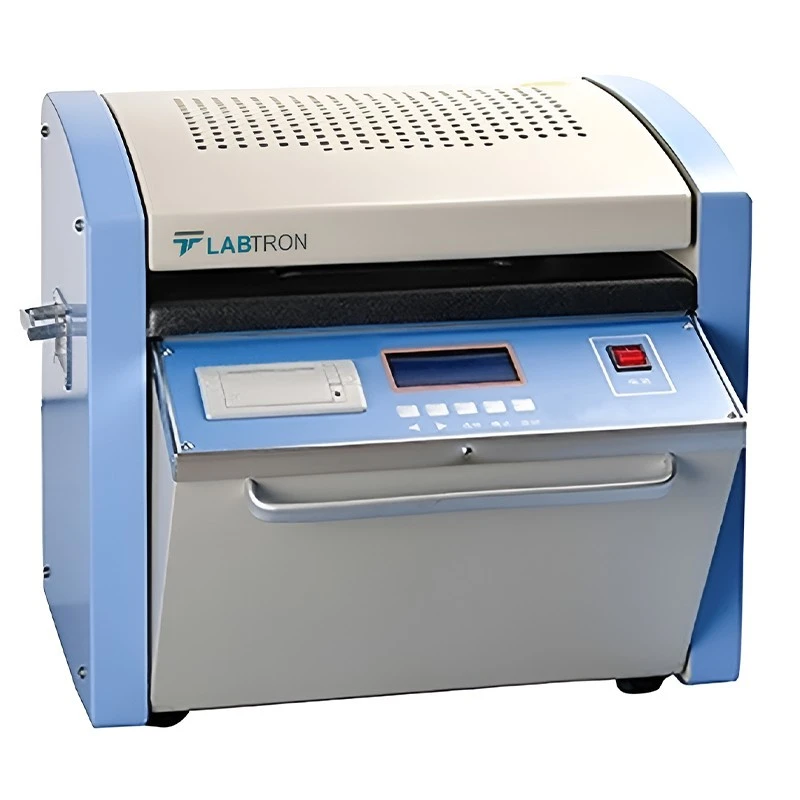

Labtron LIBT-A23 Oil Breakdown Voltage Tester
Specifications
| Country of Origin | UK |
|---|---|
| Resolution | 0.01 KV |
| Accuracy | 0.02 |
| Measurement Range | 0 to 80 KV / 0 to 100 KV (optional) |
| Brand | Labtron |
| Power | 200 W |
| Dimensions | 490 × 430 × 420 mm |
| Model | LIBT-A23 |
| Weight | 25.7 kg |
| Measurement Accuracy | ± 3% |
| Type of Product | Petroleum Testing Equipment |
| Display Mode | LCD Screen |
| Safety Features | Overvoltage / Overcurrent / and Automatic Zero-Return Protection |
| Applicable Temperature | 0°C to 45°C |
| Power Supply Voltage (V) | AC 220 V ±10% / 50 Hz ±1 Hz |
| Automatic Function | Boosting / Zeroing / Stirring / Displaying / Calculating / and Printing |
| Number Of Experimental Cups | 1 cup |
| Voltage Distortion Rate | Less than 3% |
| Boosting Speed | 0.5 to 5 KV/s (adjustable) |
| Rest Time | 0 to 15 minutes (adjustable) |
| Boosting Interval | 0 to 5 minutes (adjustable) |
| Boosting Frequency | 1 to 9 times |
| Capacity Of Booster | 1.5 KVA |
| Applicable Humidity | Less than 75% RH |
Key Features
- Dual CPU microcomputer control
- Automatic data storage function
- Multiple safety features
- Includes power amplifier
- High-resolution accuracy
- User-friendly interface
Product Description
Oil Breakdown Voltage Tester LIBT-A23 is designed for accurate testing of insulating oil, featuring a wide measurement range of 0 to 80KV. The tester includes an LCD for real-time monitoring and supports an adjustable boosting speed from 0.5 to 5KV/s. Boosting intervals can be customized between 0 to 5 minutes, offering flexibility based on testing requirements. It is equipped with an automatic sine wave generator and stepless voltage regulation, ensuring stable and consistent voltage delivery. Its dry-type transformers make the unit lightweight, compact, and easy to operate—ideal for both laboratory and field applications.
Applications:
Oil Breakdown Voltage Tester is used to measure the dielectric strength of insulating oil and detect contamination caused by moisture or suspended particles. It is widely applied in the power, petroleum, and chemical industries for quality assurance and maintenance.
Optional Accessories:
- Oil Vessel
