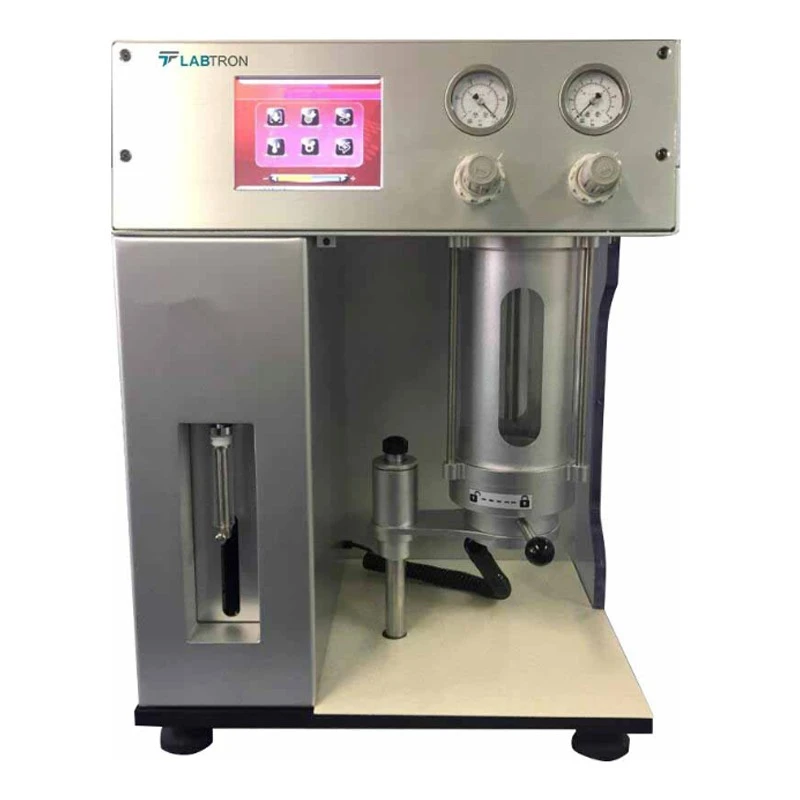

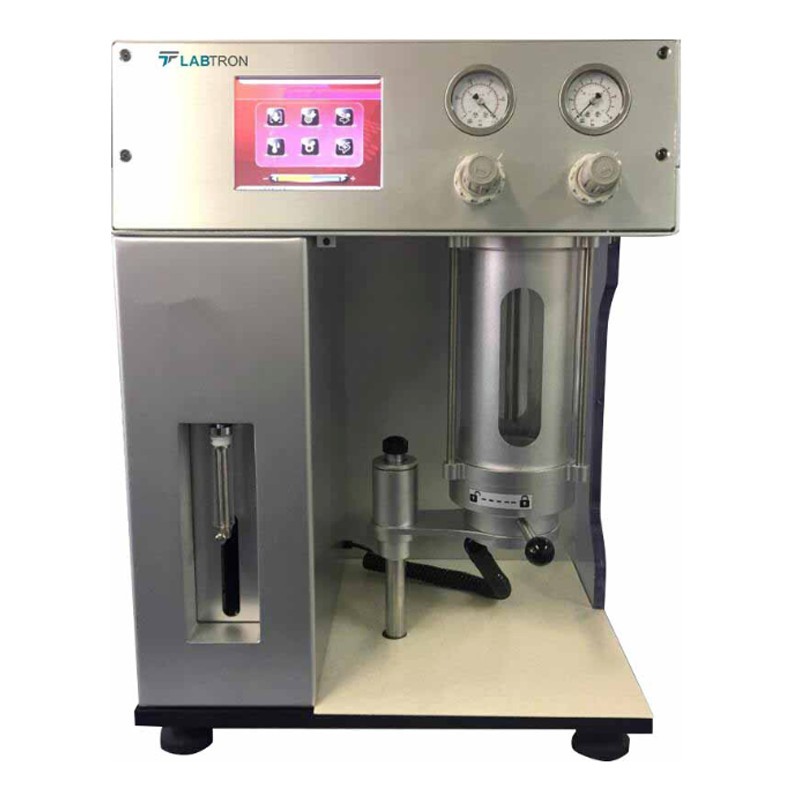

Labtron LLPC-A10 Liquid Particle Counter
Specifications
| Country of Origin | UK |
|---|---|
| Resolution | Less than 10% |
| Measurement Range | 1 to 250 µm (25 sensors) / 1 µm to 320 µm (32 sensors) / 2 µm to 400 µm (40 sensors) |
| Brand | Labtron |
| Power Supply | 220 V / 50 Hz |
| Power | 80 W |
| Interface | RS232 |
| Light Source | Semiconductor laser light |
| Particle size | 1 µm (2 µm) to arbitrarily set within 100 µm |
| Model | LLPC-A10 |
| SENSITIVITY | 1 µm (ISO4402) / 4 µm (C) (ISO11171) (25 / 32 sensor) / 2 µm (ISO4402) (40 sensor) |
| Ambient Temperature (ºC) | 10 to 40°C |
| Type of Product | Particle Counters |
| Sampling rate | 5 ml/min to 60 ml/min |
| Sample Volume | ≥ 0.5 ml |
| Internal Dimension | 430 × 320 × 590 mm |
| Measurement Channels | 8 channels |
| Sample Accuracy | Better than ±1% |
| Coincidence Error Limit | 10 /000/ml (5% Coincidence error) |
| Maximum Cabin Pressure | 0.6 MPa |
| Maximum Cabin Vacuum | 0.08 MPa |
| Maximum Viscosity Detection | 350 cps (40 sensor) / 250 cps (32 sensor) / 100 cps (25 sensor) |
| Internal Weight | 55 kg |
| External Packaging Dimension | 450 × 340 × 620 mm |
| External Packaging Weight | 75 kg |
Key Features
- Precision syringe sampling with stable sampling rate
- Built-in threshold- diameter curve
- 8 Measurement channels
- Wide Detection range
- Large LCD touch screen display
- Large data processing, classification, verification
- Built – in printer RS232 interface with connection to printer
- Instrument calibration and verification as per international standards
Product Description
Liquid Particle Counter LLPC-A10 comes with high precision syringe sampling and semiconductor laser sensor. Designed using photoresist method principle, it detects size and number of solid particles in a liquid sample. It’s a high-quality performance instrument, designed in accordance with international standards such as ISO4406:1999.
Applications:
Used in petroleum, metallurgy, automobile, aviation, chemical, and other fields to detect insoluble particles present in hydraulic oil, petroleum oils, turbine and insulating oils, and liquid polymer solutions.
