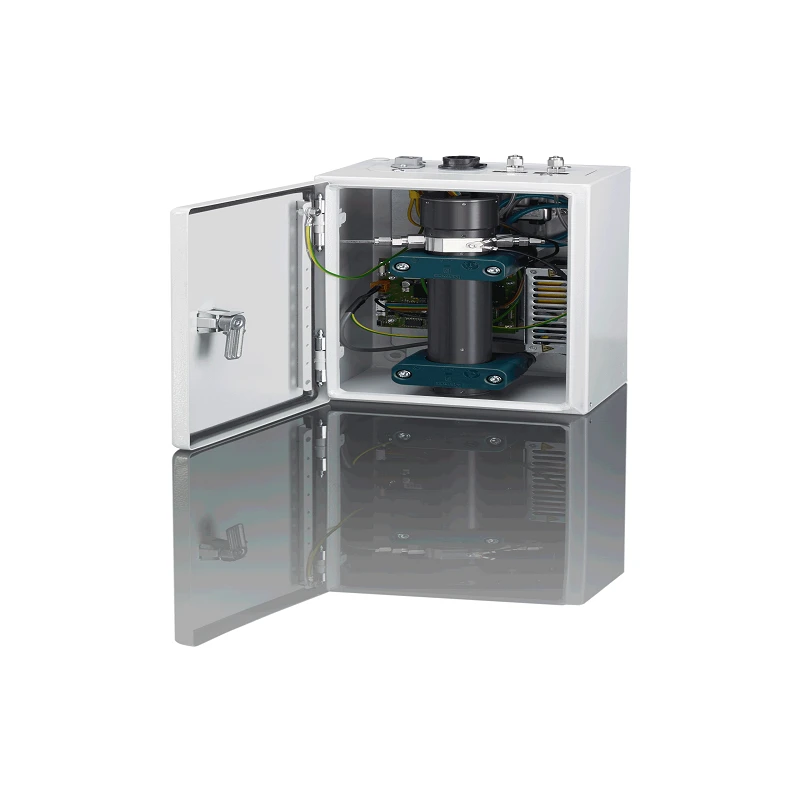

PAMAS 4132 Particle Counters for Filter Testing

The PAMAS 4132 is used as a particle counting system for Single & Multipass Filter test rigs. The standard system fits in the test rigs of filter manufacturers.In the case of a Single Pass Filter Test, the liquid passes the filter only once and then is deviated to the outflow. For -ratio-analyses, the Single Pass Filter Test can be performed with two PAMAS 4132 instruments.Two PAMAS 4132 instruments - equipped with 32 size channels each - are also used for the Multipass Filter Test. This test rig with two particle counters allows simultaneous upstream and downstream measurements. For the Multipass Filter Test, the liquid flows continuously through the system.The particle counting system PAMAS 4132 analyses liquids of various viscosity degrees (e.g. oil, fuel, water, etc.). The system is adaptable to any Multipass application and -ratio analysis.The particle counting system PAMAS 4132 analyses liquids of various viscosity degrees (e.g. oil, fuel, water, etc.). The system is adaptable to any Multipass application and -ratio analysis.Volumetric particle sensorsPAMAS HCB-LD-50/50Calibration range:1 - 400 m according to ISO 215011 - 100 m according to ISO 44024 - 70 m(c) according to ISO 11171Max. particle concentration: 24,000 p/ml at a flow rate of 25 ml/minPAMAS HCB-LD-25/25Calibration range:1 - 200 m according to ISO 215011 - 100 m according to ISO 44024 - 70 m(c) according to ISO 11171Max. particle concentration: 120,000 p/ml at a flow rate of 25 ml/min
