Image Analysing System For Membrane Analysis As Per Iso 4407 PAMAS FastPatch 2 GO
Specifications
| Size | 1000 x 600 x 600 mm |
|---|---|
| Applications | Dark fluids Two phase liquids Emulsions High levels of contamination Very high viscosities (dilution required) |
| Weight | 30 Kg |
Key Features
- Optimised LED ringlight illumination with polarisation function enabling metallic / non-metallic particle detection
- ? Presentation of counts in accordance with a particle length classification. The classification used may be that of a recognized standard, such as ISO 16232, SAE AS4059, ISO 4406 or one defined by the user
Product Description

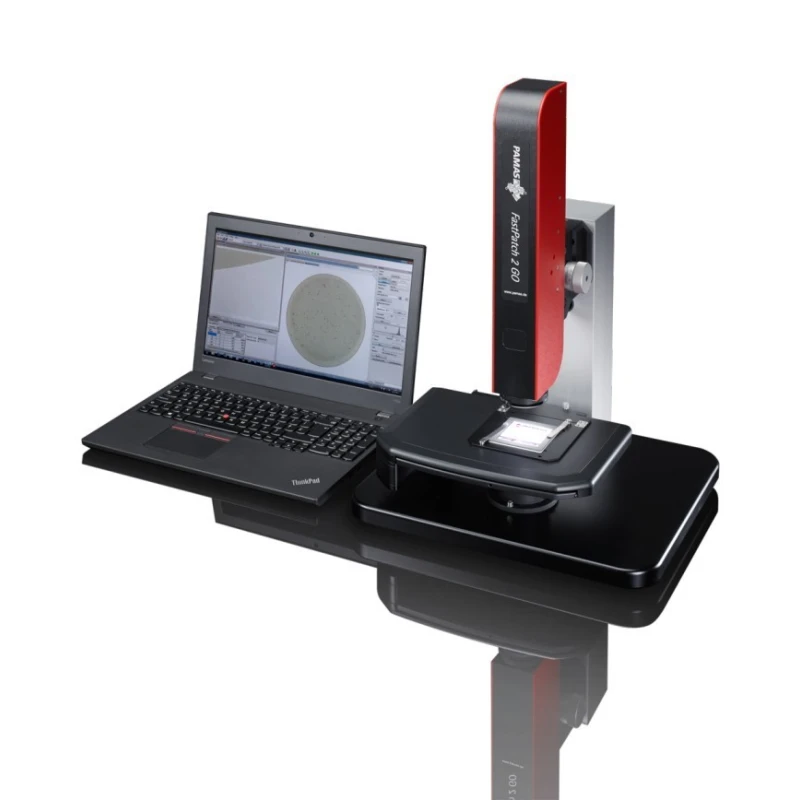

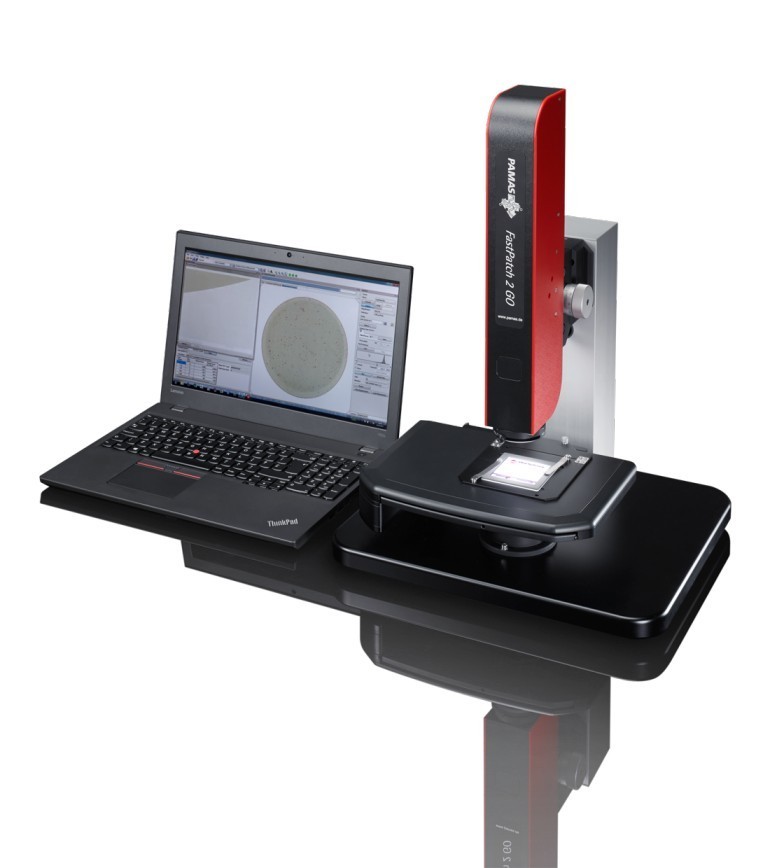

The microscope system PAMAS FastPatch 2 GO has been developed to comply with the standard ISO 4407 as an automated filter membrane particle counting and sizing system. The system is designed to measure the particles trapped on the surface of the filter. The analysis uses advanced image analysis and microscope automation techniques to provide rapid and accurate contamination results of whole or user-specified areas of filters
- Automated particle count analysis system for filter membranes
- High resolution to see small particles
- Automatic compensation for uneven surface
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The dimensions of this model are 1000 x 600 x 600 mm.
This unit has a weight of 30 Kg.
It is suitable for analyzing dark fluids, two-phase liquids, emulsions, and high levels of contamination, as well as very high viscosities (dilution required).
This system has been developed to comply with the ISO 4407 standard for automated filter membrane particle counting and sizing.
It features optimized LED ringlight illumination with a polarization function to enable detection of both metallic and non-metallic particles.
Particle counts are presented in accordance with a particle length classification, which can be based on recognized standards such as ISO 16232, SAE AS4059, ISO 4406, or a user-defined classification.
It employs advanced image analysis and microscope automation techniques to provide rapid and accurate contamination results.
Yes, it includes automatic compensation for uneven surfaces during particle analysis.
It can detect both metallic and non-metallic particles due to its advanced illumination and analysis capabilities.
Its primary function is to automate particle count analysis for filter membranes, measuring particles trapped on the filter surface.
The polarization function enhances the detection of both metallic and non-metallic particles, improving the accuracy of the analysis.
