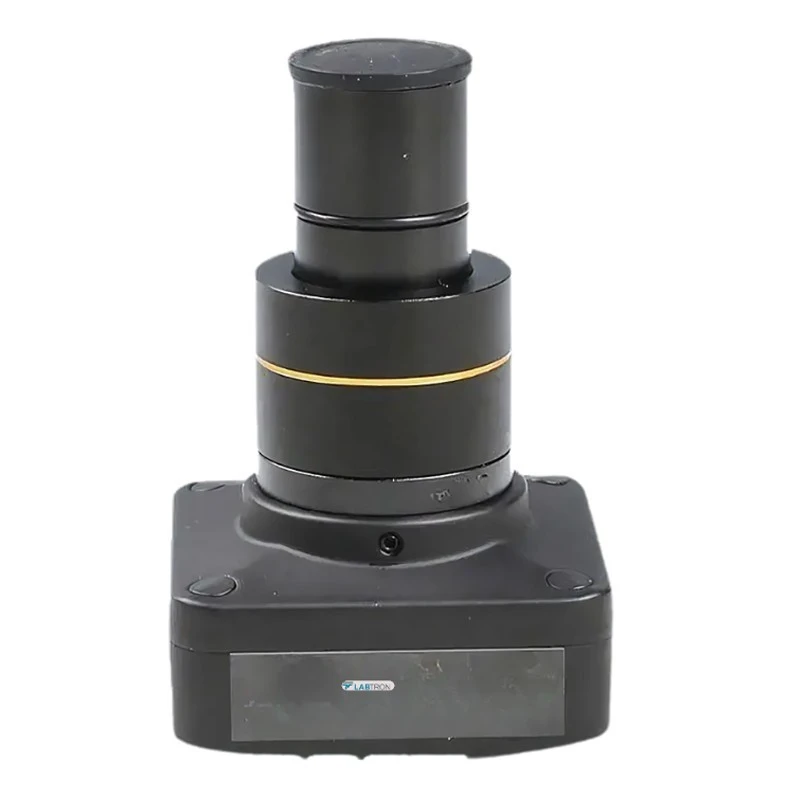

Labtron LUMC-B13 Microscopic Camera
Specifications
| Country of Origin | UK |
|---|---|
| Operating Humidity | 30 to 80% RH |
| Brand | Labtron |
| Power Supply | DC 5V over PC USB Port |
| Interface | USB 2.0 |
| Storage Temperature | -20 to 60°C |
| Spectral range | 380 to 650 nm (with IR-cut filter) |
| Model | LUMC-B13 |
| SOFTWARE | Yes |
| Weight | 20 g |
| Optional | USB 1.0 |
| Ambient Temperature (ºC) | -10 to 50°C |
| Type of Product | Microscope |
| Mount | C-mount |
| Storage Humidity | 10 to 60% RH |
| Dynamic Range | 66.5 dB |
| Sensor Size | 1/2.5 inch (5.70 x 4.28 mm) |
| Dimensions (L x W x H) | 58 x 29.4 x 58 mm |
| Pixel Size | 2.2 x 2.2 µm |
| White Balance | ROI White Balance / Manual Temp Tint Adjustment |
| Shutter | Global Reset Shutter (GRR) / Snapshot Only / Electronic Rolling Shutter (ERS) |
| SNR | 40.5 dB |
| Exposure Control | Automatic |
| Recording System | Still Picture and Movie |
| Sensor Resolution | 5.0 MP |
| Active Pixels | 2592 x 1944 |
| ADC Resolution | 12-bit |
| Responsivity | 0.53 V/lux-sec |
| Exposure | 0.294 ms to 2000 ms |
| Picture Format | BMP / JPG |
| Binning | 1x1 / 2x2 / 4x4 |
| Fps / Resolution | 5 / (2592 x 1944) |
| Software Environment | Microsoft Windows XP / Vista / 7 / 8 / macOS (Mac OS X) |
| PC Requirements | CPU — Intel Core 2.8GHz or higher / Memory — 2GB or more / USB Port — USB 2.0 High-speed / Display — 17" or Larger |
Key Features
- 5 MP with USB 2.0 specification
- IR-cut filter to protect the sensor
- Attaches easily to the eyepiece
- Advance color engine for precise color reproduction
- Micro-image analysis software
- Zinc-aluminium alloy compact housing
- Compatible with range of operating system
- Low usage of electricity
Product Description
Microscopic Camera LUMC-B13 is a device with a 05.X Adapter, equipped with a CMOS image sensor chip to obtain high-resolution images while ensuring efficient power utilization and minimal heating. Its image analysis software includes various features like capturing and saving images and videos, measuring cell size, and printing the results, providing users with the latest image processing experience.
Applications:
Used for microscopic imaging, visual inspection, and measurement of test specimens in life sciences, gemology, archaeology, forensic science, astronomy, pathology, cytology, semiconductor industries, and more.
