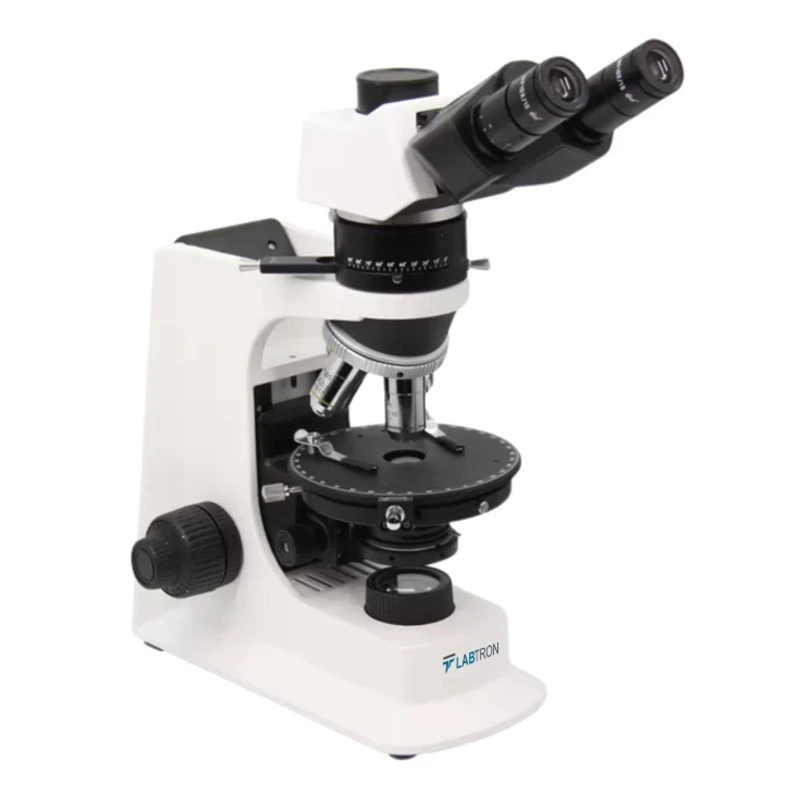

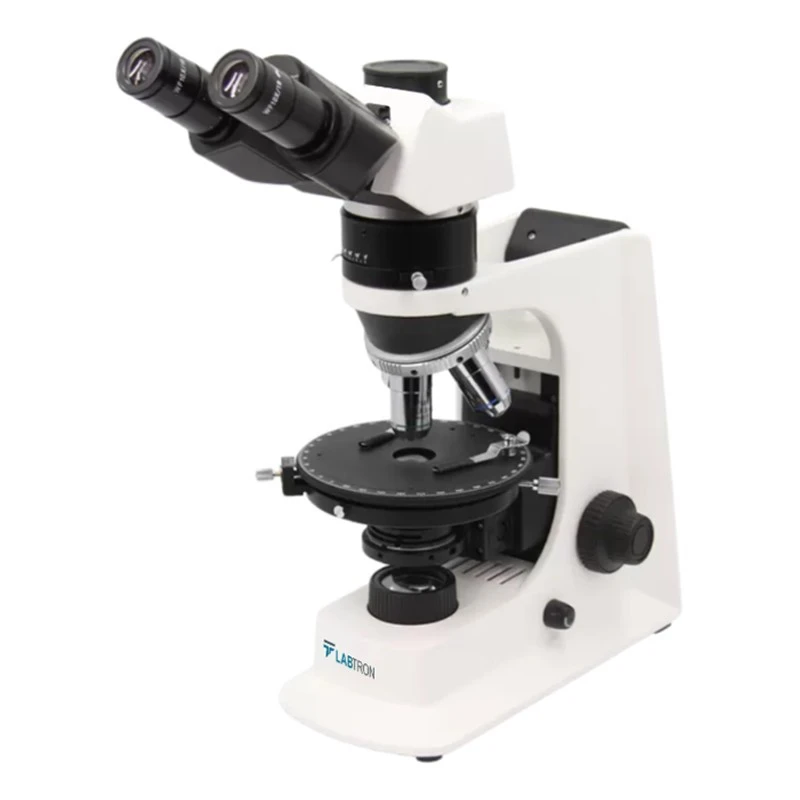

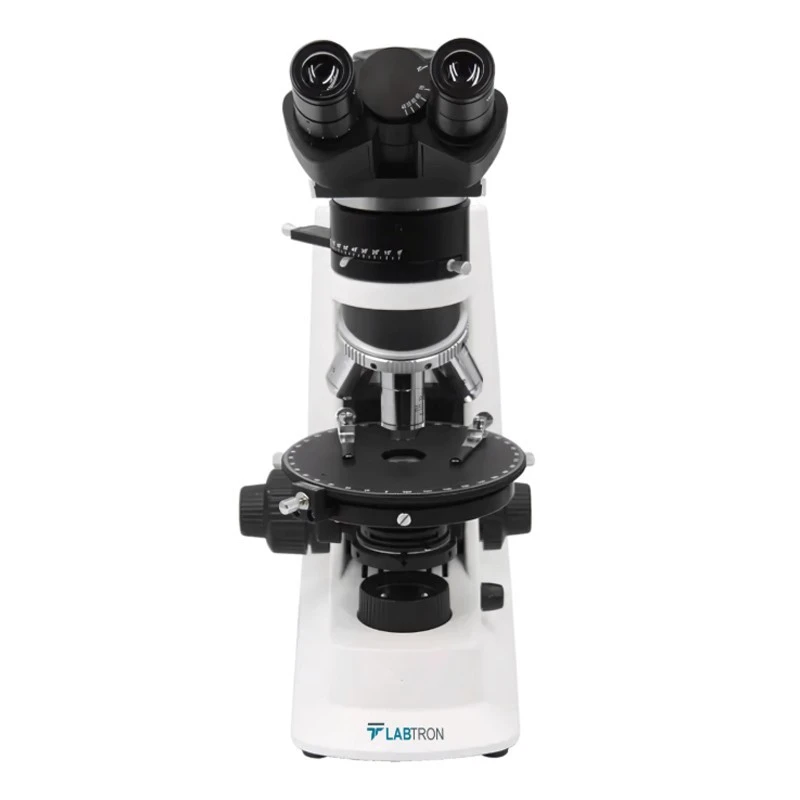

Labtron LPM-A21 Polarizing Microscope
Specifications
| Country of Origin | UK |
|---|---|
| Brand | Labtron |
| Net Weight | 7.5 kg |
| Dimensions | 570 × 275 × 450 mm |
| Model | LPM-A21 |
| Optical System | Color Corrected Infinite Optical System |
| Gross Weight | 8.6 kg |
| Type of Product | Microscope |
| Filter | Blue (Built-in) / Optional — Amber / Green / Neutral |
| Condenser | Abbe N.A. 1.25 Strain-free condenser |
| Illumination | 6V/30W Halogen Lamp |
| Magnification | 40x to 400x |
| Objectives | Strain-free Infinite Plan Objective 4x / 10x / 20x (S) / 40x (S) |
| Focusing | Coaxial Coarse & Fine Focusing knobs / Travel Range — 26mm / Scale — 2µm |
| Eyepiece | WF 10×/18mm (Reticule 0.1mm) |

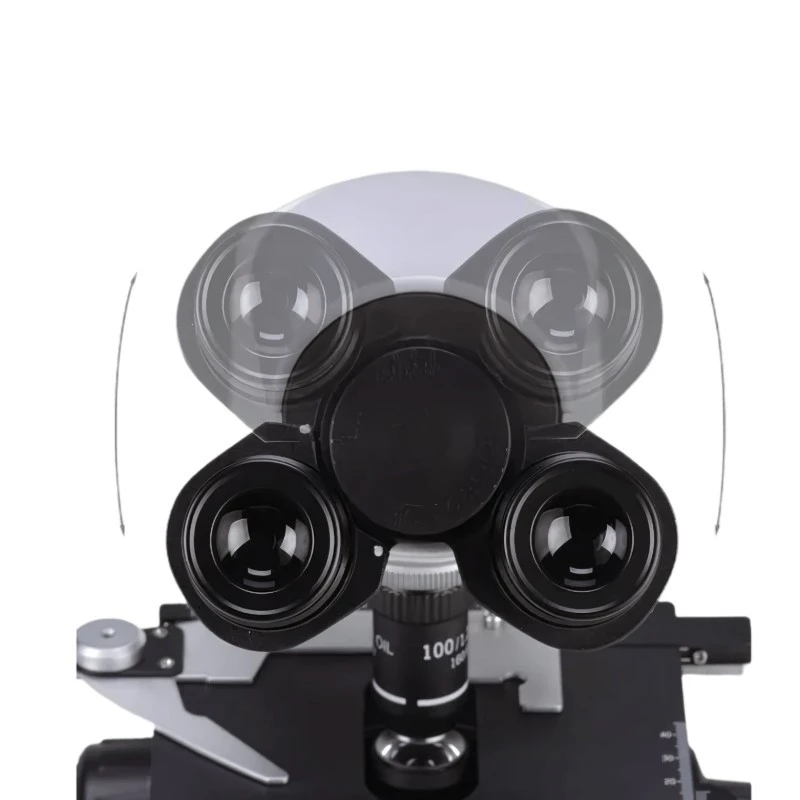

| Viewing Head | Seidentopf Binocular Head / Inclined 30° / Rotatable 360° / Interpupillary Distance — 48–75mm / Light Distribution 20 — 80 (Eyepiece — Trinocular Port) |
| Nosepiece | Quintuple click stop revolving mechanism with multiple ball bearing |
| Stage | 360° Rotatable Round Stage / Center Adjustable / Division 1° / Vernier division 6′ |
| C-mount | 0.5× (focus adjustable) |

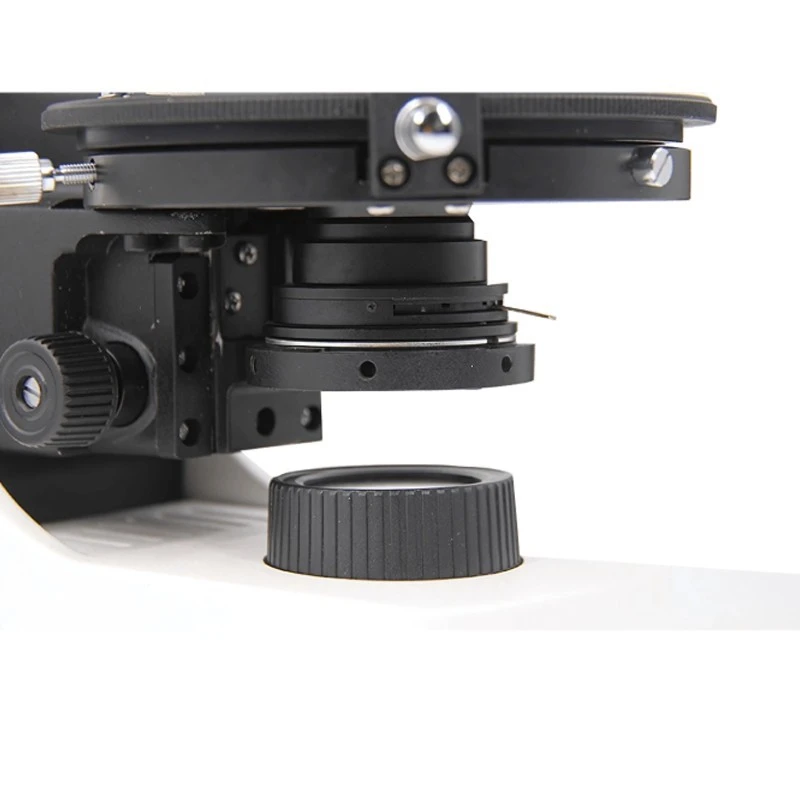

| Polarizing Unit | Under the condenser / With Scale Rotatable 360° / Can Be Locked / Can be moved out of the optical path |
| Bertrand Lens | Can be moved out of the optical path |
| Optical Compensator | 1/4λ Slip (I–IV Class) Quartz Wedge |
| Analyzing Unit | 0–90° / can be moved out of the optical path for single polarizing observation |
Key Features
- Large diameter rotatable stage
- Polarized and transmitted light modes
- High-transmission strain-free optics
- Detachable mechanical stage clips
- Built-in focus stop mechanism
- Integrated LED illumination
- Easy-to-replace halogen bulb
- Bertrand lens for advanced analysis
Product Description
Polarizing Microscope LPM-A21 features a magnification range of 40x to 400x for detailed polarized light observations. It includes a Seidentopf trinocular head with a 30° incline and full rotation for comfortable viewing. The 360° rotatable round stage with vernier division ensures precise specimen positioning. A center-adjustable nosepiece and rotating platform enhance operational accuracy. Perfect for analyzing minerals, polymers, crystals, and particulates in laboratory environments.
Applications:
Our Polarizing Microscope LPM-A21 is designed for the analysis of anisotropic materials, including minerals, polymers, and crystals. It provides clear, high-resolution images for research in material science, geology, and forensic studies.
