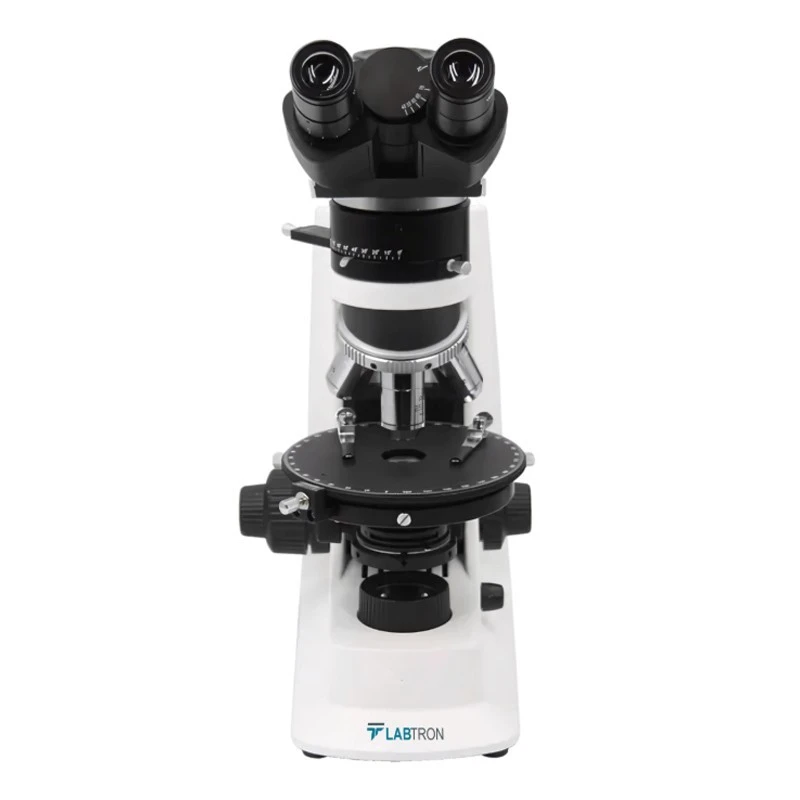

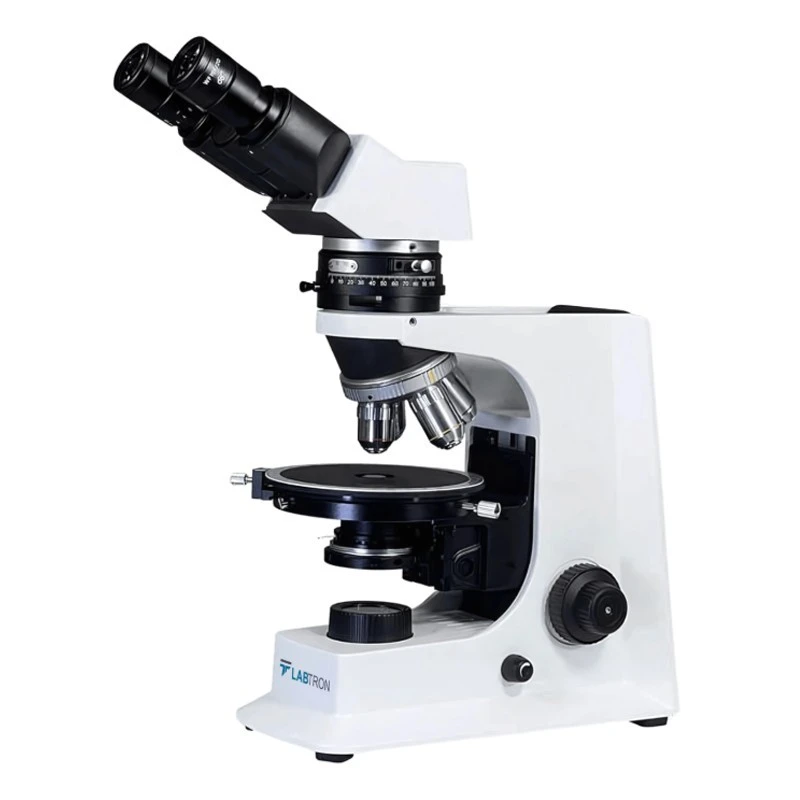

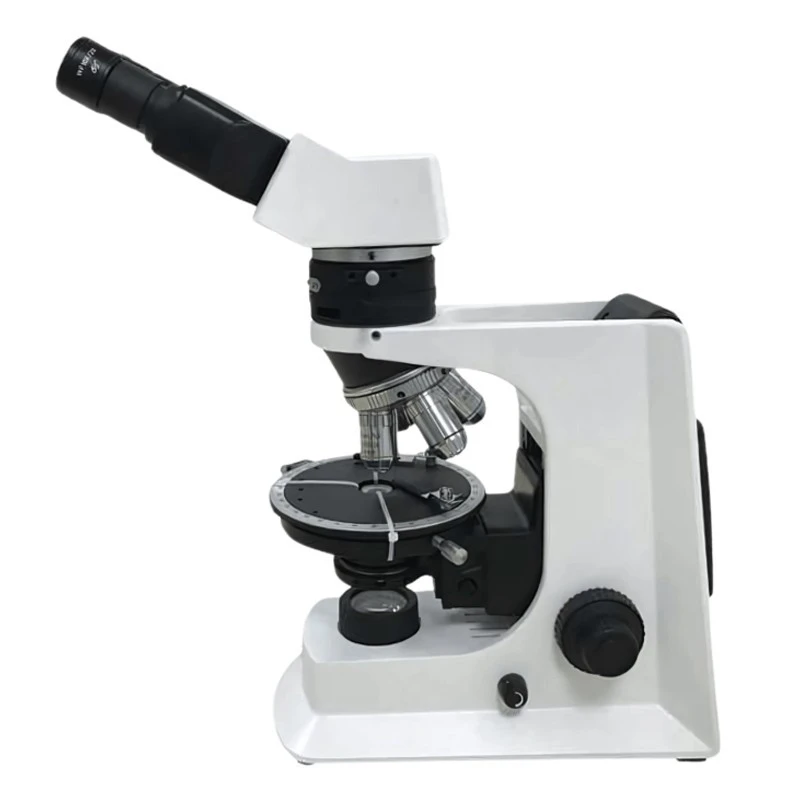

Labtron LPM-A20 Polarizing Microscope
Specifications
| Country of Origin | UK |
|---|---|
| Brand | Labtron |
| Net Weight | 7.5 kg |
| Dimensions | 570 × 275 × 450 mm |
| Model | LPM-A20 |
| Optical System | Color Corrected Infinite Optical System |
| Gross Weight | 8.6 kg |
| Type of Product | Microscope |
| Filter | Blue (Built-in) / Optional — Amber / Green / Neutral |
| Condenser | Abbe N.A. 1.25 Strain-free condenser |
| Illumination | 6V/30W Halogen Lamp |
| Magnification | 40x to 400x |
| Objectives | 4x / 10x / 20x (S) / 40x (S) |
| Focusing | Coaxial Coarse & Fine Focusing knobs / Travel Range — 26mm / Scale — 2µm |
| Eyepiece | WF 10×/18mm (Reticule 0.1mm) |

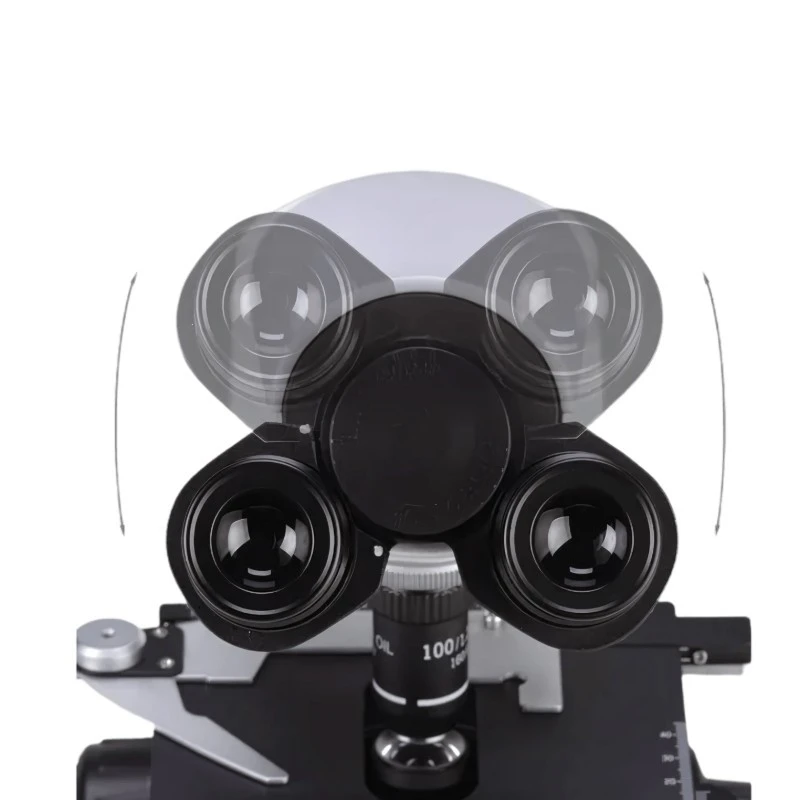

| Viewing Head | Seidentopf Binocular Head / Inclined 30° / Rotatable 360° / Interpupillary Distance — 48-75mm |
| Nosepiece | Quintuple click stop revolving mechanism with multiple ball bearing |
| Stage | 360° Rotatable Round Stage / Center Adjustable / Division 1° / Vernier division 6′ |

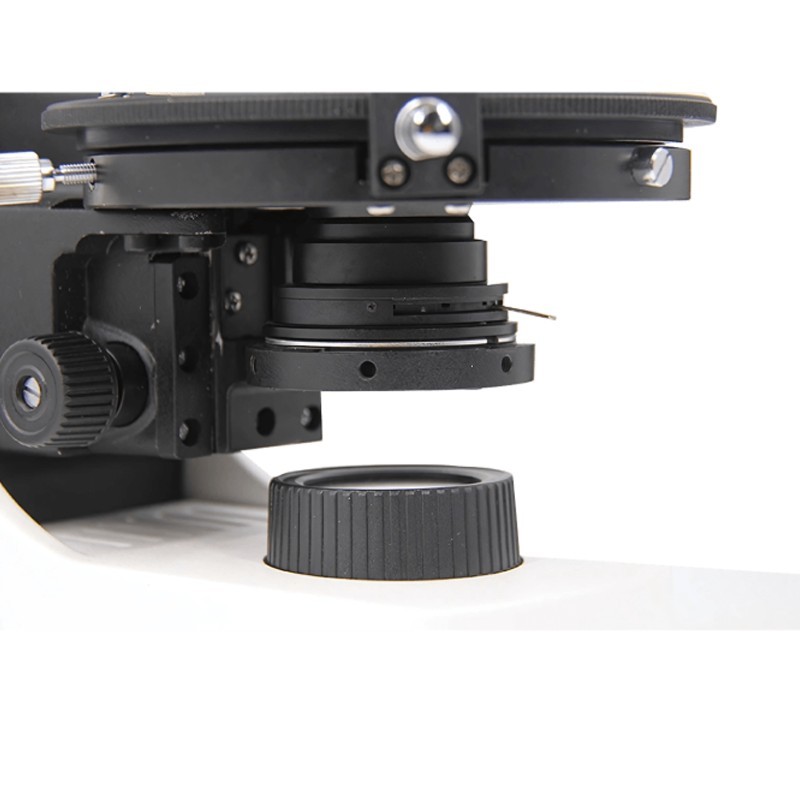

| Polarizing Unit | Under the condenser / With Scale Rotatable 360° / Can Be Locked / Can be moved out of the optical path |
| Bertrand Lens | Can be moved out of the optical path |
| Optical Compensator | 1/4λ Slip (I-IV Class) Quartz Wedge |
| Analyzing Unit | 0-90° / can be moved out of the optical path for single polarizing observation |
Key Features
- Coaxial focusing with precise 2µm increments
- 360° rotatable stage for versatile viewing
- Built-in filters for superior contrast
- Anti-reflective coatings for clearer images
- Integrated polarizing unit for effective light control
- Robust metal housing for durability
- Vibration-dampening design for stability
Product Description
Polarizing Microscope LPM-A20 comes with a Seidentopf binocular head, featuring 48–75mm interpupillary adjustment for customized comfort. Its quintuple revolving nosepiece enables seamless switching between strain-free objectives, ensuring enhanced accuracy. A high-precision Abbe condenser (N.A. 1.25) provides uniform illumination and optimal contrast control. The 5V/5W LED lamp delivers consistent brightness for detailed microscopic analysis. Ideal for geological studies, polymer characterization, and optical crystallography applications.
Applications:
Our Polarizing Microscope LPM-A20 is ideal for geology, mineralogy, and metallurgy applications, offering precise optical analysis of rock and mineral structures. It is also widely used in university teaching laboratories for research-based education.
