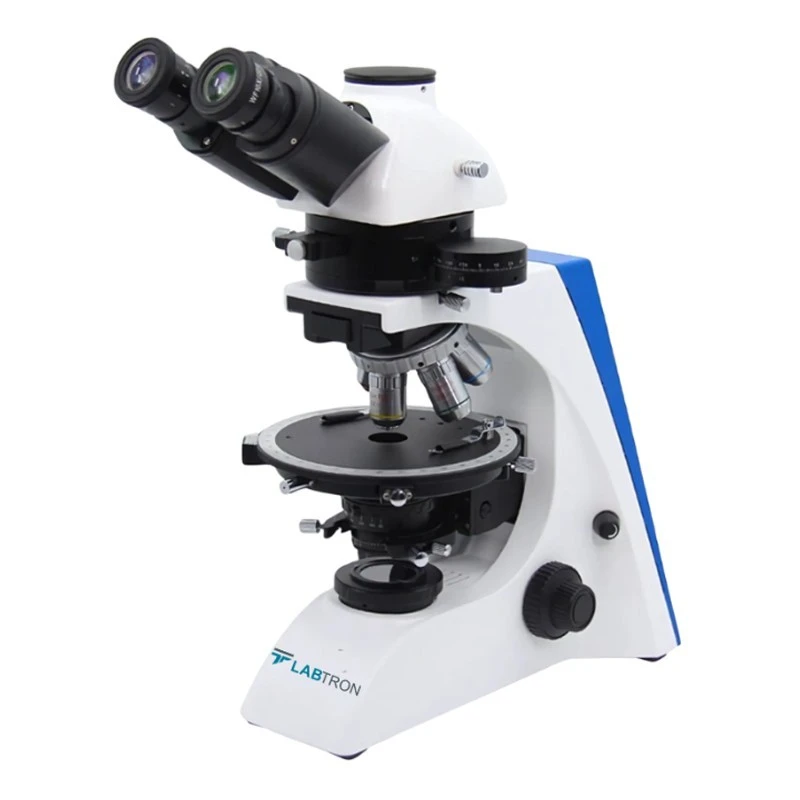

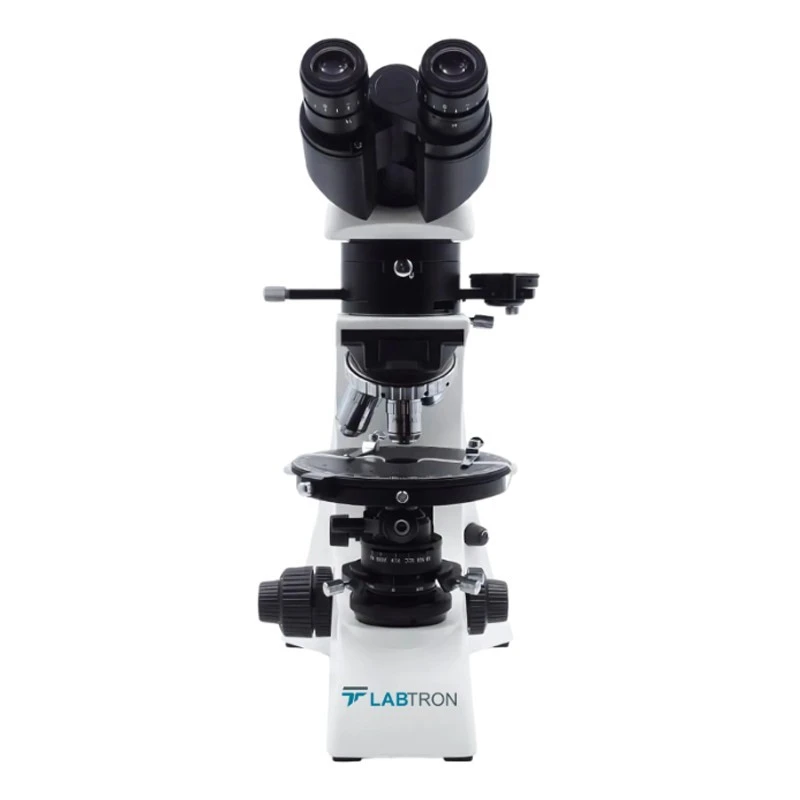

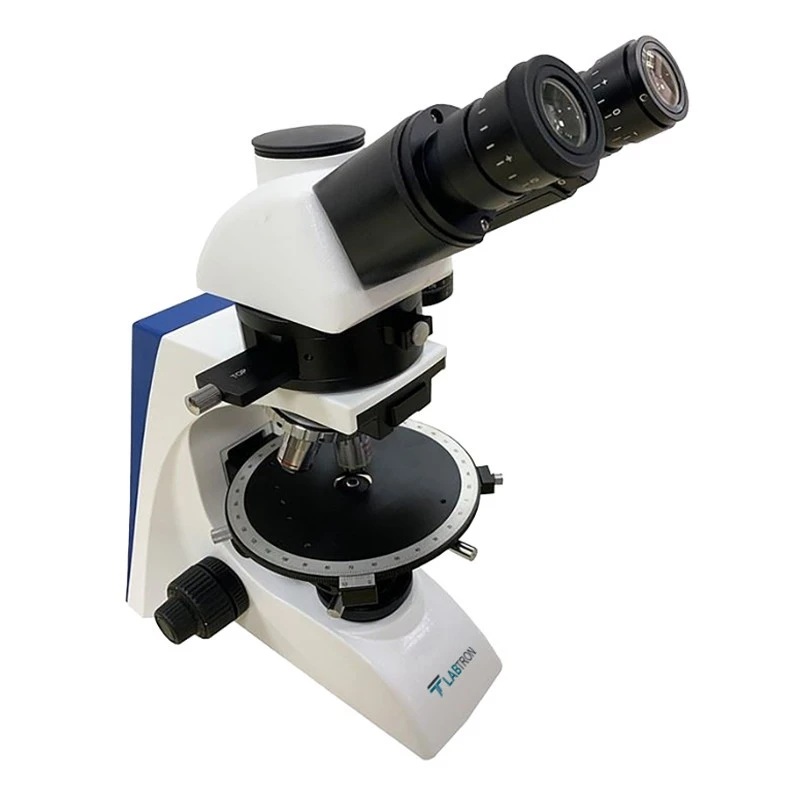

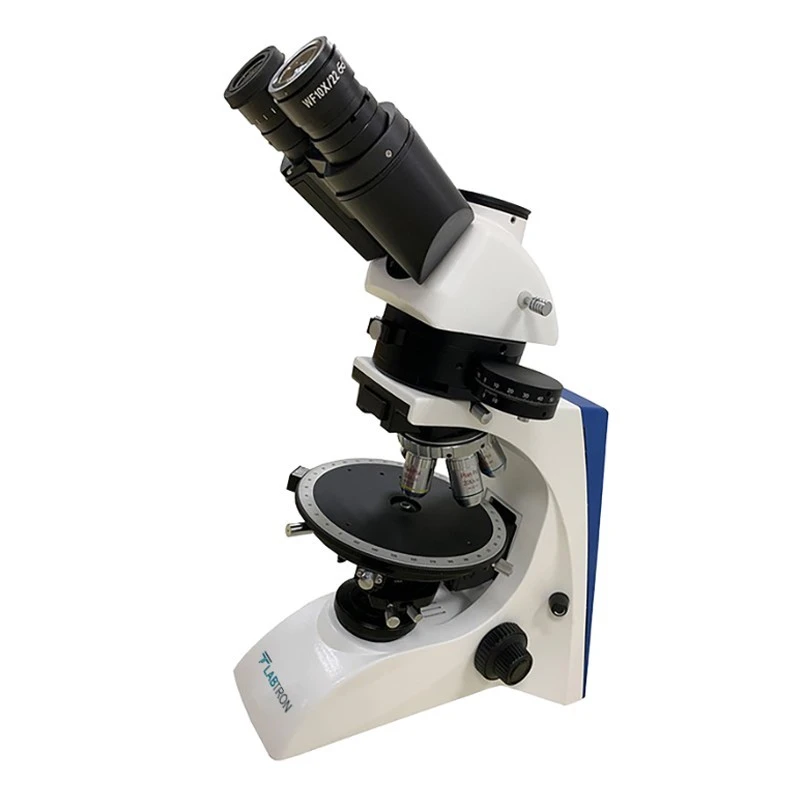

Labtron LPM-A12 Polarizing Microscope
Specifications
| Country of Origin | UK |
|---|---|
| Brand | Labtron |
| Net Weight | 10 kg |
| Model | LPM-A12 |
| Gross Weight | 12.5 kg |
| Type of Product | Microscope |
| Eyepiece | WF10x/22 mm (adjustable) / WF10x/22 mm (adjustable / reticule 0.1 mm) |
| Nosepiece | Quintuple (centre adjustable) |
| Packaging Dimension | 520 mm × 470 mm × 285 mm |
| Light Distribution | 100 — 0 (eyepiece) / 80 — 20 (camera port) |
| Slip | λ slip (First Class Red) / λ/4 slip / Quartz wedge (1 to 4) |
| Non-Stress Infinity Plan Objective (Transmitting) | PLAN 4x/0.10 | W.D. equal to 12.1 mm / PLAN 10x/0.25 | W.D. equal to 4.64 mm / PLAN 40x/0.66 (s) | W.D. equal to 0.65 mm / PLAN 60x/0.80 (s) | W.D. equal to 0.33 mm |
| Professional Polarizing Seidentopf Trinocular Head | Inclined 30° / Rotatable 360° / interpupillary distance — 48 mm to 76 mm |
| Pol Media Analyzer | Rotatable 360° / module type / can be locked |
| Revolving Round Stage | Rotatable 360° / centre adjustable / can be locked / Division 1° / vernier division 6′ / 174 mm diameter |
| Swing-Out Condenser | N.A. 0.9/0.13 / polarizing unit (with scale / rotatable 360° / can be locked) |
| Coaxial Coarse and Fine Focusing Unit | Coarse stroke 25 mm / Fine stroke per rotation — 0.2 mm / fine division 2 μm |
| Transmitting Illumination | 12V 30W halogen lamp (Universal voltage — 100V to 240V) / DC input |
Key Features
- Adjustable built-in Bertrand lens
- Strain-free objectives
- Ergonomic design
- Coarse and fine focus adjustment
- Durable construction
Product Description
Polarizing Microscope LPM-A12 features a revolving round stage with 360° rotation, allowing smooth and precise movement. It includes a stable cross in the eyepiece, ensuring consistent observation during adjustments. Its collision-free mechanical stage enhances safety and usability in laboratory settings. The swing-out condenser offers excellent clarity for high-power objectives. Our microscope provides reliable performance for polarizing microscopy needs.
Applications:
Polarizing Microscope LPM-A12 is used for researching double refraction samples or for analyzing birefringent materials. It is widely used in geology, mineralogy, the chemical industry, medicine, pharmaceuticals, and criminal investigation fields.
Optional Accessories:
- Non-stress Plan 20x/0.40(S) W.D.=2.41 mm × 1 Piece
- Non-stress Plan 100x/1.25 Oil × 1 Piece
- Attached Polarizing Mechanical Stage × 1 Piece
- Filters (Blue / Amber / Green / Neutral) × 1 Piece
- Digital Camera × 1 Piece
