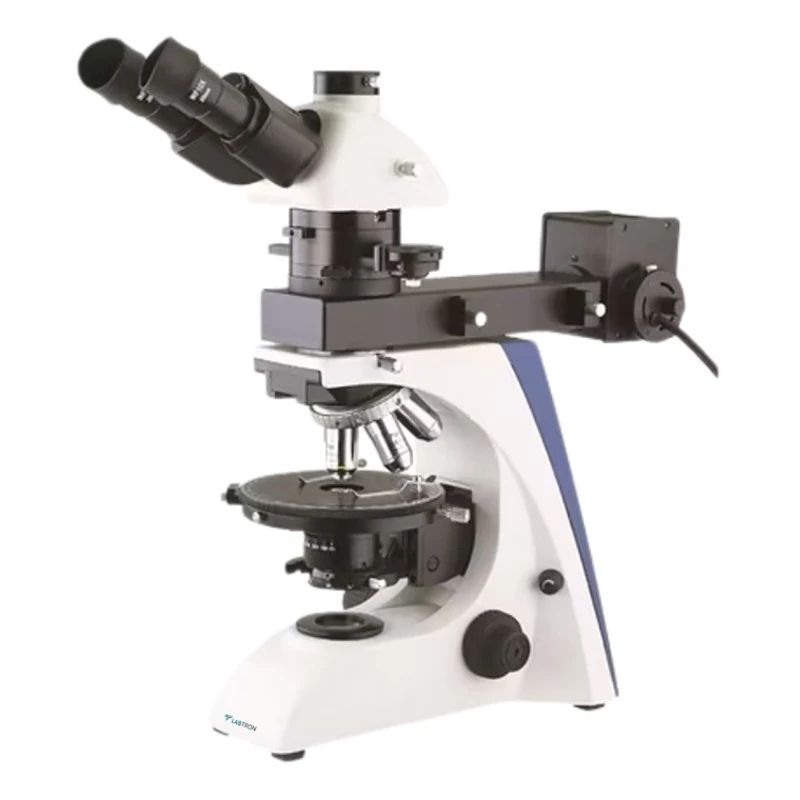

Labtron LPM-A11 Polarizing Microscope
Specifications
| Country of Origin | UK |
|---|---|
| Brand | Labtron |
| Dimension | 750 × 360 × 450 mm |
| Net Weight | 15 kg |
| Model | LPM-A11 |
| Gross Weight | 18 Kg |
| Type of Product | Microscope |
| Condenser | Swing out type N.A. 0.9/0.13 polarizing unit (with scale / rotatable 360° / can be locked) |
| Illumination | 6V/20 W / Halogen lamp (input voltage 100 to 240 V) |
| Focusing | Coarse stroke 25 mm / fine stroke per rotation — 0.2 mm / fine division 2 μm |
| Eyepiece | WF10X/20 mm / WF10X/20 mm (reticle 0.1 mm) |
| Objective | Non-stress infinite plan objective — 4x / 10x / 20x / 40x(s) | Non-stress infinite LWD plan objective — 50x(s) |
| Viewing Head | Polarizing siedentopf trinocular head 30° inclined / eyepiece rotation 360° / interpupillary adjustable distance 48 to 76 mm |
| Nosepiece | Quintuple / center adjustable |
| Stage | Revolving round stage with 360° rotation / center adjustable division 1° / vernier division 6′ |
| Light Distribution | 100 — 1 (100% for eyepiece) |
| Polarizing Unit | Analyzer rotatable with 360° / module type can be locked / Bertrand lens built-in center adjustable |
| Slip | λ / First class red or 1/4 λ |
| Quartz Wedge | (I-IV Class) |
| Reflecting Polarizing Unit | Field diaphragm and aperture diaphragm / polarizer / 12 V/50 W halogen lamp (input voltage 100 to 240 V) |
Key Features
- Quintuple nosepiece with adjustable center
- Polarizing siedentopf type trinocular head
- Inbuilt bertrand lens with adjustable center
- Non-stress infinite plan and LWD plan objective
- Polarizing filters to make use of polarized light
- Swing out condenser
Product Description
Polarizing Microscope LPM-A11 offers high-definition, contrast-enhancing image quality in polarized light. It features a 30º inclined Siedentopf-type trinocular head with adjustable interpupillary distance. The microscope includes a built-in Bertrand lens on rotatable discs with centering controls. Polarizing filters are used to obtain polarized light for investigating the optical properties of various specimens.
Applications:
Used in the field of geology for the study of rocks and minerals, and also finds applications in botany, forensic science, medicine, chemistry, and metallurgy.
Optional Accessories:
- C-Mount 0.57X, Focus Adjustable
- C-Mount 1.0X, Focus Adjustable
- Polarizing Attached Mechanical Stage
- Filter: Amber, Green, Neutral
- Halogen Lamp 6V/30W for Transmitted Illumination
