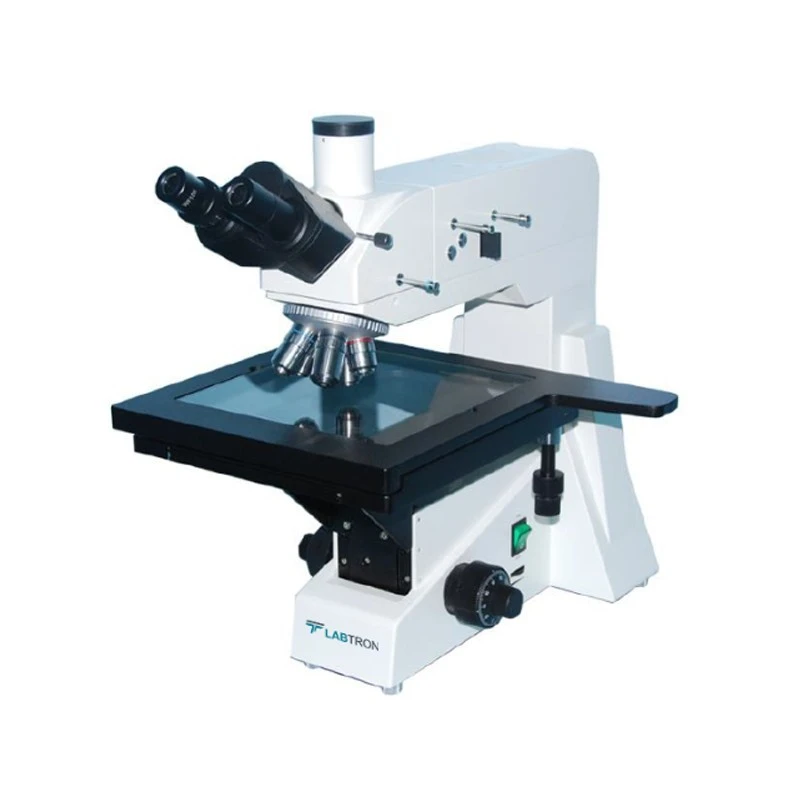

Labtron LMM-C11 Metallurgical Microscope
Specifications
| Country of Origin | UK |
|---|---|
| Brand | Labtron |
| Dimension | 590 × 500 × 430 mm |
| Model | LMM-C11 |
| Optical System | UIS optical system |
| Weight | 21 Kg |
| Type of Product | Microscope |
| Eyepiece | Wide field WF 10X /18 mm |
| Objective | Infinite Plan Achromatic Objectives with long working distance (no cover glass) — PL 5X/0.12 / PL L 10X/0.25 / PL L 20X/0.40 / PL L 40X/0.60 / PL L 80X/0.80 |
| Viewing Head | Trinocular / Inclination of 30° / (Analyzer with field diaphragm to switch) |
| Nosepiece | Quintuple (Frontward ball bearing inner locating) |
| Stage | Three layer mechanical / Size — 250 mm × 230 mm / moving range — 154 mm × 154 mm |
| Focus System | Stage adjustable / Coaxial coarse/fine focus system / with tensional adjustable and up stop / minimum division of fine focusing — 0.7 μm |
| Vertical Illumination Unit | 6V 20 W halogen lamp / brightness control / Vertical illumination with field diaphragm / aperture diaphragm and polarizer / (Y /B /G) filter and frosted filter |
Key Features
- Adopts plan achromatic objective with long working distance
- Wide-field eyepieces
- Quintuple nosepiece
- Large move range triple layered mechanical stage
- Green, blue, yellow filter
- Reflected vertical illumination
Product Description
Metallurgical Microscope LMM-C11 is specifically designed for research purposes. It features superior quality plan achromatic objectives with long working distance, triple-layer mechanical stage, trinocular head, blue, yellow, and green filters, and a quintuple nosepiece, making it highly efficient and reliable. It has wide applications in research work in metallography, mineralogy, electronics, and related fields.
Applications:
Metallurgical Microscope is used to inspect semiconductor chips, integrated circuits, and the structures of metals and alloys.
Optional Accessories:
- Dividing 10X (µ18mm), 0.1mm/Div
- Plan Achromatic Objective with Long Working Distance (no cover glass) PL L 50X/0.70
- Plan Achromatic Objective with Long Working Distance (no cover glass) PL L 100X/0.85 (Spring)
- CCD Adapter 0.5X
- CCD Adapter 1X
- CCD Adapter 0.5X with Dividing 0.1mm/Div
- 5MP HD1 1080P HDMI Microscope Camera
- TRetina6 6MP Camera, USB3.0
