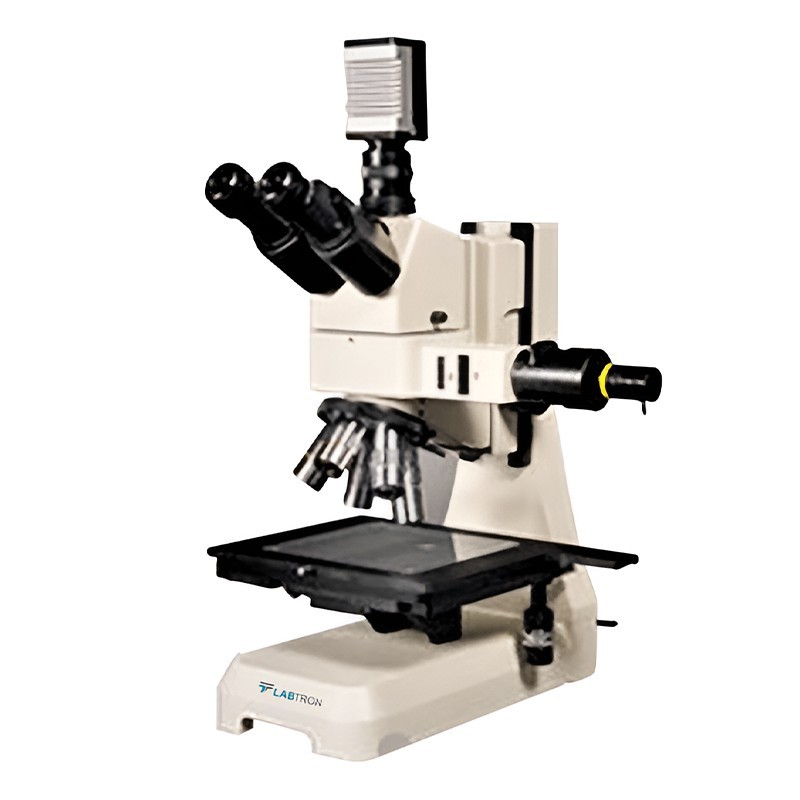

Labtron LMM-C10 Metallurgical Microscope
Specifications
| Country of Origin | UK |
|---|---|
| Brand | Labtron |
| Dimension | 540×580×530 mm |
| Model | LMM-C10 |
| Optical System | Infinity Optical System F equal to 200 mm |
| Weight | 39.1 kg |
| Optional | Material Plus Software |
| Type of Product | Microscope |
| Filter | Green / Blue / Neutral |
| Illumination | Reflected halogen 12V 50W / Adjustable / with aperture and field iris diaphragm |
| Focusing | Coaxial coarse and fine with rack and pinion / coarse range 40 mm / fine scale value 0.002 mm |
| Eyepiece | WF10X/25 mm |
| Viewing Head | Seidentopf trinocular head / inclined at 30° / Interpupillary 55–75 mm |
| Nosepiece | Quintuple / objective screw M26×0.706 |
| Polarizing | Analyzer rotatable 360° / polarizer and analyzer can be moved out/in |
| Stage | Double layers stage 230×280 mm / moving range — 150×150 mm |
Key Features
- Infinity Optical system
- Adopts M Plan APO HL objective (visible)
- M Plan APO HL objective (NIR and NUV) is optional
- Long working distance objective
- Quintuple nosepiece
- Green, blue, neutral filter
- Movable polarizer and analyser
- Positive and Negative imaging is customisable
- Options like automatic focusing, motorised stage and auto nosepiece are available
- Software can also be provided
Product Description
Metallurgical Microscope LMM-C10 is specifically designed for industrial purposes. It features superior quality Infinity M Plan APO HL objectives (visible) with long working distance, double-layer stage, trinocular head, rotatable analyzer, blue and green filters, quintuple nosepiece, and more, making it highly efficient and reliable. It has wide applications in the metal industry, mineral industry, and electrical industry.
Applications:
It is used to inspect semiconductor chips, integrated circuits, and the structures of metals and alloys.
Objective:M Plan APO HL Objective 2X/0.055 WD equal to 34.56 mm / Focus Length 95mm / M Plan APO HL Objective 5X/0.14 WD equal to 44.50 mm / Focus Length 95mm / M Plan APO HL Objective 10X/0.28 WD equal to 34.00 mm / Focus Length 95mm / M Plan APO HL Objective 20X/0.29 WD equal to 31.00 mm / Focus Length 95mm / M Plan APO HL Objective 50X/0.42 WD equal to 20.50 mm / Focus Length 95mm
