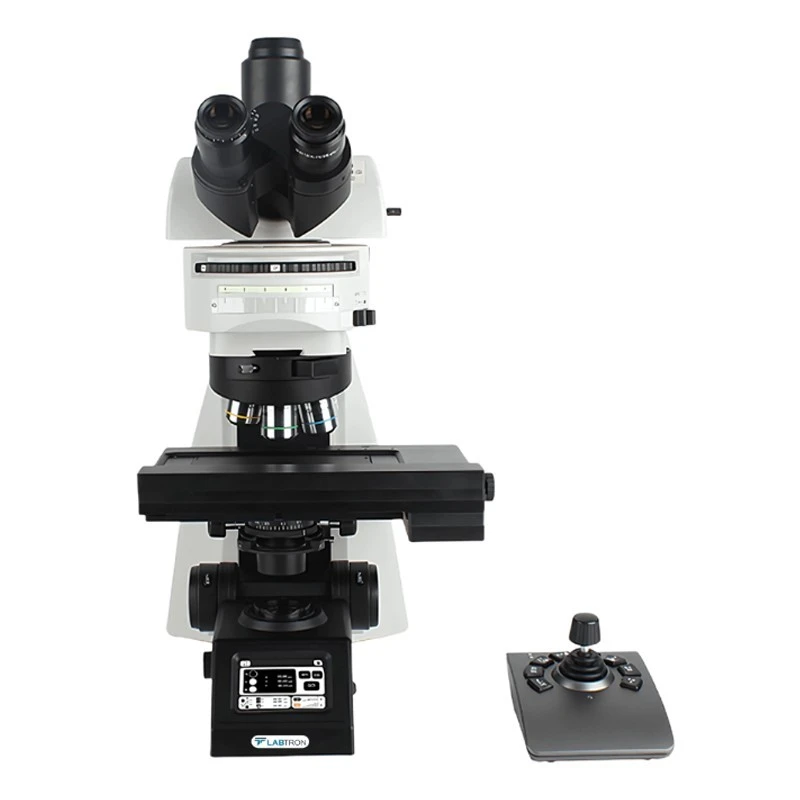

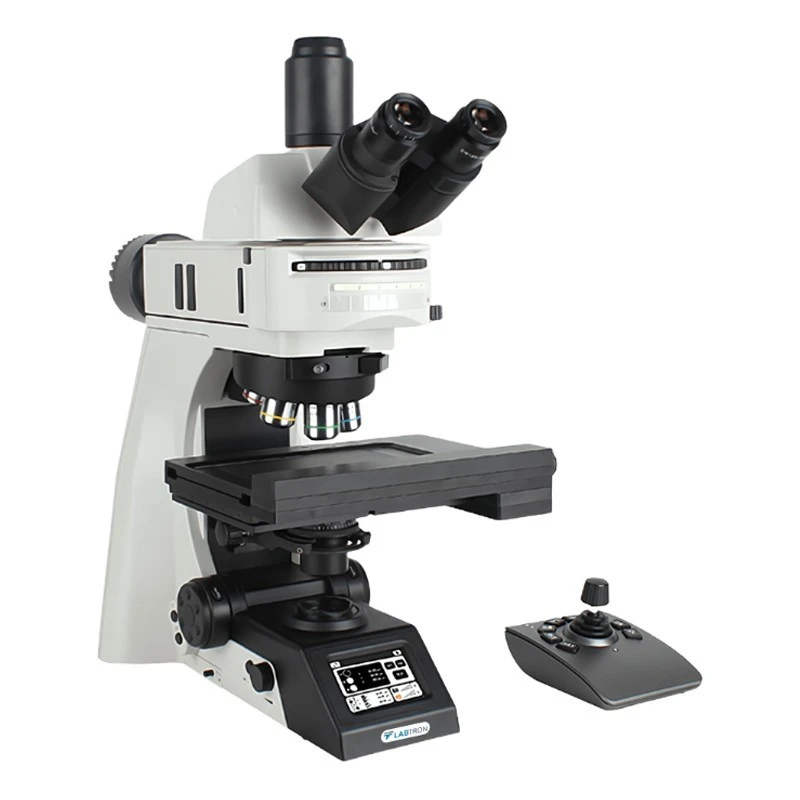

Labtron LMM-B31 Upright Metallurgical Microscope
Specifications
| Country of Origin | UK |
|---|---|
| Brand | Labtron |
| Model | LMM-B31 |
| Optical System | NIS45 Infinite Color Corrected Optical System (Tube length — 180mm) |
| Type of Product | Microscope |
| Condenser | LWD condenser N.A. 0.65 |
| Focusing | Low-hand Motorized auto focusing mechanism / independent operation of left and right-hand wheels / three-speed adjustment / focusing range 30mm / repeat positioning accuracy — 0.1μm / motorized escape and recovery mechanism |
| Eyepiece | Super wide field plan eyepiece SW10X/25mm / diopter adjustable |

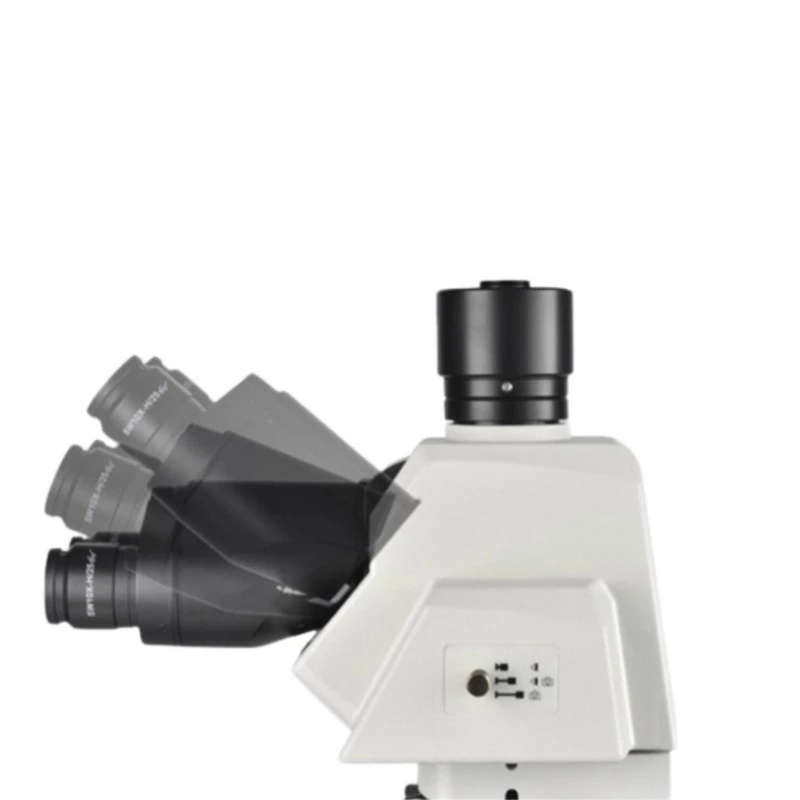

| Viewing Head | Seidentopf Trinocular Head / 30° inclined / interpupillary distance — 47mm–78mm | splitting ratio Eyepiece — Trinocular equal to 100 — 0 or 20 — 80 or 0 — 100 |

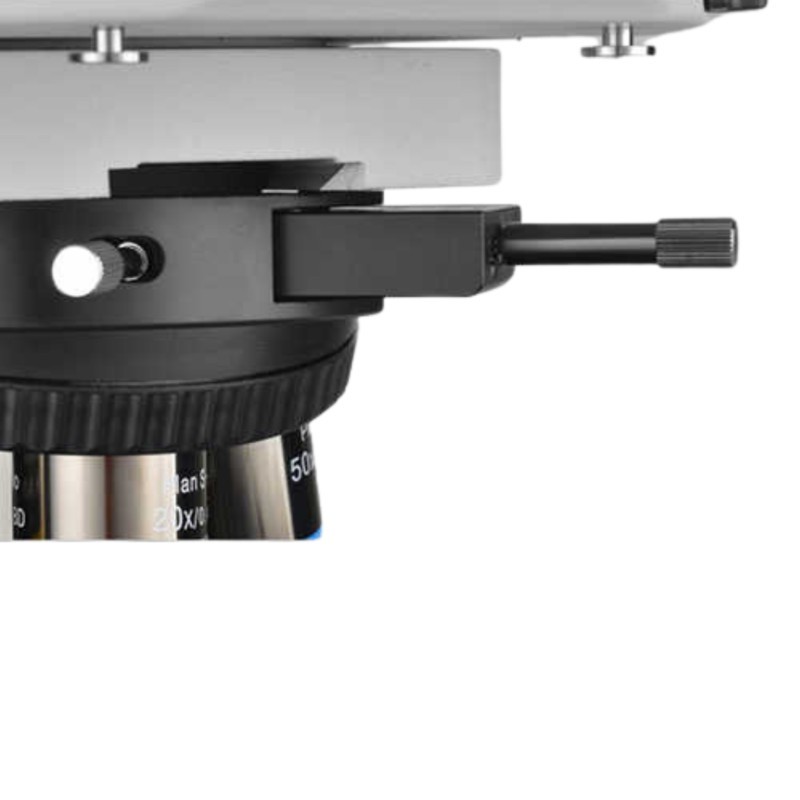

| Nosepiece | Backward Motorized Sextuple Nosepiece (with DIC slot) |
| Magnification Range | 50x to 1000x |
| Stage Movement | X-axis — 125mm / Y-axis — 75mm / accuracy ±1.5μm / speed up to 20mm/s |
| Transmitted Illumination | 12V/100W halogen lamp / Kohler illumination / with ND6/ND25 filter |
| Reflected Illumination | Reflected light 24V/100W halogen lamp / Koehler illumination / with 6-position turret | Built-in ND6 / ND25 filter and color correction filter |
| Max. Specimen Height | 56mm |
| Stage Size | 275 × 239 × 44.5mm |
| Motorized Control | Nosepiece control panel with buttons. Two most used objectives can be pre-set and switched. Auto light intensity adjustment after objective change |
Key Features
- Motorized X-Y stage control
- Auto-focusing mechanism
- Joystick navigation system
- High 50x to 1000x magnification
- Trinocular head with camera port
- Infinite optical system
- Powered objective switching
- Adjustable interpupillary distance
Product Description
Upright Metallurgical Microscope LMM-B31 features a Seidentopf trinocular head, 30° inclined, with a beam-splitting ratio. It includes a motorized sextuple nosepiece, enabling preset objectives for smooth magnification transitions. The reflected illumination system integrates a 12V to 100W halogen lamp with Koehler illumination. Built-in ND6, ND25, and color correction filters enhance contrast for precise metallurgical sample analysis. Perfect for metal manufacturing, research labs, automotive, and aerospace industries for microstructure analysis.
Applications:
Our Upright Metallurgical Microscope LMM-B31 is designed for semiconductor inspections, metallographic research, and surface defect analysis. Its advanced optical system ensures high-contrast imaging for material science and failure analysis applications.
Standard Accessories:
- Dust Cover
- Power Cord
Objective:NIS45 Infinite LWD Plan Semi-APO Objective (BF & DF) — 5X/NA equal to 0.15 / WD equal to 20mm | 10X/NA equal to 0.3 / WD equal to 11mm | 20X/NA equal to 0.45 / WD equal to 3.0mm | 50X/NA equal to 0.8 / WD equal to 1.0mm | 100X/NA equal to 0.9 / WD equal to 1.0mm
