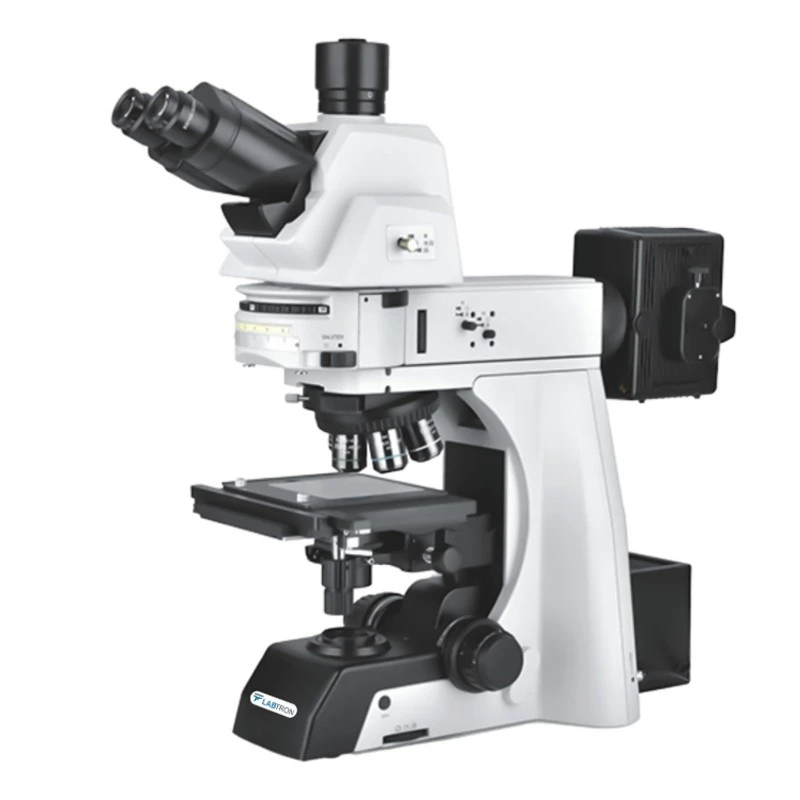

Labtron LMM-B21 Upright Metallurgical Microscope
Specifications
| Country of Origin | UK |
|---|---|
| Brand | Labtron |
| Model | LMM-B21 |
| Optical System | NIS45 Infinite Color Corrected Optical System (Tube length — 180mm) |
| Type of Product | Microscope |
| Focusing | Coaxial coarse and fine focusing / fine division 1μm / focusing range 35mm |
| Eyepiece | Super wide field plan eyepiece SW10X/25mm / diopter adjustable |

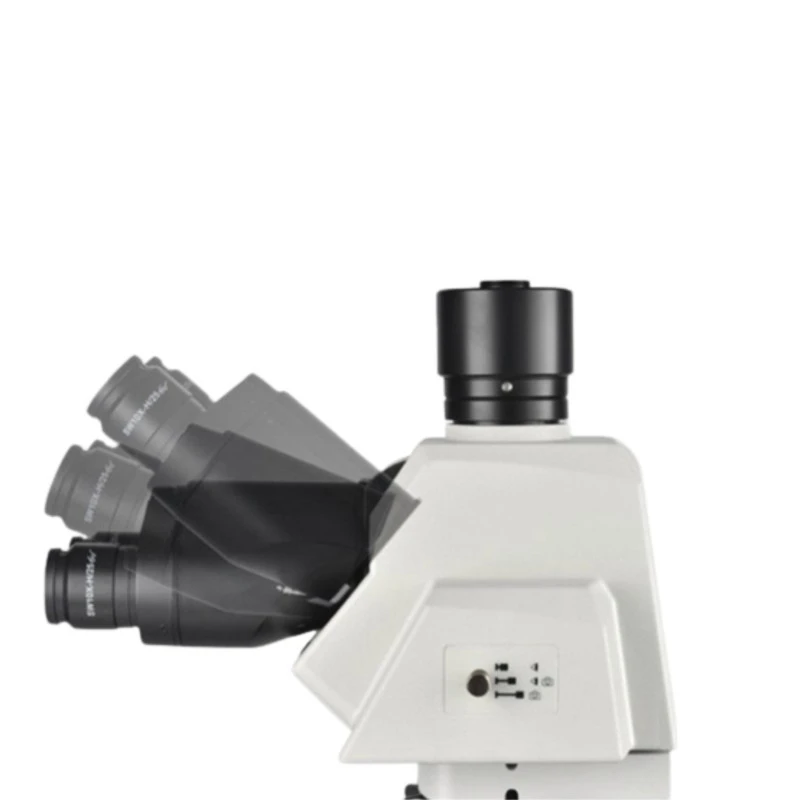

| Viewing Head | Ergo Tilting Trinocular Head / adjustable 0–35° tilt / interpupillary distance 47mm–78mm |

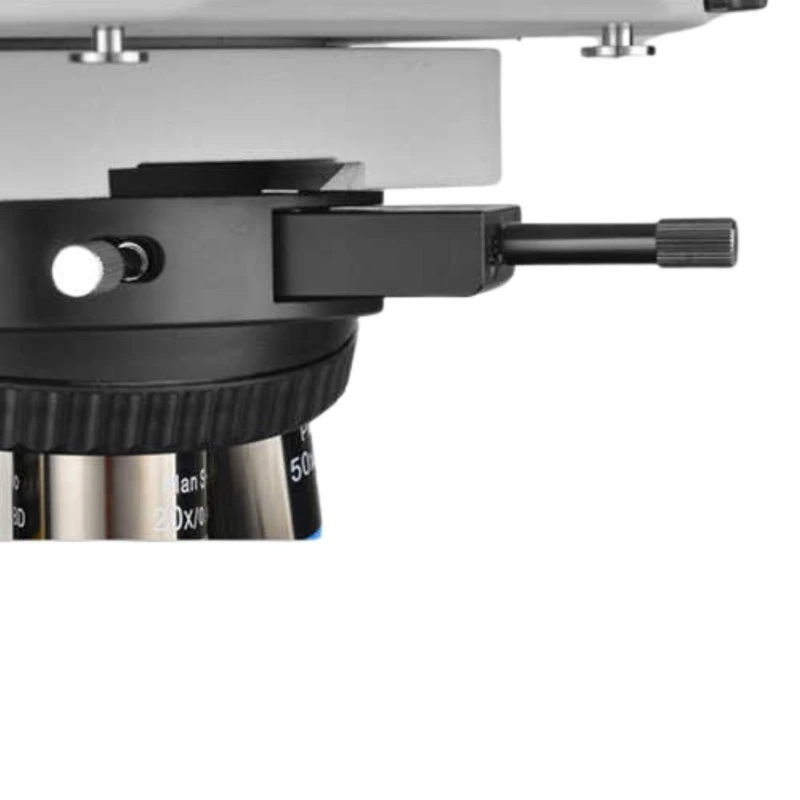

| Nosepiece | Backward Sextuple Nosepiece (with DIC slot) |
| Magnification Range | 50x to 1000x |
| Stage Movement | 105mm × 105mm / right/left handle / Y-axis lock / hard oxidized surface to prevent abrasion |
| Transmitted Illumination | 24V/100W halogen lamp / Kohler illumination / with ND6/ND25 filter |
| Reflected Illumination | Reflected light 24V/100W halogen lamp / Koehler illumination / with 6-position turret | Built-in ND6 / ND25 filter and color correction filter |
| Max. Specimen Height | 56mm |
| Stage Size | 210mm × 170mm |
| ECO Mode | Auto shut-off function |
Key Features
- Adjustable LED brightness control
- Infinity-corrected achromatic optics
- Trinocular port for camera attachment
- Precision field diaphragm adjustment
- Integrated polarizer and analyzer
- Köhler illumination for uniform contrast
- ECO mode for energy efficiency
Product Description
Upright Metallurgical Microscope LMM-B21 has both reflected and transmitted illumination, enabling the study of opaque and transparent materials. It provides a 0° to 35° tiltable trinocular head, ensuring ergonomic viewing during extended use. The stage accommodates specimens up to 56 mm in height, making it suitable for smaller sample analysis. An integrated DIC module enhances contrast, delivering detailed microstructure visualization. Ideal for advanced material research and industrial applications.
Applications:
Upright Metallurgical Microscope LMM-B21 is designed for semiconductor inspections, metallographic research, and surface defect analysis. Its advanced optical system ensures high-contrast imaging for material science and failure analysis applications.
Standard Accessories:
- Dust Cover
- Power Cord
Objective:NIS45 Infinite LWD Plan Semi-APO Objective (BF & DF) — 5X/NA equal to 0.15 / WD equal to 20mm / 10X/NA equal to 0.3 / WD equal to 11mm / 20X/NA equal to 0.45 / WD equal to 3.0mm / 50X/NA equal to 0.8 / WD equal to 1.0mm / 100X/NA equal to 0.9 / WD equal to 1.0mm
