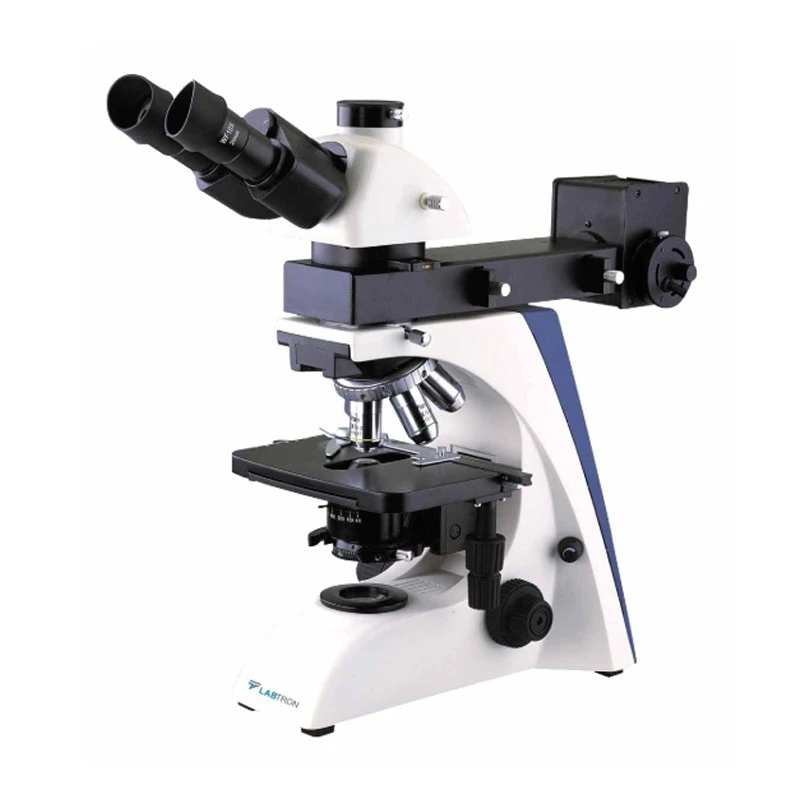

Labtron LMM-B10 Metallurgical Microscope
Specifications
| Country of Origin | UK |
|---|---|
| Brand | Labtron |
| Dimension | 770×370×460 mm |
| Net Weight | 17.5 kg |
| Model | LMM-B10 |
| Gross Weight | 18.5 kg |
| Type of Product | Microscope |
| Filter | Blue |
| Condenser | Abbe N.A. 1.25 (iris diaphragm) |
| Illumination | 12V/50W Halogen lamp (Reflection illumination) / 6V/20W Halogen lamp (Transmission illumination) |
| Focusing | Coarse and fine focusing adjustment — Coarse stroke — 25 mm / Fine stroke per rotation — 0.2 mm / Fine division — 2 µm / Tightness adjustment / upper distance limiter |
| Eyepiece | WF10X/22 mm (reticle 0.1 mm) |
| Objective | Metallurgical LWD infinity plan objectives — LPL5×/0.10 WD equal to 24.23 mm / LPL10×/0.25 WD equal to 18.48 mm / LPL20×/0.40 WD equal to 8.35 mm / LPL50×/0.70 WD equal to 1.95 mm |
| Viewing Head | Siedentopf type trinocular head / inclined at 30° / Rotable 360° / interpupillary distance — 48-76 mm |
| Nosepiece | Quintuple nosepiece |
| Stage | Stage size — 182×140 mm / Travel range — 77×52 mm / Two slide holders |
Key Features
- Siedentopf type trinocular head
- Metallurgical LWD infinity plan objectives
- Quintuple nosepiece
- Eyepiece WF10X/22 mm/ WF10X/22 mm (reticle 0.1 mm)
- Blue filter
- 12V/6V halogen lamp as source of illumination
Product Description
Metallurgical Microscope LMM-B10 is designed to meet the performance demands of the metal and alloy engineering industry. This metallurgical microscope has a Siedentopf type trinocular head inclined at 30°. It features superior coaxial coarse and fine focusing knobs for sample examination. The microscope can also be used as a measuring instrument for evaluating thin metal films, electroplating coatings, and other opaque films.
Applications:
Metallurgical microscopes have applications in the fields of alloy and metal engineering industries, as well as the mineral industry. They are used for the inspection of thin metal plates, electric circuits, opaque metals, and minerals.
Optional Accessories:
- Metallurgical LWD Infinity Plan Objective: 40x, 80x, 100x
- C-Mount: 1X, 0.57X (Focus Adjustable)
- Filter: Green, Amber, Grey
