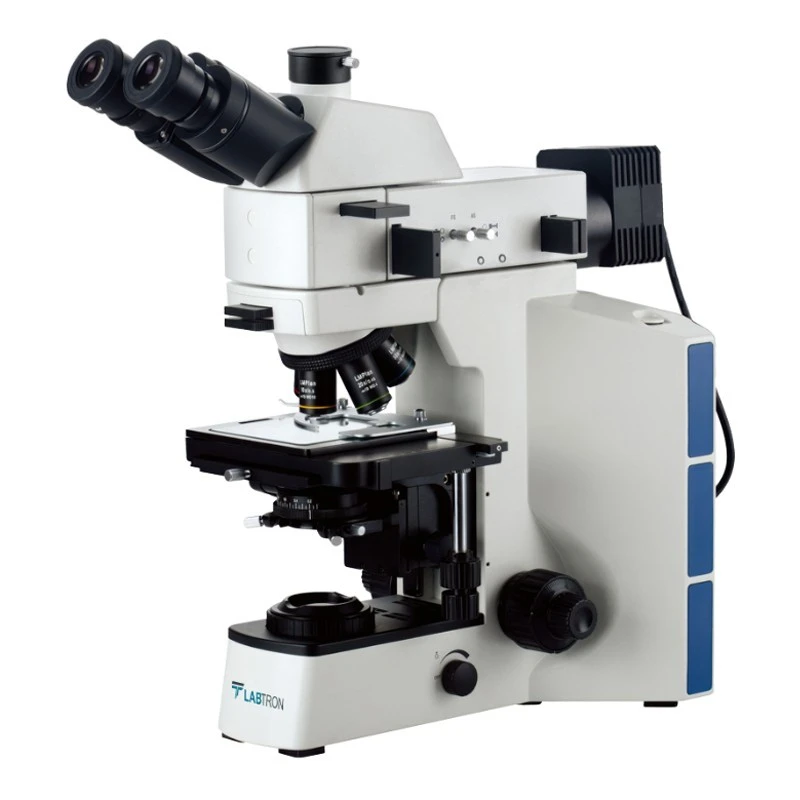

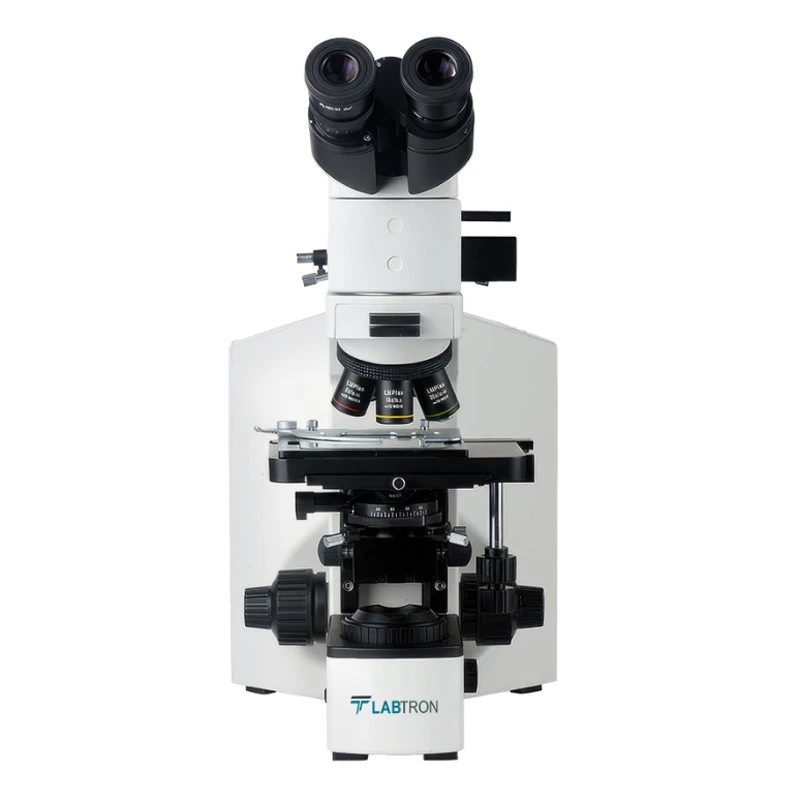

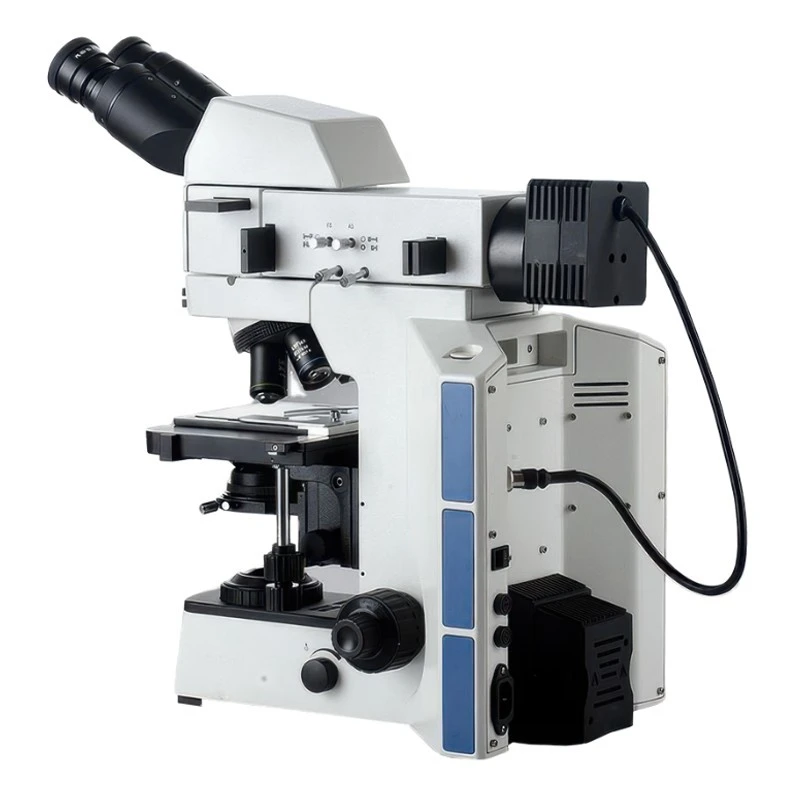

Labtron LMM-A11 Metallurgical Microscope
Specifications
| Country of Origin | UK |
|---|---|
| Brand | Labtron |
| Power Supply | 100V to 240V / AC50/60Hz |
| Dimension | 570×280×370 mm |
| Model | LMM-A11 |
| Optical System | Infinite optical system / tube length 180mm / parfocal 45mm |
| Weight | 13 kg |
| Type of Product | Microscope |
| Condenser | N.A. 0.9 swing-out achromatic condenser |
| Eyepiece | PL10×/22mm wide field plan eyepiece |

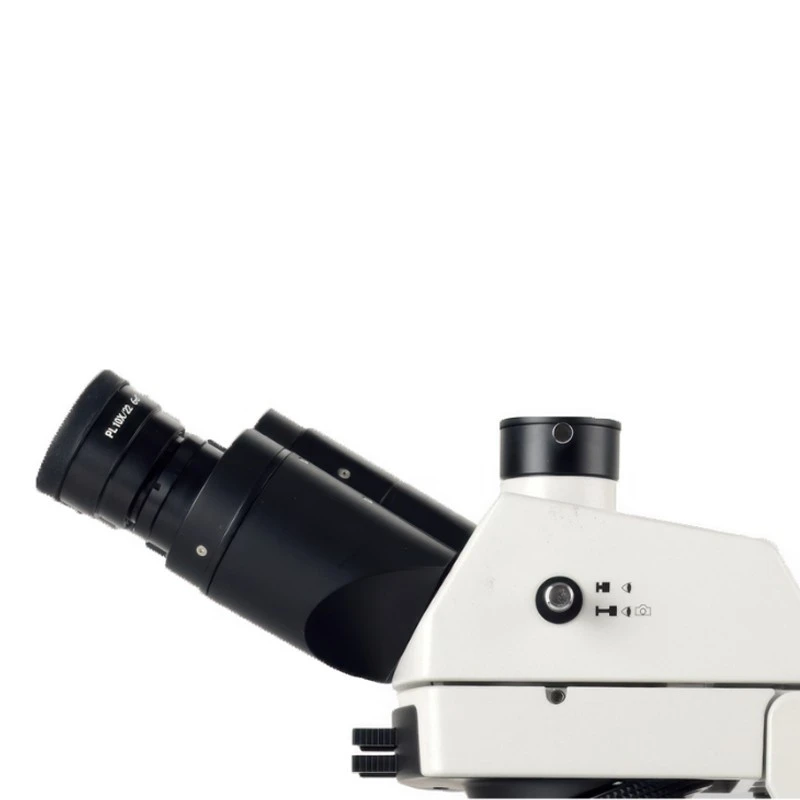

| Viewing Head | Siedentopf trinocular / 30° inclination / 54mm to 75mm interpupillary distance |
| Stage | Double layer mechanical stage / size 175mm×145mm |
| Objective Lenses | 5× / 10× / 20× / 50× / 100× / BF / WD ranging from 2.10mm to 10.80mm |
| Transmitted Illumination | 5W LED / warm color |
| Maximum Sample Height | 28mm (transmitted & reflected frame) |
| Reflected Illumination | 5W LED / warm color / Koehler illuminator |
| Frame and Focusing | Coaxial focus with tension adjustment / moving range — 28mm / precision — 0.002mm. Stage adjustable for 78mm high samples |
Key Features
- Coaxial focusing system with tension adjustment
- Swing-out condenser design
- Adjustable diaphragm control
- Safety up-limit device for sample protection
- Fine focusing precision of 0.002mm
- Wide-range voltage compatibility
- Polarizing attachment included
- High-accuracy micrometer
Product Description
Metallurgical Microscope LMM-A11 includes 5W LED transmitted and reflected illumination with a warm color, Koehler illuminator. It has 5 objectives, providing magnification from 5× to 100× for detailed examination. The Siedentopf trinocular viewing head is inclined at 30° with an interpupillary distance of 54mm to 75mm. The coaxial focusing system ensures smooth, precise adjustments for optimal image clarity. Ideal for metallurgical analysis, it ensures precise observations in laboratory environments.
Applications:
Our Metallurgical Microscope LMM-A11 is ideal for inspecting metals, alloys, and materials. Its versatile magnification and illumination system suit laboratory analysis in metallurgy and materials science.
