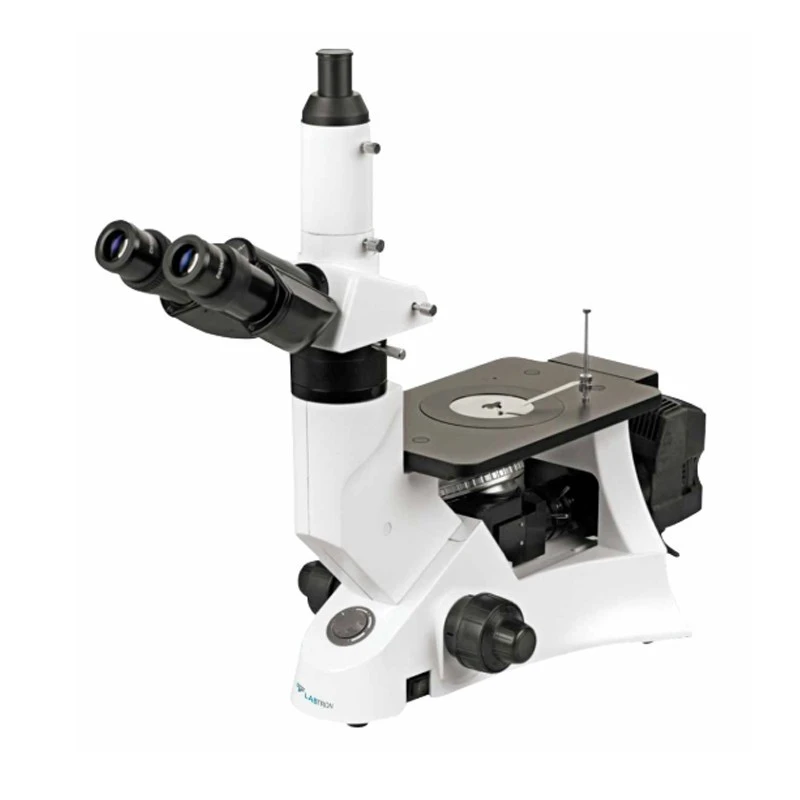

Labtron LIMM-B10 Inverted Metallurgical Microscope
Specifications
| Country of Origin | UK |
|---|---|
| Brand | Labtron |
| Dimension | 460×400×670 mm |
| Net Weight | 13 Kg |
| Model | LIMM-B10 |
| Gross Weight | 15 Kg |
| Type of Product | Microscope |
| Filter | Blue / green / yellow / ground glass |
| Illumination | Halogen lamp 6V/30W |
| Focusing | Coaxial coarse & fine focusing adjustment with Vertical objective movement. Coarse stroke 37.7 mm per rotation / Fine stroke 0.2 mm per rotation |
| Eyepiece | High point / extra wide field eyepiece EW10X/20 mm |
| Objective | Infinite plan achromatic objectives — 4×0.1/∞ — WD17.3 mm / 10×0.25/∞ — WD10 mm / 20×0.4/∞ — WD5.8 mm / 40×0.65/∞ — WD0.52 mm |
| Viewing Head | Trinocular head / inclined at 30º / Interpupillary distance 48-75 mm |
| Nosepiece | Quintuple nosepiece |
| Stage | Plain stage with slide clips |
| Polarizing Outfit | Polarizer & analyzer |
Key Features
- Trinocular head, inclined at 30°
- High point, extra wide field eyepiece EW10X/20 mm
- Vertical objective movement for focusing
- Halogen lamp 6V/30W as illumination source
- Infinity plan achromatic objectives
- Quintuple nosepiece
Product Description
Inverted Metallurgical Microscope LIMM-B10 has a 30° inclined trinocular head. It features superior coaxial coarse and fine focusing adjustment with vertical objective movement. This microscope comes with a plain stage and slide clips. It is designed to observe, identify, and analyze the structures of metals and alloys. It is primarily used to view and study opaque objects.
Applications:
Our Inverted Metallurgical Microscope LIMM-B10 is widely used in the field of alloy and metal engineering industries, as well as the mineral industry. This metallurgical microscope can also be used for the inspection of semiconductor chips and integrated circuits.
Optional Accessories:
- Objective: 5×0.12/∞/- WD15.4 mm
- Objective: 40×0.6/∞/0 WD2.9 mm
- Objective: 50×0.75/∞/0 WD0.32 mm
- Objective: 80×0.9/∞/0 WD0.2 mm
- Objective: 100×0.8/∞/0 WD2.00 mm
- Video Adapter C-mount
- Photo Attachment
