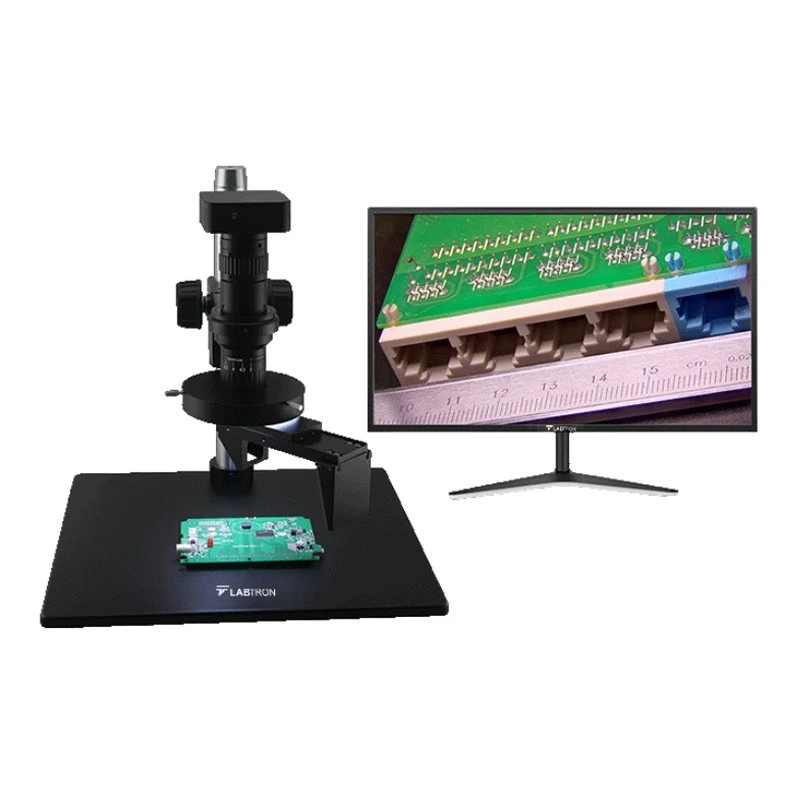

Labtron LDM-F10 3D Digital Microscope
Specifications
| Country of Origin | UK |
|---|---|
| Output | HDMI |
| Brand | Labtron |
| Focus | Coarse focus |
| Frame rate | 60 fps |
| Height | 318 mm |
| Wavelength | 455 – 457.5 nm |
| Operation Mode | Operation with mouse |
| Model | LDM-F10 |
| Type of Product | Microscope |
| Magnification | 2D — 0.23X–1.88X / 3D — 0.09X–0.75X |
| Camera Resolution | 1920 × 1080 |
| Light control | 4 zones control / 0–100% brightness adjustable |
| Working Distance | 105 mm |
| Base Dimension | 330 × 300 mm |
| Pixel Size | 3.75 μm × 3.75 μm |
| Image Sensor | 1/2 inches Sony CMOS |
| Zoom Magnification | 0.6–5.0X |
| Digital Magnification | 4X to 40X |
| Field View | 2D — 30 × 17 mm — 3.7 × 2 mm / 3D — 70 × 45 mm — 9 × 5 mm |
| Lens Mount | Standard C mount |
| C Mount | 0.5X |
| Pixel | 2.0 MP |
| Light Color | White |
| Illuminance | 15000 Lux |
| Dimension (Light Source) | Inner diameter – 40 mm / Outer diameter – 106 mm / Height – 19 mm |
Key Features
- Zoom lens with high resolution
- Options to observe in either 2D or 3D observation modes
- Lens maintains consistent focus around different magnification
- Ring light with four-zone control for LEDs
- Switching from 2D to 3D keeps the working distance constant
- 3D can be rotation 360 degree for all round observation
- Sensor with strong light sensitivity
Product Description
3D Digital Microscope LDM-F10 combines microscopy with digital imaging technology. It captures and displays three-dimensional images of specimens. The zoom lens offers a ratio of 1:8.3. Featuring an ergonomic design with a rigid frame, it ensures comfortable and stable operation. The field of view for 3D observation can extend up to 70 meters. At minimum magnification, the entire image is visible without any black borders.
Applications:
3D digital microscope is used in research, education, and industrial inspections, offering high-resolution imaging, depth perception, and digital analysis for fields such as biology, medicine, material science, and quality control.
