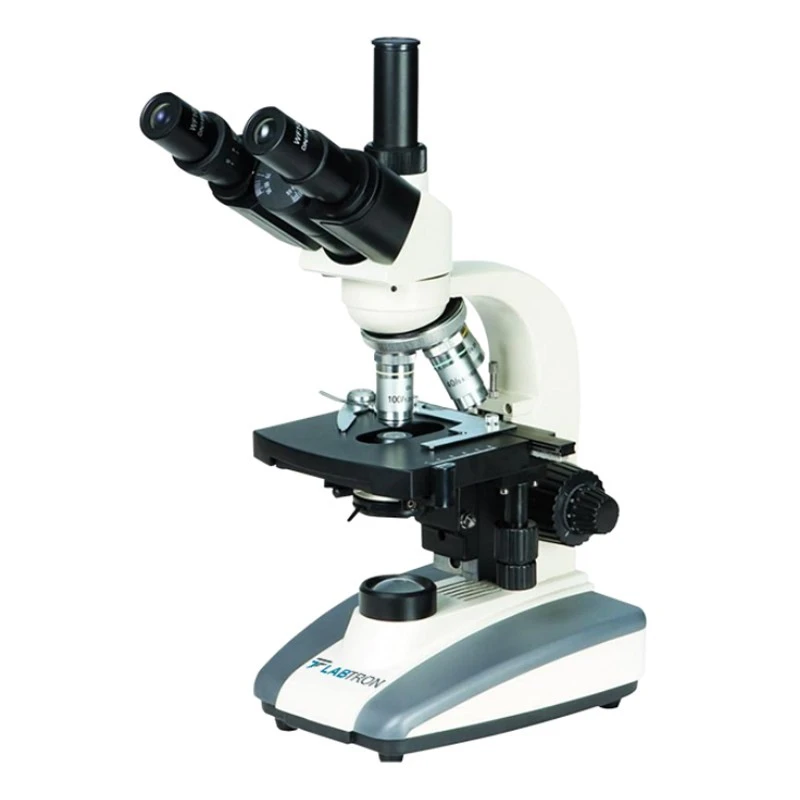

Labtron LBM-F22 Biological Microscope
Specifications
| Country of Origin | UK |
|---|---|
| Brand | Labtron |
| Model | LBM-F22 |
| Optical System | Finite Optical System |
| Gross Weight | 6 kg |
| Type of Product | Microscope |
| Condenser | Abbe N.A.1.25 condenser with iris diaphragm and filter |
| Illumination | Halogen Bulb 6 V/20 W / AC 220 V/110 V |
| Focusing | Coaxial Coarse and Fine Focusing / Scale Value 0.002 mm / Focusing Range — 30 mm |
| Eyepiece | Widefield WF 10X/18 mm |
| Objective | 4 achromatic objectives — 4X / 10X / 40X (Spring) / 100X (Spring / Oil) |
| Viewing Head | Compensation Free trinocular Head / 30° inclined / 360° swiveling / interpupillary 55 to 75 mm |
| Nosepiece | Quadruple revolving nosepiece |
| Magnification Range | 40X to 1000X |
| Stage | Double Layer Mechanical Stage / 135×135 mm |
| Packaging Dimension (W×D×H) | 325×215×460 mm |
| Stage Movement | 70×30 mm |
Key Features
- A finite optical system comprised microscope with 40X to 1000X of magnification range
- 30° inclined, 360° swiveling compensation free trinocular head
- WF10X/18 mm eyepiece and 4 achromatic objectives for better and fine observation
- Quadruple revolving nosepiece, easy power changing rotation
- Abbe N.A.1.25 condenser with iris diaphragm and filter
- Coaxial coarse and fine focusing with Rack and Pinion mechanism
- Halogen lamp as illumination source, long lifespan
- Double layer mechanical stage with moving range of 70×30 mm
- Smooth movement of observing slide
- Ideal microscope to be used for biological specimen observation
Product Description
Biological Microscope LBM-F22 is a finite optical system-based microscope, featuring a 30° inclined, 360° swiveling compensation-free trinocular head. Equipped with WF10X/18 mm eyepiece and 4 achromatic objectives, it offers a magnification range of 40X to 1000X. Designed with a quadruple revolving nosepiece and Abbe N.A.1.25 condenser with iris diaphragm and filter, it includes coaxial coarse and fine focusing with a Rack and Pinion mechanism. Incorporated with a halogen lamp as the illumination source and a double-layer mechanical stage, it offers 70×30 mm stage movement for smooth observation.
Applications:
Biological microscope is used to observe cells, tissues, and other biological specimens across tissue analysis, forensics, cytology, hematology, molecular biology, and more.
Optional Accessories:
- Eyepiece: WF16X, WF20X
- Achromatic Objectives: 20X, 60X (S)
- LED Illumination
