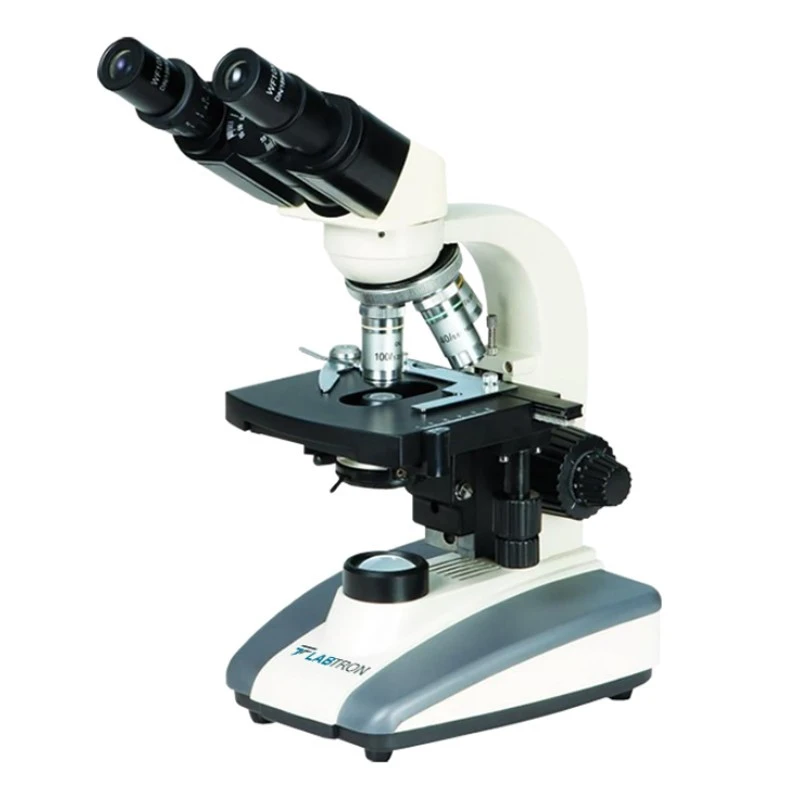

Labtron LBM-F21 Biological Microscope
Specifications
| Country of Origin | UK |
|---|---|
| Brand | Labtron |
| Model | LBM-F21 |
| Optical System | Finite Optical System |
| Gross Weight | 7 kg |
| Type of Product | Microscope |
| Condenser | Abbe N.A.1.25 condenser with iris diaphragm and filter |
| Illumination | Halogen Bulb 6 V/20 W / AC 220 V/110 V |
| Focusing | Coaxial Coarse and Fine Focusing / Scale Value 0.002 mm / Focusing Range — 30 mm |
| Eyepiece | Widefield WF 10X/18 mm |
| Objective | 4 achromatic objectives — 4X / 10X / 40X (Spring) / 100X (Spring / Oil) |
| Viewing Head | Compensation Free binocular Head / 30° inclined / 360° swiveling / interpupillary 55 to 75 mm |
| Nosepiece | Quadruple revolving nosepiece |
| Magnification Range | 40X to 1000X |
| Stage | Double Layer Mechanical Stage / 135×135 mm |
| Packaging Dimension (W×D×H) | 325×215×460 mm |
| Stage Movement | 70×30 mm |
Key Features
- A finite optical system microscope with WF10X/18 mm widefield eyepiece
- 30° inclined, 360° swiveling, compensation free binocular head
- 4 achromatic objectives: 4X, 10X, 40X (Spring), 100X (Spring, Oil)
- Magnification range of 40X to 1000X, high magnification range
- Quadruple revolving nosepiece, easy and systematic interchange of objective lenses
- Coaxial coarse and fine focusing with Rack and Pinion mechanism, 30 mm focusing range
- Abbe N.A.1.25 condenser with iris diaphragm and filter, better observation
- Halogen lamp as illumination source, long life-span
- Double layer mechanical stage, ensures smooth and gentle movement
- High-efficient and stable unit for cells, tissues, and other biological specimen observation
Product Description
Biological Microscope LBM-F21 is a finite optical system-based microscope with a 30° inclined, 360° swiveling, compensation-free binocular head. Equipped with WF10X/18 mm widefield eyepiece and 4 achromatic objectives, it offers a magnification range of 40X to 1000X. With a quadruple revolving nosepiece and coaxial coarse and fine focusing using a Rack and Pinion mechanism, it provides a 30 mm focusing range. Designed with an Abbe N.A.1.25 condenser with iris diaphragm and filter, the microscope includes halogen lamp illumination for a double-layer mechanical stage.
Applications:
Biological microscopes are used to study organisms, cells, pond life samples, and other microscopic life forms across cell research, forensic medicine, colleges, universities, and state-of-the-art high-resolution molecular studies.
Optional Accessories:
- Eyepiece: WF16X, WF20X
- Achromatic Objectives: 20X, 60X (S)
- LED Illumination
