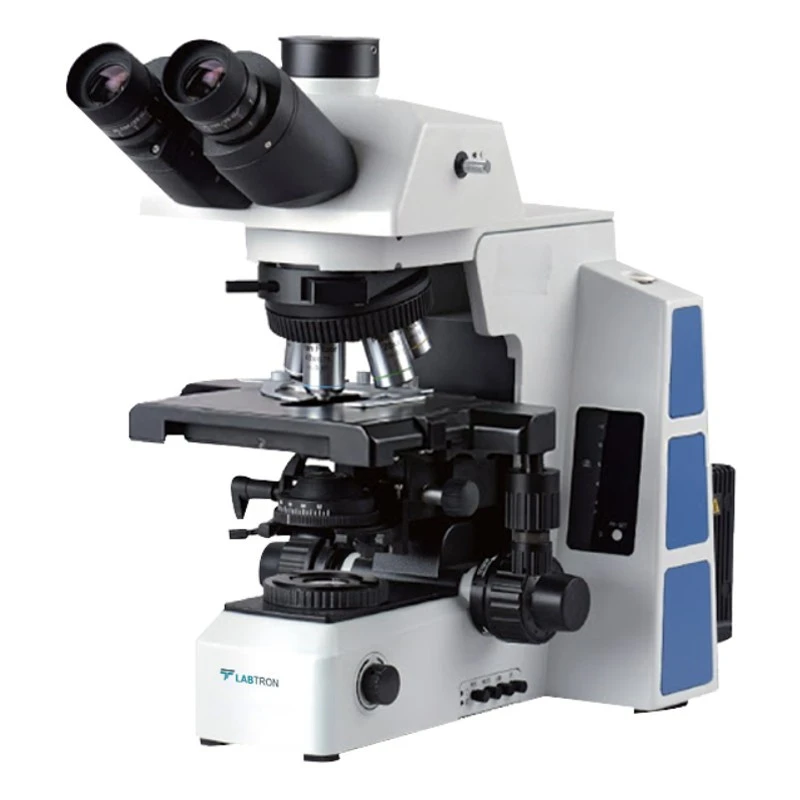

Labtron LBM-E20 Biological Microscope
Specifications
| Country of Origin | UK |
|---|---|
| Brand | Labtron |
| Power Supply | 110 V to 240 V / 50 Hz/60 Hz |
| Model | LBM-E20 |
| Optical System | Color corrected infinity optical system |
| Type of Product | Microscope |
| Condenser | N.A.0.9 swing-out type achromatic condenser / with iris diaphragm and aperture scale / provides sufficient and uniform light for full-field observation in different magnifications |
| Illumination | 12 V / 100 W / Halogen lamp / center adjusted |
| Focusing | Coaxial Focus System With Upper Limited And Tension Adjustment / Coarse Adjustment Range — 25 mm / Fine Adjustment Precision — 0.001 mm |
| Eyepiece | High-Eye point Plan Eyepiece PL10X/25 mm / Diopter Adjustable |
| Objective | Infinity Plan Semi-Apochromatic Fluorescent Objectives — 4X/0.13 (W.D. equal to 18.5 mm) / 10X/0.3 (W.D. equal to 10.6 mm) / 20X/0.5 (W.D. equal to 2.33 mm) / 40X/0.75 (W.D. equal to 0.6 mm) / 100X/1.3 (W.D. equal to 0.21 mm) |
| Viewing Head | Gemel trinocular head / 30° inclined / Inverted Image / Interpupillary Distance 50 to 76 mm / Three Split Ratio 0 — 100 / 20 — 80 / 100 — 0 |
| Nosepiece | Bright Field Sextuple Nosepiece / With DIC Slot |
| Working Stage | Double Layer Mechanical Stage / 187×166 mm / Moving Range 80×55 mm / Precision 0.1 mm / Double Direction Transmission / Left and Right Position Handle For Option. Tension of the Torque Adjustable. |
Key Features
- Adopting color corrected infinity optical system
- Bright Field Sextuple Nosepiece, With DIC Slot for 10X, 20X, 40X objectives
- N.A.0.9 swing-out type achromatic condenser
- High-Eye point Plan Eyepiece PL10X/25 mm, Diopter Adjustable
- Infinity Plan Semi-Apochromatic Fluorescent Objectives
- Coaxial coarse and fine focusing mechanism
- Low position working stage with adjusting hand wheel
Product Description
Biological Microscope LBM-E20 is an advanced research-grade biological microscope with an infinite corrected optical system. It offers five-field magnification power ranges from 40X to 1000X. Designed with a gemel trinocular head with wide field eyepiece and diopter adjustment, Infinity Plan Semi-Apochromatic Fluorescent Objectives, DIC slide, a double layer mechanical stage, coaxial coarse and fine focusing system, N.A. 0.9 swing-out type achromatic condenser, and illumination with a 12V, 100W halogen lamp. Incorporated with an 8.03 MP USB3.0 digital camera and advanced software to capture images and videos. The camera is compatible with Windows XP/Vista/7/8/10, Mac OS X, and Linux operating systems.
Applications:
This research-grade biological microscope finds application in scientific research and testing across research units and laboratories of medicine, pharmacy, life sciences, and other fields.
Standard Accessories:
8.03 MP Camera:
- Sensor: Sony IMX334 (Colour)
- Sensor size: 1/1.8 inches (7.68×4.32)
- Resolution: 3840×2160 (8.03 MP)
- Pixel size: 2.0×2.0 µm
- G Sensitivity: 505 mv with 1/30 s
- Dark Signal: 0.15 mv with 1/30 s
- Frames rate: 35@3840×2160 fps, 65@1920×1080 fps
- Binning: 1×1, 2×2
- Exposure: 0.02 ms to 15 s
- Spectral Range: 380–650 nm (with IR-filter)
- White Balance: ROI White Balance / Manual Temp-Tint Adjustment
- Color Rendering Technique: Ultra Fine Color Engine
- Capture/Control API: Native C/C++, C#, Directshow, Twain, Labview
- Recording System: Still Picture and Movie
- Cooling System: Natural
Operating Environment:
- Operating Temperature: -10°C to 50°C
- Storage Temperature: -20°C to 60°C
- Operating Humidity: 30 to 80% RH
- Storage Humidity: 10 to 60% RH
Software Environment:
- Operating System: Support Microsoft Windows XP / Vista / 7 / 8 / 10 (32 & 64 bit), OS X (Mac OS X), Linux
- PC Requirement: CPU: Equal to Intel Core 2 2.8 GHz or Higher, 2GB or More Memory, USB2.0 High-speed Port, 17 inches or Larger Display, CD-ROM
