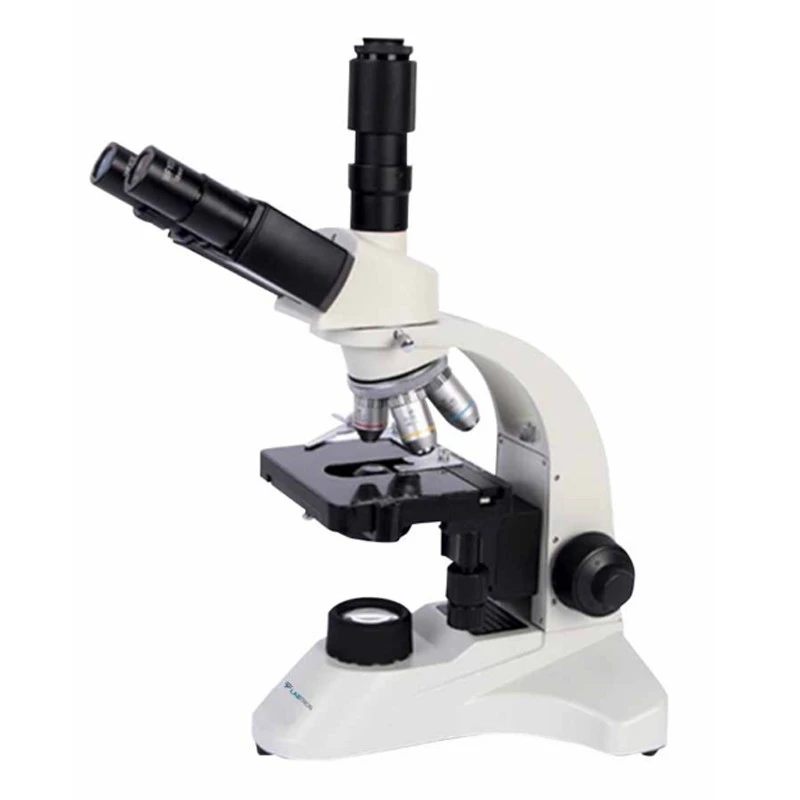

Labtron LBM-D12 Biological Microscope
Specifications
| Country of Origin | UK |
|---|---|
| Brand | Labtron |
| Power | External power supply (adapter) / AC100V–240V / DC 5V/2A |
| Voltage (V) | 220 V / 50 Hz |
| Frame rate | 2592 × 1944 3f/s / 1280 × 1024 15f/s / 640 × 480 30f/s |
| Model | LBM-D12 |
| Optical System | Finite Optical System |
| SOFTWARE | PHIMAS Image |
| Control | Brightness/contrast / hue/saturation / White balance / gain / acutance |
| Weight | 14 Kg |
| Type of Product | Microscope |
| Condenser | Abbe condenser N.A.1.25 / with iris diaphragm / and height adjustment knob |
| Illumination | 3W LED lamp / brightness adjustable |
| Magnification | 40X to 1600X |
| Objectives | 195 Achromatic objectives 4x / 10x / 40x (Spring) / 100x (Spring / oil) |
| Eyepiece | Wide field WF10X/18mm and Widefield WF16X/15mm |
| Viewing Head | Trinocular viewing head / 30° inclined / 360° rotation / interpupillary distance 48 to 75 mm |
| Nosepiece | Inward / Quadruple revolving nosepiece |
| Focusing System | Coaxial coarse & fine focusing knob / coarse focusing range 20 mm / fine focusing graduation 0.002 mm |
| Stage | Double layer mechanical stage size — 115 × 125 mm / range — 76 × 52 mm |
| Digital Camera Pixels | 5 million pixels |
| Camera Connect Mode | C-Mount |
| Signals Output | USB2.0 |
| Progressing Software Language | English / Catalan / French / German / Indonesian / Italian / Japanese / Korean / Polish / Russian / etc. |
| Image Sensor | 1/2.5" |
| Image Size | 2592 × 1944 |
| White Balance | Auto/manual |
| Camera Working Voltage (V) | ≤2.5W |
| Camera Power Consumption | ≤2.5W |
| Compatible | VISTA / WINDOWS 7 / WINDOWS 8 / WINDOWS 10 |
Key Features
- Double-layer mechanical stage
- Incorporated with abbe condenser
- Auto/manual white balance
- Adjustable coaxial coarse and fine-focusing knobs
- Furnished with inward-facing quadruple revolving nosepiece
Product Description
Biological Microscope LBM-D12 features a trinocular viewing head inclined at a 30° angle and offers full 360° rotation capability. It provides a magnification range from 40x to 1600x and is equipped with four high-quality achromatic objectives. Integrated with a digital camera that boasts a resolution of 5 million pixels. Our microscope includes PHIMAS Image Processing Software with multilingual support ensuring accessibility and user convenience.
Applications:
Used for microscopic examination across medical, tissue culture industries, gemology, metallurgy, as well as inspection of electrical boards and other components.
Optional Accessories:
- Upper Light Source
- Digital Eyepiece 2 MP
- Digital Eyepiece 3 MP
- Phone Adapter
- Digital Camera 3 MP for Trinocular
- Digital Camera 5 MP for Trinocular
