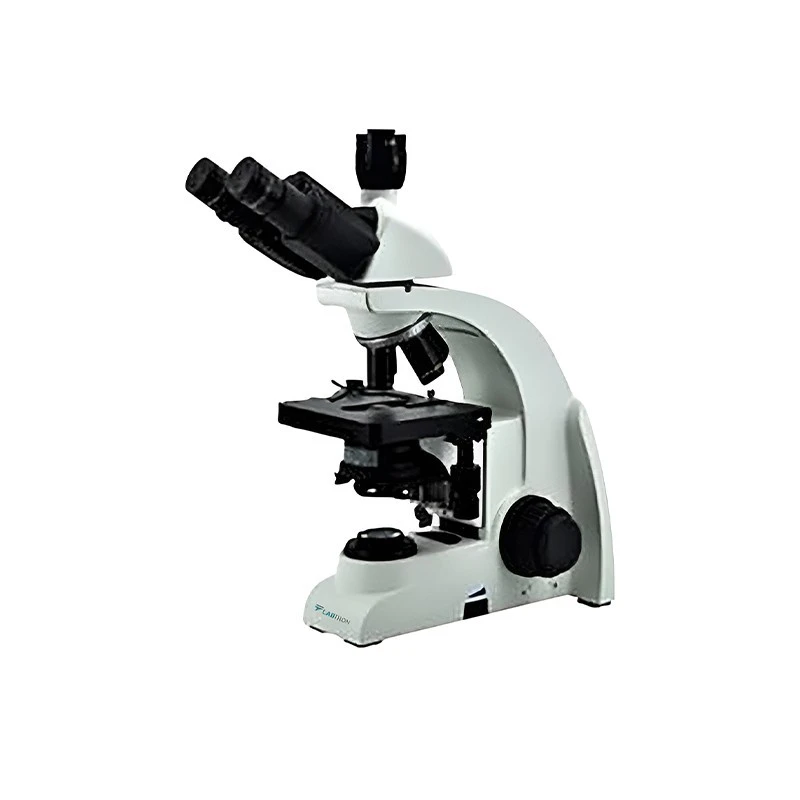

Labtron LBM-C20 Biological Microscope
Specifications
| Country of Origin | UK |
|---|---|
| Brand | Labtron |
| Net Weight | 6.7 kg |
| Dimensions | 480×470×280 mm |
| Model | LBM-C20 |
| Optical System | Infinity Optical System F equal to 200mm |
| Gross Weight | 9.1 kg |
| Type of Product | Microscope |
| Filter | Blue |
| Condenser | Swing type NA equal to 1.25 (O) with the Iris diaphragm |
| Illumination | 6 V 20 W Halogen Lamp / Adjustable |
| Focusing | Coarse and fine Knob / Division 0.001mm / Max — 20mm |
| Eyepiece | WF10X/20mm with the high point |
| Viewing Head | Trinocular Tube / 30° inclined / Interpupillary distance 52 to 75 mm / trinocular light is split 50/50 by a high quality prism (20/80 is optional) |
| Nosepiece | Quadruple Inward |
| Stage | Stage Size — 142×135 mm / Moving Range — 76×52 mm |
| Infinity Objective | Plan Achromatic 4X/0.10 / Plan Achromatic 10X/0.25 / Plan Achromatic 40X/0.65 / Plan Achromatic 100X/1.25 (S /O) |
| C-mount | 1X |
Key Features
- Infinity plan achromatic optical system
- Significant correction of chromatic aberrations and field curvature
- High numerical aperture objectives used to obtain clear images and minimize flare
- Light field, phase contrast, dark field, and polarizing observation mode accessories can be provided
- Observation from digital camera and computers is also possible
- Heat-sink design for long time working hours
- Includes handgrip for easier transportation
- Ring with blue filter is provided
Product Description
Biological Microscope LBM-C20 is a microscope having a trinocular head inclined at a 30° angle and 20 mm wide field. It features an infinity plan achromatic optical system for high-quality images. Accessories to observe in light field, phase contrast, dark field, and polarizing mode can be attached. It is widely used in universities, research institutes, and industries.
Applications:
It is used to view various living and non-living specimens in universities, research institutes, and industries.
